14,000 BTU 230V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Cooling Only
OLMO
Product specifications
| Brand | |
|---|---|
| Voltage | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days

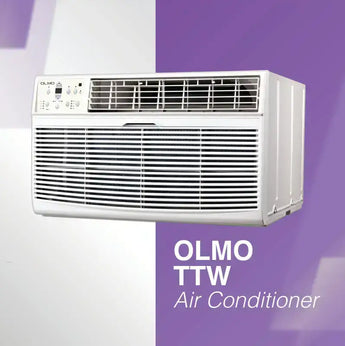

Through The Wall
The OLMO TTW (Through-the-Wall) unit is a versatile and efficient solution for heating and cooling in residential and commercial spaces. With a sleek, space-saving design, the TTW unit is installed directly into the wall, making it ideal for apartments, offices, and hotels where floor space is limited. These units combine powerful performance with quiet operation, offering year-round comfort through reliable heating and cooling functions. Designed for ease of installation and minimal maintenance, OLMO TTW units feature energy-efficient components that help reduce utility costs while maintaining optimal indoor climates.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information
Warranty terms: The manufacturer provides a Limited Warranty of 1 year for the compressor and 1 year for parts.
Warranty terms
Main Features
The OLMO TTW unit offers efficient heating and cooling in a compact, space-saving design. Ideal for apartments and offices, it features quiet operation, energy-efficient performance, and easy installation. With advanced filtration, user-friendly controls, and low maintenance, this unit ensures year-round comfort while reducing energy costs and enhancing indoor air quality.

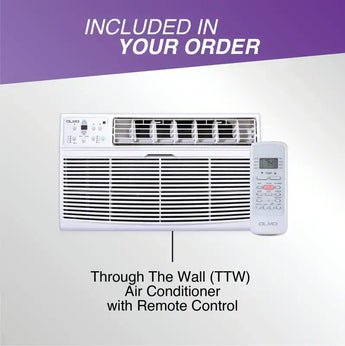

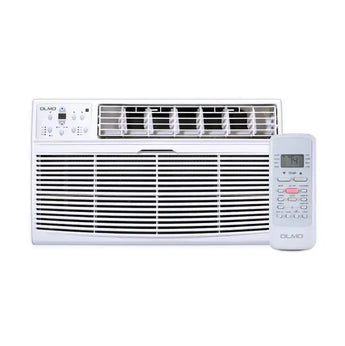

All Accessories Included
With the purchase of the OLMO TTW system, your complete package will include 1-TTW Unit and 1-Remote.
Technical Specifications
| Model | OW-P08AC115WF | OW-P08HS115WF | OW-P12AC115WF | OW-P12AC230WF | OW-P14AC230WF | OW-P12HS230WF | OW-P14HS230WF | |
|---|---|---|---|---|---|---|---|---|
| Power Supply | 115V-1Ph-60 | 115V-1Ph-60 | 115V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | |
| Cooling | Capacity | 8300 Btu/h | 8000 Btu/h | 12000 Btu/h | 12000/11700 Btu/h | 14000/13600 Btu/h | 12000/11700 Btu/h | 14000/13600 Btu/h |
| EER | 3.11 W/W | 3.13 W/W | 3.08 W/W | 3.08 W/W | 2.78 W/W | 2.98/2.95 W/W | 2.86/2.84 W/W | |
| CEER | 10.6 Btu/h/W | 9.6 Btu/h/W | 10.5 Btu/h/W | 10.5 Btu/h/W | 9.5 Btu/h/W | 9.5 Btu/h/W | 9.5 Btu/h/W | |
| Input | 760 W | 750 W | 1140 W | 1140/1110 W | 1400/1360 W | 1180/1160 W | 1430/1400 W | |
| Current | 7.8 A | 9.4 A | 11.3 A | 5.6/6.3 A | 7.0/7.7 A | 6.5/7.0 A | 7.9/8.5 A | |
| Standby Power | 1.25 W | 1.34 W | 1.25 W | 1.435 W | 1.435 W | 1.34 W | - | |
| Heating | Rated Capacity | - | 4200 Btu/h | - | - | - | 10600/8600 Btu/h | 10600/8600 Btu/h |
| Rated Input (Heater) | - | 1220 W | - | - | - | 3450/2821 W | 3450/2821 W | |
| Rated Current | - | 11 A | - | - | - | 15/13.5 A | 15.0/14.0 A | |
| Compressor | Type | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY |
| Rated Current (RLA) | 5.10 A | 5.10 A | 7.30 A | 4.18/3.85±3% A | 6.00/5.55±3% A | 4.18/3.85±3% A | 6.00/5.55±3% A | |
| Locked Rotor Amp (LRA) | 36 A | 36 A | 49 A | 28.5±10% A | 34.5±10% A | 28.5±10% A | 34.5±10% A | |
| Refrigerant Type | R32 | R32 | R32 | R32 | R32 | R32 | R32 | |
| Refrigerant Charge (oz) | 10.93 | 11.99 | 17.28 | 16.58 | 17.99 | 17.28 | 19.40 | |
| Indoor Air Flow (Hi/Mi/Lo) | 270.0/232.9/202.9 ft3/min | 258.8/227.1/192.4 ft3/min | 276.5/250.6/220.0 ft3/min | 274.7/259.4/237.1 ft3/min | 280.0/264.7/245.3 ft3/min | 273.5/251.8/230.6 ft3/min | 272.4/251.8/232.9 ft3/min | |
| Indoor Noise Level (Hi/Mi/Lo) | 55.6/52.4/49.5 dB(A) | 58.7/55.4/52 dB(A) | 59/56.8/55.3 dB(A) | 60.2/59/57.5 dB(A) | 60.5/59.5/58 dB(A) | 61.8/60/58 dB(A) | 62.3/61.2/59.8 dB(A) | |
| Outdoor Air Flow (Hi/Med/Lo) | 467.7/394.1/333.5 ft3/min | 424.7/360.6/296.5 ft3/min | 544.1/485.3/424.1 ft3/min | 532.9/497.1/452.9 ft3/min | 554.1/526.5/487.1 ft3/min | 451.2/408.8/366.5 ft3/min | 480.0/439.4/400.0 ft3/min | |
| Outdoor Side Noise Level (Hi/Med/Lo) | 63.6/59.4/55.9 dB(A) | 63.5/59.7/55.9 dB(A) | 68.7/65.3/62 dB(A) | 68.3/66.7/63.9 dB(A) | 69.9/68/65.9 dB(A) | 65.4/63.2/61.1 dB(A) | 69.8/67.2/64.8 dB(A) | |
| Power Cord Length | 7.02 ft | 5.58 ft | 7.02 ft | 6.50 ft | 6.50 ft | 5.58 ft | 5.58 ft | |
| Control Type | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | |
| Operation Temp | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | |
| Outdoor (cooling/heating) | 64-109 °F | 64-109/23-75 °F | 64-109 °F | 64-109 °F | 64-109 °F | 64-109/23-75 °F | 64-109/23-75 °F | |
| Dimension (WxDxH) | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | |
| Packing (WxDxH) | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | |
| Net/Gross Weight | 65.48/77.16 lbs | 66.80/77.16 lbs | 74.96/87.52 lbs | 74.52/86.86 lbs | 75.40/87.74 lbs | 74.96/85.76 lbs | 77.38/87.74 lbs | |
Multiple Control Methods
Olmo’s TTW Unit can be managed with a user-friendly remote control or the optional phone application. Both options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For optimal cooling, the Olmo 14,000 BTU unit is suitable for spaces up to approximately 600-800 sq ft, depending on room characteristics and climate. Consider this capacity when assessing your specific cooling needs.
Can I install a mini split myself?
While the Olmo 14,000 BTU mini split can be installed as a DIY project, professional installation is recommended to ensure proper setup and efficiency. The unit comes with installation kit options to aid in the process, but expertise is crucial for optimal performance.
Does the mini split come pre-charged with refrigerant?
Yes, the Olmo 14,000 BTU mini split is pre-charged with R32 refrigerant for installations with up to 25 ft of line set. This feature simplifies installation and ensures optimal performance right out of the box.

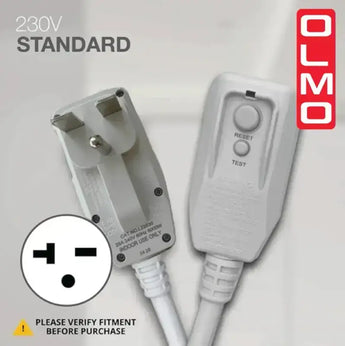

What voltage does the Olmo mini split require?
The Olmo 14,000 BTU mini split operates on 230V, making it compatible with standard residential electrical systems in many regions. Ensure your electrical setup can accommodate this voltage before installation.
What warranty does the Olmo mini split offer?
The Olmo 14,000 BTU unit comes with a 5-year parts and compressor warranty, providing peace of mind regarding potential repairs or replacements. This warranty reflects the brand's commitment to quality and customer satisfaction.
What is the SEER rating of the Olmo mini split?
The Olmo 14,000 BTU mini split boasts an impressive SEER rating of 21+, indicating high energy efficiency. This rating helps reduce energy costs while providing effective cooling for your space.
