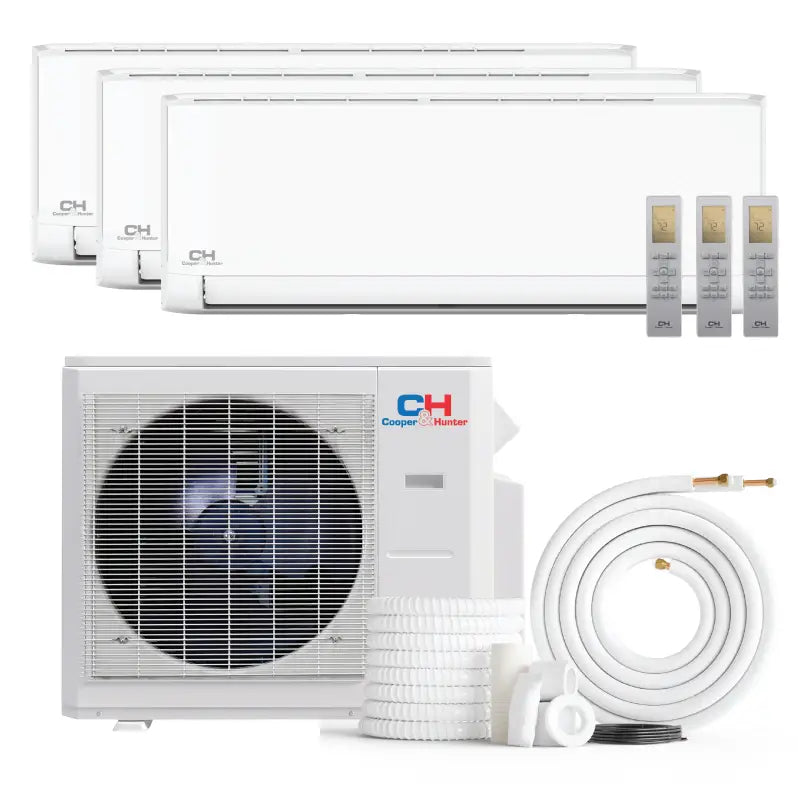

3 Zone 28,000 BTU OLIVIA Ductless Mini Split AC Wall Mounted 6k+12k+18k

R410A
White mini-split air conditioner from minisplits4less C&H Sophia Series swatch color type White mini-split air conditioner from minisplits4less C&H Sophia Series swatch color type
R410A
White air conditioning unit from minisplits4less C&H Sophia Series swatch color type White air conditioning unit from minisplits4less C&H Sophia Series swatch color type
R410A
White wall-mounted mini split from minisplits4less C&H Sophia Series in swatch color type White wall-mounted mini split from minisplits4less C&H Sophia Series in swatch color type
R410A
White mini-split air conditioner from minisplits4less C&H Sophia Series swatch color type White mini-split air conditioner from minisplits4less C&H Sophia Series swatch color type
R410A
Three-zone apartment floor plan for C&H Sophia Series minisplits4less AC system Three-zone apartment floor plan for C&H Sophia Series minisplits4less AC system
R410A
Drainage hose comparison for 3 Zone OLIVIA Minisplit AC from minisplits4less in C&H Sophia Series Drainage hose comparison for 3 Zone OLIVIA Minisplit AC from minisplits4less in C&H Sophia Series
R410A
Hand holding smartphone with thermostat app for 3 Zone OLIVIA minisplits4less C& H Sophia series Hand holding smartphone with thermostat app for 3 Zone OLIVIA minisplits4less C& H Sophia series
R410A
Mini-split AC system components for 3 Zone 28,000 BTU OLIVIA C&h Sophia series in swatch color type Mini-split AC system components for 3 Zone 28,000 BTU OLIVIA C&h Sophia series in swatch color type
R410A
Mini-split air conditioner from minisplits4less C&h Sophia Series in swatch color type Mini-split air conditioner from minisplits4less C&h Sophia Series in swatch color type
White mini-split air conditioner from minisplits4less C&H Sophia Series swatch color type
White air conditioning unit from minisplits4less C&H Sophia Series swatch color type
White wall-mounted mini split from minisplits4less C&H Sophia Series in swatch color type
White mini-split air conditioner from minisplits4less C&H Sophia Series swatch color type
Three-zone apartment floor plan for C&H Sophia Series minisplits4less AC system
Drainage hose comparison for 3 Zone OLIVIA Minisplit AC from minisplits4less in C&H Sophia Series
Hand holding smartphone with thermostat app for 3 Zone OLIVIA minisplits4less C& H Sophia series
Mini-split AC system components for 3 Zone 28,000 BTU OLIVIA C&h Sophia series in swatch color type
Mini-split air conditioner from minisplits4less C&h Sophia Series in swatch color type
Olivia Series Video
Inverter Technology

Cooper & Hunter

CH-28MES-230VO & CH-06MOLVWM-230VI & CH-12MOLVWM-230VI & CH-18MOLVWM-230VI
Product specifications
Brand Cooper & Hunter
Voltage 230V
SEER 23
WiFi Included
Zone Three Zone
Type Wall Mount
Freon R410A
Compressor Inverter
$3,203.00
Shipping calculated at checkout.
CONDENSER SIZE: Standard 28000 BTU

Pickup available at 3550 Northwest 113th Court

Usually ready in 2-4 days

CONDENSER SIZE
Discount Banner
Star
TrustScore 4.8

Olivia Wall Mount

The Cooper&Hunter Olivia Unit blends contemporary design with high-performance heating and cooling. Its sleek, modern appearance complements any space while providing efficient climate control for year-round comfort.

Featuring quiet operation, energy-saving technology, and advanced air filtration, it enhances indoor air quality. The unit is ideal for residential and light commercial applications, offering easy installation, minimal maintenance, and reliable performance.

Whether you're looking to cool or heat your space, the Olivia Midnight delivers optimal comfort with style and efficiency, making it a perfect choice for those seeking both function and elegance in their climate control solutions.

Warranty and Tech Support Info

By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.

Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.

Warranty terms

Energy Efficiency

Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.

Main Features

Cooper&Hunter's Olivia Units feature sleek, modern design with efficient heating and cooling capabilities. They offer quiet operation, energy-saving technology, and advanced air filtration for improved indoor air quality. Ideal for residential and light commercial use, these units provide easy installation, minimal maintenance, and reliable year-round comfort.

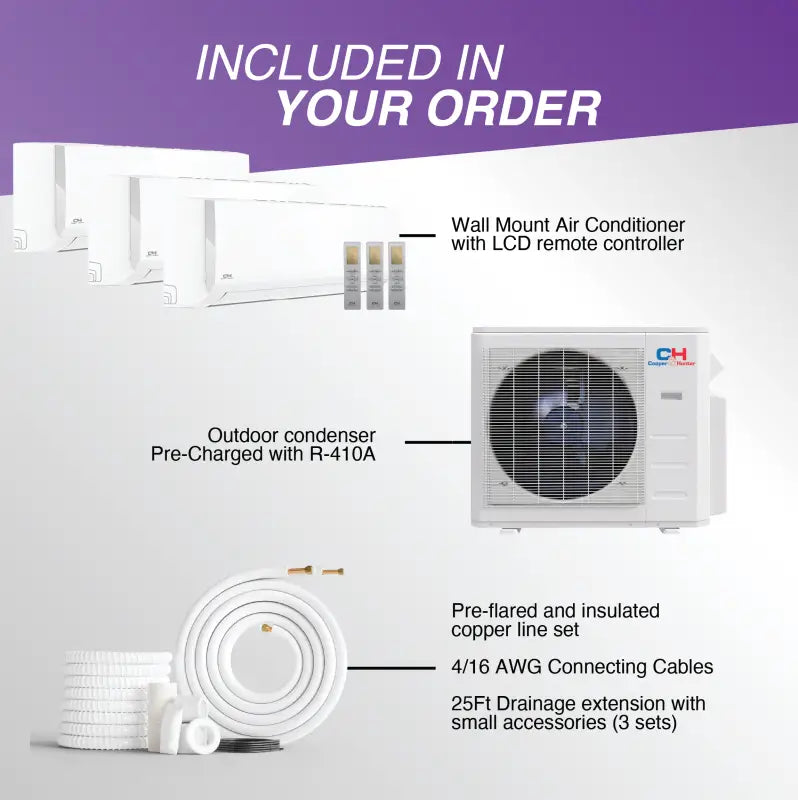

All Accessories Included

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.

Technical Specifications

INDOOR MODELS HYPER

Indoor Model CH-06MOLVWM-230WI CH-09MOLVWM-230WI CH-12MOLVWM-230WI CH-18MOLVWM-230WI CH-24MOLVWM-230WI
Power Supply Rated (V, Ph, Hz) 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60
Rated Capacity (Btu/h) 6,000 9,000 12,000 18,000 24,000
Minimum Circuit Ampacity (MCA) (A) 3 3 3 3 3
Max. Fuse (A) 15 15 15 15 15
Indoor Air Flow (Turbo/Hi/Mi/Lo) (CFM) 294/247/176/141 341/291/194/152 341/291/194/152 768/530/458/382 790/601/459/382
Indoor Noise Level (Hi/Mi/Lo) dB(A) 38.5/30/20.5 40/35/23.5 41.5/36/24 46/40/25 46.5/44/35
Dimension (WxDxH) (inch) 28.70x7.87x11.30 31.57x7.87x11.61 31.57x7.87x11.61 42.64x9.61x13.23 42.68x9.21x13.27
Packing (WxDxH) (inch) 31.10x10.83x14.76 34.45x11.22x14.96 34.45x11.22x14.96 45.47x16.34x12.40 45.47x16.34x12.40
Net/Gross Weight (lbs.) 17.64/22.49 18.96/24.25 18.74/24.25 29.54/37.48 29.98/38.14
Room Temperature Cooling (°F) 60 - 90 60 - 90 60 - 90 60 - 90 60 - 90
Room Temperature Heating (°F) 32 - 86 32 - 86 32 - 86 32 - 86 32 - 86
Liquid Side/Gas Side (inch) 1/4" / 3/8" 1/4" / 3/8" 1/4" / 1/2" 1/4" / 1/2" 3/8" / 5/8"

INDOOR MODELS REGULAR

Indoor Model CH-060LVWM-115VI CH-090LVWM-115WI CH-120LVWM-115WI CH-09MOLVWM-230VI CH-12MOLVWM-230WI CH-18MOLVWM-230WI CH-24MOLVWM-230WI
Power Supply Rated (V, Ph, Hz) 115V, 1, 60 115, 1, 60 115, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60
Rated Capacity (Btu/h) 7,000 9,000 12,000 9,000 12,000 18,000 24,000
Minimum Circuit Ampacity (MCA) (A) 3 3 3 3 3 3 3
Max. Fuse (A) 15 15 15 15 15 15 15
Indoor Air Flow (Turbo/Hi/Mi/Lo) (CFM) 341/300/241/176 341/300/241/176 341/300/241/176 291.18/194.12/152.94 341/291/194/152 768/530/458/382 790/601/459/382
Indoor Noise Level (Hi/Mi/Lo) dB(A) 41.5/36/24 41.5/36/24 41.5/36/24 40/34/23.5 42/36/25 45.5/41/24.5 48/40/28
Dimension (WxDxH) (inch) 31.57x7.87x11.61 31.57x7.87x11.61 31.57x7.87x11.61 31.57x7.87x11.61 31.57x7.87x11.61 42.64x9.61x13.23 42.68x9.21x13.27
Packing (WxDxH) (inch) 34.45x11.22x14.96 34.45x11.22x14.96 34.45x11.22x14.96 34.45x11.22x14.96 34.45x11.22x14.96 45.47x16.34x12.40 45.47x16.34x12.40
Net/Gross Weight (lbs.) 18.96/24.47 18.96/24.47 18.96/24.47 18.96/24.25 18.74/24.25 29.54/37.48 29.98/38.14
Room Temperature Cooling (°F) 60 - 90 60 - 90 60 - 90 60 - 90 60 - 90 60 - 90 60 - 90
Room Temperature Heating (°F) 32 - 86 32 - 86 32 - 86 32 - 86 32 - 86 32 - 86 32 - 86
Liquid Side/Gas Side (inch) 1/4" / 1/2" 1/4" / 1/2" 1/4" / 1/2" 1/4" / 3/8" 1/4" / 1/2" 1/4" / 1/2" 3/8" / 5/8"

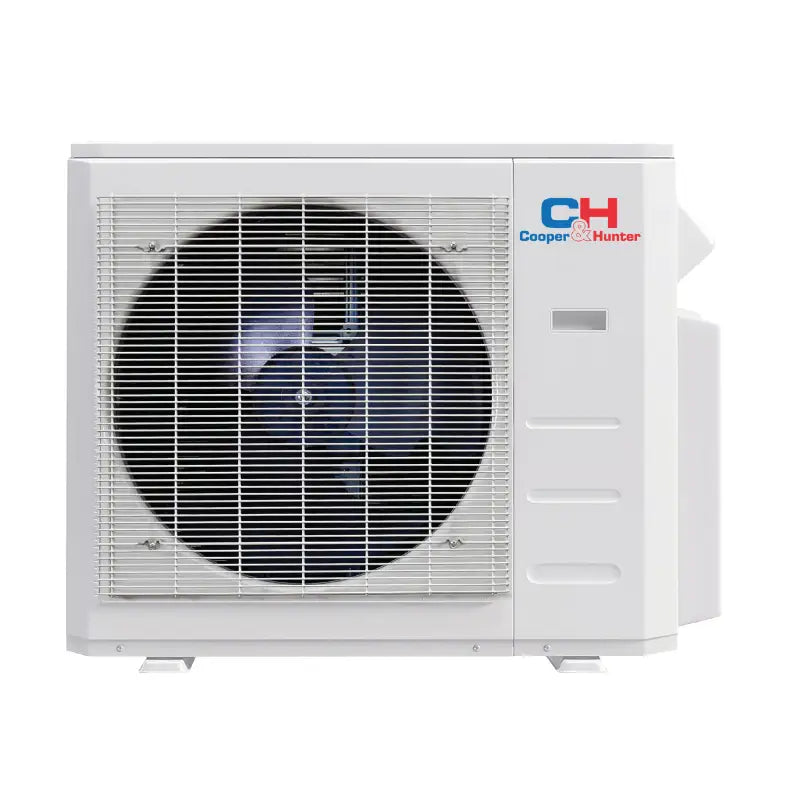

OUTDOOR MODELS REGULAR

Parameter ES-Series
CH-18MES-230V0 CH-28MES-230V0 CH-36MES-230V0 CH-48MES-230V0 CH-55MES-230V0
Power Supply (V, Ph, Hz) 208/230, 1, 60
Voltage Range (V) 187-253 187-253 187-253 187-253 187-253
Cooling Rated Capacity (Btu/h) 18,000(5,650~22,000) 28,000(9,838~30,438) 36,000(8,209~40,555) 48,000(19,000~50,000) 55,000(11,600-57,300)
Cooling Rated Current (A) 6.2 11 13.6 16.8 23.5
EER2 (Btu/h) 13.9 12.7 11.7 12.5 10.5
SEER2 (Btu/h) 22.9 24.6 23.9 23.4 21.3
Heating Rated Capacity (Btu/h) 19,000(5,050~24,400) 28,000(8,218-31,000) 37,000(8,008~44,632) 48,000(12,500~52,000) 55,000(12,500~63,000)
Heating Rated Current (A) 6.3 10.5 13 17.1 22.5
Heating at 47°F COP (W/W) 3.74 3.73 3.5 3.57 3.2
HSPF4 10.5 9.3 9.3 8.7 9.1
HSPF5 8 7.1 7.1 6.8 6.8
Heating at 5°F Rated Capacity (Btu/h) 12,600 19,000 25,200 33,000 32,200
Heating at 5°F COP (W/W) 2 2 1.8 1.8 1.8
Minimum Circuit Ampacity (Outdoor unit) (A) 18 24.5 25 40 40
Max. Fuse (Outdoor unit) (A) 25 30 40 60 60
Outdoor Air Flow (Max) (CFM) 1,765 2,129 2,147 4,500 4,500
Outdoor Noise Level (Sound Pressure) (dB(A)) 58 61 63 64 62
Dimension (WxDxH) (inch) 35.04x13.46x26.50 37.24x16.14x31.89 37.24x16.14x31.89 37.48x16.34x52.48 37.48x16.34x52.48
Packing (WxDxH) (inch) 40.55x17.24x29.53 42.91x19.69x34.84 42.91x19.69x34.84 43.11x19.49x58.27 43.11x19.49x58.27
Net/Gross Weight 100/109 140/151 169/181 226/257 224/257
Refrigerant Type/Charged (oz) R410A/65.26 R410A/91.7 R410A/134.04 R410A/162 R410A/162
Refrigerant Precharge (ft) 49 74 98 123 123
Additional Charge for Each (oz/ft) 0.16 0.16 0.16 - *0.32 0.16 - *0.32 0.16 - *0.32
Design Pressure (PSIG) 550/340 550/340 550/340 550/340 550/340
Refrigerant Piping Liquid Side (inch) 2 x 1/4" 3 x 1/4" 4 x 1/4" 5 x 1/4" 5 x 1/4"
Refrigerant Piping Gas Side (inch) 2 x 3/8" 3 x 3/8" 3 x 3/8" + 1 x 1/2" 3 x 3/8" + 2 x 1/2" 3 x 3/8" + 2 x 1/2"
Max. Pipe Length (ft) 131 197 262 262 262
Max. Length for One Indoor Unit (ft) 82 98 115 115 115
Max. Height Difference in Level (ft) 49 49 49 49 49
Max. Height Difference Between Indoor Units (ft) 33 33 33 33 33
Ambient Temperature Cooling (°F) 5~122 5~122 5-122 5-122 5~122
Ambient Temperature Heating (°F) -13~75 -13-75 -13~75 -13~75 -13~75
AHRI ✔ ✔
Energy Star ✔ ✔
NEEP ✔ ✔

OUTDOOR MODELS HYPER

Parameter CH-HPR19M-230V0 CH-HPR28M-230V0 CH-HPR36M-230V0 CH-HPR48M-230VO CH-HPR55M-230V0
Power Supply (V, Ph, Hz) 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60
Voltage Range (V) 187-253 187-253 187-253 187-253 187-253
Cooling Rated Capacity (Btu/h) 19,000 (5,500~-25,000) 28,000(7,995-32,826) 36,000(17,900~42,000) 48,000 (19,300-51,000) 55,000(11,600~58,000)
Cooling Rated Current (A) 9.1 12.4 11.8 18 23.5
EER2 (Btu/h) 12.5 12.5 13.6 11.7 10.5
SEER2 (Btu/h) 22 23 22.2 21.8 22
Heating Rated Capacity (Btu/h) 20,000(8,100~29,700) 28,000(5,035~38,712) 36,500(12,500~49,000) 49,000(11,500~58,000) 55,000(33,000~63,000)
Heating Rated Current (A) 9.4 10.5 12.2 17.8 22.5
Heating at 47°F COP (W/W) 3.4 3.66 3.9 3.8 3.05
HSPF4 9.8 10.6 10.3 9.8 9.3
HSPF5 7.7 8.1 8.3 7.6 7.3
Heating at 5°F Rated Capacity (Btu/h) 19,000 24,000 36,000 48,000 37,800
Heating at 5°F COP (W/W) 1.96 1.75 1.9 2 1.8
Minimum Circuit Ampacity (Outdoor unit) (A) 20 25 40 42 40
Max. Fuse (Outdoor unit) (A) 25 40 60 50 60
Outdoor Air Flow (Max) (CFM) 2,129 2,147 4,500 4,500 4,500
Outdoor Noise Level (Sound Pressure) (dB(A)) 61 63 63 65 62
Dimension (WxDxH) (inch) 37.24x16.14x31.89 37.24x16.14x31.89 37.48x16.34x52.48 37.48x16.34x52.48 37.48x16.34x52.48
Packing (WxDxH) (inch) 42.91x19.69x34.84 42.91x19.69x34.84 43.11x19.49x58.27 43.11x19.49x58.27 43.11x19.49x58.27
Net/Gross Weight 138/149 168/179 223/254 238/270 233/266
Refrigerant Type/Charged (oz) R410A/91.7 R410A/134.04 R410A/162 R410A/162 R410A/162
Refrigerant Precharge (ft) 49 74 98 123 123
Additional Charge for Each (oz/ft) 0.16 0.16 - *0.32 0.16 - *0.32 0.16 - *0.32 0.16 -*0.32
Design Pressure (PSIG) 550/340 550/340 550/340 550/340 550/340
Refrigerant Piping Liquid Side (inch) 2 x 1/4" 3 x 1/4" 4 x 1/4" 5 x 1/4" 5 x 1/4"
Refrigerant Piping Gas Side (inch) 2 x 3/8" 2 x 3/8" +1 x 1/2" 3 x 3/8" +1 x 1/2" 3 x 3/8" + 2 x 1/2" 3 x 3/8" +2 x 1/2"
Max. Pipe Length (ft) 131 197 262 262 262
Max. Length for One Indoor Unit (ft) 82 98 115 115 115
Max. Height Difference in Level (ft) 49 49 49 49 49.21
Max. Height Difference Between Indoor Units (ft) 33 33 33 33 33
Ambient Temperature Cooling (°F) 5~122 5~122 5~122 5~122 5~122
Ambient Temperature Heating (°F) -22~75 -22~75 -22~75 -22~75 -22~75

Multiple Control Methods

Cooper&Hunter’s Olivia Midnight Unit can be managed with a user-friendly remote control or the Cooper&Hunter optional phone application. Both options offer precise temperature adjustments and optimal climate control for ultimate convenience.
