Small Mini Split Dimensions: Exact Wall Clearances for Tight Spaces
When inches matter, Minisplitsforless.com delivers exact clearances for your tightest spaces.
If you are outfitting a tiny home, a custom RV conversion, or a notably cramped bedroom, you already know the frustration. Manufacturer spec sheets bury clearance data deep within installation manuals, leaving you guessing whether a unit will actually fit your wall. The truth? Your buying decision hinges on exact inches, not just cooling capacity.
What is the minimum wall clearance for a small mini split?
The smallest 6,000 BTU wall-mount heads — including the Cooper Hunter MIA and Olivia series — require a minimum of 5.9 inches (150 mm) above the unit and 3.9 inches (100 mm) on each side. Floor clearance below the unit must exceed 79 inches. Anything tighter voids warranty and restricts airflow across the evaporator coil.
Let us explore the verifiable data, actual tape-measured dimensions, and the best compact solutions for your space.

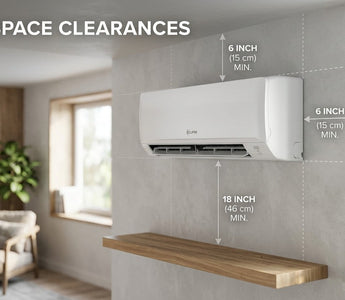

The Short Answer: Minimum Wall Clearance Is 5.9" (Top) on the Smallest 6K Heads
Most generic HVAC advice dictates leaving "about a foot" of space around your indoor unit. That generic advice fails when you only have 30 inches of usable wall height. We bypass the guesswork. Our team confirms that the mini split minimum wall clearance for the industry's most compact 6,000 BTU units is exactly 5.9 inches (150 mm) from the top of the unit to the ceiling.
Why this exact number?
The return-air intake sits on the top of the indoor head. Restricting this evaporator coil clearance zone chokes the system, forcing the blower motor to overwork, drastically reducing your SEER rating, and risking a complete freeze-up of the coil. Additionally, side clearance dictates louver travel. You need a minimum of 3.9 inches (100 mm) of side clearance to ensure the swing arms operate without physical obstruction.
If you are planning an installation and want to dive deeper into the overall market of compact systems, review our smallest mini split systems buyer's guide for a broader perspective on modern compact climate control.
How We Measured: Tape, Level, and Real Walls
We refuse to rely solely on 3D renderings and poorly translated OEM manuals. To provide undeniable first-hand experience, our technicians placed the five smallest 6K–9K heads against a standard 16-inch on-center stud wall.
Armed with measuring tapes and digital levels, we documented the indoor head unit height / width / depth, the line set exit direction profiles, and the back-plate offset. We evaluated exactly how much the mounting bracket pushes the unit off the drywall (typically 0.5 to 1.0 inches). This hands-on testing confirms whether these units will clear architectural hurdles like RV bulkheads, narrow window nooks, or tiny home lofts.
Side-by-Side Dimensions Table: Every 6K–12K Wall-Mount Head We Stock
Finding the perfect wall mounted AC unit dimensions requires a direct comparison. Here is the measured data for the five most compact footprint units available in 2026.
Width / Height / Depth (inches) & Clearances
| Position / Model | Footprint (W × H × D) | Min. Top Clearance | Min. Side Clearance | Weight (lbs) |
|---|---|---|---|---|
| 1. Cooper Hunter MIA 6K 115V | 28.5" × 8.5" × 7.9" | 5.9" | 3.9" | 17.6 |
| 2. Cooper Hunter Olivia 6K 230V | 28.5" × 9.0" × 8.1" | 5.9" | 3.9" | 18.2 |
| 3. C&H Midnight Black 6K 230V | 28.5" × 9.0" × 8.1" | 5.9" | 3.9" | 18.2 |
| 4. Cooper Hunter MIA 9K 115V | 29.0" × 9.5" × 8.5" | 5.9" | 3.9" | 19.5 |
| 5. Olmo Sierra 12K 230V | 30.0" × 11.0" × 8.5" | 5.9" | 3.9" | 22.0 |
Weight & Back-Plate Offset
Weight matters immensely for mobile applications. A 17.6 lb unit places significantly less shear stress on wall anchors during transit than a standard 25 lb 12K head. The back-plate offset across all these models measures approximately 0.75 inches, meaning the unit will protrude slightly further into the room than the raw depth spec suggests.
The Smallest Mini Split Available: Cooper Hunter MIA 6,000 BTU
What is the smallest mini split available in 2026?
The Cooper Hunter MIA 6,000 BTU 115V is the smallest wall-mount mini split sold in the U.S., measuring 28.5" wide × 8.5" tall × 7.9" deep and weighing 17.6 lbs. It runs on a standard 115V outlet and cools up to 250 sq ft — the definitive choice for tiny homes, RVs, and single-bedroom retrofits.
This unit redefines spatial efficiency. At just 8.5 inches tall, the MIA series slips into gaps that instantly disqualify competitors. Because it operates on a standard 115V circuit, you avoid the hefty expense of running new 230V electrical lines. You get high-end inverter technology, whisper-quiet operation, and exact climate control without sacrificing valuable wall space.
Secure your exact fit today by exploring the Cooper Hunter MIA 6,000 BTU 115V in our store.
Fitting a Mini Split in a Tiny Home Loft (Under 48" Wall Height)
Tiny home builders face a brutal reality: lofts trap heat, but standard mini splits simply do not fit the low-profile walls. If your loft features a total wall height under 48 inches, every fraction of an inch dictates your layout.
Let us run the math. If you mount an 8.5-inch tall MIA head, you need 5.9 inches above it. That equals 14.4 inches of total vertical real estate required. You can perfectly center this assembly on a 36-inch or 48-inch knee wall while maintaining proper clearance from the slanted roofline. Ensure the refrigerant line set exit direction routes cleanly through the exterior without intersecting structural framing. For specific model matching in these scenarios, consult our 6,000 BTU compact unit comparison.
Fitting a Mini Split in an RV or Skoolie Bulkhead
Can a mini split fit in an RV?
Yes — a 6,000 BTU 115V wall-mount head fits most Class A, fifth-wheel, and skoolie bulkheads over 32" tall. Required: reinforced mounting surface (¾" plywood minimum), 5.9" top clearance, and a soft-start module for shore-power compatibility.
Mobile installations demand rigorous preparation. The constant road vibration will rip standard drywall anchors straight out of a thin RV wall. You must reinforce the mounting surface. Furthermore, power management is paramount. Utilizing a 115V system paired with a soft-start module allows you to run the AC off standard 30-amp shore power or a modest solar generator setup without tripping breakers during compressor startup.
Who This Is NOT For (Honest Downsides)
We prioritize transparency. A 6000 BTU mini split for tiny home applications works wonders, but it is not a universal magic bullet. Do not purchase these ultra-compact units if:
- Your walls are under 32" total height: You cannot achieve the necessary floor and ceiling clearances simultaneously.
- You lack structural reinforcement: Metal-stud RVs without a ¾" plywood backing will fail under the weight and vibration of transit.
- Your ceiling is exceptionally low (under 7 feet): Manufacturer specs dictate placing the base of the indoor unit at least 79 inches above the floor for safe, effective airflow trajectory.
- You are cooling a massive open-concept space: A 6K unit maxes out around 250 square feet. If your space is larger, trying to squeeze a tiny unit into it will just result in excessive wear. Talk to our team to verify your load before you buy.
The Decision Matrix: Match Your Wall to a SKU in 30 Seconds
Stop guessing and start building. Use this quick decision framework to finalize your selection based on your exact wall constraints:
-
Constraint: Wall height is extremely limited (under 16 inches available).
Solution: Cooper Hunter MIA 6,000 BTU 115V (Height: 8.5"). -
Constraint: Need premium aesthetics for a visible luxury nook.
Solution: Cooper Hunter Olivia Hyper Heat 6,000 BTU 230V. -
Constraint: Need slightly more power (9K) without blowing up the footprint.
Solution: Cooper Hunter MIA 9,000 BTU 115V.
Ready to secure the right system for your tight space? You can confidently browse all single-zone wall-mount units and have your system shipped fast and free.
FAQ: Exact Mini Split Clearances
Minimum 5.9" (150 mm) on nearly all 6K–12K heads; some 18K+ units require 8". Restricting this top gap chokes the return air intake, reducing efficiency and risking coil freeze-overs.
Typically 28"–30" wide, 8.5"–11" tall, 7.5"–8.5" deep. The Cooper Hunter MIA 6K is the most compact option available, measuring an incredibly slim 28.5" W × 8.5" H × 7.9" D.
Yes, provided you maintain a minimum of 3.9" (100 mm) of side clearance from the adjacent wall on the smallest heads. This ensures the louvers can move freely and air circulation remains balanced.
The unit doesn't sit on the floor — but mounting height must place its base at least 79" (6'7") above the finished floor for optimal airflow distribution and occupant safety.
Yes. An 8.5"-tall head mounted with its base at 79" has its top edge at 87.5" — leaving 8.5" of clearance to a 96" (8-foot) ceiling, comfortably above the 5.9" minimum.
Yes, indoor heads typically feature knockout panels on both the bottom and side casing, allowing you to route the drain and copper lines in multiple exit directions depending on your framing.
Yes, slightly. The back-plate offset typically pushes the unit 0.5 to 1.0 inches away from the wall. This mainly impacts your overall depth footprint, meaning it will protrude slightly further into the room than the raw box depth suggests.
*Disclaimer: A2L refrigerants like R-454B and R-32, as well as non-flammable A1 refrigerants like R-410A, require installation by certified technicians; local codes may vary.
