Cooper & Hunter 1/4"-3/8" Installation Kit for Ductless Mini Split, Insulated Pre-Flared Copper 16ft/25ft/50ft with Data Wires | 16FT
Cooper & Hunter
PJX-N1-16MAX
Product specifications
$181.00
/
Shipping Policy calculated at checkout.
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days

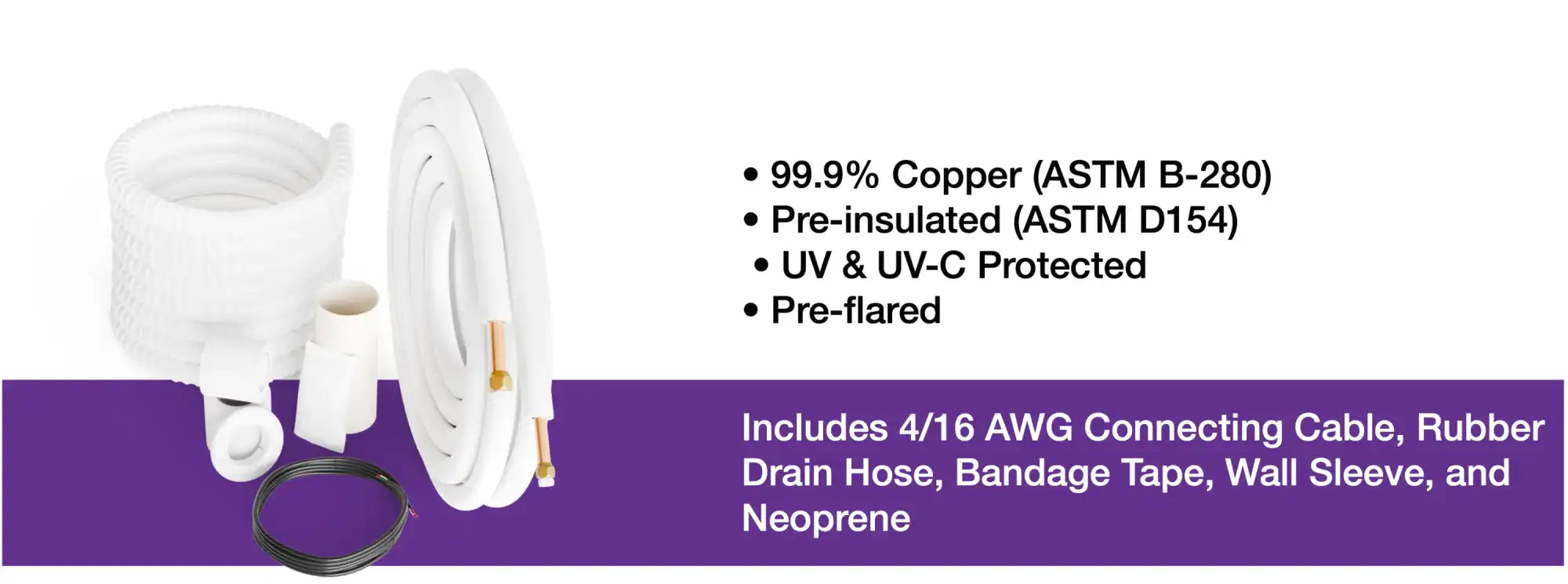

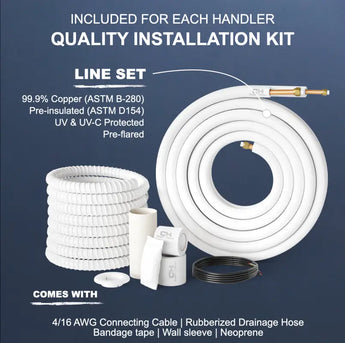

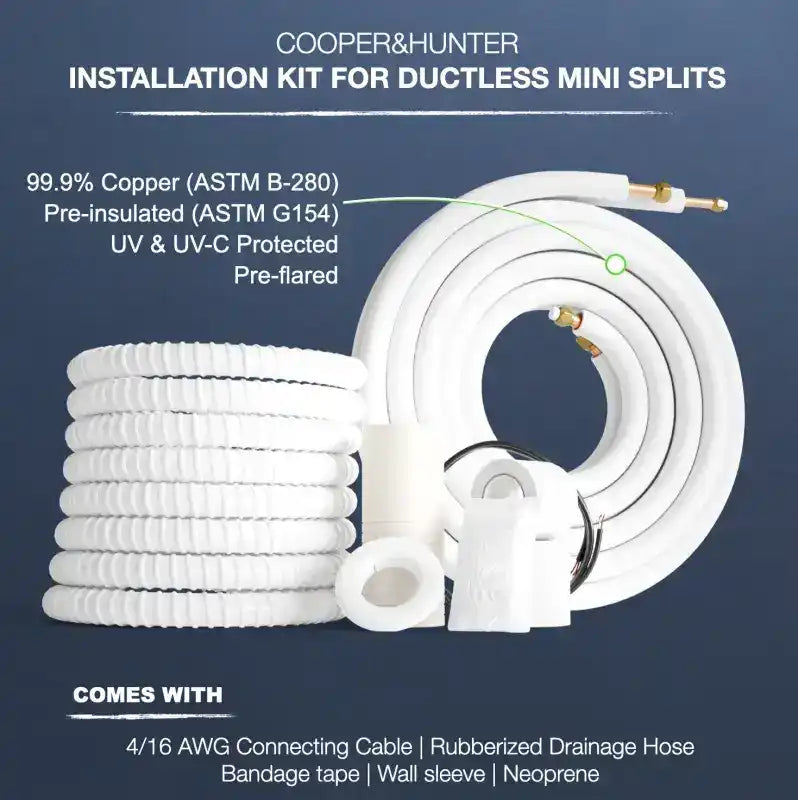

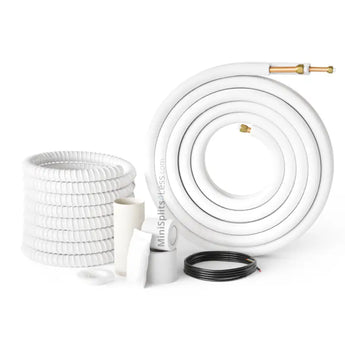

Installation Kit
Our bundled installation kit offers ease and convenience for HVAC technicians while providing a long-lasting, quality product that customers will not have to replace.
Technical Specifications

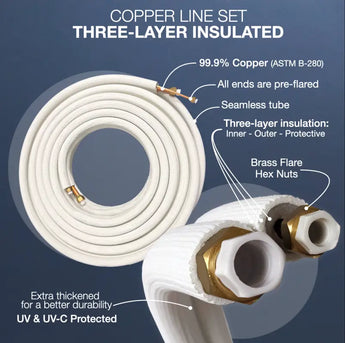

Line Set Specifications
| Line Set Model 9mm | Line Set Model 13mm | Line Set Diameter (Liquid/Gas Side)* | Pipe Insulation Thickness & Rating | Copper Line Length | 4/16 AWG Cable | Rubber Drain Hose |
|---|---|---|---|---|---|---|
| PJX-N1-C16FTW-MAX | PJX-N1-C16FTW-MAX-I05 | 1/4"-3/8" | 3/8", R-2.5 | 16 FT | 18 FT | 16 FT |
| PJX-N1-C25FTW-MAX | PJX-N1-C25FTW-MAX-I05 | 1/4"-3/8" | 3/8", R-2.5 | 25 FT | 29.5 FT | 16 FT |
| PJX-N1-C50FTW-MAX | PJX-N1-C50FTW-MAX-I05 | 1/4"-3/8" | 3/8", R-2.5 | 50 FT | 55.8 FT | 16 FT |
| PJX-N2-C16FTW-MAX | PJX-N2-C16FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 16 FT | 18 FT | 16 FT |
| PJX-N2-C25FTW-MAX | PJX-N2-C25FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT |
| PJX-N2-C50FTW-MAX | PJX-N2-C50FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT |
| PJX-N3-C16FTW-MAX | PJX-N3-C16FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 16 FT | 18 FT | 16 FT |
| PJX-N3-C25FTW-MAX | PJX-N3-C25FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT |
| PJX-N3-C50FTW-MAX | PJX-N3-C50FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT |
| PJX-N4-C16FTW-MAX | PJX-N4-C16FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 16 FT | 18 FT | 16 FT |
| PJX-N4-C25FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT | |
| PJX-N4-C50FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT | |
| PJX-N6-C25FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT | |
| PJX-N6-C50FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT |
*Note: Some of our light commercial units have adapters for the line sets.
Indoor Unit Capacities
| Line Set Model 9mm | Line Set Model 13mm | Wall Mount | Duct | Ceiling Cassette | Mini Console | Universal Floor Ceiling | Air Handler | One-Way Cassette |
|---|---|---|---|---|---|---|---|---|
| PJX-N1-C16FTW-MAX PJX-N1-C25FTW-MAX PJX-N1-C50FTW-MAX |
PJX-N1-C16FTW-MAX-i05 PJX-N1-C25FTW-MAX-i05 PJX-N1-C50FTW-MAX-i05 |
6K Btu/h 9K Btu/h - 230V |
9K Btu/h |
9K Btu/h |
6K Btu/h 9K Btu/h |
|||
| PJX-N2-C16FTW-MAX PJX-N2-C25FTW-MAX PJX-N2-C50FTW-MAX |
PJX-N2-C16FTW-MAX-i05 PJX-N2-C25FTW-MAX-i05 PJX-N2-C50FTW-MAX-i05 |
9K Btu/h - 115V 12K Btu/h 18K Btu/h |
12K Btu/h 18K Btu/h |
12K Btu/h 18K Btu/h |
12K Btu/h 16K Btu/h |
18K Btu/h |
18K Btu/h |
12K Btu/h 18K Btu/h |
| PJX-N3-C16FTW-MAX PJX-N3-C25FTW-MAX PJX-N3-C50FTW-MAX |
PJX-N3-C16FTW-MAX-i05 PJX-N3-C25FTW-MAX-i05 PJX-N3-C50FTW-MAX-i05 |
24K Btu/h 30K Btu/h 36K Btu/h |
24K Btu/h 36K Btu/h 48K Btu/h |
24K Btu/h 36K Btu/h 48K Btu/h |
24K Btu/h 36K Btu/h 48K Btu/h |
24K Btu/h 36K Btu/h 48K Btu/h |
||
| PJX-N4-C25FTW-MAX PJX-N4-C50FTW-MAX |
48K Btu/h 60K Btu/h |
60K Btu/h |
||||||
| PJX-N6-C25FTW-MAX PJX-N6-C50FTW-MAX |
48K Btu/h |
60K Btu/h |
*Note: For the Olivia Wall Mount Series, the following exceptions apply: CH-060LVWM-115VI and CH-090LVWM-115VI, please refer to "N2" | CH-09MOLVWM-230VI and CH-090LWM-115VI, please refer to "N1"
