12,000 BTU 230V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Cooling Only
OLMO
Product specifications
| Brand | |
|---|---|
| Voltage | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Through The Wall
The OLMO TTW (Through-the-Wall) unit is a versatile and efficient solution for heating and cooling in residential and commercial spaces. With a sleek, space-saving design, the TTW unit is installed directly into the wall, making it ideal for apartments, offices, and hotels where floor space is limited. These units combine powerful performance with quiet operation, offering year-round comfort through reliable heating and cooling functions. Designed for ease of installation and minimal maintenance, OLMO TTW units feature energy-efficient components that help reduce utility costs while maintaining optimal indoor climates.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information
Warranty terms: The manufacturer provides a Limited Warranty of 1 year for the compressor and 1 year for parts.
Warranty terms
Main Features
The OLMO TTW unit offers efficient heating and cooling in a compact, space-saving design. Ideal for apartments and offices, it features quiet operation, energy-efficient performance, and easy installation. With advanced filtration, user-friendly controls, and low maintenance, this unit ensures year-round comfort while reducing energy costs and enhancing indoor air quality.
All Accessories Included

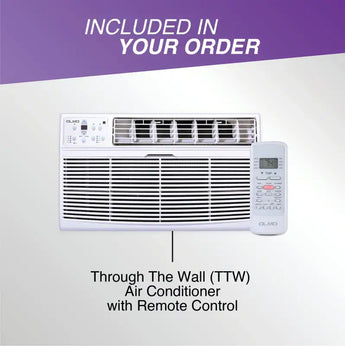

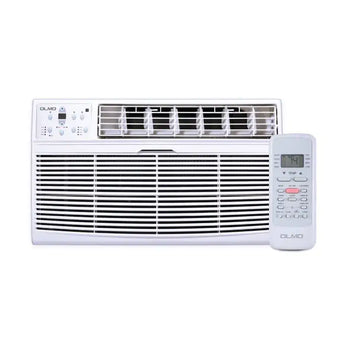

With the purchase of the OLMO TTW system, your complete package will include 1-TTW Unit and 1-Remote.
Technical Specifications
| Model | OW-P08AC115WF | OW-P08HS115WF | OW-P12AC115WF | OW-P12AC230WF | OW-P14AC230WF | OW-P12HS230WF | OW-P14HS230WF | |
|---|---|---|---|---|---|---|---|---|
| Power Supply | 115V-1Ph-60 | 115V-1Ph-60 | 115V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | |
| Cooling | Capacity | 8300 Btu/h | 8000 Btu/h | 12000 Btu/h | 12000/11700 Btu/h | 14000/13600 Btu/h | 12000/11700 Btu/h | 14000/13600 Btu/h |
| EER | 3.11 W/W | 3.13 W/W | 3.08 W/W | 3.08 W/W | 2.78 W/W | 2.98/2.95 W/W | 2.86/2.84 W/W | |
| CEER | 10.6 Btu/h/W | 9.6 Btu/h/W | 10.5 Btu/h/W | 10.5 Btu/h/W | 9.5 Btu/h/W | 9.5 Btu/h/W | 9.5 Btu/h/W | |
| Input | 760 W | 750 W | 1140 W | 1140/1110 W | 1400/1360 W | 1180/1160 W | 1430/1400 W | |
| Current | 7.8 A | 9.4 A | 11.3 A | 5.6/6.3 A | 7.0/7.7 A | 6.5/7.0 A | 7.9/8.5 A | |
| Standby Power | 1.25 W | 1.34 W | 1.25 W | 1.435 W | 1.435 W | 1.34 W | - | |
| Heating | Rated Capacity | - | 4200 Btu/h | - | - | - | 10600/8600 Btu/h | 10600/8600 Btu/h |
| Rated Input (Heater) | - | 1220 W | - | - | - | 3450/2821 W | 3450/2821 W | |
| Rated Current | - | 11 A | - | - | - | 15/13.5 A | 15.0/14.0 A | |
| Compressor | Type | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY |
| Rated Current (RLA) | 5.10 A | 5.10 A | 7.30 A | 4.18/3.85±3% A | 6.00/5.55±3% A | 4.18/3.85±3% A | 6.00/5.55±3% A | |
| Locked Rotor Amp (LRA) | 36 A | 36 A | 49 A | 28.5±10% A | 34.5±10% A | 28.5±10% A | 34.5±10% A | |
| Refrigerant Type | R32 | R32 | R32 | R32 | R32 | R32 | R32 | |
| Refrigerant Charge (oz) | 10.93 | 11.99 | 17.28 | 16.58 | 17.99 | 17.28 | 19.40 | |
| Indoor Air Flow (Hi/Mi/Lo) | 270.0/232.9/202.9 ft3/min | 258.8/227.1/192.4 ft3/min | 276.5/250.6/220.0 ft3/min | 274.7/259.4/237.1 ft3/min | 280.0/264.7/245.3 ft3/min | 273.5/251.8/230.6 ft3/min | 272.4/251.8/232.9 ft3/min | |
| Indoor Noise Level (Hi/Mi/Lo) | 55.6/52.4/49.5 dB(A) | 58.7/55.4/52 dB(A) | 59/56.8/55.3 dB(A) | 60.2/59/57.5 dB(A) | 60.5/59.5/58 dB(A) | 61.8/60/58 dB(A) | 62.3/61.2/59.8 dB(A) | |
| Outdoor Air Flow (Hi/Med/Lo) | 467.7/394.1/333.5 ft3/min | 424.7/360.6/296.5 ft3/min | 544.1/485.3/424.1 ft3/min | 532.9/497.1/452.9 ft3/min | 554.1/526.5/487.1 ft3/min | 451.2/408.8/366.5 ft3/min | 480.0/439.4/400.0 ft3/min | |
| Outdoor Side Noise Level (Hi/Med/Lo) | 63.6/59.4/55.9 dB(A) | 63.5/59.7/55.9 dB(A) | 68.7/65.3/62 dB(A) | 68.3/66.7/63.9 dB(A) | 69.9/68/65.9 dB(A) | 65.4/63.2/61.1 dB(A) | 69.8/67.2/64.8 dB(A) | |
| Power Cord Length | 7.02 ft | 5.58 ft | 7.02 ft | 6.50 ft | 6.50 ft | 5.58 ft | 5.58 ft | |
| Control Type | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | |
| Operation Temp | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | |
| Outdoor (cooling/heating) | 64-109 °F | 64-109/23-75 °F | 64-109 °F | 64-109 °F | 64-109 °F | 64-109/23-75 °F | 64-109/23-75 °F | |
| Dimension (WxDxH) | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | |
| Packing (WxDxH) | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | |
| Net/Gross Weight | 65.48/77.16 lbs | 66.80/77.16 lbs | 74.96/87.52 lbs | 74.52/86.86 lbs | 75.40/87.74 lbs | 74.96/85.76 lbs | 77.38/87.74 lbs | |
Multiple Control Methods

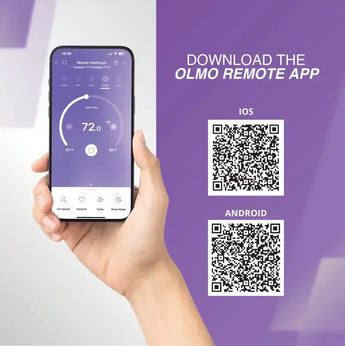

Olmo’s TTW Unit can be managed with a user-friendly remote control or the optional phone application. Both options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For spaces up to 550 sq ft, the Olmo 12,000 BTU Through-the-Wall Air Conditioner is ideal. Its cooling capacity ensures optimal comfort in medium-sized rooms.
Can I install a mini split myself?
While DIY installation is possible with the Olmo mini split, it requires some technical skills, especially for electrical connections and mounting. Ensure you have the right tools and consider purchasing an installation kit if you need assistance.
Does the mini split come pre-charged with refrigerant?
Yes, the Olmo mini split is pre-charged with R32 refrigerant for up to 25 ft of line set, simplifying the installation process. Just follow the installation guidelines to ensure optimal performance.
What voltage does the Olmo mini split require?
The Olmo 12,000 BTU unit operates at 230V, making it suitable for standard residential electrical systems. Ensure your power supply matches this requirement for safe operation.
What warranty does the Olmo air conditioner offer?
The Olmo mini split comes with a solid 5-year parts and compressor warranty, providing peace of mind for your investment. This coverage ensures you are protected against manufacturing defects.
What is the SEER rating of the Olmo mini split and why is it important?
The Olmo 12,000 BTU model boasts a SEER rating of 21+, indicating high energy efficiency. A higher SEER rating translates to lower energy costs and better environmental impact, making it a smart choice for cooling.
