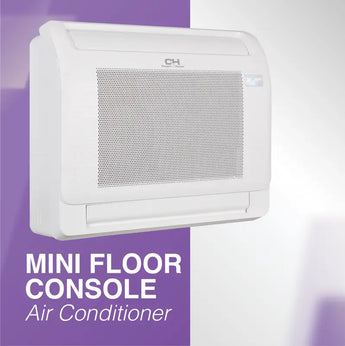

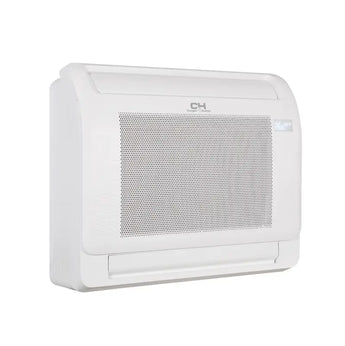

Cooper&Hunter's Mini Floor Console is the perfect blend of style, efficiency, and advanced technology, designed to elevate your comfort while seamlessly integrating into any space. Compact yet powerful, this unit is an exceptional solution for both heating and cooling needs in residential or commercial settings.
It features advanced airflow control, allowing for optimal temperature distribution, and operates with whisper-quiet performance, ensuring a peaceful environment.
Engineered with energy-saving technology, the Mini Floor Console provides cost-effective and eco-friendly climate control. Its durable construction, paired with a sleek, modern design, makes it a versatile addition to any interior.
Ideal for spaces where wall-mounted units aren't an option, this console offers flexibility without compromising on efficiency or aesthetics. Trust Cooper&Hunter's Mini Floor Console to deliver reliable performance, consistent comfort, and effortless elegance.
Warranty and Tech Support Info
By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.
Main Features
Cooper&Hunter's Mini Floor Console features advanced airflow control for optimal temperature distribution, energy-saving technology for eco-friendly operation, and whisper-quiet performance for a peaceful environment. Compact and versatile, it integrates seamlessly into any space, offering durable construction, modern design, and reliable heating and cooling for both residential and commercial needs.
All Accessories Included

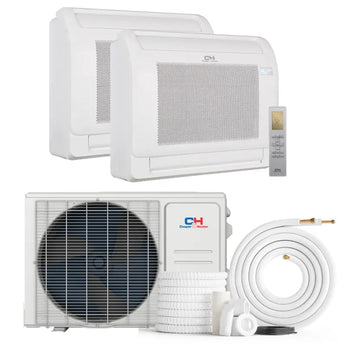

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
Indoor model
CH-RSH09MMC
CH-RSH12MMC
CH-RSH16MMC
Power Supply - Rated (V, Ph, Hz)
208/230,1,60
208/230,1,60
208/230,1,60
Rated Capacity - Cooling (Btu/h)
9,000
12,000
16,000
Rated Capacity - Heating (Btu/h)
9,000
12,000
17,000
Minimum Circuit Ampacity (MCA) (A)
3
3
3
Max. Fuse (A)
15
15
15
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) (CFM)
441.4/376.7/323.7/188.4/129.5
441.4/376.7/323.7/188.4/129.5
500.3/441.4/382.6/323.7/206.0
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) (dB(A))
45/41.0/37.5/25.5/22
44/40.5/37.0/26.5/24
47/43.5/40.5/30.5/25.5
Dimension (W×D×H) (inch)
31.26×7.87×24.45
31.26×7.87×24.45
31.26×7.87×24.45
Packing (W×D×H) (inch)
34.06×11.02×28.31
34.06×11.02×28.31
34.06×11.02×28.31
Net/Gross Weight (lbs.)
32.85/41.89
32.85/41.89
32.85/41.89
Room Temperature - Cooling (°F)
60~90
60~90
60~90
Room Temperature - Heating (°F)
32~86
32~86
32~86
Refrigerant Piping (Liquid Side/Gas Side) (inch)
1/4”/3/8”
1/4”/3/8”
1/4”/1/2”

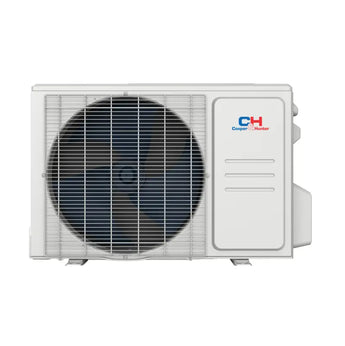

Outdoor Regular
Specification
CH-R18MES-230VO
CH-R28MES-230VO
CH-R36MES-230VO
CH-R48MES-230VO
CH-R60MES-230VO
Power Supply (V, Ph, Hz)
208/230, 1, 60
208/230, 1, 60
208/230, 1, 60
208/230, 1, 60
208/230, 1, 60
Voltage Range (V)
187-253
187-253
187-253
187-253
187-253
Cooling Rated Capacity (range) (Btu/h)
5,400~21,600
7,200~32,000
9,000~42,000
12,000~55,000
19,000~62,000
Cooling Rated Current (A)
6
9.2
13.5
16.6
26.2
EER2
14
13
12
12.5
10
SEER2
25.1
25
24
24
22
Heating Rated Capacity (range) (Btu/h)
5,700~21,600
8,400~29,000
10,000~42,500
13,000~53,000
20,000~60,000
Heating Rated Current (A)
6.8
9.2
14
16.3
21
Heating at 47°F COP (W/W)
3.8
3.8
3.5
3.8
3.7
HSPF4
9.8
9.5
9.5
10.3
9.5
HSPF5
7.8
7
7
8
7.4
Heating at 5°F Rated Capacity (Btu/h)
13,500
19,000
26,000
36,000
39,000
Minimum Circuit Ampacity (Outdoor unit) (A)
16
23
30.5
40
40
Max. Fuse (Outdoor unit) (A)
20
25
35
45
45
Outdoor Air Flow (Max) (CFM)
1,765.8
2,130.7
2,148.4
4,502.8
4,502.8
Outdoor Noise Level (Sound Pressure) (dB(A))
59.5
61
64.5
63
65
Dimension (W×D×H) (inch)
35.04x13.46x26.50
37.24x16.14x31.89
37.24x16.14x31.89
37.48x16.34x52.48
37.48x16.34x52.48
Packing (W×D×H) (inch)
40.55x17.24x29.53
42.91x19.68x34.84
42.91x19.68x34.84
43.11x19.49x58.27
43.11x19.49x58.27
Net/Gross Weight (lbs)
100.53/109.35
138.89/149.69
168.87/180.12
222.00/254.19
237.88/270.28
Refrigerant Type/Charged (oz)
R454B/61.73
R454B/84.66
R454B/120.63
R454B/148.15
R454B/151.68
Refrigerant Precharge (ft)
75
100
125
150
150
Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft)
0.16 / 0.32
0.16 / 0.32
0.16 / 0.32
0.16 / 0.32
0.16 / 0.32
Design Pressure (PSIG)
550/340
550/340
550/340
550/340
550/340
Refrigerant Piping Liquid Side (inch)
3 x 1/4"
4 x 1/4"
5 x 1/4"
6 x 1/4"
6 x 1/4"
Refrigerant Piping Gas Side (inch)
3 x 3/8"
3 x 3/8" + 1 x 1/2"
4 x 3/8" + 1 x 1/2"
4 x 3/8" + 2 x 1/2"
4 x 3/8" + 2 x 1/2"
Max. Pipe Length (ft)
196.8
262.4
262.4
262.4
262.4
Max. Length for One Indoor Unit (ft)
98.4
114.8
114.8
114.8
114.8
Max. Height Difference in Level (ft)
49.2
49.2
49.2
49.2
49.2
Max. Height Difference Between Indoor Units (ft)
33
33
33
33
33
Ambient Temperature Cooling (°F)
-13~122
-13~122
-13~122
-13~122
-13~122
Ambient Temperature Heating (°F)
-13~75
-13~75
-13~75
-13~75
-13~75
Certification: AHRI
✔
✔
✔
✔
✔
Certification: Energy Star
✔
✔
✔
✔
✔
Certification: NEEP
✔
✔
✔
✔
✔
Certification: ETL
✔
✔
✔
✔
✔
Outdoor Hyper
Specification
CH-RVHP19M-230VO
CH-RVHP28M-230VO
CH-RVHP36M-230VO
CH-RVHP48M-230VO
CH-RVHP55M-230VO
Power Supply (V/Ph/Hz)
208/230, 1, 60
208/230, 1, 60
208/230, 1, 60
208/230, 1, 60
208/230, 1, 60
Operating Range (V)
187-253
187-253
187-253
187-253
187-253
Cooling Capacity (BTU/h)
5,400~28,000
7,200~37,000
9,000~43,000
12,000~57,000
19,000~59,000
SEER2
5.6
9.5
12
17.3
18.5
EER
15
12.5
13
12
12
IEER
25
23
23
23
22.2
Heating Capacity (BTU/h)
5,700~27,000
8,400~36,000
10,000~44,000
13,000~57,000
20,000~59,000
HSPF2
6.5
9.1
11.5
17.3
20.1
COP
4
3.8
4
3.7
3.5
SCOP
10.4
10.5
10.7
11
10.5
Power Input (W)
8.5
8.5
8.5
9
8.5
Air Flow (CFM)
19,000
27,000
36,000
47,000
47,000
Sound Level Indoor (dBA)
17.5
30
37
37
39.5
Sound Level Outdoor (dBA)
20
35
40
40
40
Weight Indoor (lbs)
2,130.7
2,148.4
3,037.2
4,502.8
4,502.8
Weight Outdoor (lbs)
61.5
61
65
65
65
Dimensions Indoor (in)
37.24x16.14x31.89
37.24x16.14x31.89
38.58x16.34x38.39
37.48x16.34x52.48
37.48x16.34x52.48
Dimensions Outdoor (in)
42.91x19.68x34.84
42.91x19.68x34.84
45.08x19.68x42.52
43.11x19.49x58.27
43.11x19.49x58.27
Shipping Weight Indoor/Outdoor (lbs)
137.35/148.15
168.43/179.67
211.86/244.71
246.47/276.68
246.47/276.68
Refrigerant Type/Amount (lbs)
R454B/78.31
R454B/120.63
R454B/134.04
R454B/151.68
R454B/151.68
Fuse Size (A)
75
100
125
150
150
Wire Size (AWG)
0.16 / 0.32
0.16 / 0.32
0.16 / 0.32
0.16 / 0.32
0.16 / 0.32
Control Voltage (V)
550/340
550/340
550/340
550/340
550/340
Liquid Line
3 x 1/4"
4 x 1/4"
5 x 1/4"
6 x 1/4"
6 x 1/4"
Suction Line
3 x 3/8"
3 x 3/8" + 1 x 1/2"
3 x 3/8" + 2 x 1/2"
4 x 3/8" + 2 x 1/2"
4 x 3/8" + 2 x 1/2"
Max Line Length (ft)
196.8
262.4
262.4
262.4
262.4
Max Elevation Diff (ft)
98.4
114.8
114.8
114.8
114.8
Max Head Pressure (ft)
49.2
49.2
49.2
49.2
49.2
Max Suction Pressure (ft)
33
33
33
33
33
Operating Range Cooling (°F)
-22~122
-22~122
-22~122
-22~122
-22~122
Operating Range Heating (°F)
-22~75
-22~75
-22~75
-22~75
-22~75
Feature 1
✓
✓
✓
✓
✓
Feature 2
✓
✓
✓
✓
✓
Feature 3
✓
✓
✓
✓
✓
Feature 4
✓
✓
✓
✓
✓
Multiple Control
Methods
Cooper&Hunter’s Mini Floor Console Units can be managed with a user-friendly remote control or the Cooper&Hunter optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
