2 Zone 27,000 BTU OLMO Sierra Ductless Mini Split AC Wall Mounted 18k+18k | No Kit No Kit
OLMO5-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Sierra Wall Mount
OLMO's Multi-Zone Sierra Series is a versatile HVAC solution that provides efficient heating and cooling for multiple rooms, featuring advanced inverter technology for precise temperature control and significant energy savings. Using eco-friendly R410A refrigerant, the system delivers reliable performance with minimal environmental impact. Ideal for both residential and commercial applications, the Sierra Series combines quiet operation, flexible installation, and user-friendly controls, making it a perfect choice for maintaining year-round comfort across multiple zones with one efficient system.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
The manufacturer provides a Limited Warranty of 5 years for the compressor and 2 years for parts.
Warranty terms
Main Features
OLMO's Multi-Zone Sierra Series delivers efficient multi-room comfort with advanced inverter technology for precise temperature control. Its eco-friendly R454B refrigerant reduces environmental impact, while quiet operation ensures minimal disruption. With flexible installation options, sleek design, and reliable heating and cooling, it’s the perfect solution for modern multi-zone climate control needs.
All Accessories Included

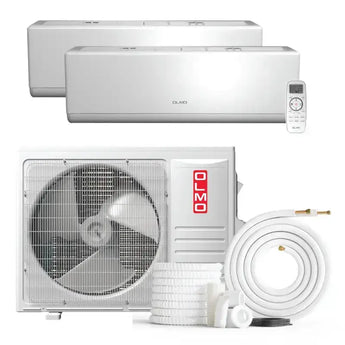

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor Models | OS-RM09SW-230VI | OS-RM12SW-230VI | OS-RM18SW-230VI | OS-RM24SW-230VI |
|---|---|---|---|---|
| Power Supply (V-Ph-Hz) | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 |
| Cooling Capacity (Btu/h) | 9000 | 12000 | 18000 | 23400 |
| Heating Rated Capacity (Btu/h) | 9500 | 13000 | 19000 | 26000 |
| Output Power (W) | 25 | 25 | 35 | 35 |
| Rated Current (A) | 0.11 | 0.11 | 0.17 | 0.17 |
| Indoor Air Flow (CFM) | 341 | 365 | 647 | 706 |
| Indoor Noise Level (Hi/Mi/Lo) (dB(A)) | 39/35/30 | 39/35/30 | 45/41/37 | 47/45/42 |
| Net Dimensions (WxHxD) (in) | 32.02x10.75x8.13 | 37.38x10.75x8.13 | 48x12.63x9.25 | 48x12.63x9.25 |
| Packing (WxHxD) (in) | 39.38x13.19x6.38 | 39.38x13.19x6.38 | 51.75x15.44x12.50 | 51.75x15.44x12.50 |
| Net/Gross Weight (lbs) | 19.84 / 24.25 | 19.84 / 24.25 | 31.97 / 37.48 | 31.97 / 37.48 |
| Refrigerant Piping (Liquid Side / Gas Side) (in) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 3/8" / 5/8" |
| Outdoor Models | OS-RMS18-230VO | OS-RMS24-230VO | OS-RMS36-230VO | OS-RMS42-230VO |
|---|---|---|---|---|
| Power Supply (V-Ph-Hz) | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 |
| Cooling Capacity (Btu/h) | 18000 | 27000 | 36000 | 42000 |
| EER2 | 13.33 | 12.85 | 12.85 | 12.0 |
| SEER2 | 22.0 | 23.0 | 22.0 | 22.0 |
| Heating Rated Capacity (Btu/h) | 18000 | 27000 | 36000 | 36000 |
| HSPF2 | 10.0 | 10.0 | 10.0 | 9.5 |
| COP2 (W/W) | 3.82 | 3.60 | 3.91 | 3.60 |
| Max Fuse (A) | 30 | 40 | 50 | 60 |
| Outdoor Air Flow (Hi) (CFM) | 1850 | 3357 | 3357 | 3357 |
| Outdoor Side Noise Level (dB(A)) | 55 | 62 | 64 | 64 |
| Dimensions (WxHxD) (in) | 33.88x26.38x12.25 | 38.38x32.88x14.12 | 38.38x32.88x14.12 | 38.38x32.88x14.12 |
| Outdoor Unit Packing (WxHxD) (in) | 39x28.75x17.75 | 43.75x37.75x18.12 | 43.75x37.75x18.12 | 43.75x37.75x18.12 |
| Net/Gross Weight (lbs) | 101.4/112.4 | 160.6/183.2 | 169.8/191.8 | 172/194 |
| Refrigerant Type/Quantity (oz) | R454B/51.15 | R454B/76.2 | R454B/105.8 | R454B/105.8 |
| Refrigerant Piping (Liquid Side / Gas Side) (in) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" |
| Max Refrigerant Pipe Length Each/Total (ft) | 82/164 | 82/230 | 82/230 | 82/262 |
| Ambient Outdoor (Cooling) (°F) | 5~125 | 5~125 | 5~125 | 5~125 |
| Ambient Outdoor (Heating) (°F) | -13~75 | -13~75 | -13~75 | 4~75 |
Multiple Control Methods
Olmo’s Multi-Zone Sierra Series can be managed with a user-friendly remote control and the. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my home?
To determine the right size mini split for your space, consider that the Olmo 2 Zone 27,000 BTU system can effectively cool or heat areas totaling up to approximately 1,500 to 2,000 square feet, depending on insulation and layout.
Can I install a mini split myself, or do I need a professional?
While DIY installation of the Olmo 2 Zone 27,000 BTU mini split is possible, it requires knowledge of HVAC systems and proper tools. If you choose a 16ft, 25ft, or 50ft installation kit, ensure you follow the manufacturer's guidelines to avoid issues.
Does the mini split come pre-charged with refrigerant?
Yes, the Olmo 2 Zone mini split is pre-charged with R454B refrigerant for up to 25 ft of line set, which simplifies installation. However, additional refrigerant may be necessary for longer runs.
What voltage does the Olmo mini split require?
The Olmo 2 Zone 27,000 BTU mini split operates on a 230V electrical system, making it suitable for most residential installations in North America.
What warranty does the Olmo mini split offer?
The Olmo 2 Zone mini split comes with a comprehensive 5-year parts and compressor warranty, ensuring peace of mind for your investment in cooling and heating.
What is the SEER rating of the Olmo mini split, and is it efficient?
The Olmo 2 Zone 27,000 BTU mini split boasts an impressive SEER rating of 21.0, which indicates high energy efficiency, helping you save on energy costs while maintaining comfort year-round.
