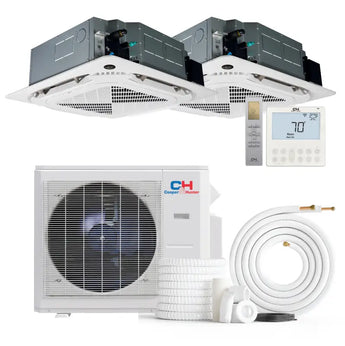

Cooper & Hunter 2 Zone 28,000 BTU OLIVIA Ductless Mini Split AC Ceiling Cassette 9k+18k
Cooper & Hunter
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Ceiling Cassette
Cooper&Hunter's Ceiling Cassette Units are designed to deliver superior comfort and efficiency while seamlessly integrating into ceiling spaces. Ideal for both residential and commercial settings, these units offer advanced airflow distribution and quiet operation for maximum convenience.
Engineered with energy-saving technology, durable anti-corrosion coatings, and a sleek, compact design, they ensure reliable performance and blend effortlessly with modern interiors.
Experience enhanced climate control with Cooper&Hunter's Ceiling Cassette Units—a perfect blend of innovation, durability, and elegance.
Warranty and Tech Support Info
By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Energy Efficiency
Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.
Main Features
Cooper&Hunter's Ceiling Cassette Units deliver efficient climate control with advanced airflow distribution, energy-saving technology, and whisper-quiet operation. Designed for seamless ceiling integration, these units feature anti-corrosion coatings for durability and a sleek, compact design. Perfect for residential or commercial spaces, they combine performance, reliability, and modern aesthetics effortlessly.
All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| System Type |
Hyper
|
Regular
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ceiling Cassette PRO | CH-RSH09-12MCT (Dip Switch for 9K) |
CH-RSH09-12MCT (Dip Switch for 12K) |
CH-RSH18MCT | CH-RSH24MCT | CH-RSH36LCCT | CH-RSH48LCCT | CH-RSH09-12MCT (Dip Switch 9) |
CH-RSH09-12MCT (Dip Switch 12) |
CH-RSH18MCT | CH-RSH24MCT | CH-RSH36LCCT | CH-RSH48LCCT | |
| Ceiling Cassette | CH-RH09MCT | CH-RH12MCT | CH-RH18MCT | CH-RH24MCT | CH-RH36LCCT | CH-RH48LCCT | CH-RH09MCT | CH-RH12MCT | CH-RH18MCT | CH-RH24MCT | CH-RH36LCCT | CH-RH48LCCT | |
| Panel Model Number | CH-NPNL09-18CT | CH-NPNL09-18CT | CH-NPNL09-18CT | CH-NPNL24-48CT | CH-NPNL24-48CT | CH-NPNL24-48CT | CH-NPNL09-18CT | CH-NPNL09-18CT | CH-NPNL09-18CT | CH-NPNL24-48CT | CH-NPNL24-48CT | CH-NPNL24-48CT | |
| Power Supply (V,Ph,Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | |
| Rated Capacity (Btu/h) | 9,000 | 12,000 | 16,000 | 23,400 | 36,600 | 48,000 | 9,000 | 12,000 | 16,800 | 24,000 | 36,000 | 48,000 | |
| Minimum Circuit Ampacity (A) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Max. Fuse (A) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Indoor Air Flow - Turbo/Hi/Mi/Lo (CFM) | 417.9/364.9/306.1/194.2/147.2 | 417.9/364.9/306.1/194.2/147.2 | 447.3/388.5/317.8/194.2/147.2 | 765.2/706.3/635.7/547.4/N/A | 1041.8/947.6/853.5/753.4/659.2 | 1236.1/1124.2/1018.3/800.5/688.7 | 417.9/364.9/306.1/194.2/147.2 | 417.9/364.9/306.1/194.2/147.2 | 447.3/388.5/317.8/194.2/147.2 | 765.2/706.3/635.7/547.4/N/A | 1041.8/947.6/853.5/753.4/659.2 | 1236.1/1124.2/1018.3/800.5/688.7 | |
| Indoor Noise Level - Hi/Mi/Lo (dB(A)) | 42.5/40/37.5/26/24 | 46/43.5/40.5/27.5/26 | 48/44.5/41/27.5/23.5 | 48.5/45/42.5/33.5/N/A | 54/52.5/47/39.5/36.5 | 56/52.5/50/42.5/38.5 | 42.5/40/37.0/26.0/24.0 | 46/42.0/38.5/26.5/24.0 | 48/44.0/41.0/28.5/24.5 | N/A/45.5/43.0/33.5/30.5 | N/A/52.0/47.5/40.0/38.00 | N/A/52.0/49.5/41.5/38.00 | |
| Dimension (WxDxH) (inch) | 22.44x22.44x9.65 | 22.44x22.44x9.65 | 22.44x22.44x9.65 | 32.68x32.68x8.07 | 32.68x32.68x9.65 | 32.68x32.68x11.30 | 22.44x22.44x9.65 | 22.44x22.44x9.65 | 22.44x22.44x9.65 | 32.68x32.68x8.07 | 32.68x32.68x9.65 | 32.68x32.68x11.30 | |
| Packing (WxDxH) (inch) | 28.15x25.20x11.61 | 28.15x25.20x11.61 | 28.15x25.20x11.61 | 35.83x35.83x9.84 | 35.83x35.83x11.42 | 35.83x35.83x12.99 | 28.15x25.20x11.61 | 28.15x25.20x11.61 | 28.15x25.20x11.61 | 35.83x35.83x9.84 | 35.83x35.83x11.42 | 35.83x35.83x12.99 | |
| Net/Gross Weight (lbs.) | 35.27/41.89 | 35.27/41.89 | 35.27/41.89 | 47.18/59.08 | 59.30/71.43 | 64.59/76.06 | 35.27/41.89 | 35.27/41.89 | 35.27/41.89 | 47.18/59.08 | 59.30/71.43 | 64.59/76.06 | |
| Room Temperature | |||||||||||||
| Cooling (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 62~90 | 62~90 | 62~90 | 60~90 | 60~90 | 60~90 | |
| Heating (°F) | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | |
Outdoor Regular
| Specification | CH-R18MES-230VO | CH-R28MES-230VO | CH-R36MES-230VO | CH-R48MES-230VO | CH-R60MES-230VO |
|---|---|---|---|---|---|
| Power Supply (V, Ph, Hz) | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Voltage Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Cooling Rated Capacity (range) (Btu/h) | 5,400~21,600 | 7,200~32,000 | 9,000~42,000 | 12,000~55,000 | 19,000~62,000 |
| Cooling Rated Current (A) | 6 | 9.2 | 13.5 | 16.6 | 26.2 |
| EER2 | 14 | 13 | 12 | 12.5 | 10 |
| SEER2 | 25.1 | 25 | 24 | 24 | 22 |
| Heating Rated Capacity (range) (Btu/h) | 5,700~21,600 | 8,400~29,000 | 10,000~42,500 | 13,000~53,000 | 20,000~60,000 |
| Heating Rated Current (A) | 6.8 | 9.2 | 14 | 16.3 | 21 |
| Heating at 47°F COP (W/W) | 3.8 | 3.8 | 3.5 | 3.8 | 3.7 |
| HSPF4 | 9.8 | 9.5 | 9.5 | 10.3 | 9.5 |
| HSPF5 | 7.8 | 7 | 7 | 8 | 7.4 |
| Heating at 5°F Rated Capacity (Btu/h) | 13,500 | 19,000 | 26,000 | 36,000 | 39,000 |
| Minimum Circuit Ampacity (Outdoor unit) (A) | 16 | 23 | 30.5 | 40 | 40 |
| Max. Fuse (Outdoor unit) (A) | 20 | 25 | 35 | 45 | 45 |
| Outdoor Air Flow (Max) (CFM) | 1,765.8 | 2,130.7 | 2,148.4 | 4,502.8 | 4,502.8 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 59.5 | 61 | 64.5 | 63 | 65 |
| Dimension (W×D×H) (inch) | 35.04x13.46x26.50 | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
| Packing (W×D×H) (inch) | 40.55x17.24x29.53 | 42.91x19.68x34.84 | 42.91x19.68x34.84 | 43.11x19.49x58.27 | 43.11x19.49x58.27 |
| Net/Gross Weight (lbs) | 100.53/109.35 | 138.89/149.69 | 168.87/180.12 | 222.00/254.19 | 237.88/270.28 |
| Refrigerant Type/Charged (oz) | R454B/61.73 | R454B/84.66 | R454B/120.63 | R454B/148.15 | R454B/151.68 |
| Refrigerant Precharge (ft) | 75 | 100 | 125 | 150 | 150 |
| Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft) | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side (inch) | 3 x 1/4" | 4 x 1/4" | 5 x 1/4" | 6 x 1/4" | 6 x 1/4" |
| Refrigerant Piping Gas Side (inch) | 3 x 3/8" | 3 x 3/8" + 1 x 1/2" | 4 x 3/8" + 1 x 1/2" | 4 x 3/8" + 2 x 1/2" | 4 x 3/8" + 2 x 1/2" |
| Max. Pipe Length (ft) | 196.8 | 262.4 | 262.4 | 262.4 | 262.4 |
| Max. Length for One Indoor Unit (ft) | 98.4 | 114.8 | 114.8 | 114.8 | 114.8 |
| Max. Height Difference in Level (ft) | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 |
| Max. Height Difference Between Indoor Units (ft) | 33 | 33 | 33 | 33 | 33 |
| Ambient Temperature Cooling (°F) | -13~122 | -13~122 | -13~122 | -13~122 | -13~122 |
| Ambient Temperature Heating (°F) | -13~75 | -13~75 | -13~75 | -13~75 | -13~75 |
| Certification: AHRI | ✔ | ✔ | ✔ | ✔ | ✔ |
| Certification: Energy Star | ✔ | ✔ | ✔ | ✔ | ✔ |
| Certification: NEEP | ✔ | ✔ | ✔ | ✔ | ✔ |
| Certification: ETL | ✔ | ✔ | ✔ | ✔ | ✔ |
Outdoor Hyper
| Specification | CH-RVHP19M-230VO | CH-RVHP28M-230VO | CH-RVHP36M-230VO | CH-RVHP48M-230VO | CH-RVHP55M-230VO |
|---|---|---|---|---|---|
| Power Supply (V/Ph/Hz) | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Operating Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Cooling Capacity (BTU/h) | 5,400~28,000 | 7,200~37,000 | 9,000~43,000 | 12,000~57,000 | 19,000~59,000 |
| SEER2 | 5.6 | 9.5 | 12 | 17.3 | 18.5 |
| EER | 15 | 12.5 | 13 | 12 | 12 |
| IEER | 25 | 23 | 23 | 23 | 22.2 |
| Heating Capacity (BTU/h) | 5,700~27,000 | 8,400~36,000 | 10,000~44,000 | 13,000~57,000 | 20,000~59,000 |
| HSPF2 | 6.5 | 9.1 | 11.5 | 17.3 | 20.1 |
| COP | 4 | 3.8 | 4 | 3.7 | 3.5 |
| SCOP | 10.4 | 10.5 | 10.7 | 11 | 10.5 |
| Power Input (W) | 8.5 | 8.5 | 8.5 | 9 | 8.5 |
| Air Flow (CFM) | 19,000 | 27,000 | 36,000 | 47,000 | 47,000 |
| Sound Level Indoor (dBA) | 17.5 | 30 | 37 | 37 | 39.5 |
| Sound Level Outdoor (dBA) | 20 | 35 | 40 | 40 | 40 |
| Weight Indoor (lbs) | 2,130.7 | 2,148.4 | 3,037.2 | 4,502.8 | 4,502.8 |
| Weight Outdoor (lbs) | 61.5 | 61 | 65 | 65 | 65 |
| Dimensions Indoor (in) | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 38.58x16.34x38.39 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
| Dimensions Outdoor (in) | 42.91x19.68x34.84 | 42.91x19.68x34.84 | 45.08x19.68x42.52 | 43.11x19.49x58.27 | 43.11x19.49x58.27 |
| Shipping Weight Indoor/Outdoor (lbs) | 137.35/148.15 | 168.43/179.67 | 211.86/244.71 | 246.47/276.68 | 246.47/276.68 |
| Refrigerant Type/Amount (lbs) | R454B/78.31 | R454B/120.63 | R454B/134.04 | R454B/151.68 | R454B/151.68 |
| Fuse Size (A) | 75 | 100 | 125 | 150 | 150 |
| Wire Size (AWG) | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 |
| Control Voltage (V) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Liquid Line | 3 x 1/4" | 4 x 1/4" | 5 x 1/4" | 6 x 1/4" | 6 x 1/4" |
| Suction Line | 3 x 3/8" | 3 x 3/8" + 1 x 1/2" | 3 x 3/8" + 2 x 1/2" | 4 x 3/8" + 2 x 1/2" | 4 x 3/8" + 2 x 1/2" |
| Max Line Length (ft) | 196.8 | 262.4 | 262.4 | 262.4 | 262.4 |
| Max Elevation Diff (ft) | 98.4 | 114.8 | 114.8 | 114.8 | 114.8 |
| Max Head Pressure (ft) | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 |
| Max Suction Pressure (ft) | 33 | 33 | 33 | 33 | 33 |
| Operating Range Cooling (°F) | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 |
| Operating Range Heating (°F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 |
| Feature 1 | ✓ | ✓ | ✓ | ✓ | ✓ |
| Feature 2 | ✓ | ✓ | ✓ | ✓ | ✓ |
| Feature 3 | ✓ | ✓ | ✓ | ✓ | ✓ |
| Feature 4 | ✓ | ✓ | ✓ | ✓ | ✓ |
Multiple Control Methods
Cooper&Hunter’s Ceiling Cassette Units can be managed with a user-friendly remote control, the wall thermostat or the Cooper&Hunter optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the Cooper & Hunter 28,000 BTU mini split cool?
The Cooper & Hunter 28,000 BTU OLIVIA Ductless Mini Split system is designed for dual zone applications, making it suitable for cooling up to two rooms efficiently. Depending on the size of each room, it can cover various square footage effectively.
Can I mix BTU sizes with the Cooper & Hunter mini split system?
Yes, you can mix BTU sizes with the Cooper & Hunter system as long as the total capacity does not exceed the 28,000 BTU limit. For instance, you could pair a 9,000 BTU indoor unit with an 18,000 BTU unit to suit different room sizes.
Do all zones in the Cooper & Hunter mini split run simultaneously?
No, the Cooper & Hunter OLIVIA system allows for independent operation of each zone, meaning you can cool or heat different areas according to your needs without affecting the other zone.
Is the Cooper & Hunter mini split more efficient than multiple single-zone units?
With a SEER rating of 24.6, the Cooper & Hunter 28,000 BTU mini split is highly efficient, often outperforming multiple single-zone units in energy consumption and cost savings over time. This makes it a smart investment for cooling multiple areas.
What warranty does the Cooper & Hunter OLIVIA mini split offer?
The Cooper & Hunter OLIVIA mini split comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register the product within 30 days of purchase. This ensures peace of mind for your investment.
Does the Cooper & Hunter mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter OLIVIA mini split system is pre-charged with R454B refrigerant, sufficient for installations with up to 25 ft of line set. This feature simplifies installation while ensuring optimal performance.
