Cooper & Hunter 3/8"-5/8" Mini Split Installation Kit Insulated Pre-Flared 16ft/25ft/50ft with Connection Wires | 16FT
Cooper & Hunter
Product specifications
Availability
Out of stock right now
For the next arrival, call (855) 775-4822.
FREE shipping on $300+ orders to We don’t ship to .Pick up at Medley, FL ·
9400 Northwest 104th Street, Suite 150, Medley, FL 33178
Buy with Shop skips your pickup choice; Add to cart keeps it.
Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated

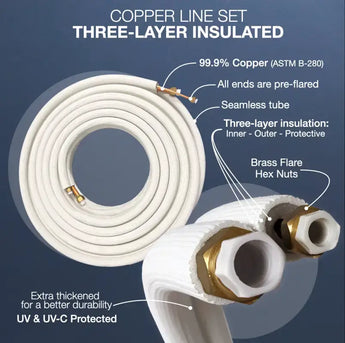

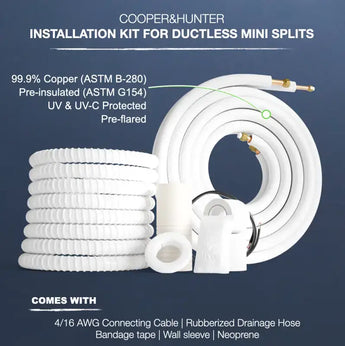

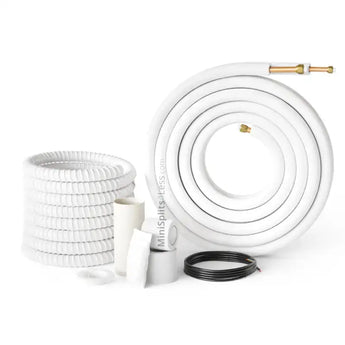

Installation Kit
Our bundled installation kit offers ease and convenience for HVAC technicians while providing a long-lasting, quality product that customers will not have to replace.
Technical Specifications
System Specs
| Copper Line Length | 16.4 ft |
|---|
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
| Line Set Model 9mm | Line Set Model 13mm | Line Set Diameter (Liquid/Gas Side)* | Pipe Insulation Thickness & Rating | Copper Line Length | 4/16 AWG Cable | Rubber Drain Hose |
|---|---|---|---|---|---|---|
| PJX-N1-C16FTW-MAX | PJX-N1-C16FTW-MAX-I05 | 1/4"-3/8" | 3/8", R-2.5 | 16 FT | 18 FT | 16 FT |
| PJX-N1-C25FTW-MAX | PJX-N1-C25FTW-MAX-I05 | 1/4"-3/8" | 3/8", R-2.5 | 25 FT | 29.5 FT | 16 FT |
| PJX-N1-C50FTW-MAX | PJX-N1-C50FTW-MAX-I05 | 1/4"-3/8" | 3/8", R-2.5 | 50 FT | 55.8 FT | 16 FT |
| PJX-N2-C16FTW-MAX | PJX-N2-C16FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 16 FT | 18 FT | 16 FT |
| PJX-N2-C25FTW-MAX | PJX-N2-C25FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT |
| PJX-N2-C50FTW-MAX | PJX-N2-C50FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT |
| PJX-N3-C16FTW-MAX | PJX-N3-C16FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 16 FT | 18 FT | 16 FT |
| PJX-N3-C25FTW-MAX | PJX-N3-C25FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT |
| PJX-N3-C50FTW-MAX | PJX-N3-C50FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT |
| PJX-N4-C16FTW-MAX | PJX-N4-C16FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 16 FT | 18 FT | 16 FT |
| PJX-N4-C25FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT | |
| PJX-N4-C50FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT | |
| PJX-N6-C25FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT | |
| PJX-N6-C50FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT |
| Line Set Model 9mm | Line Set Model 13mm | Wall Mount | Duct | Ceiling Cassette | Mini Console | Universal Floor Ceiling | Air Handler | One-Way Cassette |
|---|---|---|---|---|---|---|---|---|
| PJX-N1-C16FTW-MAX PJX-N1-C25FTW-MAX PJX-N1-C50FTW-MAX |
PJX-N1-C16FTW-MAX-i05 PJX-N1-C25FTW-MAX-i05 PJX-N1-C50FTW-MAX-i05 |
6K Btu/h 9K Btu/h - 230V |
9K Btu/h |
9K Btu/h |
6K Btu/h 9K Btu/h |
|||
| PJX-N2-C16FTW-MAX PJX-N2-C25FTW-MAX PJX-N2-C50FTW-MAX |
PJX-N2-C16FTW-MAX-i05 PJX-N2-C25FTW-MAX-i05 PJX-N2-C50FTW-MAX-i05 |
9K Btu/h - 115V 12K Btu/h 18K Btu/h |
12K Btu/h 18K Btu/h |
12K Btu/h 18K Btu/h |
12K Btu/h 16K Btu/h |
18K Btu/h |
18K Btu/h |
12K Btu/h 18K Btu/h |
| PJX-N3-C16FTW-MAX PJX-N3-C25FTW-MAX PJX-N3-C50FTW-MAX |
PJX-N3-C16FTW-MAX-i05 PJX-N3-C25FTW-MAX-i05 PJX-N3-C50FTW-MAX-i05 |
24K Btu/h 30K Btu/h 36K Btu/h |
24K Btu/h 36K Btu/h 48K Btu/h |
24K Btu/h 36K Btu/h 48K Btu/h |
24K Btu/h 36K Btu/h 48K Btu/h |
24K Btu/h 36K Btu/h 48K Btu/h |
||
| PJX-N4-C25FTW-MAX PJX-N4-C50FTW-MAX |
48K Btu/h 60K Btu/h |
60K Btu/h |
||||||
| PJX-N6-C25FTW-MAX PJX-N6-C50FTW-MAX |
48K Btu/h |
60K Btu/h |
Shipping & Returns
- Free shipping on every item over $300.
- Delivery estimate for your ZIP is shown in the buy box above.
- Returns accepted per our policy — unopened units in original packaging.
Warranty
7-year compressor / 5-year parts
- Limited manufacturer warranty on the compressor and sealed system components.
- Your order number is the proof of purchase — keep it for any claim.
