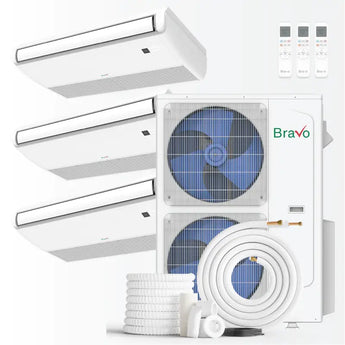

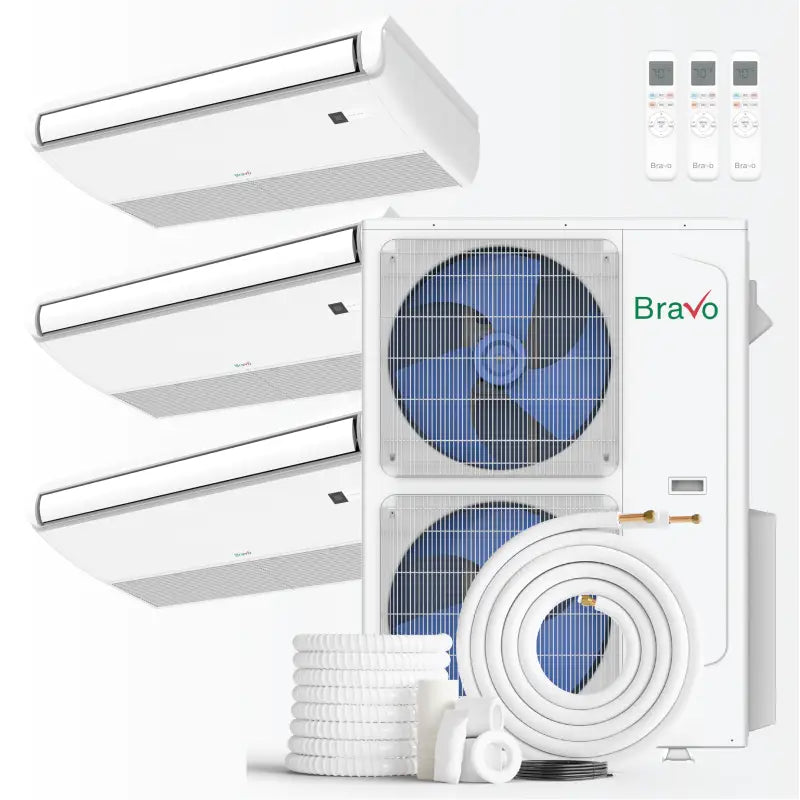

3 zone 42,000 BTU BRAVO Non-Ducted Mini Split AC Universal Floor & Ceiling Console 12k+18K+18K | No Kit No Kit No Kit
Bravo
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Universal Floor & Ceiling Counsel
Bravo Universal Floor & Ceiling Counsel are designed to provide reliable heating and cooling for individual spaces, combining energy efficiency with advanced technology. With compact, modern designs and easy installation, these units seamlessly blend into various interiors. Featuring quiet operation and powerful performance, they ensure consistent comfort throughout the year. Built with durable components and anti-corrosion coatings, Bravo Units are engineered to handle diverse climates while maintaining peak efficiency. Perfect for residential or commercial environments, climate solutions that enhance your space effortlessly
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 3 years for the compressor and 3 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.

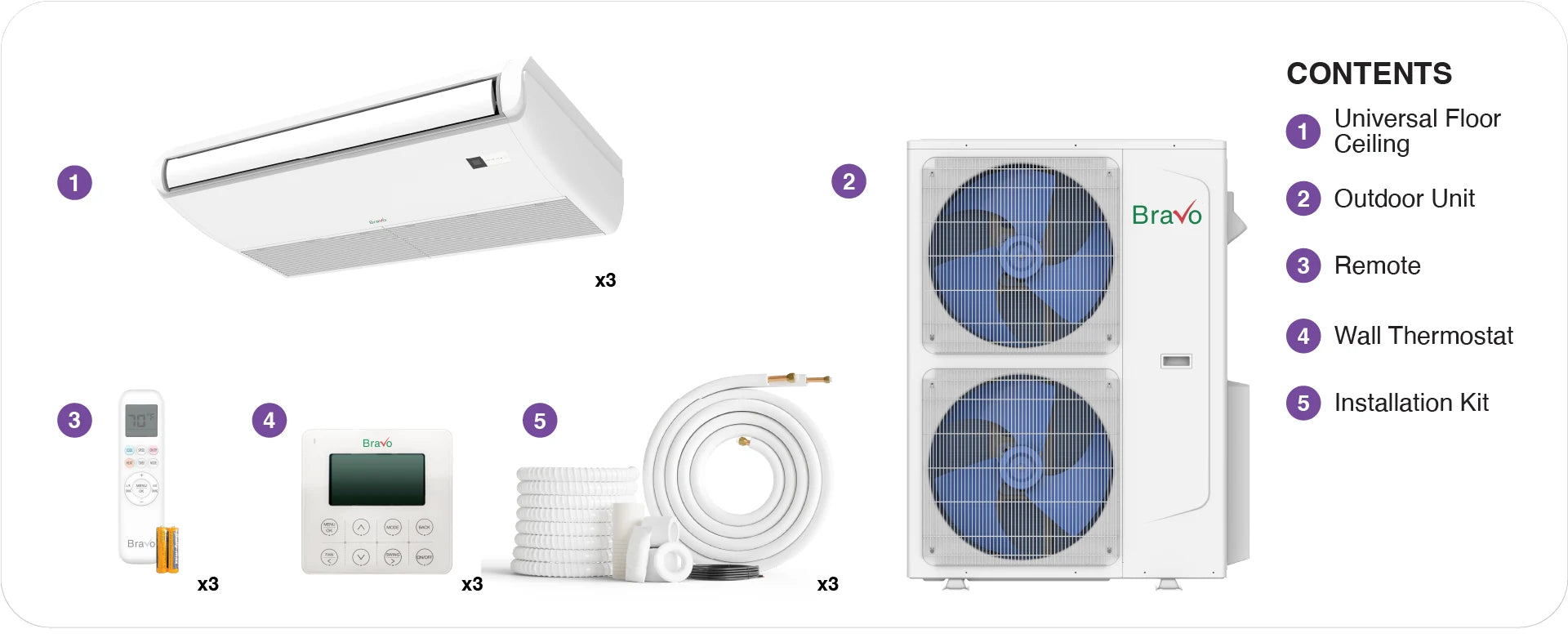

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor Model | BRV-M09FC-230VI | BRV-M12FC-230VI | BRV-M18FC-230VI | BRV-M24FC-230VI | ||
|---|---|---|---|---|---|---|
| Power Supply | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | ||
| Cooling | Rated Capacity | 9,000 | 12,000 | 18,000 | 24,000 | |
| Btu/h | 9,000 | 12,000 | 18,000 | 24,000 | ||
| Heating | Rated Capacity | 11,000 | 12,000 | 18,000 | 24,000 | |
| Btu/h | 11,000 | 12,000 | 18,000 | 24,000 | ||
| Max Fuse | 5 | 5 | 5 | 5 | ||
| Indoor Air Flow | 500 | 500 | 530 | 824 | ||
| Indoor Noise Level | 39 | 39 | 41 | 44 | ||
| Indoor Unit | Dimensions (WxDxH) | 39.37×27.17×9.25 | 39.37×27.17×9.25 | 39.37×27.17×9.25 | 50.39×27.17×9.25 | |
| Packing (WxDxH) | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 53.54×30.32×12.80 | ||
| Net/Gross Weight | 57.3/67.2 | 57.3/67.2 | 59.5/69.5 | 71.7/83.8 | ||
| Refrigerant Piping | Liquid Side / Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 5/8" | |
| Operation Temperature Range | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | ||
| Outdoor Model | BRV-R12LS-115VO | BRV-R12LS-230VO | BRV-R18LS-230VO | BRV-R24LS-230VO | BRV-R36LS-230VO | |
|---|---|---|---|---|---|---|
| Power Supply (V,Ph,Hz) | 115,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | |
| Cooling | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 35,000 | |
| EER2 (Btu/h) | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | |
| SEER2 (Btu/h) | 17 | 17 | 17 | 17 | 17 | |
| Heating | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 34,500 | |
| COP2 (W/W) | 3.5 | 3.2 | 3.5 | 3.5 | 3.2 | |
| HSPF2-4 | 9.0 | 9.0 | 10.5 | 8.64 | 8.5 | |
| Minimum Circuit Ampacity (A) | 17 | 11 | 13 | 13 | 23 | |
| Max. Fuse (A) | 25 | 15 | 20 | 20 | 35 | |
| Indoor Air Flow - Turbo/Hi/Mi/Lo/Mute (CFM) | 276/265/241/224/206 | 294/264/235/206/159 | 412/364/294/235/208 | 676/629/505/412/352 | 882/741/564/458/411 | |
| Indoor Noise Level - Turbo/Hi/Mi/Lo/Mute (dB(A)) | 42.9/40/36.1/33/29 | 45/42/39/35/33 | 49/45/43/40/37 | 47/45/39/34/32 | 55/52/46/41/39 | |
| Indoor Unit Dimension (WxDxH) (inch) | 30.59x9.84x7.91 | 30.59x9.84x7.91 | 35.82x11.57x8.11 | 39.76x12.40x8.66 | 46.88x14.17x10.15 | |
| Indoor Unit Packing (WxDxH) (inch) | 33.07x12.40x10.23 | 33.07x12.40x10.23 | 38.54x14.64x10.90 | 43.15x15.35x11.81 | 49.60x16.92x12.91 | |
| Indoor Unit Net/Gross Weight (lbs.) | 22.05 | 22.05 | 26.46 | 28.66 | 46.30 | |
| Outdoor Air Flow (CFM) | 1,213 | 1,213 | 1,704 | 1,645 | 1,645 | |
| Outdoor Side Noise Level (dB(A)) | 53 | 55 | 57 | 55 | 63 | |
| Outdoor Unit Dimension (WxDxH) (inch) | 30.59x11.42x19.61 | 30.59x11.41x19.61 | 31.88x12.00x21.61 | 30.70x13.74x23.81 | 38.50x16.57x31.61 | |
| Outdoor Unit Packing (WxDxH) (inch) | 32.20x12.80x20.27 | 32.20x12.80x21.18 | 33.54x14.09x24.02 | 35.43x15.94x25.79 | 40.23x18.89x32.87 | |
| Outdoor Unit Net/Gross Weight (lbs.) | 52.9 | 58.4 | 62.8 | 72.8 | 120.2 | |
| Refrigerant Type (oz.) | R32 | R32 | R32 | R32 | R32 | |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | |
| Design Pressure (PSIG) | 652.5 | 652.5 | 652.5 | 652.5 | 652.5 | |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 1/4"/5/8" | |
| Max. Pipe Length (ft.) | 50 | 50 | 50 | 65 | 65 | |
| Connection Wiring - Size x Core Number | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | |
| Ambient Temperature | ||||||
| Indoor (Cooling/Heating) (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | |
| Outdoor (Cooling/Heating) (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | |
Multiple Control Methods
Bravo’s Series can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the 42,000 BTU Bravo mini split cool?
The 3 zone 42,000 BTU Bravo mini split is designed to effectively cool multiple rooms, typically accommodating up to three separate zones. Each zone can handle room sizes that vary based on insulation and layout.
Can I mix BTU sizes with the Bravo mini split system?
Yes, the Bravo mini split system allows for BTU sizes to be mixed across its zones, enabling you to customize cooling based on specific room requirements. For instance, you might pair a 12,000 BTU unit with two 18,000 BTU units for optimal performance.
Do all zones run simultaneously in a multi-zone mini split like the Bravo?
In the Bravo 3 zone mini split system, all zones can run simultaneously or independently based on your cooling needs. This flexibility allows for tailored comfort across different areas of your home.
Is the Bravo mini split efficient compared to multiple single-zone units?
With a SEER rating of 23.0, the Bravo mini split system is significantly more efficient than using multiple single-zone units, reducing energy costs while providing effective cooling for three zones. This efficiency is particularly beneficial for larger homes.
What warranty does the Bravo mini split system offer?
The Bravo mini split system comes with a 5-year parts and compressor warranty, ensuring protection against potential defects and providing peace of mind for your investment. This warranty reinforces Bravo's commitment to quality and reliability.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system comes pre-charged with R32 refrigerant for up to 25 ft of line set, facilitating a more straightforward installation process. This feature helps ensure optimal performance right from the start.
