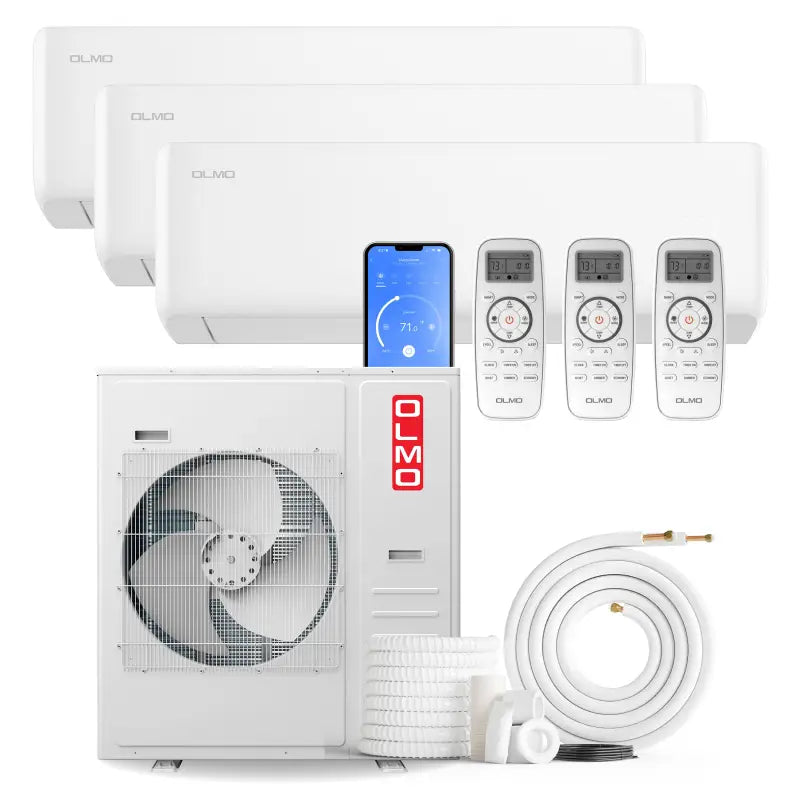

3 Zone 42,000 BTU OLMO Sierra Ductless Mini Split AC Wall Mounted 9k+18k+24k | No Kit No Kit No Kit
OLMO5-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup currently unavailable at 3550 Northwest 113th Court
Sierra Wall Mount
OLMO's Multi-Zone Sierra Series is a versatile HVAC solution that provides efficient heating and cooling for multiple rooms, featuring advanced inverter technology for precise temperature control and significant energy savings. Using eco-friendly R410A refrigerant, the system delivers reliable performance with minimal environmental impact. Ideal for both residential and commercial applications, the Sierra Series combines quiet operation, flexible installation, and user-friendly controls, making it a perfect choice for maintaining year-round comfort across multiple zones with one efficient system.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
The manufacturer provides a Limited Warranty of 5 years for the compressor and 2 years for parts.
Warranty terms
Main Features
OLMO's Multi-Zone Sierra Series delivers efficient multi-room comfort with advanced inverter technology for precise temperature control. Its eco-friendly R454B refrigerant reduces environmental impact, while quiet operation ensures minimal disruption. With flexible installation options, sleek design, and reliable heating and cooling, it’s the perfect solution for modern multi-zone climate control needs.
All Accessories Included

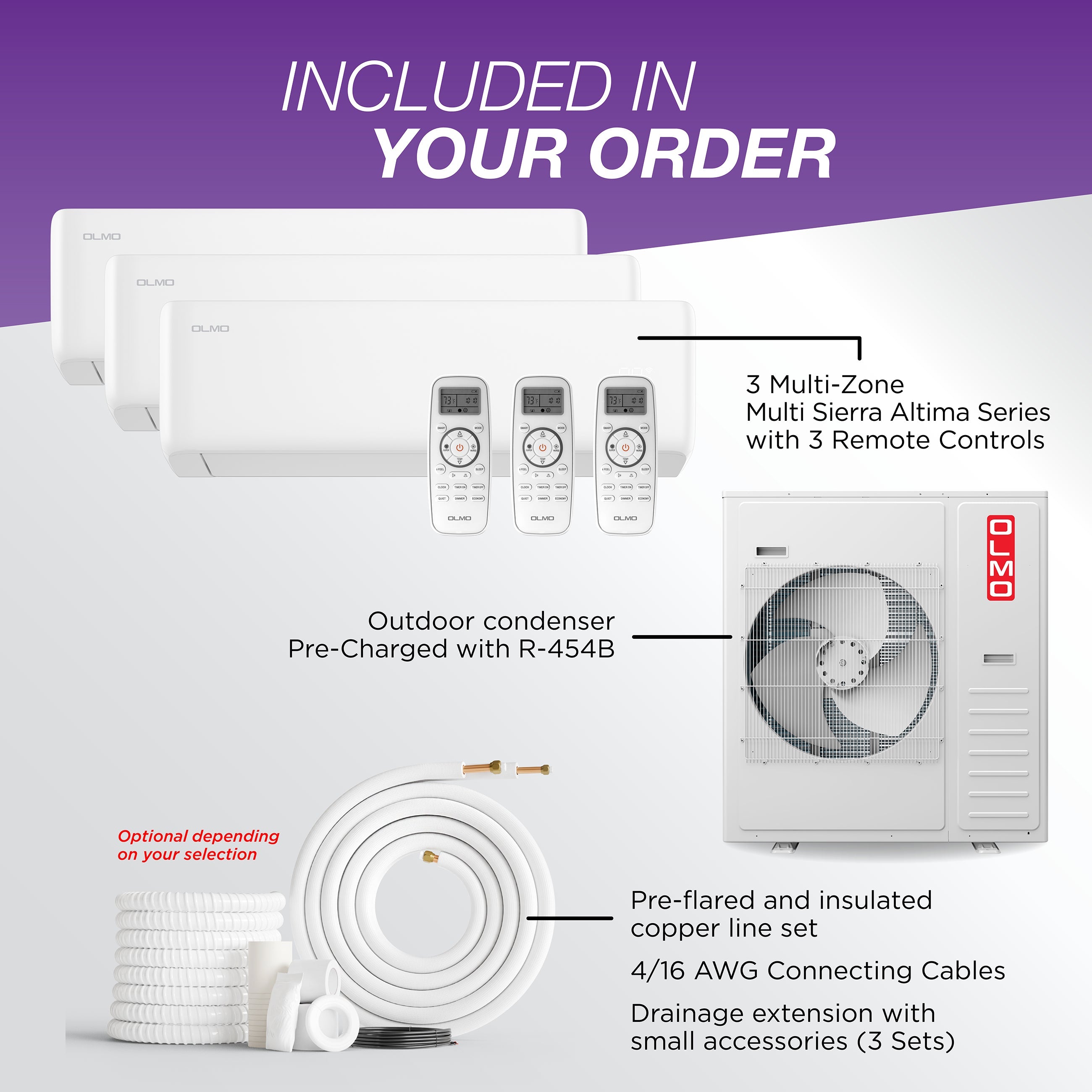

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor Models | OS-RM09SW-230VI | OS-RM12SW-230VI | OS-RM18SW-230VI | OS-RM24SW-230VI |
|---|---|---|---|---|
| Power Supply (V-Ph-Hz) | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 |
| Cooling Capacity (Btu/h) | 9000 | 12000 | 18000 | 23400 |
| Heating Rated Capacity (Btu/h) | 9500 | 13000 | 19000 | 26000 |
| Output Power (W) | 25 | 25 | 35 | 35 |
| Rated Current (A) | 0.11 | 0.11 | 0.17 | 0.17 |
| Indoor Air Flow (CFM) | 341 | 365 | 647 | 706 |
| Indoor Noise Level (Hi/Mi/Lo) (dB(A)) | 39/35/30 | 39/35/30 | 45/41/37 | 47/45/42 |
| Net Dimensions (WxHxD) (in) | 32.02x10.75x8.13 | 37.38x10.75x8.13 | 48x12.63x9.25 | 48x12.63x9.25 |
| Packing (WxHxD) (in) | 39.38x13.19x6.38 | 39.38x13.19x6.38 | 51.75x15.44x12.50 | 51.75x15.44x12.50 |
| Net/Gross Weight (lbs) | 19.84 / 24.25 | 19.84 / 24.25 | 31.97 / 37.48 | 31.97 / 37.48 |
| Refrigerant Piping (Liquid Side / Gas Side) (in) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 3/8" / 5/8" |
| Outdoor Models | OS-RMS18-230VO | OS-RMS24-230VO | OS-RMS36-230VO | OS-RMS42-230VO |
|---|---|---|---|---|
| Power Supply (V-Ph-Hz) | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 |
| Cooling Capacity (Btu/h) | 18000 | 27000 | 36000 | 42000 |
| EER2 | 13.33 | 12.85 | 12.85 | 12.0 |
| SEER2 | 22.0 | 23.0 | 22.0 | 22.0 |
| Heating Rated Capacity (Btu/h) | 18000 | 27000 | 36000 | 36000 |
| HSPF2 | 10.0 | 10.0 | 10.0 | 9.5 |
| COP2 (W/W) | 3.82 | 3.60 | 3.91 | 3.60 |
| Max Fuse (A) | 30 | 40 | 50 | 60 |
| Outdoor Air Flow (Hi) (CFM) | 1850 | 3357 | 3357 | 3357 |
| Outdoor Side Noise Level (dB(A)) | 55 | 62 | 64 | 64 |
| Dimensions (WxHxD) (in) | 33.88x26.38x12.25 | 38.38x32.88x14.12 | 38.38x32.88x14.12 | 38.38x32.88x14.12 |
| Outdoor Unit Packing (WxHxD) (in) | 39x28.75x17.75 | 43.75x37.75x18.12 | 43.75x37.75x18.12 | 43.75x37.75x18.12 |
| Net/Gross Weight (lbs) | 101.4/112.4 | 160.6/183.2 | 169.8/191.8 | 172/194 |
| Refrigerant Type/Quantity (oz) | R454B/51.15 | R454B/76.2 | R454B/105.8 | R454B/105.8 |
| Refrigerant Piping (Liquid Side / Gas Side) (in) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" |
| Max Refrigerant Pipe Length Each/Total (ft) | 82/164 | 82/230 | 82/230 | 82/262 |
| Ambient Outdoor (Cooling) (°F) | 5~125 | 5~125 | 5~125 | 5~125 |
| Ambient Outdoor (Heating) (°F) | -13~75 | -13~75 | -13~75 | 4~75 |
Multiple Control Methods
Olmo’s Multi-Zone Sierra Series can be managed with a user-friendly remote control and the. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the Olmo 3 Zone 42,000 BTU mini split cool?
The Olmo 3 Zone 42,000 BTU mini split can effectively cool multiple rooms, typically covering three distinct zones. Depending on the size and insulation of your rooms, it can accommodate spaces totaling up to 1,500 sq ft.
Can I mix BTU sizes with the Olmo mini split system?
Yes, with the Olmo 3 Zone mini split, you can mix BTU sizes across the zones, such as 9k, 18k, and 24k. This flexibility allows you to tailor the system to your specific heating and cooling needs.
Do all zones in the Olmo mini split run simultaneously?
The Olmo 3 Zone mini split allows for independent operation of each zone, meaning they don’t have to run simultaneously. This feature enhances energy efficiency, especially if some rooms are not in use.
What warranty does the Olmo mini split system offer?
The Olmo 3 Zone mini split includes a comprehensive 5-year parts and compressor warranty, ensuring long-term reliability and peace of mind for your investment.
Does the Olmo mini split come pre-charged with refrigerant?
Yes, the Olmo 3 Zone mini split system comes pre-charged with R454B refrigerant for up to 25 ft of line set, making installation simpler and more efficient.
What is the efficiency advantage of the Olmo mini split compared to multiple single-zone units?
With a SEER rating of 21.0, the Olmo 3 Zone 42,000 BTU mini split offers superior efficiency compared to operating multiple single-zone units. This efficiency can lead to significant energy savings, especially in larger homes.
