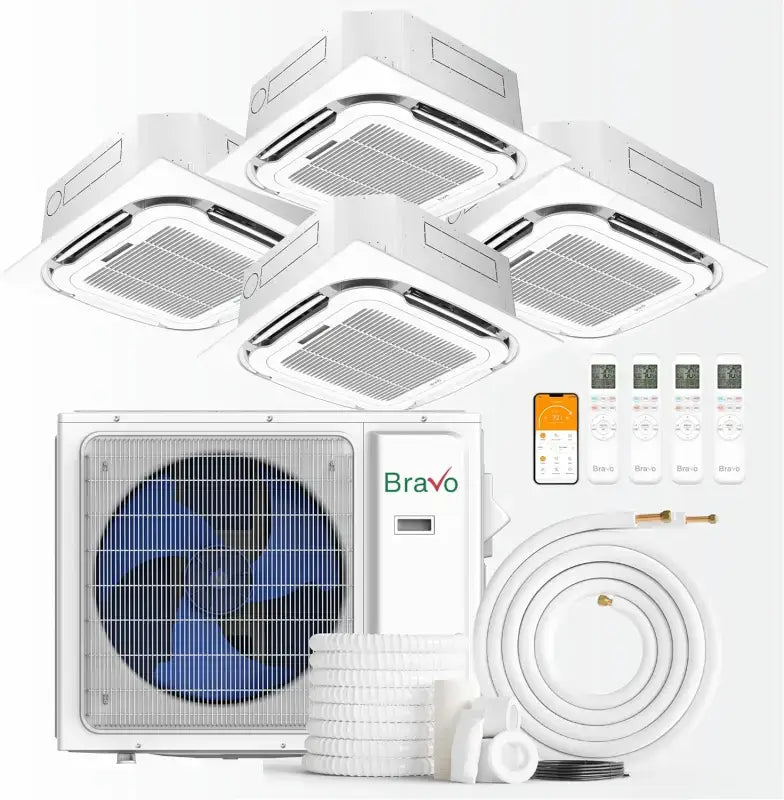

Bravo 36,000 BTU 4-Zone 9k+12k+12k+12k Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump | No Kit
Bravo3-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out
Complete 4-Zone System
Heat or cool 4 rooms independently from one 36000 BTU BRAVO outdoor unit (9K+12K+12K+12K) — every zone sets its own temperature, delivered by ceiling cassette indoor units.
Inverter Efficiency — SEER2 23
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 23 on 230V — steady comfort with noticeably lower energy bills.
Right-Sized Coverage
Engineered to heat & cool up to 1400–1800 sq ft across 4 zones — matched capacity so you never over- or under-size the space.
Bravo Ceiling Cassette
Bravo Units are designed to provide reliable heating and cooling for individual spaces, combining energy efficiency with advanced technology. With compact, modern designs and easy installation, these units seamlessly blend into various interiors. Featuring quiet operation and powerful performance, they ensure consistent comfort throughout the year. Built with durable components and anti-corrosion coatings, Bravo Units are engineered to handle diverse climates while maintaining peak efficiency. Perfect for residential or commercial environments, they deliver eco-friendly performance and tailored temperature control. Trust Bravo Single-Zone Units for innovative climate solutions that enhance your space effortlessly.
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 3 years for the compressor and 3 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.

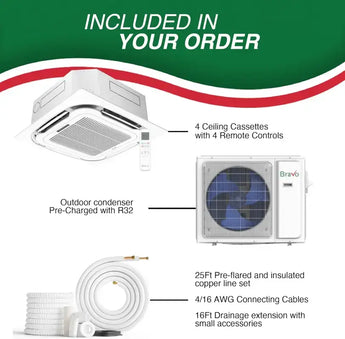

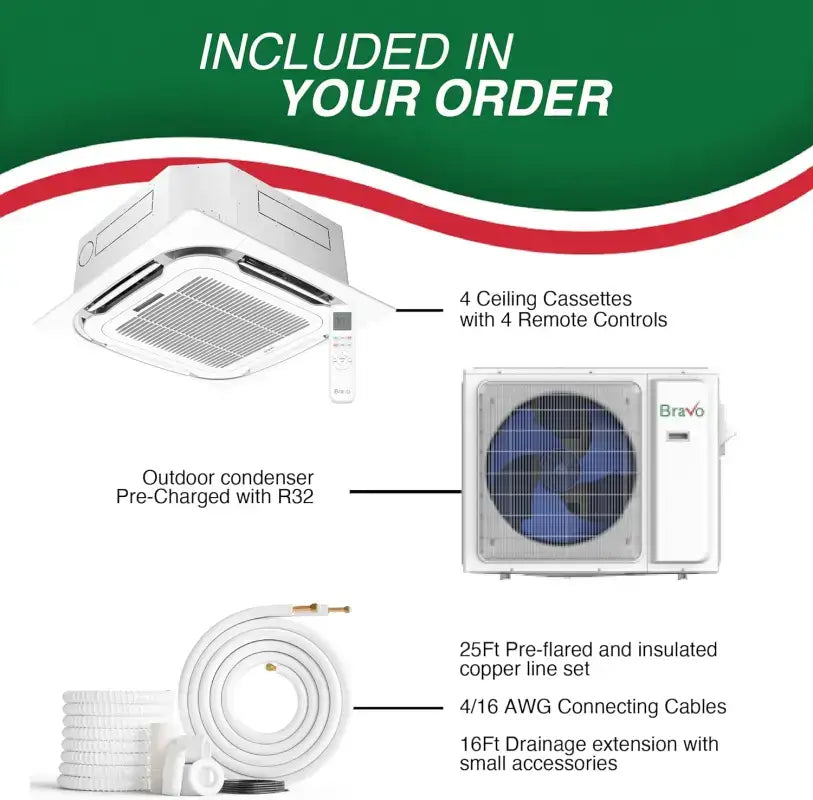

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Parameter | Indoor Model | |||
|---|---|---|---|---|
| BRV-M09CT-230VI BRV-PN9-18CT |
BRV-M12CT-230VI BRV-PN9-18CT |
BRV-M18CT-230VI BRV-PN9-18CT |
BRV-M24CT-230VI BRV-PN24CT |
|
| Power Supply V-Ph-Hz |
208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling Capacity Btu/h |
9,000 | 12,000 | 18,000 | 24,000 |
| Heating Rated Capacity Btu/h |
10,000 | 12,000 | 18,500 | 24,000 |
| Max Fuse A |
5 | 5 | 5 | 5 |
| Indoor Air Flow CFM |
383 | 383 | 442 | 824 |
| Indoor Noise Level dB(A) |
40 | 40 | 45 | 47 |
| Indoor Unit Dimensions (WxDxH) in |
22.44x22.44x10.24 | 22.44x22.44x10.24 | 22.44x22.44x10.24 | 33.07x33.07x9.69 |
| Indoor Unit Packing (WxDxH) in |
28.35x25.59x11.42 | 28.35x25.59x11.42 | 28.35x25.59x11.42 | 35.83x35.83x12.20 |
| Indoor Unit Net Weight lbs. |
30.9/37.5 | 30.9/37.5 | 33.1/38.6 | 52.9/61.7 |
| Panel Dimensions (WxDxH) in |
25.59x25.59x2.17 | 25.59x25.59x2.17 | 25.59x25.59x2.17 | 37.40x37.40x2.17 |
| Panel Packing (WxDxH) in |
27.95x27.95x3.15 | 27.95x27.95x3.15 | 27.95x27.95x3.15 | 39.37x39.37x3.94 |
| Panel Net/Gross Weight lbs. |
4.9/8.2 | 4.9/8.2 | 4.9/8.2 | 11.7/17.2 |
| Refrigerant Piping Liquid Side / Gas Side in |
1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 5/8" |
| Operation Temperature Range °F |
60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
| Parameter | Outdoor Model | ||||
|---|---|---|---|---|---|
| BRV-M18-230VO | BRV-M24-230VO | BRV-M30-230VO | BRV-M36-230VO | BRV-M42-230VO | |
| Power Supply V-Ph-Hz |
208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling Capacity Btu/h |
17,700 (3,800-19,800) | 24,000 (4,900-31,400) | 30,000 (6,000-38,200) | 36,000 (6,350~38,500) | 42,000 (8,350-46,000) |
| EER2 Btu/h |
3.60 | 3.66 | 3.66 | 3.60 | 3.66 |
| SEER2 Btu/h |
22 | 23 | 23 | 23 | 24 |
| Heating Rated Capacity Btu/h |
18,000 (4,200-22,000) | 24,000 (5,200-32,000) | 30,000 (6,300-36,000) | 36,000 (7,000~43,000) | 42,000 (8,450-53,000) |
| HSPF2-4 Btu/h |
10 | 10 | 10 | 10 | 10.5 |
| COP2 W/W |
3.8 | 4.0 | 3.9 | 4.0 | 3.9 |
| Minimum Circuit Ampacity A |
20 | 30 | 40 | 45 | 45 |
| Max Fuse A |
20 | 30 | 40 | 45 | 45 |
| Outdoor Air Flow CFM |
1529 | 2235 | 2353 | 2353 | 4235 |
| Outdoor Side Noise Level dB(A) |
54 | 57 | 58 | 59 | 60 |
| Outdoor Unit Dimensions (WxDxH) in |
34.65x13.90x21.93 | 38.58x15.28x27.56 | 41.18x17.91x31.81 | 41.18x17.91x31.81 | 39.80x15.75x51.97 |
| Outdoor Unit Packing (WxDxH) in |
35.55x15.04x24.21 | 39.96x16.73x30.00 | 43.50x19.49x34.84 | 43.50x19.49x34.84 | 42.52x16.93x56.69 |
| Outdoor Unit Net Weight lbs. |
75.0/80.5 | 102.5/109.1 | 148.8/157.6 | 154.3/163.1 | 205.0/224.9 |
| Refrigerant Type / Volume oz |
R32/38.8 | R32/51.2 | R32/67.0 | R32/81.2 | R32/105.8 |
| Refrigerant Precharge ft |
24.6 | 24.6 | 24.6 | 24.6 | 24.6 |
| Refrigerant Piping Liquid Side / Gas Side in |
1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" |
| Max Refrigerant Pipe Length ft |
82 | 98 | 115 | 115 | 115 |
| Ambient Temperature Outdoor (Cooling) °F |
-13~125.6 | -13~125.6 | -13~125.6 | -13~125.6 | -13~125.6 |
| Ambient Temperature Outdoor (Heating) °F |
-13~75.2 | -13~75.2 | -13~75.2 | -13~75.2 | -13~75.2 |
Multiple Control Methods
Bravo’s Series can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the Bravo 36,000 BTU mini split cool?
The Bravo 36,000 BTU 4-Zone system is designed to efficiently cool multiple rooms, typically accommodating up to four distinct areas, depending on the layout. With a coverage of up to 1500 sq ft, it's ideal for larger spaces or open floor plans.
Can I mix BTU sizes with the Bravo mini split system?
Yes, with the Bravo 36,000 BTU multi-zone system, you can mix BTU sizes across the zones, allowing for a configuration of 9k, 12k, 12k, and 12k. This flexibility enables you to tailor your cooling and heating needs to various room sizes.
Do all zones run simultaneously in the Bravo mini split system?
In the Bravo 36,000 BTU multi-zone setup, all zones can be operated simultaneously or independently, depending on your comfort needs. This feature allows for customized climate control in each area of your home.
What is the efficiency of the Bravo mini split compared to single-zone units?
The Bravo 36,000 BTU system boasts a high SEER rating of 23.0, making it significantly more efficient than running multiple single-zone units. This efficiency translates to lower energy bills and a more streamlined installation process.
What warranty comes with the Bravo mini split system?
The Bravo 36,000 BTU mini split air conditioner offers a 5-year parts and compressor warranty, ensuring reliable performance and peace of mind. This warranty covers key components for an extended period, making it a solid investment.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo 36,000 BTU mini split system comes pre-charged with R32 refrigerant for installations with up to 25 ft of line set. This feature simplifies installation and ensures optimal performance right out of the box.
