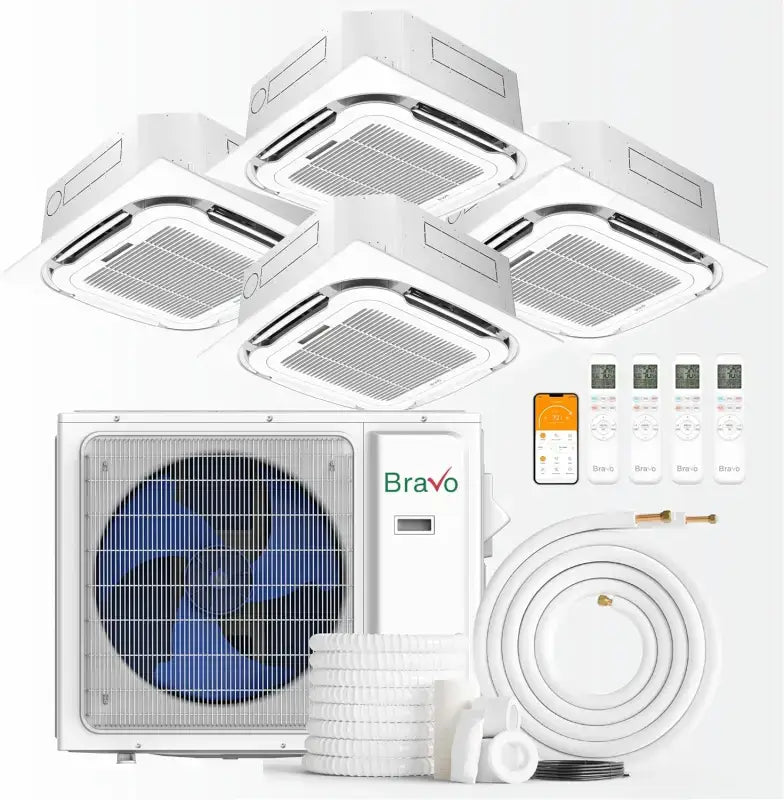

Bravo 42,000 BTU 4-Zone 9k+12k+18k+18k Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump | No Kit
Bravo
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Bravo Ceiling Cassette
Bravo Units are designed to provide reliable heating and cooling for individual spaces, combining energy efficiency with advanced technology. With compact, modern designs and easy installation, these units seamlessly blend into various interiors. Featuring quiet operation and powerful performance, they ensure consistent comfort throughout the year. Built with durable components and anti-corrosion coatings, Bravo Units are engineered to handle diverse climates while maintaining peak efficiency. Perfect for residential or commercial environments, they deliver eco-friendly performance and tailored temperature control. Trust Bravo Single-Zone Units for innovative climate solutions that enhance your space effortlessly.
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 3 years for the compressor and 3 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.

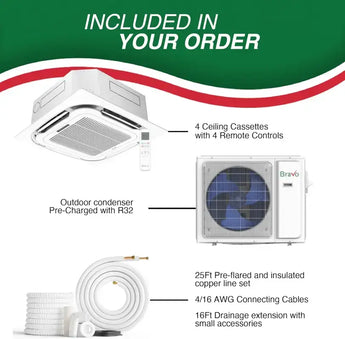

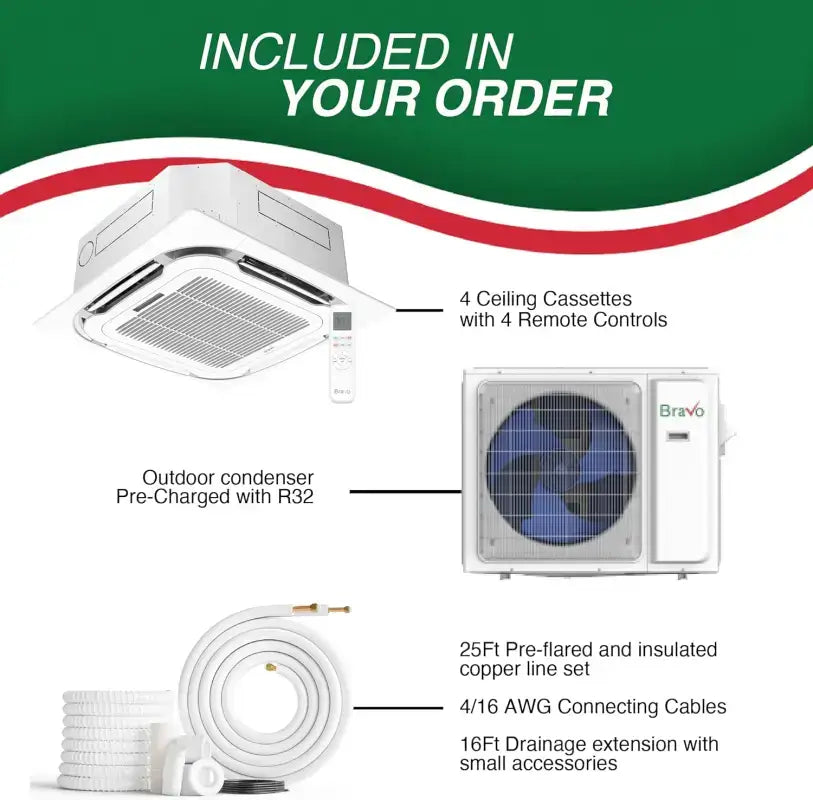

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Parameter | Indoor Model | |||
|---|---|---|---|---|
| BRV-M09CT-230VI BRV-PN9-18CT |
BRV-M12CT-230VI BRV-PN9-18CT |
BRV-M18CT-230VI BRV-PN9-18CT |
BRV-M24CT-230VI BRV-PN24CT |
|
| Power Supply V-Ph-Hz |
208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling Capacity Btu/h |
9,000 | 12,000 | 18,000 | 24,000 |
| Heating Rated Capacity Btu/h |
10,000 | 12,000 | 18,500 | 24,000 |
| Max Fuse A |
5 | 5 | 5 | 5 |
| Indoor Air Flow CFM |
383 | 383 | 442 | 824 |
| Indoor Noise Level dB(A) |
40 | 40 | 45 | 47 |
| Indoor Unit Dimensions (WxDxH) in |
22.44x22.44x10.24 | 22.44x22.44x10.24 | 22.44x22.44x10.24 | 33.07x33.07x9.69 |
| Indoor Unit Packing (WxDxH) in |
28.35x25.59x11.42 | 28.35x25.59x11.42 | 28.35x25.59x11.42 | 35.83x35.83x12.20 |
| Indoor Unit Net Weight lbs. |
30.9/37.5 | 30.9/37.5 | 33.1/38.6 | 52.9/61.7 |
| Panel Dimensions (WxDxH) in |
25.59x25.59x2.17 | 25.59x25.59x2.17 | 25.59x25.59x2.17 | 37.40x37.40x2.17 |
| Panel Packing (WxDxH) in |
27.95x27.95x3.15 | 27.95x27.95x3.15 | 27.95x27.95x3.15 | 39.37x39.37x3.94 |
| Panel Net/Gross Weight lbs. |
4.9/8.2 | 4.9/8.2 | 4.9/8.2 | 11.7/17.2 |
| Refrigerant Piping Liquid Side / Gas Side in |
1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 5/8" |
| Operation Temperature Range °F |
60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
| Parameter | Outdoor Model | ||||
|---|---|---|---|---|---|
| BRV-M18-230VO | BRV-M24-230VO | BRV-M30-230VO | BRV-M36-230VO | BRV-M42-230VO | |
| Power Supply V-Ph-Hz |
208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling Capacity Btu/h |
17,700 (3,800-19,800) | 24,000 (4,900-31,400) | 30,000 (6,000-38,200) | 36,000 (6,350~38,500) | 42,000 (8,350-46,000) |
| EER2 Btu/h |
3.60 | 3.66 | 3.66 | 3.60 | 3.66 |
| SEER2 Btu/h |
22 | 23 | 23 | 23 | 24 |
| Heating Rated Capacity Btu/h |
18,000 (4,200-22,000) | 24,000 (5,200-32,000) | 30,000 (6,300-36,000) | 36,000 (7,000~43,000) | 42,000 (8,450-53,000) |
| HSPF2-4 Btu/h |
10 | 10 | 10 | 10 | 10.5 |
| COP2 W/W |
3.8 | 4.0 | 3.9 | 4.0 | 3.9 |
| Minimum Circuit Ampacity A |
20 | 30 | 40 | 45 | 45 |
| Max Fuse A |
20 | 30 | 40 | 45 | 45 |
| Outdoor Air Flow CFM |
1529 | 2235 | 2353 | 2353 | 4235 |
| Outdoor Side Noise Level dB(A) |
54 | 57 | 58 | 59 | 60 |
| Outdoor Unit Dimensions (WxDxH) in |
34.65x13.90x21.93 | 38.58x15.28x27.56 | 41.18x17.91x31.81 | 41.18x17.91x31.81 | 39.80x15.75x51.97 |
| Outdoor Unit Packing (WxDxH) in |
35.55x15.04x24.21 | 39.96x16.73x30.00 | 43.50x19.49x34.84 | 43.50x19.49x34.84 | 42.52x16.93x56.69 |
| Outdoor Unit Net Weight lbs. |
75.0/80.5 | 102.5/109.1 | 148.8/157.6 | 154.3/163.1 | 205.0/224.9 |
| Refrigerant Type / Volume oz |
R32/38.8 | R32/51.2 | R32/67.0 | R32/81.2 | R32/105.8 |
| Refrigerant Precharge ft |
24.6 | 24.6 | 24.6 | 24.6 | 24.6 |
| Refrigerant Piping Liquid Side / Gas Side in |
1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" |
| Max Refrigerant Pipe Length ft |
82 | 98 | 115 | 115 | 115 |
| Ambient Temperature Outdoor (Cooling) °F |
-13~125.6 | -13~125.6 | -13~125.6 | -13~125.6 | -13~125.6 |
| Ambient Temperature Outdoor (Heating) °F |
-13~75.2 | -13~75.2 | -13~75.2 | -13~75.2 | -13~75.2 |
Multiple Control Methods
Bravo’s Series can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the Bravo 42,000 BTU mini split cool?
The Bravo 42,000 BTU 4-Zone mini split system is designed to efficiently cool multiple rooms, typically accommodating four distinct zones. Each zone can have different temperature settings, making it ideal for various room sizes and needs.
Can I mix different BTU sizes with the Bravo mini split system?
Yes, the Bravo mini split system allows you to mix different BTU sizes across its zones, such as pairing a 9k, 12k, and two 18k units. This flexibility enables you to customize your system based on the specific cooling requirements of each room.
Do all zones run simultaneously in the Bravo multi-zone mini split?
In the Bravo multi-zone system, all zones can run simultaneously, allowing for individual temperature control across each area. This feature ensures that you can maintain comfort in multiple rooms without sacrificing efficiency.
What efficiency benefits does the Bravo 42,000 BTU mini split offer compared to multiple single-zone units?
With a SEER rating of 24.0, the Bravo 42,000 BTU mini split operates more efficiently than multiple single-zone units combined. This not only reduces energy consumption but also provides a streamlined installation process and centralized control.
What warranty does the Bravo mini split offer?
The Bravo mini split system comes with a comprehensive 5-year parts and compressor warranty, ensuring peace of mind regarding the longevity and reliability of your investment. This warranty covers essential components, protecting you from unexpected repair costs.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system is pre-charged with R32 refrigerant, allowing for installation with up to 25 ft of line set. This feature simplifies the installation process, making it quicker and more efficient for HVAC professionals.
