BRAVO 18,000 BTU 2-Zone 9k+12k Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump | No Kit No Kit
Bravo3-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out

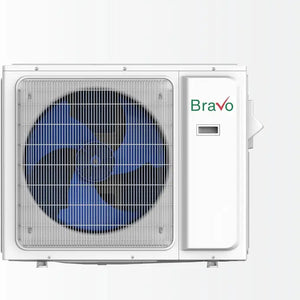

Complete 2-Zone System

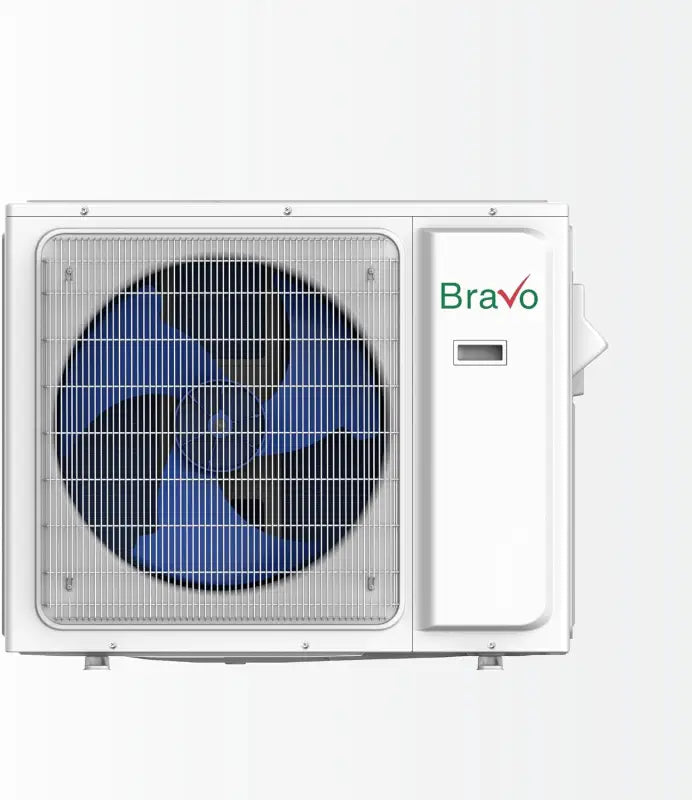

Heat or cool 2 rooms independently from one 18000 BTU BRAVO outdoor unit (9K+12K) — every zone sets its own temperature, delivered by wall mount indoor units.
Inverter Efficiency — SEER2 22
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 22 on 230V — steady comfort with noticeably lower energy bills.
Right-Sized Coverage
Engineered to heat & cool up to 500–800 sq ft across 2 zones — matched capacity so you never over- or under-size the space.

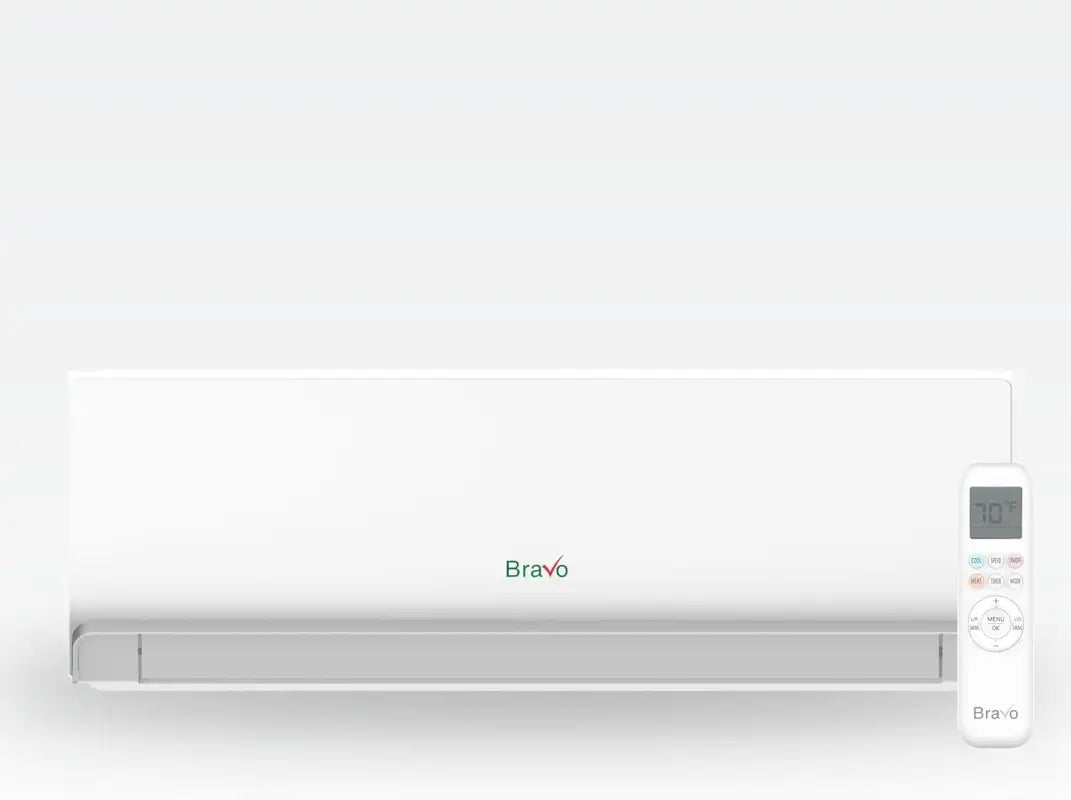

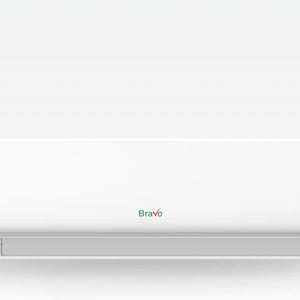

Bravo Wall Mount
Bravo Single-Zone Units are designed to provide reliable heating and cooling for individual spaces, combining energy efficiency with advanced technology. With compact, modern designs and easy installation, these units seamlessly blend into various interiors. Featuring quiet operation and powerful performance, they ensure consistent comfort throughout the year. Built with durable components and anti-corrosion coatings, Bravo Units are engineered to handle diverse climates while maintaining peak efficiency. Perfect for residential or commercial environments, they deliver eco-friendly performance and tailored temperature control. Trust Bravo Single-Zone Units for innovative climate solutions that enhance your space effortlessly.
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 3 years for the compressor and 3 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.

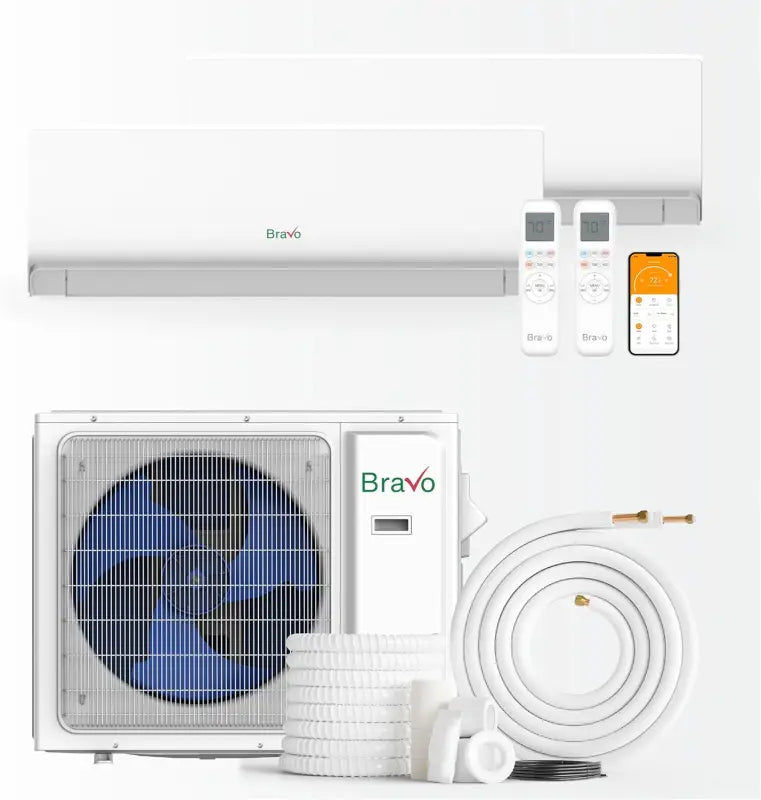

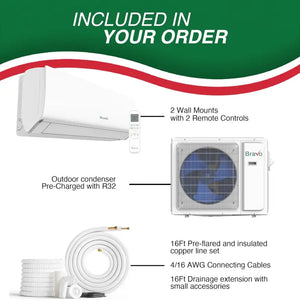

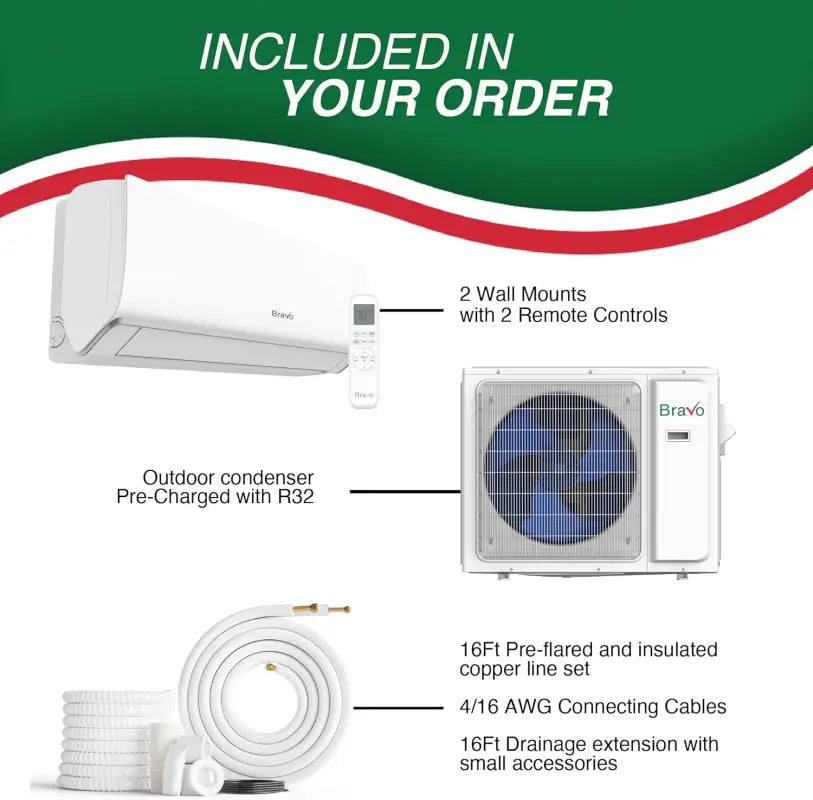

All Accessories Included

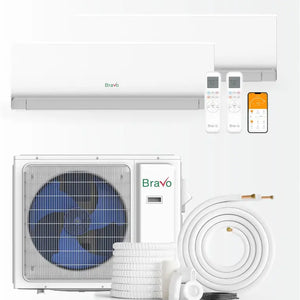

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, a 16ft Line Set, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor Model | BRV-R12W-115VI | BRV-R12W-230VI | BRV-R18W-230VI | BRV-R24W-230VI | BRV-R36W-230VI | |
|---|---|---|---|---|---|---|
| Outdoor Model | BRV-R12LS-115VO | BRV-R12LS-230VO | BRV-R18LS-230VO | BRV-R24LS-230VO | BRV-R36LS-230VO | |
| Power Supply (V,Ph,Hz) | 115,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | |
| Cooling | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 35,000 | |
| EER2 (Btu/h) | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | |
| SEER2 (Btu/h) | 17 | 17 | 17 | 17 | 17 | |
| Heating | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 34,500 | |
| COP2 (W/W) | 3.5 | 3.2 | 3.5 | 3.5 | 3.2 | |
| HSPF2-4 | 9.0 | 9.0 | 10.5 | 8.64 | 8.5 | |
| Minimum Circuit Ampacity (A) | 17 | 11 | 13 | 13 | 23 | |
| Max. Fuse (A) | 25 | 15 | 20 | 20 | 35 | |
| Indoor Air Flow - Turbo/Hi/Mi/Lo/Mute (CFM) | 276/265/241/224/206 | 294/264/235/206/159 | 412/364/294/235/208 | 676/629/505/412/352 | 882/741/564/458/411 | |
| Indoor Noise Level - Turbo/Hi/Mi/Lo/Mute (dB(A)) | 42.9/40/36.1/33/29 | 45/42/39/35/33 | 49/45/43/40/37 | 47/45/39/34/32 | 55/52/46/41/39 | |
| Indoor Unit Dimension (WxDxH) (inch) | 30.59x9.84x7.91 | 30.59x9.84x7.91 | 35.82x11.57x8.11 | 39.76x12.40x8.66 | 46.88x14.17x10.15 | |
| Indoor Unit Packing (WxDxH) (inch) | 33.07x12.40x10.23 | 33.07x12.40x10.23 | 38.54x14.64x10.90 | 43.15x15.35x11.81 | 49.60x16.92x12.91 | |
| Indoor Unit Net/Gross Weight (lbs.) | 22.05 | 22.05 | 26.46 | 28.66 | 46.30 | |
| Outdoor Air Flow (CFM) | 1,213 | 1,213 | 1,704 | 1,645 | 1,645 | |
| Outdoor Side Noise Level (dB(A)) | 53 | 55 | 57 | 55 | 63 | |
| Outdoor Unit Dimension (WxDxH) (inch) | 30.59x11.42x19.61 | 30.59x11.41x19.61 | 31.88x12.00x21.61 | 30.70x13.74x23.81 | 38.50x16.57x31.61 | |
| Outdoor Unit Packing (WxDxH) (inch) | 32.20x12.80x20.27 | 32.20x12.80x21.18 | 33.54x14.09x24.02 | 35.43x15.94x25.79 | 40.23x18.89x32.87 | |
| Outdoor Unit Net/Gross Weight (lbs.) | 52.9 | 58.4 | 62.8 | 72.8 | 120.2 | |
| Refrigerant Type (oz.) | R32 | R32 | R32 | R32 | R32 | |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | |
| Design Pressure (PSIG) | 652.5 | 652.5 | 652.5 | 652.5 | 652.5 | |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 1/4"/5/8" | |
| Max. Pipe Length (ft.) | 50 | 50 | 50 | 65 | 65 | |
| Connection Wiring - Size x Core Number | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | |
| Ambient Temperature | ||||||
| Indoor (Cooling/Heating) (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | |
| Outdoor (Cooling/Heating) (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | |
Multiple Control Methods
Bravo’s Series can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the Bravo 2 zone 18,000 BTU mini split cool?
The Bravo 2 zone 18,000 BTU mini split can effectively cool up to two rooms, with a total coverage area of approximately 850 sq ft. This makes it ideal for dual-zone applications, providing efficient climate control where you need it most.
Can I mix BTU sizes with the Bravo mini split system?
Yes, you can mix BTU sizes with the Bravo mini split system, as long as the total BTU does not exceed the specified limits for the system. The 18,000 BTU model can be paired with an additional indoor unit of either 9,000 BTU or 12,000 BTU, allowing for flexible cooling solutions.
Do all zones run simultaneously in the Bravo dual-zone mini split?
No, the zones in the Bravo dual-zone mini split do not have to run simultaneously. You can control each zone independently, allowing for customized comfort and energy savings when only one zone is in use.
Is the Bravo ductless mini split efficient compared to multiple single-zone units?
The Bravo ductless mini split offers a SEER rating of 22.0, making it significantly more efficient than running multiple single-zone units. This high efficiency can lead to lower energy bills and a more streamlined installation process.
What is the warranty on the Bravo mini split system?
The Bravo mini split system comes with a 5-year parts and compressor warranty, ensuring that you are protected against defects and issues during the initial years of use. This warranty reflects Bravo's commitment to quality and customer satisfaction.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split is pre-charged with R32 refrigerant for up to 25 ft of line set, making installation easier and faster. This feature ensures optimal performance right out of the box, provided the installation is within the specified line set length.
