Bravo 18,000 BTU Indoor Multi Position Air Handler, 230V, R32 - Ducted Mini Split Heat Pump | No Kit
Bravo7-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| EER | |
| WiFi | |
| Type | |
| Freon | |
| Compressor |
Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated
Pickup available at Medley Warehouse
Usually ready in 24 hours
Mon–Fri, 9:00 AM – 4:30 PM
Questions about this system?
Answers in seconds — tap a question below
-
Sized for about the room's square footage at ~20 BTU per sq ft. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this unit is 18,000 BTU (1.5-ton)). Ceiling height, insulation, sun and climate shift that — if you're between sizes, size up for hot/humid rooms. Not sure? We'll confirm the right BTU for your space.
-
12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 18,000 BTU (1.5-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
-
It uses R32 — an efficient, lower-GWP refrigerant that's now the industry standard on modern mini splits. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
-
Rated SEER2 18.4 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
-
Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
-
Yes — a big upgrade. It's far more efficient (inverter, SEER2 18.4) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
-
Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
-
Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
-
It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
-
Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on U.S. orders over $300, and our team can help with sizing and support.
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out
Multi-Position Air Handler
Installs in upflow, downflow or horizontal orientation to fit a closet, attic or utility room, delivering ducted 18000 BTU comfort to the whole home.
Inverter Efficiency — SEER2 18.4
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 18.4 on 230V — steady comfort with noticeably lower energy bills.
Smart Wi-Fi Control
Wi-Fi is included — set schedules and adjust the temperature from your phone anywhere, or pair with Alexa & Google Home.

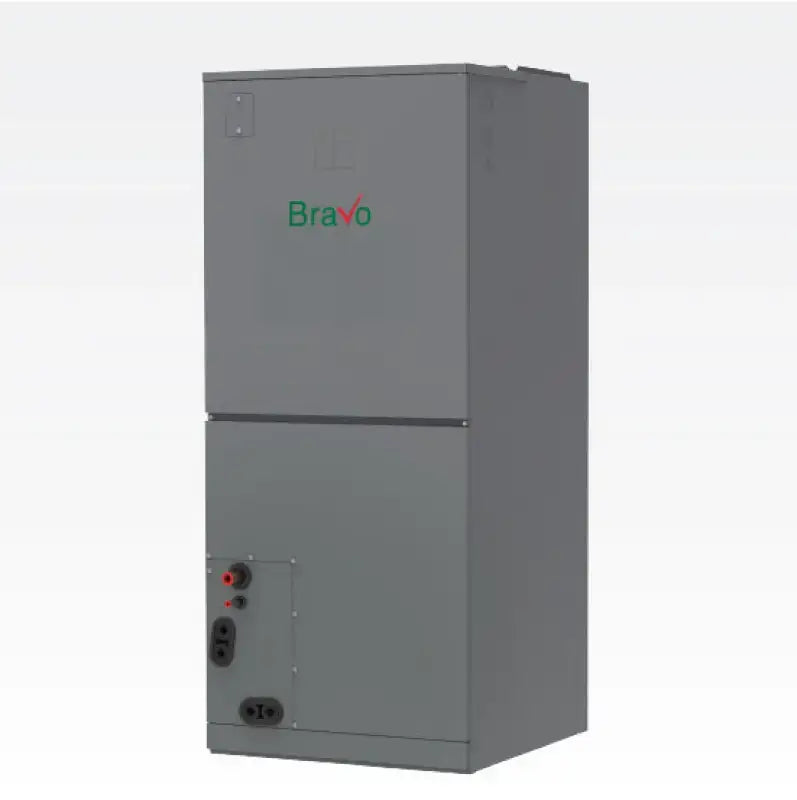

Bravo Multi-Position Air Handler
Bravo Multi-Position Air Handlers are engineered to connect seamlessly to your existing ductwork, delivering reliable heating and cooling with exceptional flexibility. Designed for horizontal, vertical, or downflow installation, these units adapt to virtually any space. Powered by advanced inverter technology and R32 refrigerant, they offer superior energy efficiency, ultra-quiet operation, and precise temperature control — making them the ideal solution for residential and commercial applications year-round.
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.
All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, a 16ft Line Set, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
System Specs
| Cooling Capacity | 18,000 BTU |
|---|---|
| SEER2 | 18.4 |
| Voltage | 230V |
| Refrigerant Type | R32 |
| Compressor | Inverter |
| WiFi | Included |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
| Indoor Model | BRV-MP18AHUW-230VI | BRV-MP24AHUW-230VI | BRV-MP36AHUW-230VI | BRV-MP48AHUW-230VI | BRV-MP60AHUW-230VI |
|---|---|---|---|---|---|
| Power Supply (V-Ph-Hz) | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling (Btu/h) | 18,000 | 24,000 | 36,000 | 48,000 | 53,000 |
| Heating (Btu/h) | 19,000 | 26,000 | 36,000 | 48,000 | 55,000 |
| Indoor Fan Motor – Type | ECM | ECM | ECM | ECM | ECM |
| Indoor Fan Motor – Output (W) | 75 | 75 | 150 | 150 | 150 |
| Max Fuse (A) | 6.0 | 6.0 | 6.0 | 10.0 | 10.0 |
| Indoor Air Flow – High/Low (CFM) | 650 / 420 | 830 / 420 | 1110 / 520 | 1690 / 750 | 1740 / 750 |
| Indoor Noise Level – High/Low (dB(A)) | 38.5 / 34 | 42 / 38 | 50 / 42.5 | 53 / 46 | 53 / 46 |
| Indoor Unit – Dimensions WxDxH (in) | 17.52×21.02×45.00 | 17.52×21.03×45.00 | 21.03×21.03×49.22 | 24.48×21.03×52.98 | 24.48×21.03×52.98 |
| Indoor Unit – Packing WxDxH (in) | 20.87×26.57×46.26 | 20.86×26.57×46.27 | 24.41×26.58×50.20 | 27.88×26.58×54.14 | 27.88×26.58×54.14 |
| Indoor Unit – Net/Gross Weight (lbs.) | 84 / 92 | 84 / 92 | 132 / 140 | 152 / 160 | 152 / 160 |
| Refrigerant Piping – Liquid / Gas Side (in) | 3/8" / 3/4" | 3/8" / 3/4" | 3/8" / 3/4" | 3/8" / 3/4" | 3/8" / 3/4" |
| Ambient Temperature Range – Cooling (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Ambient Temperature Range – Heating (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Outdoor Model | BRV-SD18HI-230VO | BRV-SD24HI-230VO | BRV-SD36HI-230VO | BRV-SD48HI-230VO | BRV-SD60HI-230VO |
|---|---|---|---|---|---|
| Power Supply (V-Ph-Hz) | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling – Rated Capacity (Btu/h) | 18,000 | 24,000 | 36,000 | 48,000 | 53,000 |
| Cooling – EER2 | 11.5 | 10.4 | 10.4 | 9 | 8 |
| Cooling – SEER2 | 18.4 | 17.7 | 17.0 | 16.5 | 15.8 |
| Heating – Rated Capacity (Btu/h) | 19,000 | 26,000 | 36,000 | 48,000 | 55,000 |
| Heating – HSPF2 | 8.6 | 8.5 | 8.4 | 8.5 | 8.5 |
| Heating – COP (W/W) | 3.85 | 3.4 | 3.45 | 3.45 | 3.55 |
| Compressor – Type | rotary | rotary | rotary | rotary | rotary |
| Compressor – Rated Current RLA (A) | 6.80 | 9.45 | 9.45 | 5.25 | 5.25 |
| Compressor – Capacity (W) | 1115 | 2085 | 2085 | 2680 | 2680 |
| Compressor – Rated Current (A) | 6.80 | 9.45 | 9.45 | 5.25 | 5.25 |
| Outdoor Fan Motor RLA (A) | 2.00 | 2.00 | 2.50 | 2.50 | 2.50 |
| Outdoor Unit – Dimensions WxDxH (in) | 36.03×25.59×13.58 | 36.03×25.59×13.58 | 37.98×31.89×15.75 | 37.98×31.89×15.75 | 37.98×31.89×15.75 |
| Outdoor Unit – Packing WxDxH (in) | 40.16×28.94×17.13 | 40.16×28.94×17.13 | 42.13×34.64×20.67 | 42.13×34.64×20.67 | 42.13×34.64×20.67 |
| Outdoor Unit – Net/Gross Weight (lbs.) | 84 / 92 | 84 / 92 | 132 / 140 | 152 / 160 | 152 / 160 |
| Refrigerant System – Type | R32 | R32 | R32 | R32 | R32 |
| Refrigerant System – Charge (oz) | 56.44 | 58.2 | 84.66 | 105.82 | 105.82 |
| Refrigerant System – Liquid / Gas Side (in) | 3/8" / 3/4" | 3/8" / 3/4" | 3/8" / 3/4" | 3/8" / 3/4" | 3/8" / 3/4" |
| Refrigerant System – Max Pipe Length (ft) | 98.4 | 164 | 246 | 246 | 246 |
| Refrigerant System – Max Different Level (ft) | 65.6 | 82 | 98.4 | 98.4 | 98.4 |
| Max Fuse (A) | 20 | 25 | 30 | 40 | 50 |
| Outdoor Air Flow (CFM) | 2000 | 2000 | 2650 | 2950 | 2950 |
| Outdoor Noise Level – High (dB(A)) | 54 | 55 | 56 | 60 | 60 |
| Operation Temperature Range – Cooling (°F) | 5~131 | 5~131 | 5~131 | 5~131 | 5~131 |
| Operation Temperature Range – Heating (°F) | -4~75 | -4~75 | -4~75 | -4~75 | -4~75 |
| Ambient Temperature – Indoor Cooling/Heating (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 |
| Ambient Temperature – Outdoor Cooling/Heating (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 |
Shipping & Returns
- Free shipping on every order over $300.
- Delivery estimate for your ZIP is shown in the buy box above.
- Returns accepted per our policy — unopened units in original packaging.
Warranty
7-year compressor / 5-year parts
- Limited manufacturer warranty on the compressor and sealed system components.
- Installation by a licensed HVAC professional and product registration are required to keep coverage valid.
Multiple Control Methods

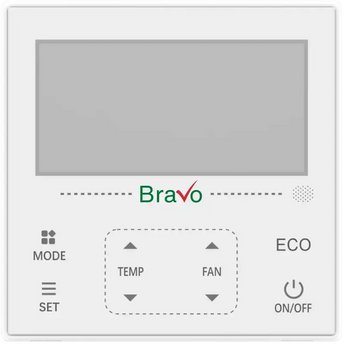

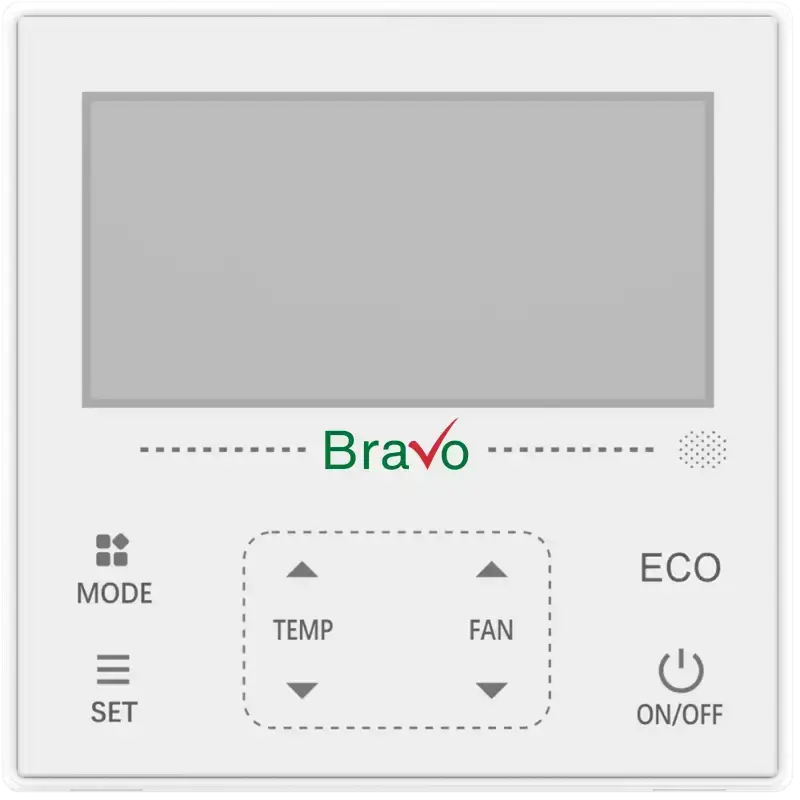

Bravo AHU can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
