Bravo 30,000 BTU 2-Zone 12k+12k Concealed Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump | No Kit No Kit
Bravo3-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out
Complete 2-Zone System
Heat or cool 2 rooms independently from one 30000 BTU BRAVO outdoor unit (12K+12K) — every zone sets its own temperature, delivered by concealed duct indoor units.
Inverter Efficiency — SEER2 23
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 23 on 230V — steady comfort with noticeably lower energy bills.
Right-Sized Coverage
Engineered to heat & cool up to 1200–1400 sq ft across 2 zones — matched capacity so you never over- or under-size the space.

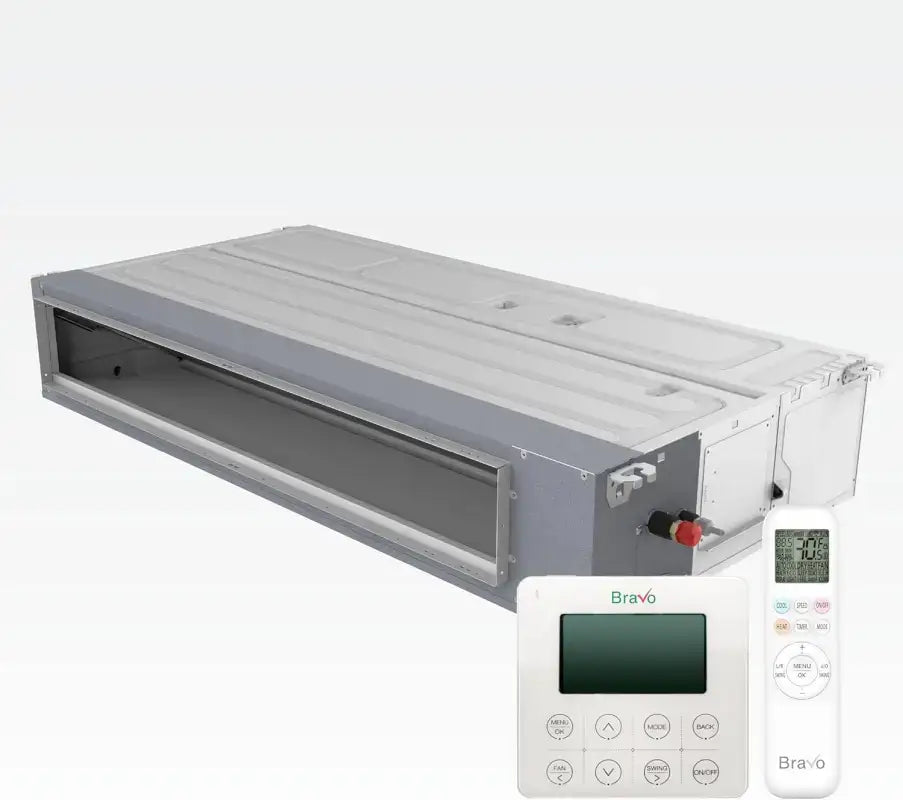

Ducted Mini Split AC Concealed
Bravo Ducted Mini Split AC Concealed are designed to provide reliable heating and cooling for individual spaces, combining energy efficiency with advanced technology. With compact, modern designs and easy installation, these units seamlessly blend into various interiors. Featuring quiet operation and powerful performance, they ensure consistent comfort throughout the year. Built with durable components and anti-corrosion coatings, Bravo Units are engineered to handle diverse climates while maintaining peak efficiency. Perfect for residential or commercial environments, climate solutions that enhance your space effortlessly
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 3 years for the compressor and 3 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.
All Accessories Included

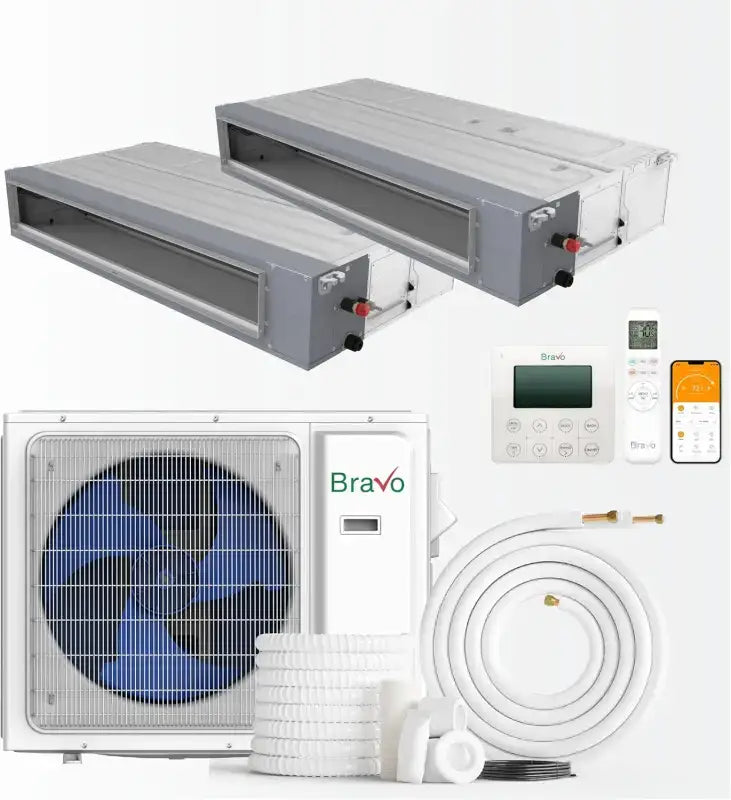

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, a 16ft Line Set, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor Model | BRV-M09DT-230VI | BRV-M12DT-230VI | BRV-M18DT-230VI | BRV-M24DT-230VI | ||
|---|---|---|---|---|---|---|
| Power Supply | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | ||
| Cooling | Rated Capacity | 9,000 | 12,000 | 18,000 | 24,000 | |
| Btu/h | 9,000 | 12,000 | 18,000 | 24,000 | ||
| Heating | Rated Capacity | 10,000 | 12,000 | 19,000 | 24,600 | |
| Btu/h | 10,000 | 12,000 | 19,000 | 24,600 | ||
| Max Fuse | 5 | 5 | 5 | 5 | ||
| Indoor Air Flow | 353 | 353 | 530 | 795 | ||
| Indoor Noise Level | 34 | 34 | 39 | 42 | ||
| Indoor Unit | Dimensions (WxDxH) | 27.56×17.72×7.8 | 27.56×17.72×7.8 | 27.56×27.56×9.65 | 39.37×27.56×9.65 | |
| Packing (WxDxH) | 34.25×21.3×10.24 | 34.25×21.3×10.24 | 36.61×32.68×11.81 | 48.43×32.68×11.81 | ||
| Net/Gross Weight | 27.6/33.1 | 27.6/33.1 | 47.4/56.2 | 59.5/70.5 | ||
| Refrigerant Piping | Liquid Side / Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | ◊ 1/4" / 1/2" | ◊ 1/4" / 5/8" | |
| Operation Temperature Range | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | ||
| Outdoor Model | BRV-R12LS-115VO | BRV-R12LS-230VO | BRV-R18LS-230VO | BRV-R24LS-230VO | BRV-R36LS-230VO | |
|---|---|---|---|---|---|---|
| Power Supply (V,Ph,Hz) | 115,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | |
| Cooling | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 35,000 | |
| EER2 (Btu/h) | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | |
| SEER2 (Btu/h) | 17 | 17 | 17 | 17 | 17 | |
| Heating | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 34,500 | |
| COP2 (W/W) | 3.5 | 3.2 | 3.5 | 3.5 | 3.2 | |
| HSPF2-4 | 9.0 | 9.0 | 10.5 | 8.64 | 8.5 | |
| Minimum Circuit Ampacity (A) | 17 | 11 | 13 | 13 | 23 | |
| Max. Fuse (A) | 25 | 15 | 20 | 20 | 35 | |
| Indoor Air Flow - Turbo/Hi/Mi/Lo/Mute (CFM) | 276/265/241/224/206 | 294/264/235/206/159 | 412/364/294/235/208 | 676/629/505/412/352 | 882/741/564/458/411 | |
| Indoor Noise Level - Turbo/Hi/Mi/Lo/Mute (dB(A)) | 42.9/40/36.1/33/29 | 45/42/39/35/33 | 49/45/43/40/37 | 47/45/39/34/32 | 55/52/46/41/39 | |
| Indoor Unit Dimension (WxDxH) (inch) | 30.59x9.84x7.91 | 30.59x9.84x7.91 | 35.82x11.57x8.11 | 39.76x12.40x8.66 | 46.88x14.17x10.15 | |
| Indoor Unit Packing (WxDxH) (inch) | 33.07x12.40x10.23 | 33.07x12.40x10.23 | 38.54x14.64x10.90 | 43.15x15.35x11.81 | 49.60x16.92x12.91 | |
| Indoor Unit Net/Gross Weight (lbs.) | 22.05 | 22.05 | 26.46 | 28.66 | 46.30 | |
| Outdoor Air Flow (CFM) | 1,213 | 1,213 | 1,704 | 1,645 | 1,645 | |
| Outdoor Side Noise Level (dB(A)) | 53 | 55 | 57 | 55 | 63 | |
| Outdoor Unit Dimension (WxDxH) (inch) | 30.59x11.42x19.61 | 30.59x11.41x19.61 | 31.88x12.00x21.61 | 30.70x13.74x23.81 | 38.50x16.57x31.61 | |
| Outdoor Unit Packing (WxDxH) (inch) | 32.20x12.80x20.27 | 32.20x12.80x21.18 | 33.54x14.09x24.02 | 35.43x15.94x25.79 | 40.23x18.89x32.87 | |
| Outdoor Unit Net/Gross Weight (lbs.) | 52.9 | 58.4 | 62.8 | 72.8 | 120.2 | |
| Refrigerant Type (oz.) | R32 | R32 | R32 | R32 | R32 | |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | |
| Design Pressure (PSIG) | 652.5 | 652.5 | 652.5 | 652.5 | 652.5 | |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 1/4"/5/8" | |
| Max. Pipe Length (ft.) | 50 | 50 | 50 | 65 | 65 | |
| Connection Wiring - Size x Core Number | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | |
| Ambient Temperature | ||||||
| Indoor (Cooling/Heating) (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | |
| Outdoor (Cooling/Heating) (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | |
Multiple Control Methods
Bravo’s Series can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the Bravo 30,000 BTU mini split cool effectively?
The Bravo 30,000 BTU dual zone mini split can efficiently cool up to two rooms, depending on their size and insulation. With a coverage area of up to 1,400 sq ft, it’s ideal for medium to larger spaces.
Can I mix BTU sizes in a multi-zone mini split system like the Bravo?
Yes, you can mix BTU sizes in a multi-zone system, including the Bravo 30,000 BTU model. Just ensure that the total BTU does not exceed the capacity of the outdoor unit, which is 30k BTU in this case.
Do all zones in the Bravo mini split run simultaneously or can they be controlled independently?
In the Bravo dual zone mini split, you can control each zone independently, allowing you to cool or heat rooms based on your needs. This flexibility is particularly advantageous for energy savings.
Is it more efficient to use a multi-zone mini split like Bravo instead of multiple single-zone units?
Using a multi-zone mini split like the Bravo with a SEER rating of 23.0 is often more efficient than multiple single-zone units. This higher efficiency can reduce energy consumption and lower utility bills.
What warranty does the Bravo mini split offer?
The Bravo mini split system comes with an excellent 5-year parts and compressor warranty, ensuring peace of mind for your investment. This warranty coverage applies to the entire unit, including the key components.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split is pre-charged with R32 refrigerant for up to 25 ft of line set, making installation easier. This feature helps to streamline the setup process while ensuring optimal performance right from the start.
