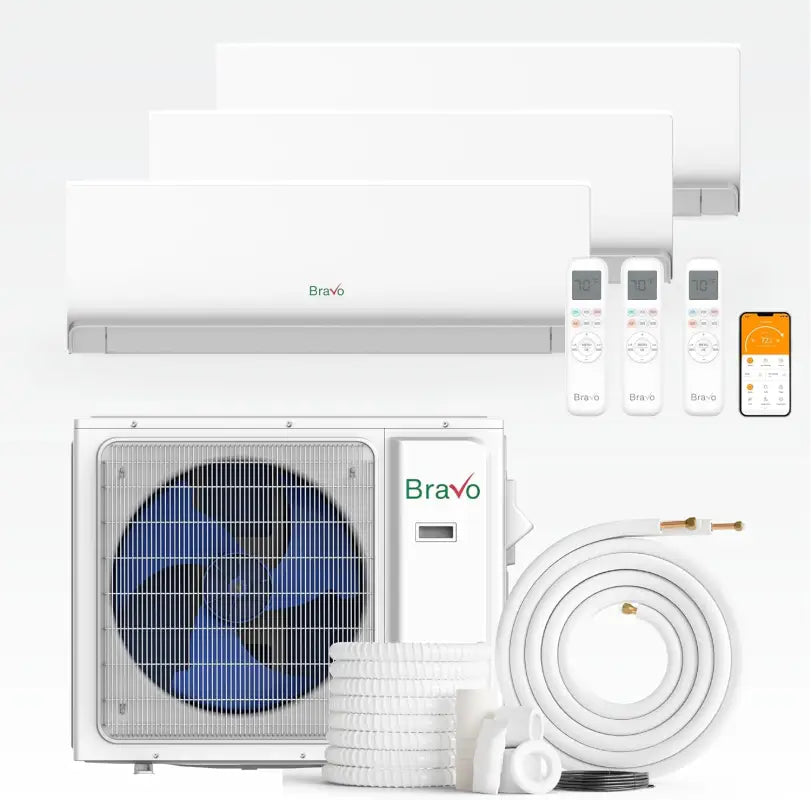

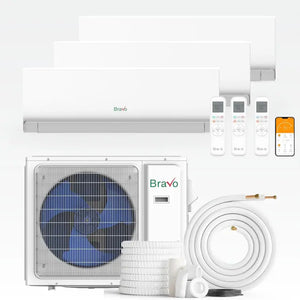

3 zone 30,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+12k+12k | No Kit No Kit No Kit
Bravo
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Bravo Wall Mount
Bravo Single-Zone Units are designed to provide reliable heating and cooling for individual spaces, combining energy efficiency with advanced technology. With compact, modern designs and easy installation, these units seamlessly blend into various interiors. Featuring quiet operation and powerful performance, they ensure consistent comfort throughout the year. Built with durable components and anti-corrosion coatings, Bravo Units are engineered to handle diverse climates while maintaining peak efficiency. Perfect for residential or commercial environments, they deliver eco-friendly performance and tailored temperature control. Trust Bravo Single-Zone Units for innovative climate solutions that enhance your space effortlessly.
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 3 years for the compressor and 3 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.

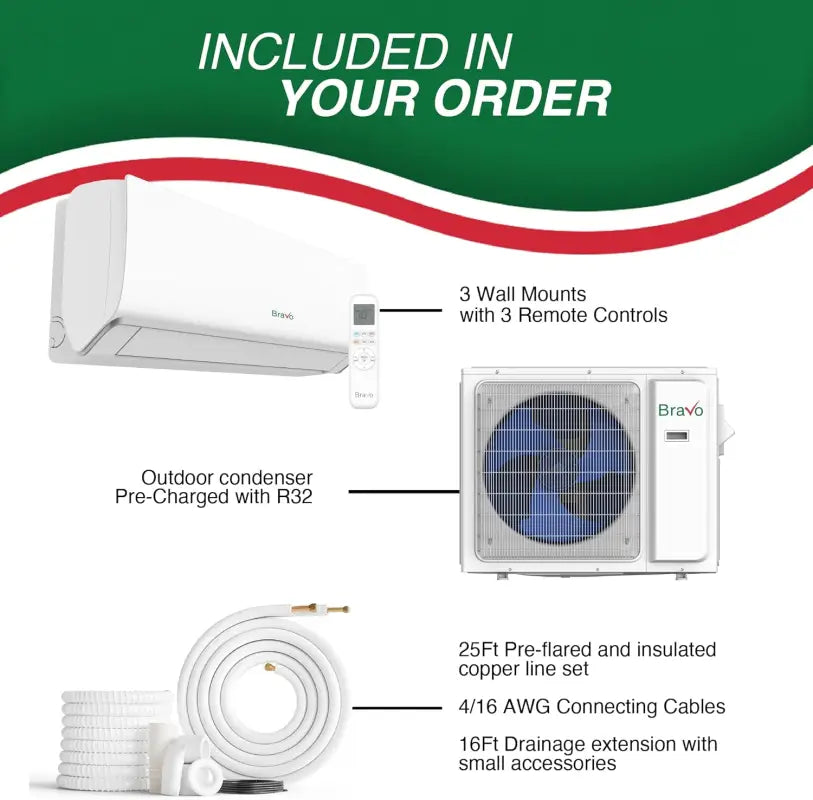

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor Model | BRV-R12W-115VI | BRV-R12W-230VI | BRV-R18W-230VI | BRV-R24W-230VI | BRV-R36W-230VI | |
|---|---|---|---|---|---|---|
| Outdoor Model | BRV-R12LS-115VO | BRV-R12LS-230VO | BRV-R18LS-230VO | BRV-R24LS-230VO | BRV-R36LS-230VO | |
| Power Supply (V,Ph,Hz) | 115,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | |
| Cooling | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 35,000 | |
| EER2 (Btu/h) | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | |
| SEER2 (Btu/h) | 17 | 17 | 17 | 17 | 17 | |
| Heating | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 34,500 | |
| COP2 (W/W) | 3.5 | 3.2 | 3.5 | 3.5 | 3.2 | |
| HSPF2-4 | 9.0 | 9.0 | 10.5 | 8.64 | 8.5 | |
| Minimum Circuit Ampacity (A) | 17 | 11 | 13 | 13 | 23 | |
| Max. Fuse (A) | 25 | 15 | 20 | 20 | 35 | |
| Indoor Air Flow - Turbo/Hi/Mi/Lo/Mute (CFM) | 276/265/241/224/206 | 294/264/235/206/159 | 412/364/294/235/208 | 676/629/505/412/352 | 882/741/564/458/411 | |
| Indoor Noise Level - Turbo/Hi/Mi/Lo/Mute (dB(A)) | 42.9/40/36.1/33/29 | 45/42/39/35/33 | 49/45/43/40/37 | 47/45/39/34/32 | 55/52/46/41/39 | |
| Indoor Unit Dimension (WxDxH) (inch) | 30.59x9.84x7.91 | 30.59x9.84x7.91 | 35.82x11.57x8.11 | 39.76x12.40x8.66 | 46.88x14.17x10.15 | |
| Indoor Unit Packing (WxDxH) (inch) | 33.07x12.40x10.23 | 33.07x12.40x10.23 | 38.54x14.64x10.90 | 43.15x15.35x11.81 | 49.60x16.92x12.91 | |
| Indoor Unit Net/Gross Weight (lbs.) | 22.05 | 22.05 | 26.46 | 28.66 | 46.30 | |
| Outdoor Air Flow (CFM) | 1,213 | 1,213 | 1,704 | 1,645 | 1,645 | |
| Outdoor Side Noise Level (dB(A)) | 53 | 55 | 57 | 55 | 63 | |
| Outdoor Unit Dimension (WxDxH) (inch) | 30.59x11.42x19.61 | 30.59x11.41x19.61 | 31.88x12.00x21.61 | 30.70x13.74x23.81 | 38.50x16.57x31.61 | |
| Outdoor Unit Packing (WxDxH) (inch) | 32.20x12.80x20.27 | 32.20x12.80x21.18 | 33.54x14.09x24.02 | 35.43x15.94x25.79 | 40.23x18.89x32.87 | |
| Outdoor Unit Net/Gross Weight (lbs.) | 52.9 | 58.4 | 62.8 | 72.8 | 120.2 | |
| Refrigerant Type (oz.) | R32 | R32 | R32 | R32 | R32 | |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | |
| Design Pressure (PSIG) | 652.5 | 652.5 | 652.5 | 652.5 | 652.5 | |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 1/4"/5/8" | |
| Max. Pipe Length (ft.) | 50 | 50 | 50 | 65 | 65 | |
| Connection Wiring - Size x Core Number | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | |
| Ambient Temperature | ||||||
| Indoor (Cooling/Heating) (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | |
| Outdoor (Cooling/Heating) (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | |
Multiple Control Methods
Bravo’s Series can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the 30,000 BTU Bravo mini split cool?
The 30,000 BTU Bravo ductless mini split is designed to effectively cool up to three zones, making it suitable for multiple rooms. With a coverage area of up to 1,400 sq ft, it can efficiently manage the climate in a variety of living spaces.
Can I mix different BTU sizes in a multi-zone mini split system?
Yes, you can mix different BTU sizes in a multi-zone mini split system, including the Bravo 30,000 BTU model. This flexibility allows you to customize your cooling needs for each zone, such as pairing a 9k BTU with two 12k BTU units for varied room sizes.
Do all zones in the Bravo mini split run simultaneously?
In the Bravo multi-zone system, all zones can run simultaneously, allowing you to cool or heat multiple areas at once. However, you can also operate each zone independently based on your comfort needs.
What is the efficiency advantage of the Bravo mini split over multiple single-zone units?
The Bravo mini split boasts a high SEER rating of 23.0, which provides superior energy efficiency compared to operating multiple single-zone units. This means you can enjoy lower energy bills while effectively managing climate control in your home.
What warranty does the Bravo mini split offer?
The Bravo ductless mini split comes with a comprehensive 5-year parts and compressor warranty, ensuring you have protection against defects and issues. This warranty reflects the brand’s commitment to quality and reliability in their products.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system is pre-charged with R32 refrigerant for up to 25 ft of line set, which simplifies installation. This feature allows for quicker setup and ensures optimal performance right out of the box.
