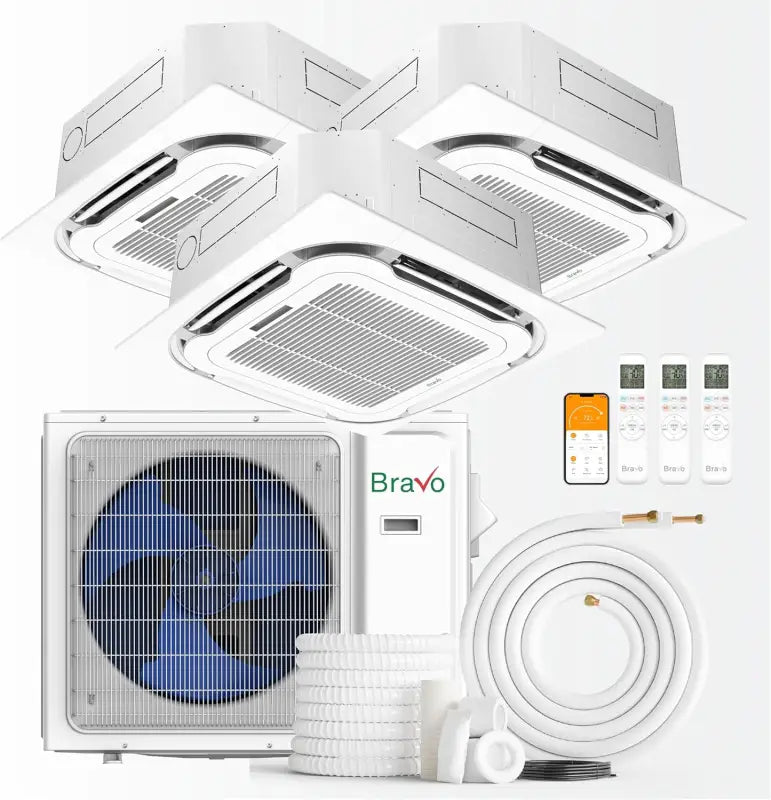

BRAVO 36,000 BTU 3-Zone 9k+9k+18k Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump | No Kit No Kit No Kit
Bravo3-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Questions about this system?
Answers in seconds — tap a question below
-
Covers about 1400–1800 sq ft total, split across its indoor units — each head handles its own room, so you put the right capacity where you need it. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this system is 36,000 BTU (3-ton)). Want help splitting the zones? Our team can map it out.
-
12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 36,000 BTU (3-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
-
It uses R32 — an efficient, lower-GWP refrigerant that's now the industry standard on modern mini splits. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
-
Rated SEER2 23.0 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
-
Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
-
Yes — a big upgrade. It's far more efficient (inverter, SEER2 23.0) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
-
Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
-
Yes. Each indoor unit has its own remote/thermostat — set different temperatures or turn one off, so you only condition the rooms you use and save energy on the ones you're not. One outdoor unit powers them all, keeping install and running costs lower than separate systems per room.
-
Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
-
Ships as a complete set: BRV-M36-230VO, BRV-M09CT-230VI, BRV-PN9-18CT, BRV-M09CT-230VI, BRV-PN9-18CT, BRV-M18CT-230VI, BRV-PN9-18CT. Everything arrives together — check the photos and specs for the full kit.
-
It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
-
Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on U.S. orders over $300, and our team can help with sizing and support.
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out
Complete 3-Zone System
Heat or cool 3 rooms independently from one 36000 BTU BRAVO outdoor unit (9K+9K+18K) — every zone sets its own temperature, delivered by ceiling cassette indoor units.
Inverter Efficiency — SEER2 23
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 23 on 230V — steady comfort with noticeably lower energy bills.
Right-Sized Coverage
Engineered to heat & cool up to 1400–1800 sq ft across 3 zones — matched capacity so you never over- or under-size the space.
Bravo Ceiling Cassette
Bravo Units are designed to provide reliable heating and cooling for individual spaces, combining energy efficiency with advanced technology. With compact, modern designs and easy installation, these units seamlessly blend into various interiors. Featuring quiet operation and powerful performance, they ensure consistent comfort throughout the year. Built with durable components and anti-corrosion coatings, Bravo Units are engineered to handle diverse climates while maintaining peak efficiency. Perfect for residential or commercial environments, they deliver eco-friendly performance and tailored temperature control. Trust Bravo Single-Zone Units for innovative climate solutions that enhance your space effortlessly.
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 3 years for the compressor and 3 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.

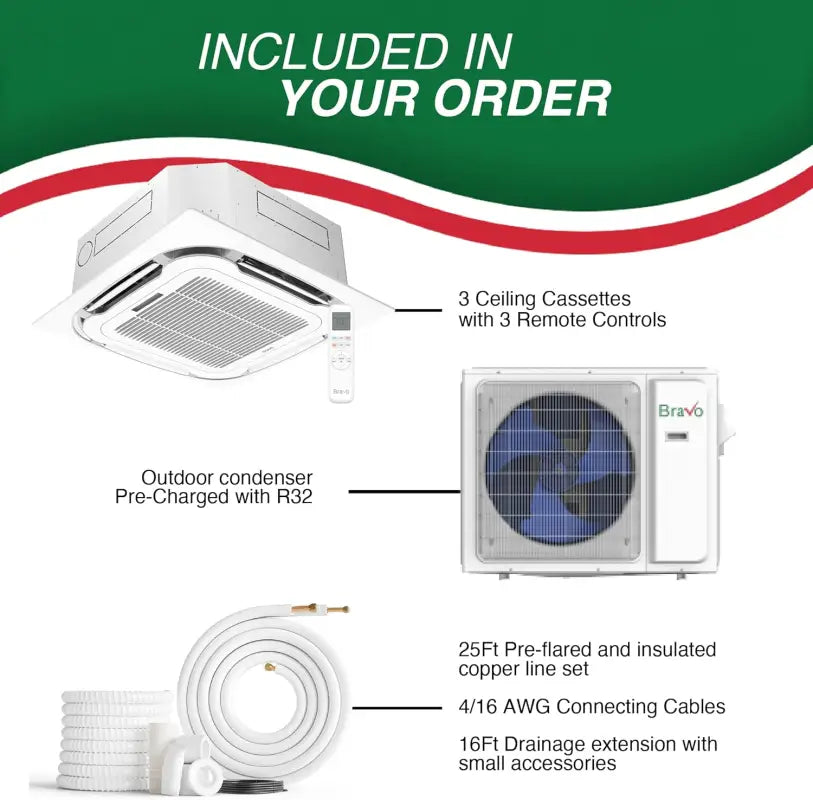

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, a 16ft Line Set, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Parameter | Indoor Model | |||
|---|---|---|---|---|
| BRV-M09CT-230VI BRV-PN9-18CT |
BRV-M12CT-230VI BRV-PN9-18CT |
BRV-M18CT-230VI BRV-PN9-18CT |
BRV-M24CT-230VI BRV-PN24CT |
|
| Power Supply V-Ph-Hz |
208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling Capacity Btu/h |
9,000 | 12,000 | 18,000 | 24,000 |
| Heating Rated Capacity Btu/h |
10,000 | 12,000 | 18,500 | 24,000 |
| Max Fuse A |
5 | 5 | 5 | 5 |
| Indoor Air Flow CFM |
383 | 383 | 442 | 824 |
| Indoor Noise Level dB(A) |
40 | 40 | 45 | 47 |
| Indoor Unit Dimensions (WxDxH) in |
22.44x22.44x10.24 | 22.44x22.44x10.24 | 22.44x22.44x10.24 | 33.07x33.07x9.69 |
| Indoor Unit Packing (WxDxH) in |
28.35x25.59x11.42 | 28.35x25.59x11.42 | 28.35x25.59x11.42 | 35.83x35.83x12.20 |
| Indoor Unit Net Weight lbs. |
30.9/37.5 | 30.9/37.5 | 33.1/38.6 | 52.9/61.7 |
| Panel Dimensions (WxDxH) in |
25.59x25.59x2.17 | 25.59x25.59x2.17 | 25.59x25.59x2.17 | 37.40x37.40x2.17 |
| Panel Packing (WxDxH) in |
27.95x27.95x3.15 | 27.95x27.95x3.15 | 27.95x27.95x3.15 | 39.37x39.37x3.94 |
| Panel Net/Gross Weight lbs. |
4.9/8.2 | 4.9/8.2 | 4.9/8.2 | 11.7/17.2 |
| Refrigerant Piping Liquid Side / Gas Side in |
1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 5/8" |
| Operation Temperature Range °F |
60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
| Parameter | Outdoor Model | ||||
|---|---|---|---|---|---|
| BRV-M18-230VO | BRV-M24-230VO | BRV-M30-230VO | BRV-M36-230VO | BRV-M42-230VO | |
| Power Supply V-Ph-Hz |
208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling Capacity Btu/h |
17,700 (3,800-19,800) | 24,000 (4,900-31,400) | 30,000 (6,000-38,200) | 36,000 (6,350~38,500) | 42,000 (8,350-46,000) |
| EER2 Btu/h |
3.60 | 3.66 | 3.66 | 3.60 | 3.66 |
| SEER2 Btu/h |
22 | 23 | 23 | 23 | 24 |
| Heating Rated Capacity Btu/h |
18,000 (4,200-22,000) | 24,000 (5,200-32,000) | 30,000 (6,300-36,000) | 36,000 (7,000~43,000) | 42,000 (8,450-53,000) |
| HSPF2-4 Btu/h |
10 | 10 | 10 | 10 | 10.5 |
| COP2 W/W |
3.8 | 4.0 | 3.9 | 4.0 | 3.9 |
| Minimum Circuit Ampacity A |
20 | 30 | 40 | 45 | 45 |
| Max Fuse A |
20 | 30 | 40 | 45 | 45 |
| Outdoor Air Flow CFM |
1529 | 2235 | 2353 | 2353 | 4235 |
| Outdoor Side Noise Level dB(A) |
54 | 57 | 58 | 59 | 60 |
| Outdoor Unit Dimensions (WxDxH) in |
34.65x13.90x21.93 | 38.58x15.28x27.56 | 41.18x17.91x31.81 | 41.18x17.91x31.81 | 39.80x15.75x51.97 |
| Outdoor Unit Packing (WxDxH) in |
35.55x15.04x24.21 | 39.96x16.73x30.00 | 43.50x19.49x34.84 | 43.50x19.49x34.84 | 42.52x16.93x56.69 |
| Outdoor Unit Net Weight lbs. |
75.0/80.5 | 102.5/109.1 | 148.8/157.6 | 154.3/163.1 | 205.0/224.9 |
| Refrigerant Type / Volume oz |
R32/38.8 | R32/51.2 | R32/67.0 | R32/81.2 | R32/105.8 |
| Refrigerant Precharge ft |
24.6 | 24.6 | 24.6 | 24.6 | 24.6 |
| Refrigerant Piping Liquid Side / Gas Side in |
1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" |
| Max Refrigerant Pipe Length ft |
82 | 98 | 115 | 115 | 115 |
| Ambient Temperature Outdoor (Cooling) °F |
-13~125.6 | -13~125.6 | -13~125.6 | -13~125.6 | -13~125.6 |
| Ambient Temperature Outdoor (Heating) °F |
-13~75.2 | -13~75.2 | -13~75.2 | -13~75.2 | -13~75.2 |
Multiple Control Methods
Bravo’s Series can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can this 3 zone 36,000 BTU Bravo mini split cool?
The Bravo 3 zone 36,000 BTU mini split can efficiently cool multiple rooms, typically covering up to 1500 sq ft, depending on the layout and insulation of the spaces.
Can I mix BTU sizes in a multi-zone mini split like the Bravo?
Yes, you can mix BTU sizes in a multi-zone system, including the Bravo 36,000 BTU model, which has options for 9k, 9k, and 18k units for different room requirements.
Do all zones run simultaneously in a multi-zone mini split like the Bravo?
In the Bravo 3 zone mini split system, all zones can be operated simultaneously, allowing for tailored cooling across different areas without compromising efficiency.
What is the efficiency of the Bravo 36,000 BTU mini split compared to multiple single-zone units?
With a SEER rating of 23.0, the Bravo 36,000 BTU mini split provides superior efficiency compared to multiple single-zone units, making it a smart choice for cost-effective cooling.
What warranty does the Bravo mini split system offer?
The Bravo mini split system comes with a comprehensive 5-year parts and compressor warranty, ensuring you have protection against any manufacturing defects.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system is pre-charged with R32 refrigerant for up to 25 ft of line set, making installation simpler and more efficient.
