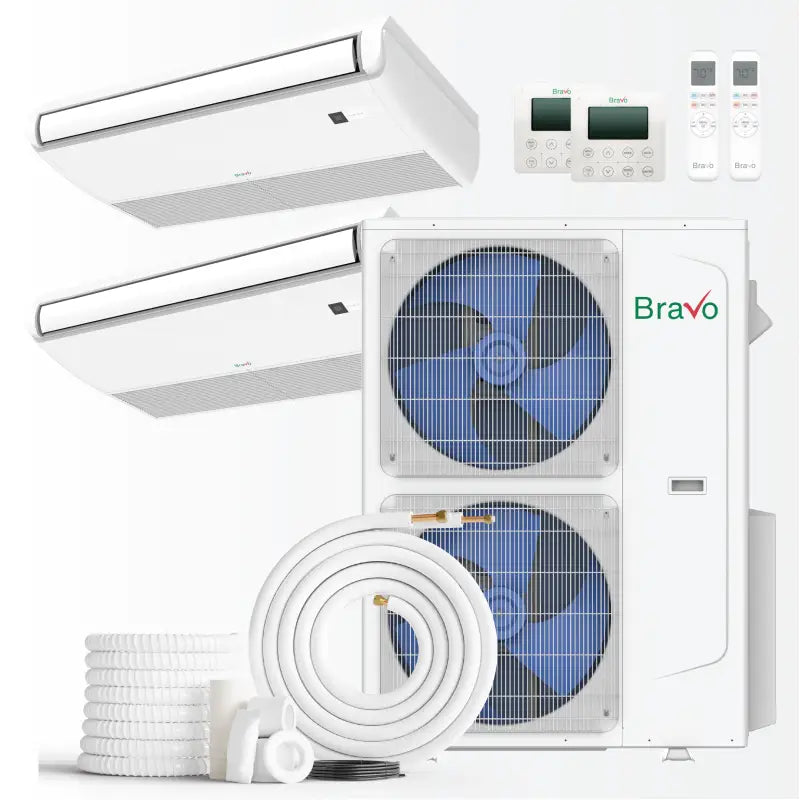

Bravo 42,000 BTU 2-Zone 12k+24k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump | No Kit No Kit
Bravo3-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Universal Floor & Ceiling Counsel
Bravo Universal Floor & Ceiling Counsel are designed to provide reliable heating and cooling for individual spaces, combining energy efficiency with advanced technology. With compact, modern designs and easy installation, these units seamlessly blend into various interiors. Featuring quiet operation and powerful performance, they ensure consistent comfort throughout the year. Built with durable components and anti-corrosion coatings, Bravo Units are engineered to handle diverse climates while maintaining peak efficiency. Perfect for residential or commercial environments, climate solutions that enhance your space effortlessly
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 3 years for the compressor and 3 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.

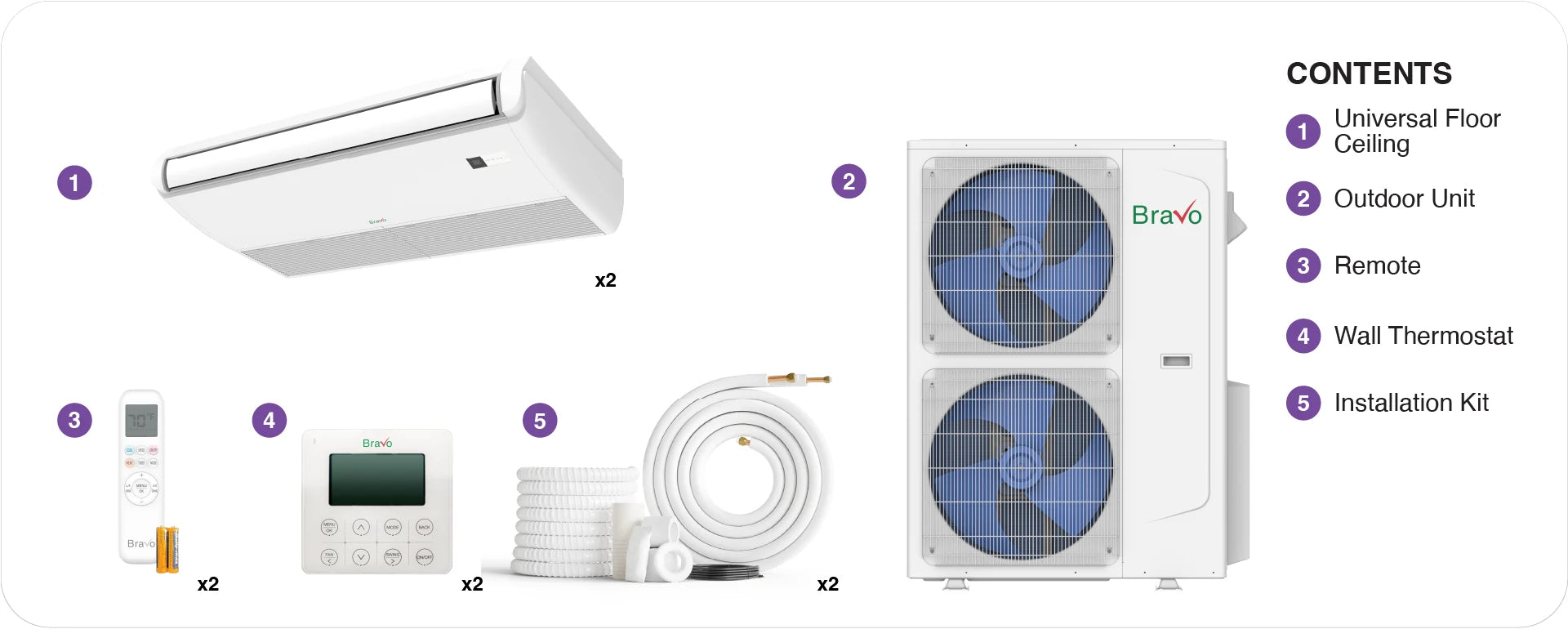

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor Model | BRV-M09FC-230VI | BRV-M12FC-230VI | BRV-M18FC-230VI | BRV-M24FC-230VI | ||
|---|---|---|---|---|---|---|
| Power Supply | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | ||
| Cooling | Rated Capacity | 9,000 | 12,000 | 18,000 | 24,000 | |
| Btu/h | 9,000 | 12,000 | 18,000 | 24,000 | ||
| Heating | Rated Capacity | 11,000 | 12,000 | 18,000 | 24,000 | |
| Btu/h | 11,000 | 12,000 | 18,000 | 24,000 | ||
| Max Fuse | 5 | 5 | 5 | 5 | ||
| Indoor Air Flow | 500 | 500 | 530 | 824 | ||
| Indoor Noise Level | 39 | 39 | 41 | 44 | ||
| Indoor Unit | Dimensions (WxDxH) | 39.37×27.17×9.25 | 39.37×27.17×9.25 | 39.37×27.17×9.25 | 50.39×27.17×9.25 | |
| Packing (WxDxH) | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 53.54×30.32×12.80 | ||
| Net/Gross Weight | 57.3/67.2 | 57.3/67.2 | 59.5/69.5 | 71.7/83.8 | ||
| Refrigerant Piping | Liquid Side / Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 5/8" | |
| Operation Temperature Range | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | ||
| Outdoor Model | BRV-R12LS-115VO | BRV-R12LS-230VO | BRV-R18LS-230VO | BRV-R24LS-230VO | BRV-R36LS-230VO | |
|---|---|---|---|---|---|---|
| Power Supply (V,Ph,Hz) | 115,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | |
| Cooling | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 35,000 | |
| EER2 (Btu/h) | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | |
| SEER2 (Btu/h) | 17 | 17 | 17 | 17 | 17 | |
| Heating | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 34,500 | |
| COP2 (W/W) | 3.5 | 3.2 | 3.5 | 3.5 | 3.2 | |
| HSPF2-4 | 9.0 | 9.0 | 10.5 | 8.64 | 8.5 | |
| Minimum Circuit Ampacity (A) | 17 | 11 | 13 | 13 | 23 | |
| Max. Fuse (A) | 25 | 15 | 20 | 20 | 35 | |
| Indoor Air Flow - Turbo/Hi/Mi/Lo/Mute (CFM) | 276/265/241/224/206 | 294/264/235/206/159 | 412/364/294/235/208 | 676/629/505/412/352 | 882/741/564/458/411 | |
| Indoor Noise Level - Turbo/Hi/Mi/Lo/Mute (dB(A)) | 42.9/40/36.1/33/29 | 45/42/39/35/33 | 49/45/43/40/37 | 47/45/39/34/32 | 55/52/46/41/39 | |
| Indoor Unit Dimension (WxDxH) (inch) | 30.59x9.84x7.91 | 30.59x9.84x7.91 | 35.82x11.57x8.11 | 39.76x12.40x8.66 | 46.88x14.17x10.15 | |
| Indoor Unit Packing (WxDxH) (inch) | 33.07x12.40x10.23 | 33.07x12.40x10.23 | 38.54x14.64x10.90 | 43.15x15.35x11.81 | 49.60x16.92x12.91 | |
| Indoor Unit Net/Gross Weight (lbs.) | 22.05 | 22.05 | 26.46 | 28.66 | 46.30 | |
| Outdoor Air Flow (CFM) | 1,213 | 1,213 | 1,704 | 1,645 | 1,645 | |
| Outdoor Side Noise Level (dB(A)) | 53 | 55 | 57 | 55 | 63 | |
| Outdoor Unit Dimension (WxDxH) (inch) | 30.59x11.42x19.61 | 30.59x11.41x19.61 | 31.88x12.00x21.61 | 30.70x13.74x23.81 | 38.50x16.57x31.61 | |
| Outdoor Unit Packing (WxDxH) (inch) | 32.20x12.80x20.27 | 32.20x12.80x21.18 | 33.54x14.09x24.02 | 35.43x15.94x25.79 | 40.23x18.89x32.87 | |
| Outdoor Unit Net/Gross Weight (lbs.) | 52.9 | 58.4 | 62.8 | 72.8 | 120.2 | |
| Refrigerant Type (oz.) | R32 | R32 | R32 | R32 | R32 | |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | |
| Design Pressure (PSIG) | 652.5 | 652.5 | 652.5 | 652.5 | 652.5 | |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 1/4"/5/8" | |
| Max. Pipe Length (ft.) | 50 | 50 | 50 | 65 | 65 | |
| Connection Wiring - Size x Core Number | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | |
| Ambient Temperature | ||||||
| Indoor (Cooling/Heating) (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | |
| Outdoor (Cooling/Heating) (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | |
Multiple Control Methods
Bravo’s Series can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the Bravo 42,000 BTU mini split cool?
The Bravo 42,000 BTU system can efficiently cool or heat up to two rooms, depending on their size and insulation. With a dual-zone setup, the combination of a 12k and a 24k unit allows for versatile temperature control in multiple areas.
Can I mix BTU sizes with the Bravo mini split system?
Yes, you can mix BTU sizes with the Bravo mini split system, as seen in the 42,000 BTU model that includes both a 12k and a 24k unit. This flexibility allows you to customize your heating and cooling based on the specific needs of each zone.
Do all zones in the Bravo mini split run simultaneously?
In the Bravo dual-zone mini split, both zones can run simultaneously or independently, depending on your heating and cooling needs. This feature allows for tailored comfort in each room, utilizing the system's 42k BTU capacity efficiently.
Is the Bravo mini split system efficient compared to multiple single-zone units?
The Bravo 42,000 BTU system, with a SEER rating of 23.0, offers superior energy efficiency compared to multiple single-zone units. This efficiency not only saves on energy costs but also reduces the overall installation footprint.
What warranty does the Bravo mini split offer?
The Bravo mini split system comes with a comprehensive 5-year parts and compressor warranty, ensuring peace of mind with your investment. This warranty covers critical components, so you can rely on the system's performance over time.
Does the Bravo mini split come pre-charged with refrigerant for installation?
Yes, the Bravo mini split is pre-charged with refrigerant for up to 25 ft of line set, simplifying the installation process. This feature allows for a quicker setup, so you can enjoy the benefits of your new dual-zone system sooner.
