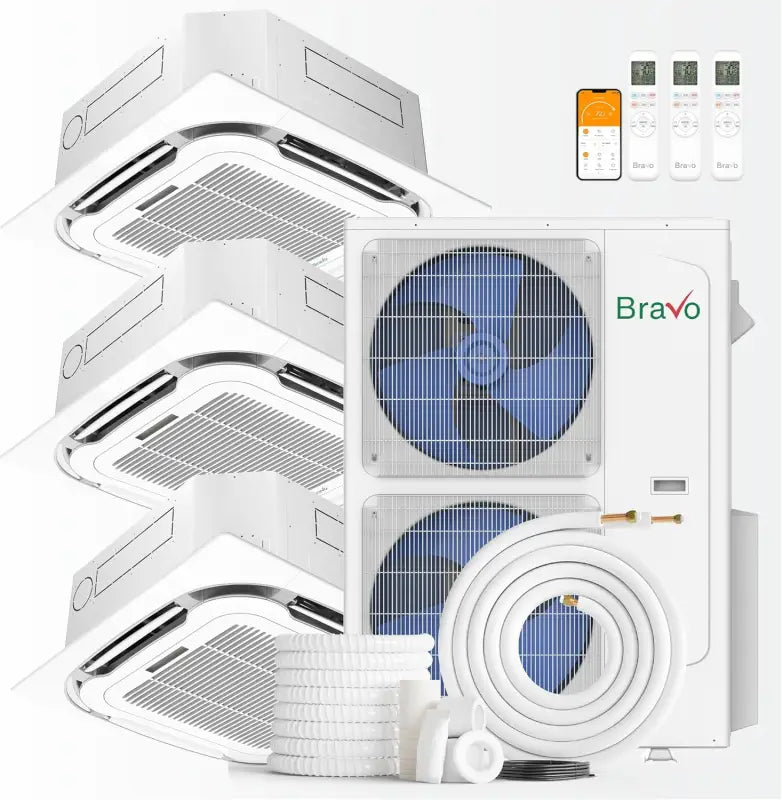

3 zone 42,000 BTU BRAVO Ductless Mini Split AC Ceiling Cassette 9k+12k+18k | No Kit No Kit No Kit
Bravo3-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Bravo Ceiling Cassette
Bravo Units are designed to provide reliable heating and cooling for individual spaces, combining energy efficiency with advanced technology. With compact, modern designs and easy installation, these units seamlessly blend into various interiors. Featuring quiet operation and powerful performance, they ensure consistent comfort throughout the year. Built with durable components and anti-corrosion coatings, Bravo Units are engineered to handle diverse climates while maintaining peak efficiency. Perfect for residential or commercial environments, they deliver eco-friendly performance and tailored temperature control. Trust Bravo Single-Zone Units for innovative climate solutions that enhance your space effortlessly.
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 3 years for the compressor and 3 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.
All Accessories Included

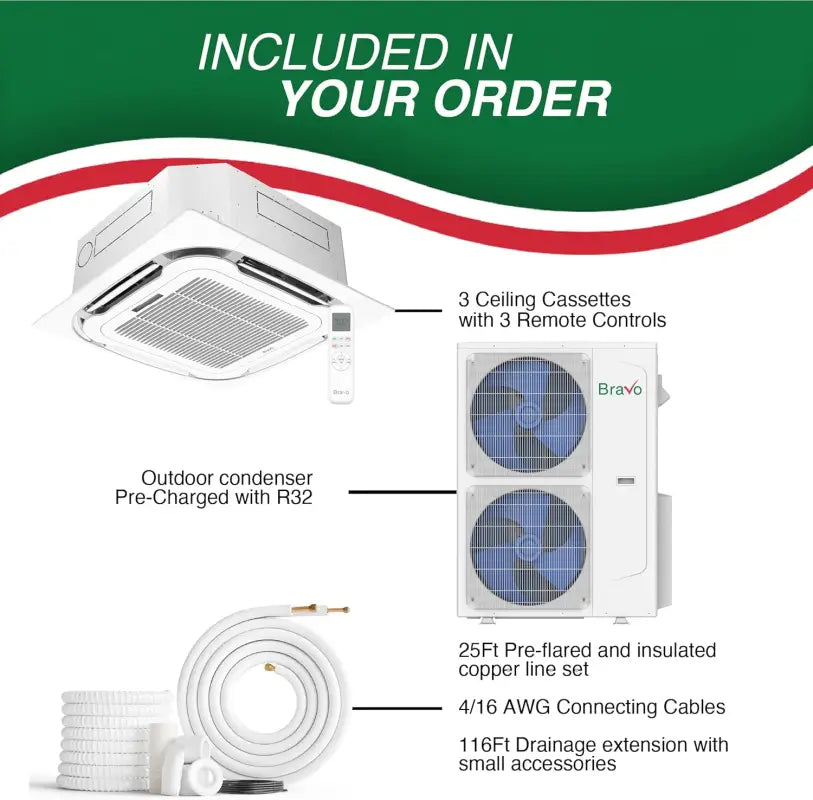

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Parameter | Indoor Model | |||
|---|---|---|---|---|
| BRV-M09CT-230VI BRV-PN9-18CT |
BRV-M12CT-230VI BRV-PN9-18CT |
BRV-M18CT-230VI BRV-PN9-18CT |
BRV-M24CT-230VI BRV-PN24CT |
|
| Power Supply V-Ph-Hz |
208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling Capacity Btu/h |
9,000 | 12,000 | 18,000 | 24,000 |
| Heating Rated Capacity Btu/h |
10,000 | 12,000 | 18,500 | 24,000 |
| Max Fuse A |
5 | 5 | 5 | 5 |
| Indoor Air Flow CFM |
383 | 383 | 442 | 824 |
| Indoor Noise Level dB(A) |
40 | 40 | 45 | 47 |
| Indoor Unit Dimensions (WxDxH) in |
22.44x22.44x10.24 | 22.44x22.44x10.24 | 22.44x22.44x10.24 | 33.07x33.07x9.69 |
| Indoor Unit Packing (WxDxH) in |
28.35x25.59x11.42 | 28.35x25.59x11.42 | 28.35x25.59x11.42 | 35.83x35.83x12.20 |
| Indoor Unit Net Weight lbs. |
30.9/37.5 | 30.9/37.5 | 33.1/38.6 | 52.9/61.7 |
| Panel Dimensions (WxDxH) in |
25.59x25.59x2.17 | 25.59x25.59x2.17 | 25.59x25.59x2.17 | 37.40x37.40x2.17 |
| Panel Packing (WxDxH) in |
27.95x27.95x3.15 | 27.95x27.95x3.15 | 27.95x27.95x3.15 | 39.37x39.37x3.94 |
| Panel Net/Gross Weight lbs. |
4.9/8.2 | 4.9/8.2 | 4.9/8.2 | 11.7/17.2 |
| Refrigerant Piping Liquid Side / Gas Side in |
1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 5/8" |
| Operation Temperature Range °F |
60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
| Parameter | Outdoor Model | ||||
|---|---|---|---|---|---|
| BRV-M18-230VO | BRV-M24-230VO | BRV-M30-230VO | BRV-M36-230VO | BRV-M42-230VO | |
| Power Supply V-Ph-Hz |
208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling Capacity Btu/h |
17,700 (3,800-19,800) | 24,000 (4,900-31,400) | 30,000 (6,000-38,200) | 36,000 (6,350~38,500) | 42,000 (8,350-46,000) |
| EER2 Btu/h |
3.60 | 3.66 | 3.66 | 3.60 | 3.66 |
| SEER2 Btu/h |
22 | 23 | 23 | 23 | 24 |
| Heating Rated Capacity Btu/h |
18,000 (4,200-22,000) | 24,000 (5,200-32,000) | 30,000 (6,300-36,000) | 36,000 (7,000~43,000) | 42,000 (8,450-53,000) |
| HSPF2-4 Btu/h |
10 | 10 | 10 | 10 | 10.5 |
| COP2 W/W |
3.8 | 4.0 | 3.9 | 4.0 | 3.9 |
| Minimum Circuit Ampacity A |
20 | 30 | 40 | 45 | 45 |
| Max Fuse A |
20 | 30 | 40 | 45 | 45 |
| Outdoor Air Flow CFM |
1529 | 2235 | 2353 | 2353 | 4235 |
| Outdoor Side Noise Level dB(A) |
54 | 57 | 58 | 59 | 60 |
| Outdoor Unit Dimensions (WxDxH) in |
34.65x13.90x21.93 | 38.58x15.28x27.56 | 41.18x17.91x31.81 | 41.18x17.91x31.81 | 39.80x15.75x51.97 |
| Outdoor Unit Packing (WxDxH) in |
35.55x15.04x24.21 | 39.96x16.73x30.00 | 43.50x19.49x34.84 | 43.50x19.49x34.84 | 42.52x16.93x56.69 |
| Outdoor Unit Net Weight lbs. |
75.0/80.5 | 102.5/109.1 | 148.8/157.6 | 154.3/163.1 | 205.0/224.9 |
| Refrigerant Type / Volume oz |
R32/38.8 | R32/51.2 | R32/67.0 | R32/81.2 | R32/105.8 |
| Refrigerant Precharge ft |
24.6 | 24.6 | 24.6 | 24.6 | 24.6 |
| Refrigerant Piping Liquid Side / Gas Side in |
1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" |
| Max Refrigerant Pipe Length ft |
82 | 98 | 115 | 115 | 115 |
| Ambient Temperature Outdoor (Cooling) °F |
-13~125.6 | -13~125.6 | -13~125.6 | -13~125.6 | -13~125.6 |
| Ambient Temperature Outdoor (Heating) °F |
-13~75.2 | -13~75.2 | -13~75.2 | -13~75.2 | -13~75.2 |
Multiple Control Methods
Bravo’s Series can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the 42,000 BTU Bravo mini split cool?
The 3 zone 42,000 BTU Bravo ductless mini split can effectively cool multiple rooms, typically up to three rooms depending on their size. Each zone has a designated capacity of 9k, 12k, and 18k BTU, allowing for efficient cooling in various configurations.
Can I mix BTU sizes in a multi-zone Bravo mini split system?
Yes, you can mix BTU sizes in the Bravo multi-zone system, as it is designed to accommodate varying capacities across zones. The combination of 9k, 12k, and 18k BTU units within the 42,000 BTU system allows for tailored cooling solutions based on room requirements.
Do all zones in the Bravo mini split run simultaneously?
In the Bravo 3 zone mini split system, all zones can operate simultaneously, allowing for customized temperature control throughout your home. This flexibility ensures that each zone can be adjusted independently, optimizing both comfort and energy efficiency.
What is the efficiency of the Bravo mini split compared to multiple single-zone units?
With a SEER rating of 24.0, the Bravo ductless mini split system is significantly more efficient than using multiple single-zone units. This high efficiency not only saves on energy costs but also reduces the overall installation complexity and maintenance requirements.
What are the warranty terms for the Bravo mini split system?
The Bravo ductless mini split system comes with a robust 5-year parts and compressor warranty, ensuring peace of mind for your investment. This warranty covers essential components, providing support if issues arise during the initial years of use.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system is pre-charged with R32 refrigerant for installation with up to 25 ft of line set. This feature simplifies the installation process, making it easier for homeowners or professionals to set up the system efficiently.
