BRAVO 42,000 BTU 4-Zone 12k+12k+12k+12k Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump | No Kit
Bravo7-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated
Pickup available at Medley Warehouse
Usually ready in 24 hours
Mon–Fri, 9:00 AM – 4:30 PM
Questions about this system?
Answers in seconds — tap a question below
-
Covers about 1800–2400 sq ft total, split across its indoor units — each head handles its own room, so you put the right capacity where you need it. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this system is 42,000 BTU (3.5-ton)). Want help splitting the zones? Our team can map it out.
-
12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 42,000 BTU (3.5-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
-
It uses R32 — an efficient, lower-GWP refrigerant that's now the industry standard on modern mini splits. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
-
Rated SEER2 24.0 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
-
Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
-
Yes — a big upgrade. It's far more efficient (inverter, SEER2 24.0) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
-
Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
-
Yes. Each indoor unit has its own remote/thermostat — set different temperatures or turn one off, so you only condition the rooms you use and save energy on the ones you're not. One outdoor unit powers them all, keeping install and running costs lower than separate systems per room.
-
Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
-

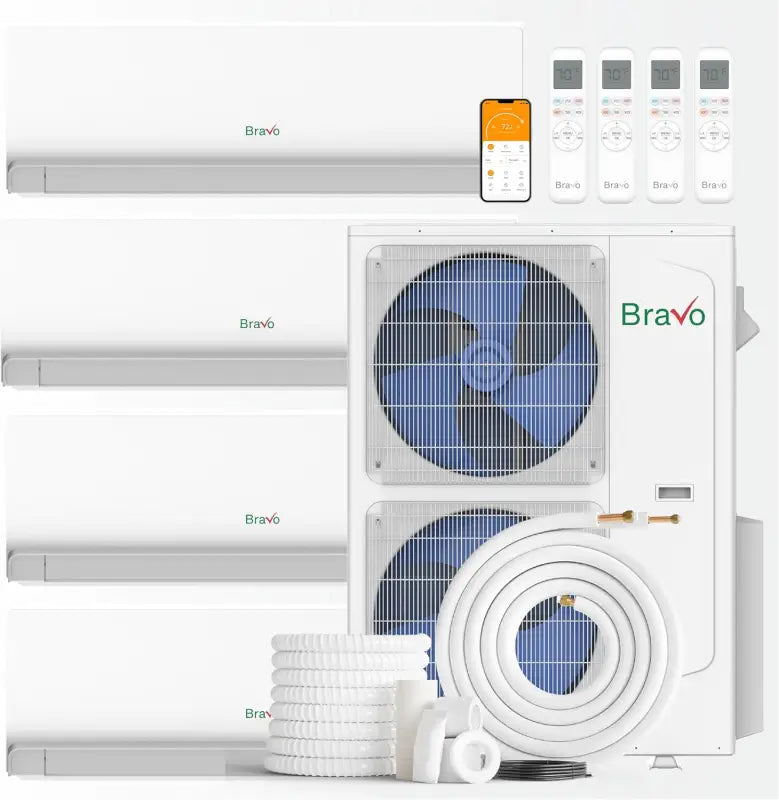

Ships as a complete set: BRV-M42-230VO, BRV-M12WM-230VI, BRV-M12WM-230VI, BRV-M12WM-230VI, BRV-M12WM-230VI. Everything arrives together — check the photos and specs for the full kit.
-
It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
-
Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on U.S. orders over $300, and our team can help with sizing and support.
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out

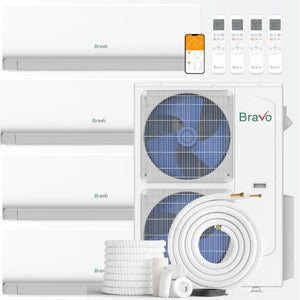

Complete 4-Zone System
Heat or cool 4 rooms independently from one 42000 BTU BRAVO outdoor unit (12K+12K+12K+12K) — every zone sets its own temperature, delivered by wall mount indoor units.
Inverter Efficiency — SEER2 24
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 24 on 230V — steady comfort with noticeably lower energy bills.
Right-Sized Coverage
Engineered to heat & cool up to 1800–2400 sq ft across 4 zones — matched capacity so you never over- or under-size the space.
Bravo Wall Mount
Bravo Single-Zone Units are designed to provide reliable heating and cooling for individual spaces, combining energy efficiency with advanced technology. With compact, modern designs and easy installation, these units seamlessly blend into various interiors. Featuring quiet operation and powerful performance, they ensure consistent comfort throughout the year. Built with durable components and anti-corrosion coatings, Bravo Units are engineered to handle diverse climates while maintaining peak efficiency. Perfect for residential or commercial environments, they deliver eco-friendly performance and tailored temperature control. Trust Bravo Single-Zone Units for innovative climate solutions that enhance your space effortlessly.
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.
All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications

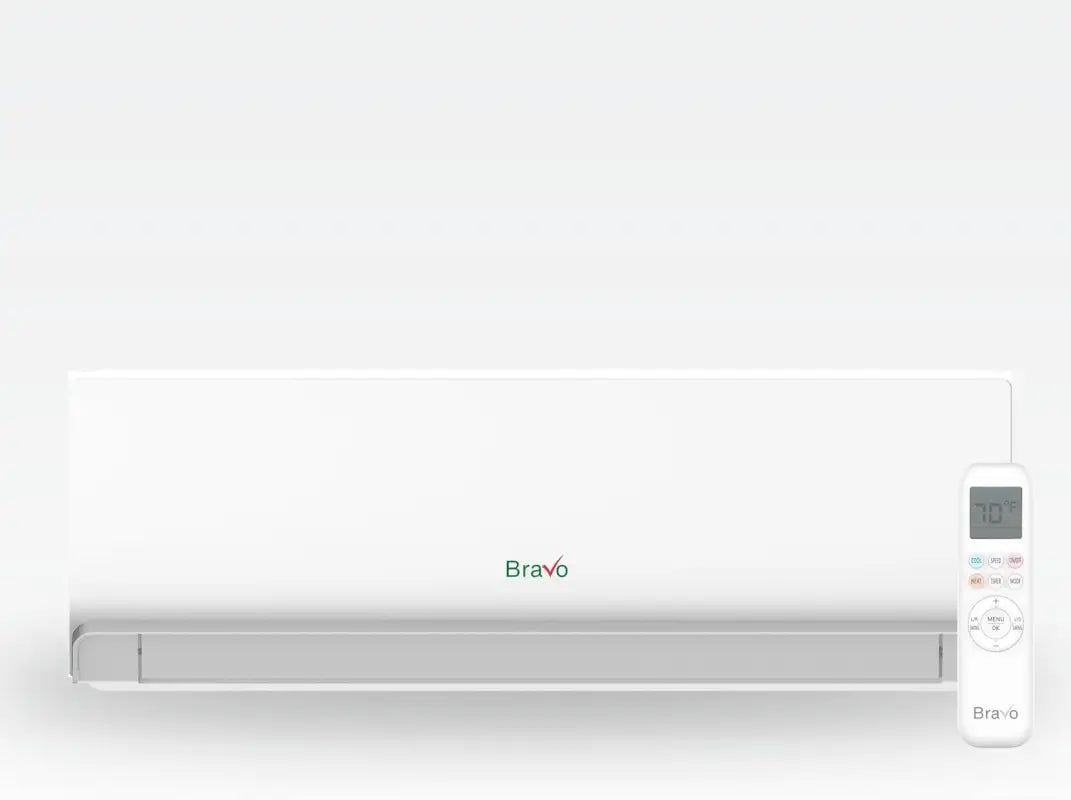

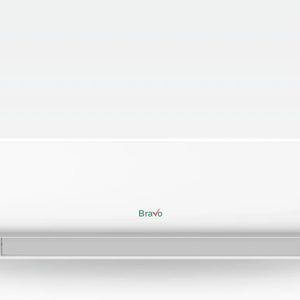

Indoor Unit Specs
| Model | BRV-M12WM-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 34.49×11.73×7.64 in |
| Net/Gross Weight | 19.80/24.27 lb |
| Packing Dimensions (WxDxH) | 37.99×14.57×11.1 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level (Hi/Med/Lo) | 40/36/32 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 353 CFM |
| Dehumidification | 2.11 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | Remote controller |

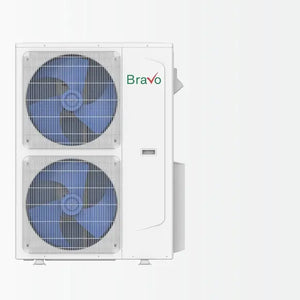

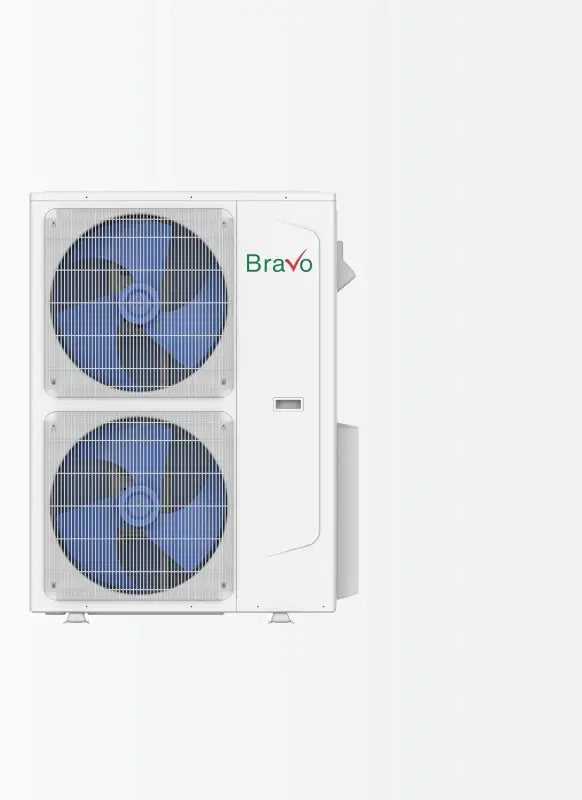

Outdoor Unit Specs
| Model | BRV-M42-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 39.80x15.75x51.97 in |
| Net/Gross Weight | 205.0/224.9 lb |
| Packing Dimensions (WxDxH) | 42.52x16.93x56.69 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 45 A |
| Min. Circuit Ampacity | 32 A |
| Copper Line Size (Liquid/Gas) | 5x1/4"- 5x3/8" |
| Noise Level | 60 dB |
| Airflow | 4,235 CFM |
System Specs
| Cooling Capacity | 42,000 BTU |
|---|---|
| SEER2 | 24 |
| Zones | 4 |
| Voltage | 230V |
| Refrigerant Type | R32 |
| Compressor | Inverter |
| WiFi | Included |
| Heating Capacity | 42,000 (8,450-46,000) BTU/h |
| Cooling Capacity Range | 42,000 (8,350-46,000) BTU/h |
| Operating Range (Cooling) | -13~125 °F |
| Operating Range (Heating) | -22~75 °F |
| Max Height Difference | 49 ft |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
| Parameter | Indoor Model | ||||
|---|---|---|---|---|---|
| BRV-M07WM-230VI | BRV-M09WM-230VI | BRV-M12WM-230VI | BRV-M18WM-230VI | BRV-M24WM-230VI | |
| Power Supply V-Ph-Hz |
208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling Rated Capacity Btu/h |
7,000 | 9,000 | 12,000 | 17,000 | 24,000 |
| Heating Rated Capacity Btu/h |
7,000 | 9,000 | 12,300 | 17,700 | 24,000 |
| Max Fuse A |
5 | 5 | 5 | 5 | 5 |
| Indoor Air Flow CFM |
353 | 353 | 353 | 618 | 765 |
| Indoor Noise Level dB(A) |
40 | 40 | 42 | 49 | 50 |
| Indoor Unit Dimensions (WxDxH) in |
31.02x7.80x11.50 | 31.02x7.80x11.50 | 34.49x7.64x11.73 | 38.82x8.86x12.40 | 44.13x9.09x12.95 |
| Indoor Unit Packing (WxDxH) in |
34.65x14.57x11.42 | 34.65x14.57x11.42 | 37.99x14.57x11.10 | 42.13x15.16x12.28 | 47.64x15.75x12.87 |
| Indoor Unit Net/Gross Weight lbs. |
17.60/22.00 | 17.60/22.00 | 19.80/24.27 | 26.45/32.26 | 33.07/39.68 |
| Refrigerant Piping Liquid / Gas Side in |
1/4’’ / 3/8’’ | 1/4’’ / 3/8’’ | 1/4’’ / 3/8’’ | ◊ 1/4’’ / 1/2’’ | ◊ 1/4’’ / 5/8’’ |
| Operation Temperature Range °F |
60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
| Parameter | Outdoor Model | ||||
|---|---|---|---|---|---|
| BRV-M18-230VO | BRV-M24-230VO | BRV-M30-230VO | BRV-M36-230VO | BRV-M42-230VO | |
| Power Supply V-Ph-Hz |
208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling Capacity Btu/h |
17,700 (3,800-19,800) | 24,000 (4,900-31,400) | 30,000 (6,000-38,200) | 36,000 (6,350~38,500) | 42,000 (8,350-46,000) |
| EER2 Btu/h |
3.60 | 3.66 | 3.66 | 3.60 | 3.66 |
| SEER2 Btu/h |
22 | 23 | 23 | 23 | 24 |
| Heating Rated Capacity Btu/h |
18,000 (4,200-22,000) | 24,000 (5,200-32,000) | 30,000 (6,300-36,000) | 36,000 (7,000~43,000) | 42,000 (8,450-53,000) |
| HSPF2-4 Btu/h |
10 | 10 | 10 | 10 | 10.5 |
| COP2 W/W |
3.8 | 4.0 | 3.9 | 4.0 | 3.9 |
| Minimum Circuit Ampacity A |
20 | 30 | 40 | 45 | 45 |
| Max Fuse A |
20 | 30 | 40 | 45 | 45 |
| Outdoor Air Flow CFM |
1529 | 2235 | 2353 | 2353 | 4235 |
| Outdoor Side Noise Level dB(A) |
54 | 57 | 58 | 59 | 60 |
| Outdoor Unit Dimensions (WxDxH) in |
34.65x13.90x21.93 | 38.58x15.28x27.56 | 41.18x17.91x31.81 | 41.18x17.91x31.81 | 39.80x15.75x51.97 |
| Outdoor Unit Packing (WxDxH) in |
35.55x15.04x24.21 | 39.96x16.73x30.00 | 43.50x19.49x34.84 | 43.50x19.49x34.84 | 42.52x16.93x56.69 |
| Outdoor Unit Net Weight lbs. |
75.0/80.5 | 102.5/109.1 | 148.8/157.6 | 154.3/163.1 | 205.0/224.9 |
| Refrigerant Type / Volume oz |
R32/38.8 | R32/51.2 | R32/67.0 | R32/81.2 | R32/105.8 |
| Refrigerant Precharge ft |
24.6 | 24.6 | 24.6 | 24.6 | 24.6 |
| Refrigerant Piping Liquid Side / Gas Side in |
1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" |
| Max Refrigerant Pipe Length ft |
82 | 98 | 115 | 115 | 115 |
| Ambient Temperature Outdoor (Cooling) °F |
-13~125.6 | -13~125.6 | -13~125.6 | -13~125.6 | -13~125.6 |
| Ambient Temperature Outdoor (Heating) °F |
-13~75.2 | -13~75.2 | -13~75.2 | -13~75.2 | -13~75.2 |

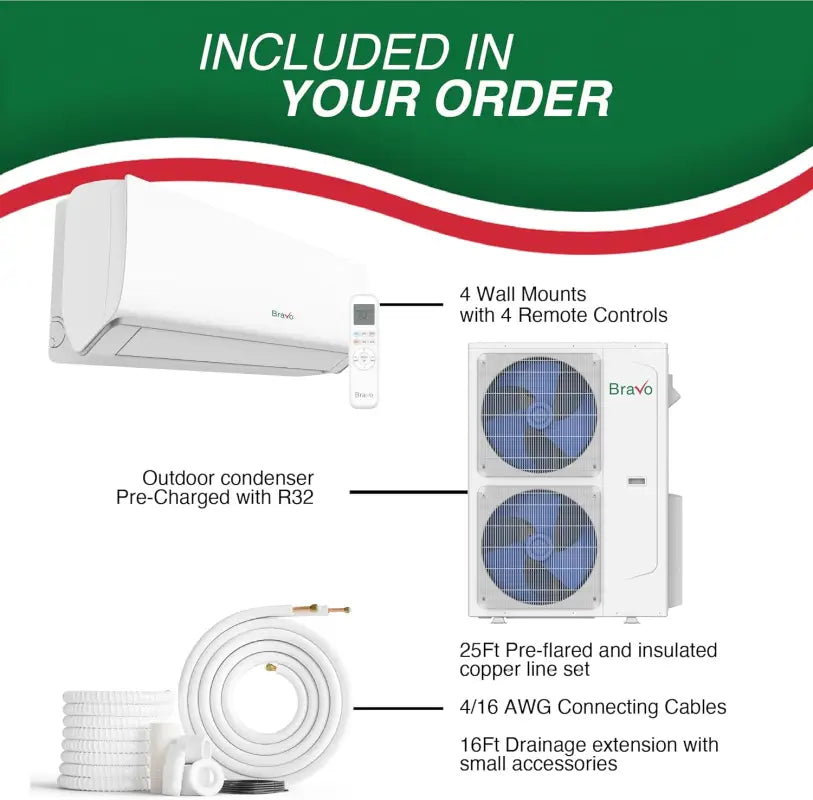

What’s Included
| Outdoor condenser | BRV-M42-230VO |
|---|---|
| Indoor unit | BRV-M12WM-230VI |
| Indoor unit | BRV-M12WM-230VI |
| Indoor unit | BRV-M12WM-230VI |
| Indoor unit | BRV-M12WM-230VI |
| Remote controller | Remote controller |
Installation kit is not included in the selected option — pick 16ft, 25ft or 50ft above to add one.
Shipping & Returns
- Free shipping on every order over $300.
- Delivery estimate for your ZIP is shown in the buy box above.
- Returns accepted per our policy — unopened units in original packaging.
Warranty
7-year compressor / 5-year parts
- Limited manufacturer warranty on the compressor and sealed system components.
- Installation by a licensed HVAC professional and product registration are required to keep coverage valid.
Multiple Control Methods
Bravo’s Series can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the Bravo 4 zone 42,000 BTU mini split system cool?
The Bravo 4 zone 42,000 BTU mini split system can effectively cool up to four separate rooms, each with a capacity of 12,000 BTU. This makes it ideal for multi-room applications where individual temperature control is desired.
Can I mix BTU sizes with the Bravo ductless mini split system?
Yes, you can mix BTU sizes in a multi-zone setup with the Bravo ductless mini split system, as long as the total BTU does not exceed the system's capacity of 42,000 BTU. This flexibility allows you to tailor the cooling needs of different rooms based on their size.
Do all zones run simultaneously in the Bravo mini split system?
In the Bravo mini split system, all zones can be operated simultaneously, allowing for customized temperature control across all four zones. Each zone can be set to a different temperature based on your specific comfort needs.
Why should I choose the Bravo 42,000 BTU mini split system over multiple single-zone units?
Opting for the Bravo 42,000 BTU mini split system with a SEER rating of 24.0 offers higher efficiency and lower energy costs compared to multiple single-zone units. This system consolidates your HVAC needs into one unit, simplifying installation and maintenance.
What warranty does the Bravo ductless mini split system offer?
The Bravo ductless mini split system comes with a robust 5-year parts and compressor warranty, ensuring peace of mind for your investment. This warranty covers critical components, providing long-term reliability and performance.
Is the Bravo mini split pre-charged with refrigerant for installation?
Yes, the Bravo mini split system is pre-charged with R32 refrigerant for installation with up to 25 ft of line set. This feature simplifies the installation process, allowing for quicker setup and immediate cooling capability.
