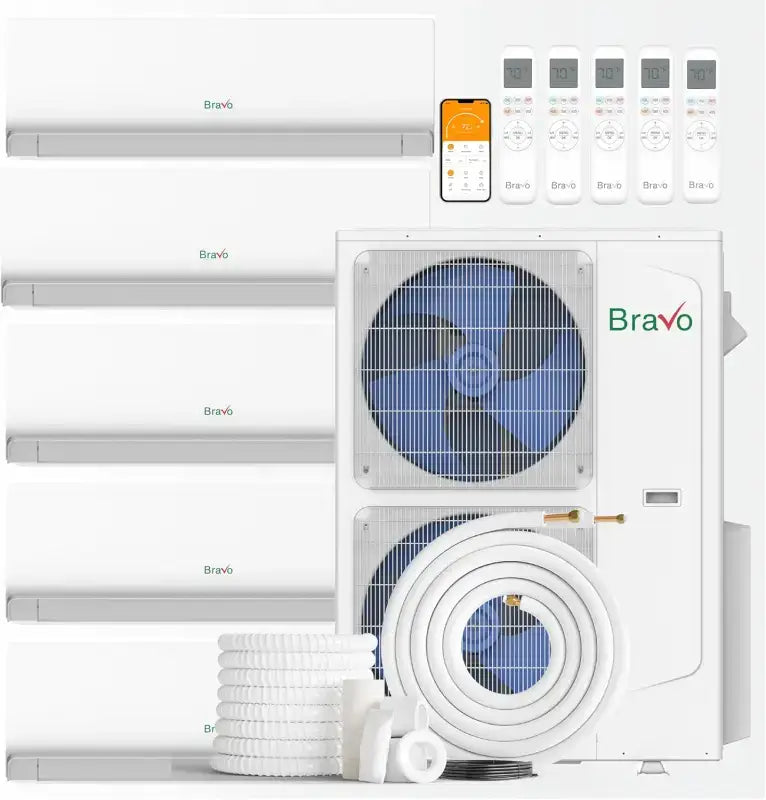

Bravo 42,000 BTU 5-Zone 9k+12k+12k+12k+12k Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump | No Kit
Bravo3-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out
Complete 5-Zone System
Heat or cool 5 rooms independently from one 42000 BTU BRAVO outdoor unit (9K+12K+12K+12K+12K) — every zone sets its own temperature, delivered by wall mount indoor units.
Inverter Efficiency — SEER2 24
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 24 on 230V — steady comfort with noticeably lower energy bills.
Right-Sized Coverage
Engineered to heat & cool up to 1800–2400 sq ft across 5 zones — matched capacity so you never over- or under-size the space.
Bravo Wall Mount
Bravo Single-Zone Units are designed to provide reliable heating and cooling for individual spaces, combining energy efficiency with advanced technology. With compact, modern designs and easy installation, these units seamlessly blend into various interiors. Featuring quiet operation and powerful performance, they ensure consistent comfort throughout the year. Built with durable components and anti-corrosion coatings, Bravo Units are engineered to handle diverse climates while maintaining peak efficiency. Perfect for residential or commercial environments, they deliver eco-friendly performance and tailored temperature control. Trust Bravo Single-Zone Units for innovative climate solutions that enhance your space effortlessly.
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 3 years for the compressor and 3 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.
All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor Model | BRV-R12W-115VI | BRV-R12W-230VI | BRV-R18W-230VI | BRV-R24W-230VI | BRV-R36W-230VI | |
|---|---|---|---|---|---|---|
| Outdoor Model | BRV-R12LS-115VO | BRV-R12LS-230VO | BRV-R18LS-230VO | BRV-R24LS-230VO | BRV-R36LS-230VO | |
| Power Supply (V,Ph,Hz) | 115,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | |
| Cooling | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 35,000 | |
| EER2 (Btu/h) | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | |
| SEER2 (Btu/h) | 17 | 17 | 17 | 17 | 17 | |
| Heating | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 34,500 | |
| COP2 (W/W) | 3.5 | 3.2 | 3.5 | 3.5 | 3.2 | |
| HSPF2-4 | 9.0 | 9.0 | 10.5 | 8.64 | 8.5 | |
| Minimum Circuit Ampacity (A) | 17 | 11 | 13 | 13 | 23 | |
| Max. Fuse (A) | 25 | 15 | 20 | 20 | 35 | |
| Indoor Air Flow - Turbo/Hi/Mi/Lo/Mute (CFM) | 276/265/241/224/206 | 294/264/235/206/159 | 412/364/294/235/208 | 676/629/505/412/352 | 882/741/564/458/411 | |
| Indoor Noise Level - Turbo/Hi/Mi/Lo/Mute (dB(A)) | 42.9/40/36.1/33/29 | 45/42/39/35/33 | 49/45/43/40/37 | 47/45/39/34/32 | 55/52/46/41/39 | |
| Indoor Unit Dimension (WxDxH) (inch) | 30.59x9.84x7.91 | 30.59x9.84x7.91 | 35.82x11.57x8.11 | 39.76x12.40x8.66 | 46.88x14.17x10.15 | |
| Indoor Unit Packing (WxDxH) (inch) | 33.07x12.40x10.23 | 33.07x12.40x10.23 | 38.54x14.64x10.90 | 43.15x15.35x11.81 | 49.60x16.92x12.91 | |
| Indoor Unit Net/Gross Weight (lbs.) | 22.05 | 22.05 | 26.46 | 28.66 | 46.30 | |
| Outdoor Air Flow (CFM) | 1,213 | 1,213 | 1,704 | 1,645 | 1,645 | |
| Outdoor Side Noise Level (dB(A)) | 53 | 55 | 57 | 55 | 63 | |
| Outdoor Unit Dimension (WxDxH) (inch) | 30.59x11.42x19.61 | 30.59x11.41x19.61 | 31.88x12.00x21.61 | 30.70x13.74x23.81 | 38.50x16.57x31.61 | |
| Outdoor Unit Packing (WxDxH) (inch) | 32.20x12.80x20.27 | 32.20x12.80x21.18 | 33.54x14.09x24.02 | 35.43x15.94x25.79 | 40.23x18.89x32.87 | |
| Outdoor Unit Net/Gross Weight (lbs.) | 52.9 | 58.4 | 62.8 | 72.8 | 120.2 | |
| Refrigerant Type (oz.) | R32 | R32 | R32 | R32 | R32 | |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | |
| Design Pressure (PSIG) | 652.5 | 652.5 | 652.5 | 652.5 | 652.5 | |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 1/4"/5/8" | |
| Max. Pipe Length (ft.) | 50 | 50 | 50 | 65 | 65 | |
| Connection Wiring - Size x Core Number | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | |
| Ambient Temperature | ||||||
| Indoor (Cooling/Heating) (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | |
| Outdoor (Cooling/Heating) (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | |
Multiple Control Methods
Bravo’s Series can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the Bravo 42,000 BTU mini split cool?
The Bravo 42,000 BTU mini split system is designed to efficiently cool up to five separate zones, making it ideal for multi-room applications. With its 24.0 SEER rating, it ensures energy efficiency across these multiple areas.
Can I mix BTU sizes in the Bravo mini split system?
Yes, you can mix BTU sizes in the Bravo system as long as the total BTU does not exceed the maximum capacity of 42,000 BTU for the entire setup. This flexibility allows for tailored cooling in different zones based on specific room sizes.
Do all zones run simultaneously in the Bravo multi-zone mini split?
In the Bravo multi-zone mini split, all zones can be operated simultaneously or independently depending on your cooling needs. This feature allows for customized comfort in each room while maintaining high efficiency with a 24.0 SEER rating.
What is the warranty for the Bravo mini split air conditioner?
The Bravo mini split air conditioner comes with a comprehensive 5-year parts and compressor warranty, providing peace of mind for your investment. This warranty ensures that you are covered for potential issues during the initial years of use.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system is pre-charged with refrigerant R32 for up to 25 ft of line set, simplifying installation and ensuring optimal performance right out of the box. This allows for efficient operation and quick setup.
Is a mini split like the Bravo good for heating in cold weather?
The Bravo 42,000 BTU mini split heat pump is effective for heating in cold weather, leveraging its efficient design and R32 refrigerant to maintain comfort in chilly conditions. Its capability to provide heating makes it a versatile choice for year-round climate control.
