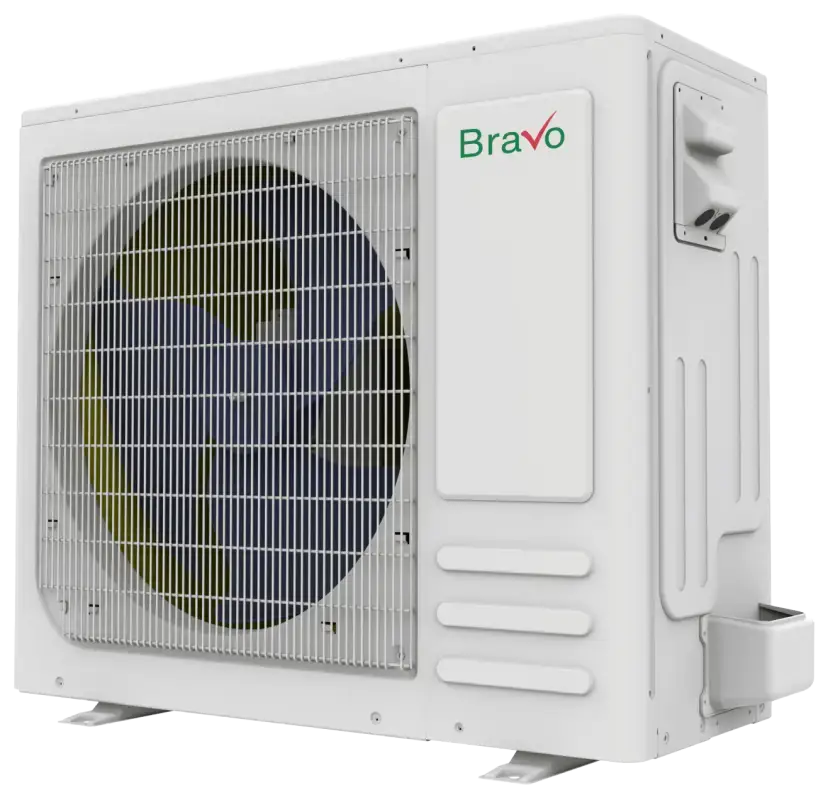

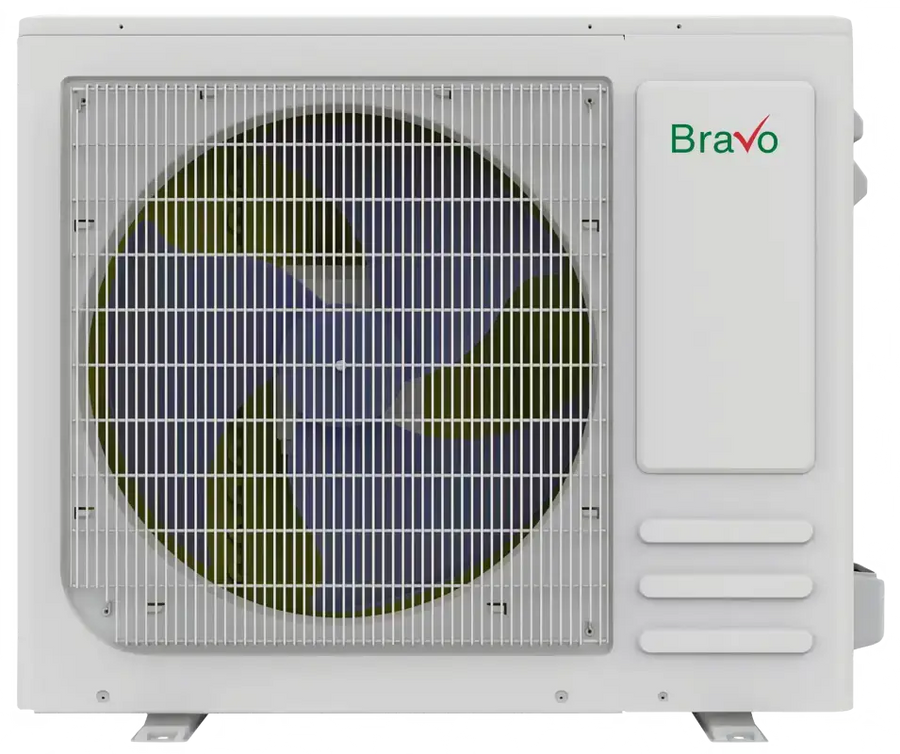

Bravo 48,000 BTU Outdoor Condenser, 230V, R32 - Ducted Mini Split Heat Pump
Bravo7-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| WiFi | |
| Type | |
| Freon | |
| Compressor |
⛔ Wait! This is an Individual Component To build a working system, this unit must match your other equipment in two ways:
- Same Brand Only: Only pair with other same Brand and Series.
- Same Refrigerant: Both units must use the exact same gas type (R454B, R32, or R410A).
Mixing different brands or refrigerant types will cause the system to fail and void your warranty.
Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated
Pickup available at Medley Warehouse
Usually ready in 24 hours
Mon–Fri, 9:00 AM – 4:30 PM
Questions about this system?
Answers in seconds — tap a question below
-
Sized for about the room's square footage at ~20 BTU per sq ft. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this unit is 48,000 BTU (4-ton)). Ceiling height, insulation, sun and climate shift that — if you're between sizes, size up for hot/humid rooms. Not sure? We'll confirm the right BTU for your space.
-
12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 48,000 BTU (4-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
-
It uses R32 — an efficient, lower-GWP refrigerant that's now the industry standard on modern mini splits. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
-
Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
-
Yes — a big upgrade. It's far more efficient (inverter compressor) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
-
Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
-
Yes — WiFi is not included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
-
Ships as a complete set: BRV-SD48HI-230VO. Everything arrives together — check the photos and specs for the full kit.
-
It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
-
Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on U.S. orders over $300, and our team can help with sizing and support.
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out
Sleek Wall-Mount Design
A slim, quiet indoor head mounts high on the wall of heating & cooling — modern looks with whisper-quiet operation.
Smart Wi-Fi Control
Wi-Fi is not included — set schedules and adjust the temperature from your phone anywhere, or pair with Alexa & Google Home.
Year-Round Heat Pump
One system that cools in summer and heats in winter — reliable Bravo performance in every season.

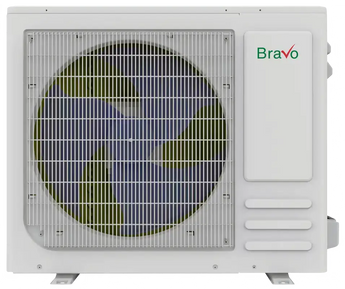

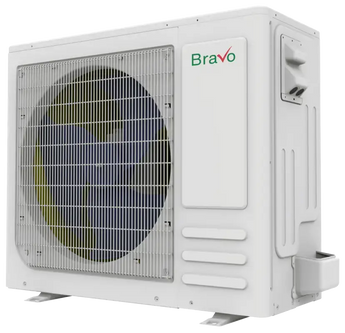

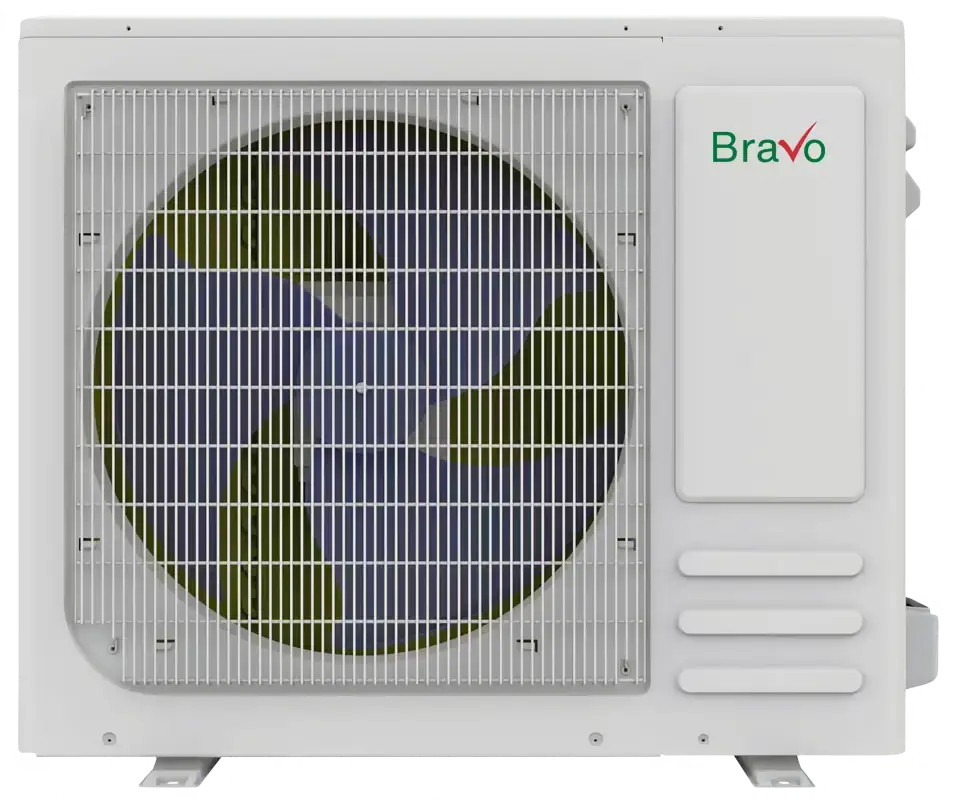

Bravo Outdoor Condenser
The outdoor condenser carries the inverter compressor, the heat exchanger and the fan — the part of a ductless system that moves heat out of the building in summer and into it in winter. This listing is that unit on its own, for replacing a failed condenser or assembling a system from separate components.
It runs on R32 refrigerant and pairs with Bravo indoor units of matching capacity and voltage. Refrigerant type, voltage and capacity all have to line up between the two halves — R32 equipment cannot be connected to R410A or R454B parts.
Warranty and Tech Support Info
Model BRV-SD48HI-230VO
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: the manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Main Features
Inverter-driven compressor that varies its speed instead of switching on and off, a galvanised and powder-coated cabinet built for year-round outdoor exposure, and a heat exchanger sized for heat-pump operation rather than cooling alone.
Sold as a component, so it fits a replacement, a retrofit, or a build where the indoor units are already in place.
Technical Specifications
System Specs
| Cooling Capacity | 48,000 BTU |
|---|---|
| Voltage | 230V |
| Refrigerant Type | R32 |
| Compressor | Inverter |
| WiFi | Not Included |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
| Parameter | Indoor Model | ||||
|---|---|---|---|---|---|
| BRV-M07WM-230VI | BRV-M09WM-230VI | BRV-M12WM-230VI | BRV-M18WM-230VI | BRV-M24WM-230VI | |
| Power Supply V-Ph-Hz |
208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling Rated Capacity Btu/h |
7,000 | 9,000 | 12,000 | 17,000 | 24,000 |
| Heating Rated Capacity Btu/h |
7,000 | 9,000 | 12,300 | 17,700 | 24,000 |
| Max Fuse A |
5 | 5 | 5 | 5 | 5 |
| Indoor Air Flow CFM |
353 | 353 | 353 | 618 | 765 |
| Indoor Noise Level dB(A) |
40 | 40 | 42 | 49 | 50 |
| Indoor Unit Dimensions (WxDxH) in |
31.02x7.80x11.50 | 31.02x7.80x11.50 | 34.49x7.64x11.73 | 38.82x8.86x12.40 | 44.13x9.09x12.95 |
| Indoor Unit Packing (WxDxH) in |
34.65x14.57x11.42 | 34.65x14.57x11.42 | 37.99x14.57x11.10 | 42.13x15.16x12.28 | 47.64x15.75x12.87 |
| Indoor Unit Net/Gross Weight lbs. |
17.60/22.00 | 17.60/22.00 | 19.80/24.27 | 26.45/32.26 | 33.07/39.68 |
| Refrigerant Piping Liquid / Gas Side in |
1/4’’ / 3/8’’ | 1/4’’ / 3/8’’ | 1/4’’ / 3/8’’ | ◊ 1/4’’ / 1/2’’ | ◊ 1/4’’ / 5/8’’ |
| Operation Temperature Range °F |
60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
| Parameter | Outdoor Model | ||||
|---|---|---|---|---|---|
| BRV-M18-230VO | BRV-M24-230VO | BRV-M30-230VO | BRV-M36-230VO | BRV-M42-230VO | |
| Power Supply V-Ph-Hz |
208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling Capacity Btu/h |
17,700 (3,800-19,800) | 24,000 (4,900-31,400) | 30,000 (6,000-38,200) | 36,000 (6,350~38,500) | 42,000 (8,350-46,000) |
| EER2 Btu/h |
3.60 | 3.66 | 3.66 | 3.60 | 3.66 |
| SEER2 Btu/h |
22 | 23 | 23 | 23 | 24 |
| Heating Rated Capacity Btu/h |
18,000 (4,200-22,000) | 24,000 (5,200-32,000) | 30,000 (6,300-36,000) | 36,000 (7,000~43,000) | 42,000 (8,450-53,000) |
| HSPF2-4 Btu/h |
10 | 10 | 10 | 10 | 10.5 |
| COP2 W/W |
3.8 | 4.0 | 3.9 | 4.0 | 3.9 |
| Minimum Circuit Ampacity A |
20 | 30 | 40 | 45 | 45 |
| Max Fuse A |
20 | 30 | 40 | 45 | 45 |
| Outdoor Air Flow CFM |
1529 | 2235 | 2353 | 2353 | 4235 |
| Outdoor Side Noise Level dB(A) |
54 | 57 | 58 | 59 | 60 |
| Outdoor Unit Dimensions (WxDxH) in |
34.65x13.90x21.93 | 38.58x15.28x27.56 | 41.18x17.91x31.81 | 41.18x17.91x31.81 | 39.80x15.75x51.97 |
| Outdoor Unit Packing (WxDxH) in |
35.55x15.04x24.21 | 39.96x16.73x30.00 | 43.50x19.49x34.84 | 43.50x19.49x34.84 | 42.52x16.93x56.69 |
| Outdoor Unit Net Weight lbs. |
75.0/80.5 | 102.5/109.1 | 148.8/157.6 | 154.3/163.1 | 205.0/224.9 |
| Refrigerant Type / Volume oz |
R32/38.8 | R32/51.2 | R32/67.0 | R32/81.2 | R32/105.8 |
| Refrigerant Precharge ft |
24.6 | 24.6 | 24.6 | 24.6 | 24.6 |
| Refrigerant Piping Liquid Side / Gas Side in |
1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" |
| Max Refrigerant Pipe Length ft |
82 | 98 | 115 | 115 | 115 |
| Ambient Temperature Outdoor (Cooling) °F |
-13~125.6 | -13~125.6 | -13~125.6 | -13~125.6 | -13~125.6 |
| Ambient Temperature Outdoor (Heating) °F |
-13~75.2 | -13~75.2 | -13~75.2 | -13~75.2 | -13~75.2 |
What’s Included
| Outdoor condenser | BRV-SD48HI-230VO |
|---|
Installation kit is not included in the selected option — pick 16ft, 25ft or 50ft above to add one.
Shipping & Returns
- Free shipping on every order over $300.
- Delivery estimate for your ZIP is shown in the buy box above.
- Returns accepted per our policy — unopened units in original packaging.
Warranty
7-year compressor / 5-year parts
- Limited manufacturer warranty on the compressor and sealed system components.
- Installation by a licensed HVAC professional and product registration are required to keep coverage valid.
Frequently Asked Questions
Is this a complete system or just the outdoor condenser?
This listing is the outdoor condenser only. The Bravo 48,000 BTU outdoor condenser is sold as a single component for replacements and custom builds, so it does not include the indoor unit, line set or installation kit. Order the matching components separately if you are building a full system.
Which units is the Bravo 48,000 BTU compatible with?
It pairs with Bravo R32 equipment of the same refrigerant and voltage — R32, 230V. Match the total indoor capacity to this condenser's rating, and keep the refrigerant identical: R32 components cannot be mixed with R410A.
What line set size does it use?
Copper line size is 3/8" 3/4" (liquid/gas). Use the same diameters on the matching component, and keep the run within the manufacturer's maximum length.
Does it come pre-charged with refrigerant?
Yes — it ships pre-charged with R32 for line sets up to 24.6 ft. Longer runs need additional refrigerant added by a licensed technician.
Do I need a licensed technician to install the Bravo 48,000 BTU?
Yes. Connecting refrigerant lines requires EPA 608 certification in the United States, and correct evacuation and charging are what keep the rated efficiency and the factory warranty intact.
