Cooper & Hunter 18,000 BTU Indoor Air Handler, 230V, R410A - Ducted Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Type | |
| Freon | |
| Compressor |
⛔ Wait! This is an Individual Component To build a working system, this unit must match your other equipment in two ways:
- Same Brand Only: Only pair with other same Brand and Series.
- Same Refrigerant: Both units must use the exact same gas type (R454B, R32, or R410A).
Mixing different brands or refrigerant types will cause the system to fail and void your warranty.
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Questions about this system?
Answers in seconds — tap a question below
-
Sized for about the room's square footage at ~20 BTU per sq ft. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this unit is 18,000 BTU (1.5-ton)). Ceiling height, insulation, sun and climate shift that — if you're between sizes, size up for hot/humid rooms. Not sure? We'll confirm the right BTU for your space.
-
12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 18,000 BTU (1.5-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
-
It uses R410A — a proven, widely serviced refrigerant. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
-
Rated SEER2 21.6 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
-
Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
-
Yes — a big upgrade. It's far more efficient (inverter, SEER2 21.6) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
-
Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
-
Yes — WiFi is not included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
-
Ships as a complete set: CH-18MOLVWM-230VI. Everything arrives together — check the photos and specs for the full kit.
-
It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
-
Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on U.S. orders over $300, and our team can help with sizing and support.
Important info
- R-410A is being phased down in favor of newer refrigerants; inventory is limited.
- Existing R-410A systems remain serviceable; parts and qualified service are widely available.
- Check local codes and rebates. Some incentives prioritize high-efficiency heat pumps (R-32/R-454B).
- We stock both R-410A and next-gen options—choose what fits your timeline and budget.
Browse: R-410A systems · R-32 · R-454B
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out

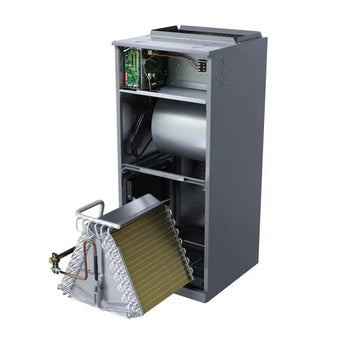

Multi-Position Air Handler
Installs in upflow, downflow or horizontal orientation to fit a closet, attic or utility room, delivering ducted 18000 BTU comfort to the whole home.
Inverter Efficiency — SEER2 21.6
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 21.6 on 230V — steady comfort with noticeably lower energy bills.
Smart Wi-Fi Control
Wi-Fi is not included — set schedules and adjust the temperature from your phone anywhere, or pair with Alexa & Google Home.
Multi-Position Air Handler
Engineered for flexibility and designed for performance, the Cooper&Hunter Multi-Position Air Handler delivers reliable comfort in a wide range of residential and light commercial applications. Whether installed in upflow, downflow, or horizontal configurations, this unit adapts seamlessly to your space while maintaining optimal efficiency and quiet operation.
Built with Cooper&Hunter’s commitment to innovation, the Multi-Position Air Handler offers advanced airflow management, durable construction, and compatibility with high-efficiency heat pump systems.
Its sleek, compact design allows for easy installation, while the smart control options ensure user-friendly operation and precision climate control.
Warranty and Tech Support Info
By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Energy Efficiency
Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.
Main Features
The Cooper&Hunter Multi-Position Air Handler offers flexible installation in upflow, downflow, or horizontal configurations. Designed for quiet, efficient performance, it features a high-performance blower, durable insulated cabinet, and smart control compatibility—making it an ideal solution for reliable, customizable comfort in residential or light commercial settings.
Technical Specifications
INDOOR MODEL
| Indoor Model | CH-M18AHU | CH-M24AHU | CH-36AHU | CH-48AHU | CH-M18AHU | CH-M24AHU | CH-36AHU | CH-48AHU | CH-60AHU |
|---|---|---|---|---|---|---|---|---|---|
| Power Supply Rated (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230V,1Ph 60Hz | 208/230V,1Ph 60Hz | 208/230,1,60 | 208/230,1,60 | 208/230V,1Ph 60Hz |
| Cooling - Rated Capacity (Btu/h) | 18,000 | 24,000 | 36,000 | 48,000 | 18,000 | 24,000 | 36,000 | 48,000 | 60,000 |
| Minimum Circuit Ampacity (MCA) (A) | 3 | 4 | 5 | 7.5 | 3 | 4 | 5 | 7.5 | 9 |
| Max. Fuse (A) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Hi/Mi/Lo) (CFM) | 576/529/488 | 759/694/629 | 1840/1650/1470 | 2180/1860/1540 | 576/529/488 | 759/694/629 | 1,082/970/865 | 1,282/1,094/906 | 1,582/1,359/1,135 |
| Indoor Noise Level (Hi/Mi/Lo) (dB(A)) | 39/37/35 | 41/39/38 | 47/42/40 | 53/47/43 | 38/35/34 | 42/40/38 | 50/45/42 | 51/48/45 | 51/47/45 |
| Dimension (W×D×H) (inch) | 17.52×21.02×45 | 17.52×21.02×45 | 21.02×21.02×49.02 | 21.02×21.02×49.02 | 17.52×21.02×45 | 17.52×21.02×45 | 21.02×21.02×49.02 | 21.02×21.02×49.02 | 21.02×24.49×52.99 |
| Packing (W×D×H) (inch) | 20.87×26.57×48.62 | 20.87×26.57×48.62 | 24.41×26.57×52.56 | 24.41×26.57×52.56 | 20.87×26.57×48.62 | 20.87×26.57×48.62 | 24.41×26.57×52.56 | 24.41×26.57×52.56 | 26.77×27.95×56.5 |
| Net/Gross Weight (lbs.) | 107/127 | 107/127 | 129/153 | 132/155 | 107/127 | 107/127 | 130/153 | 132/156 | 164/190 |
| Room Temperature - Cooling (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Room Temperature - Heating (°F) | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 |
| Refrigerant Piping (Liquid Side/Gas Side) (inch) | 1/4"/1/2" | 3/8"/5/8" | 3/8"/5/8" | 3/8"/5/8" | 1/4"/1/2" | 3/8"/5/8" | 3/8"/5/8" | 3/8"/5/8" | 3/8"/7/8" |
OUTDOOR MODEL REGULAR
| Specification | CH-ES09-230V0 | CH-ES12-230V0 | CH-ES18-230V0 | CH-ES24-230V0 | CH-N36LCU-230V0 | CH-N48LCU-230V0 | CH-N60LCU-230V0 |
|---|---|---|---|---|---|---|---|
| Power Supply Rated (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Voltage Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Cooling - Rated Capacity Range (Btu/h) | 2,220~11,600 | 2,100~13,450 | 5,800~18,000 | 6,100~28,200 | 8,900~36,000 | 10,500~48,000 | 12,000~62,000 |
| Cooling - Rated Current (A) | 4.8 | 4.38 | 6.17 | 8.5 | 18.63 | 24.5 | 25 |
| Cooling - EER2 (Btu/h) | 12.5 | 11.7 | 12.5 | 12.5 | 8.8 | 8.5 | 10.3 |
| Cooling - SEER2 (Btu/h) | 19.2 | 19 | 20 | 19 | 15.8 | 15.1 | 17 |
| Heating - Rated Capacity Range (Btu/h) | 2,240~13,350 | 1,900~15,000 | 5,000~20,000 | 11,700~33,000 | 12,700~40,000 | 11,000~63,400 | 12,000~60,000 |
| Heating - Rated Current (A) | 3.7 | 4.78 | 7.90 | 9.3 | 15.4 | 20.5 | 22 |
| Heating at 47°F - COP (W/W) | 3.62 | 3.52 | 3.12 | 3.61 | 3.3 | 3.19 | 3.52 |
| Heating at 47°F - HSPF4 | 10.2 | 10.3 | 10.6 | 11.2 | 8.8 | 9.3 | 8.4 |
| Heating at 47°F - HSPF5 | 8 | 7.8 | 8.2 | 8.8 | 7 | 7.3 | 6.5 |
| Minimum Circuit Ampacity (A) | 13 | 13 | 19 | 22 | 30 | 39 | 39 |
| Max.Fuse (Outdoor Unit) (A) | 15 | 15 | 30 | 30 | 45 | 50 | 50 |
| Outdoor Air Flow (Max.) (CFM) | 1,294 | 1,294 | 2,059 | 2,235 | 3,000 | 4,500 | 2,647 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 55 | 53.5 | 60 | 59 | 65 | 63.5 | 62.5 |
| Dimension (W×D×H) (inch) | 30.12×11.93×21.85 | 30.12×11.93×21.85 | 35.04×13.46×26.50 | 37.24×16.14×31.89 | 37.24×16.14×31.89 | 37.48×16.34×52.48 | 37.48×16.34×52.48 |
| Packing (W×D×H) (inch) | 34.92×13.27×24.02 | 34.92×13.27×24.02 | 39.17×15.67×29.13 | 42.91×19.69×34.84 | 42.91×19.69×34.84 | 43.11×19.49×58.27 | 43.11×19.49×58.27 |
| Net/Gross Weight (lbs.) | 63.71/69.00 | 63.71/69.00 | 94.36/100.97 | 124.78/134.92 | 155.42/166.23 | 219.14/249.12 | 217.15/248.24 |
| Refrigerant Type / Charge (oz.) | R410A / 38 | R410A / 38 | R410A / 56.44 | R410A / 82.89 | R410A / 112.9 | R410A / 158.7 | R410A / 169.3 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 | 0.32 | 0.32 | 0.32 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping (Liquid Side/Gas Side) (inch) | 1/4"/3/8" | 1/4"/1/2" | 1/4"/1/2" | 3/8"/5/8" | 3/8"/5/8" | 3/8"/5/8" | 3/8"/7/8" |
| Max. Pipe Length (ft.) | 82.02 | 82.02 | 98.42 | 164.04 | 213.25 | 213.25 | 213.25 |
| Max. Difference in Level (ft.) | 32.81 | 32.81 | 65.62 | 82.02 | 98.42 | 98.42 | 98.42 |
| Ambient Temperature - Cooling (°F) | -13~122 | -13~122 | -13~122 | -13~122 | 5~122 | 5~122 | 5~122 |
| Ambient Temperature - Heating (°F) | -13~75 | -13~75 | -13~75 | -13~75 | -13~75 | -13~75 | -13~75 |
| Certifications | UL, ETL, AHRI, Energy Star, NEEP, CSA | UL, ETL, AHRI, Energy Star, NEEP, CSA | UL, ETL, AHRI, Energy Star, NEEP, CSA | UL, ETL, AHRI, Energy Star, NEEP, CSA | UL, ETL, AHRI, Energy Star, NEEP, CSA | UL, ETL, AHRI, Energy Star, NEEP, CSA | UL, ETL, AHRI, Energy Star, NEEP, CSA |
OUTDOOR MODEL HYPER
| Specification | CH-HPR09-230V0 | CH-HPR12-230V0 | CH-HPR18-230V0 | CH-HPR24-230VO | CH-NHPR36LCU-230VO | CH-NHPR48LCU-230VO | CH-NHPR60LCU-230V0 |
|---|---|---|---|---|---|---|---|
| Power Supply Rated (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Voltage Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Cooling - Rated Capacity Range (Btu/h) | 2,400~12,500 | 2,250~14,400 | 6,500~18,800 | 6,500~27,800 | 9,770~41,600 | 10,300~53,100 | 12,000~59,000 |
| Cooling - Rated Current (A) | 4.7 | 4.22 | 9.32 | 8.52 | 17.5 | 26 | 26 |
| Cooling - EER2 (Btu/h) | 13.2 | 11.7 | 11.7 | 12 | 9 | 8.2 | 9.4 |
| Cooling - SEER2 (Btu/h) | 20.2 | 19.5 | 18 | 19.2 | 16.5 | 14.3 | 15.8 |
| Heating - Rated Capacity Range (Btu/h) | 1,700~15,600 | 1,800~16,300 | 8,900~22,000 | 12,200~32,200 | 12,700~52,000 | 11,500~63,600 | 12,000~63,600 |
| Heating - Rated Current (A) | 4.0 | 4.58 | 11.5 | 8.19 | 16.9 | 20.5 | 22.5 |
| Heating at 47°F - COP (W/W) | 3.37 | 3.56 | 2.93 | 3.3 | 3.33 | 3.28 | 3.24 |
| Heating at 47°F - HSPF4 | 9.5 | 10 | 9.5 | 10.5 | 10.3 | 9.5 | 8.8 |
| Heating at 47°F - HSPF5 | 7.5 | 8.2 | 7.5 | 8.8 | 8.4 | 7.8 | 6.5 |
| Minimum Circuit Ampacity (A) | 15 | 15 | 20 | 25 | 40 | 40 | 44 |
| Max.Fuse (Outdoor Unit) (A) | 15 | 15 | 25 | 35 | 50 | 50 | 60 |
| Outdoor Air Flow (Max.) (CFM) | 1,324 | 1,324 | 1,765 | 2,235 | 4,500 | 4,500 | 4,235 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 54 | 52 | 59 | 62 | 65 | 65 | 60.5 |
| Dimension (W×D×H) (inch) | 31.69×12.99×21.81 | 31.69×12.99×21.81 | 35.04×13.46×26.50 | 37.24×16.14×31.89 | 37.48×16.34×52.48 | 37.48×16.34×52.48 | 37.48×16.34×52.48 |
| Packing (W×D×H) (inch) | 36.02×14.57×24.21 | 36.02×14.57×24.21 | 39.17×15.67×29.13 | 42.91×19.69×34.84 | 43.11×19.49×58.27 | 43.11×19.49×58.27 | 43.11×19.49×58.27 |
| Net/Gross Weight (lbs.) | 74.07/80.25 | 73.63/79.37 | 100.97/108.03 | 134.48/144.40 | 220.24/248.02 | 227.07/255.73 | 240.74/271.61 |
| Refrigerant Type / Charge (oz.) | R410A / 41.62 | R410A / 41.62 | R410A / 65.26 | R410A / 91.71 | R410A / 148.4 | R410A / 148 | R410A / 169 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 | 0.32 | 0.32 | 0.32 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping (Liquid Side/Gas Side) (inch) | 1/4"/3/8" | 1/4"/1/2" | 1/4"/1/2" | 3/8"/5/8" | 3/8"/5/8" | 3/8"/5/8" | 3/8"/7/8" |
| Max. Pipe Length (ft.) | 82.02 | 82.02 | 98.42 | 164.04 | 213.25 | 213.25 | 213.25 |
| Max. Difference in Level (ft.) | 32.81 | 32.81 | 65.62 | 82.02 | 98.42 | 98.42 | 98.42 |
| Ambient Temperature - Cooling (°F) | -22~122 | -22~122 | -22~122 | -22~122 | 5~122 | 5~122 | 5~122 |
| Ambient Temperature - Heating (°F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 |
| Certifications | UL, ETL, AHRI, Energy Star, NEEP, CSA | UL, ETL, AHRI, Energy Star, NEEP, CSA | UL, ETL, AHRI, Energy Star, NEEP, CSA | UL, ETL, AHRI, Energy Star, NEEP, CSA | UL, ETL, AHRI, Energy Star, NEEP, CSA | UL, ETL, AHRI, Energy Star, NEEP, CSA | UL, ETL, AHRI, Energy Star, NEEP, CSA |
Multiple Control Methods
Cooper&Hunter’s Slim Duct Unit can be managed with a user-friendly remote control, the wall thermostat or the Cooper&Hunter optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For optimal performance, the Cooper & Hunter 18,000 BTU indoor air handler is suitable for spaces up to 850 sq ft. This makes it a great choice for medium to large rooms requiring efficient cooling or heating.
Can I install a mini split system myself?
While the Cooper & Hunter mini split can be installed by a DIY enthusiast, it is recommended to hire a professional for proper installation and optimal efficiency. Keep in mind that installation kits are available in lengths of 16ft, 25ft, and 50ft, depending on your needs.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter mini split is pre-charged with R410A refrigerant for up to 25 ft of line set, making installation easier. This ensures that you can start enjoying efficient cooling or heating right away.
What voltage does the Cooper & Hunter mini split require?
The Cooper & Hunter 18,000 BTU indoor air handler operates on a 230V power supply, which is standard for many residential mini split systems. Ensure your electrical system can accommodate this voltage for optimal performance.
What warranty does Cooper & Hunter offer on their mini splits?
The Cooper & Hunter mini split comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register the product within 30 days of purchase. This warranty gives you peace of mind regarding long-term reliability.
What is the SEER rating and efficiency of the Cooper & Hunter mini split?
The Cooper & Hunter 18,000 BTU unit boasts an impressive SEER rating of 21.6, indicating high energy efficiency. A higher SEER rating means lower energy bills and a more environmentally friendly operation, making it a smart investment.
