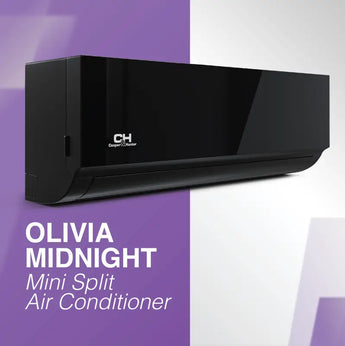

The Cooper&Hunter Olivia Midnight Unit blends contemporary design with high-performance heating and cooling. Its sleek, modern appearance complements any space while providing efficient climate control for year-round comfort.
Featuring quiet operation, energy-saving technology, and advanced air filtration, it enhances indoor air quality. The unit is ideal for residential and light commercial applications, offering easy installation, minimal maintenance, and reliable performance.
Whether you're looking to cool or heat your space, the Olivia Midnight delivers optimal comfort with style and efficiency, making it a perfect choice for those seeking both function and elegance in their climate control solutions.

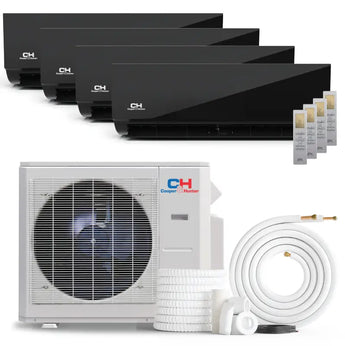

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
INDOOR MODELS
| Indoor Model | CH-B06MOLVWM-230VI | CH-B09MOLVWM-230VI | CH-B12MOLVWM-230VI | CH-B18MOLVWM-230VI | CH-B24MOLVWM-230VI | CH-B09OLVWM-115VI | CH-B12OLVWM-115VI | CH-B09MOLVWM-230VI | CH-B12MOLVWM-230VI | CH-B18MOLVWM-230VI | CH-B24MOLVWM-230VI | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Supply | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 115,1, 60 | 115, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | |
| Rated Capacity | 6,000 Btu/h | 9,000 Btu/h | 12,000 Btu/h | 18,000 Btu/h | 24,000 Btu/h | 9,000 Btu/h | 12,000 Btu/h | 9,000 Btu/h | 12,000 Btu/h | 18,000 Btu/h | 24,000 Btu/h | |
| Minimum Circuit Ampacity (MCA) | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | |
| Max. Fuse | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | |
| Indoor Air Flow (Turbo/Hi/Mi/Lo) | 294/247/176/141 CFM | 341/291/194/152 CFM | 341/291/194/152 CFM | 760/530/458/382 CFM | 760/601/458/382 CFM | 341/300/241/176 CFM | 341/300/241/176 CFM | 291.18/194.12/152.94 CFM | 341/291/194/152 CFM | 760/530/458/382 CFM | 760/601/458/382 CFM | |
| Indoor Noise Level (Hi/Mi/Lo) | 38.5/33/20.5 dB(A) | 40/35/23.5 dB(A) | 41.5/36/24 dB(A) | 46/40/25 dB(A) | 46.5/44/35 dB(A) | 41.5/36/24 dB(A) | 41.5/36/24 dB(A) | 40/34/23.5 dB(A) | 42/36/25 dB(A) | 45.5/41/24.5 dB(A) | 48/40/28 dB(A) | |
| Dimension (WxDxH) | 28.70x7.87x11.50 inch | 31.57x7.87x11.61 inch | 31.57x7.87x11.61 inch | 42.64x9.61x13.23 inch | 42.60x9.21x13.27 inch | 31.57x7.87x11.61 inch | 31.57x7.87x11.61 inch | 31.57x7.87x11.61 inch | 31.57x7.87x11.61 inch | 42.64x9.61x13.23 inch | 42.60x9.21x13.27 inch | |
| Packing (WxDxH) | 31.10x10.63x14.76 inch | 34.45x11.22x14.96 inch | 34.45x11.22x14.96 inch | 45.47x16.34x12.40 inch | 45.47x16.34x12.40 inch | 34.45x11.22x14.96 inch | 34.45x11.22x14.96 inch | 34.45x11.22x14.96 inch | 34.45x11.22x14.96 inch | 45.47x16.34x12.40 inch | 45.47x16.34x12.40 inch | |
| Net/Gross Weight | 17.64/22.49 lbs. | 18.96/24.25 lbs. | 18.74/24.25 lbs. | 29.54/37.48 lbs. | 29.98/38.14 lbs. | 18.96/24.47 lbs. | 18.96/24.47 lbs. | 18.96/24.25 lbs. | 18.74/24.25 lbs. | 29.54/37.48 lbs. | 29.98/38.14 lbs. | |
| Room temperature | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | |
| Heating | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | |
| Liquid Side/Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 3/8" / 5/8" | 1/4" / 1/2" | 1/4” / 1/2” | 1/4” / 3/8” | 1/4” / 1/2” | 1/4” / 1/2” | 3/8” / 5/8” | |
OUTDOOR MODELS
| Outdoor Model | CH-HPR06F9-230VO | CH-HPR09-230VO | CH-HPR12-230VO | CH-HPR18-230VO | CH-HPR24-230VO | CH-ES09-115VO | CH-ES12-115VO | CH-ES09-230VO | CH-ES12-230VO | CH-ES18-230VO | CH-ES24-230VO | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Series | HPR Series | HPR Series | HPR Series | HPR Series | HPR Series | ES Series | ES Series | ES Series | ES Series | ES Series | ES-Series | |
| Power Supply | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 115V, 1Ph, 60Hz | 115V, 1Ph, 60Hz | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | |
| Voltage Range | 187-253 V | 187-253 V | 187-253 V | 187-253 V | 187-253 V | 103.5-126.5 V | 103.5-126.5 V | 187-253 V | 187-253 V | 187-253 V | 187-253 V | |
| Cooling | Rated Capacity (range) | 6,000 (2,500-11,800) | 9,000 (3,700~13,300) | 12,000 (3,700~13,300) | 18,000 (8,400~20,200) | 23,000 (4,650~26,600) | 9,000 (3,930~13,200) | 12,000 (3,930~13,200) | 9,000 (2,500~11,900) | 12,000 (3,600~13,300) | 18,000 (7,320~19,500) | 24,000 (9,200~25,000) |
| Rated Current | 4.75 A | 4 A | 4.25 A | 9.2 A | 11.38 A | 6.5 A | 8.7 A | 3.48 A | 4.5 A | 6.31 A | 10.35 A | |
| EER2 | 15 Btu/h | 15.8 Btu/h | 13 Btu/h | 13 Btu/h | 12.5 Btu/h | 13.8 Btu/h | 12.5 Btu/h | 14.7 Btu/h | 13 Btu/h | 13.5 Btu/h | 13 Btu/h | |
| SEER2 | 23.5 Btu/h | 26.4 Btu/h | 23.1 Btu/h | 22 Btu/h | 22.3 Btu/h | 23 Btu/h | 22.7 Btu/h | 24 Btu/h | 23.1 Btu/h | 24 Btu/h | 21 Btu/h | |
| Heating at 47℉ | Rated Capacity (range) | 7,000 (3,400-11,230) | 12,000 (5,100~14,300) | 12,000 (5,100~14,300) | 18,000 (6,000~23,000) | 26,000 (9.550~27,000) | 10,000 (5,000~12,600) | 12,000 (5,000~12,600) | 10,000 (3,400~13,000) | 12,000 (4,500~13,500) | 18,000 (6,620~21,200) | 26,000 (10,350~26,410) |
| Rated current | 3.76 A | 4 A | 4.25 A | 9.2 A | 11.38 A | 8.7 A | 8.7 A | 3.48 A | 4.5 A | 6.31 A | 10.35 A | |
| COP | 3.76 W/W | 3.9 W/W | 3.6 W/W | 3.35 W/W | 3 W/W | 3.91 W/W | 3.52 W/W | 3.66 W/W | 3.4 W/W | 3.74 W/W | 3.15 W/W | |
| HSPF4 | 12 | 11.6 | 10.5 | 10.6 | 10.3 | 9.8 | 10.4 | 11.6 | 10.8 | 10.5 | 8.5 | |
| HSPF5 | 10 | 8.5 | 8 | 7.9 | 7.7 | 7.6 | 7.6 | 8.8 | 8 | 7.9 | 6.3 | |
| Heating at 17℉ (AHRI) | 9,100 Btu/h | 12,800 Btu/h | 13,400 Btu/h | 21,000 Btu/h | 25,100 Btu/h | 8,600 Btu/h | 8,600 Btu/h | 10,100 Btu/h | 10,300 Btu/h | 16,200 Btu/h | 19,600 Btu/h | |
| Minimum Circuit Ampacity | 13 A | 15 A | 15 A | 20 A | 25 A | 19 A | 19 A | 13 A | 13 A | 19 A | 23 A | |
| Max.Fuse (Outdoor Unit) | 15 A | 15 A | 15 A | 25 A | 35 A | 25 A | 25 A | 15 A | 15 A | 30 A | 30 A | |
| Outdoor Air Flow (Max.) | 1,294 CFM | 1,324 CFM | 1,324 CFM | 1,765 CFM | 2,235 CFM | 794 CFM | 794 CFM | 1,294 CFM | 1,294 CFM | 2,058 CFM | 2,235 CFM | |
| Outdoor Noise Level (Sound Pressure) | 53.5 dB(A) | 55.5 dB(A) | 56 dB(A) | 58 dB(A) | 62.5 dB(A) | 54 dB(A) | 54 dB(A) | 53 dB(A) | 54.5 dB(A) | 58.8 dB(A) | 62 dB(A) | |
| Dimension (W×D×H) | 30.12x11.93x21.85 inch | 31.69x12.99x21.81 inch | 31.69x12.99x21.81 inch | 35.04x13.46x26.50 inch | 37.24x16.14x31.89 inch | 30.12x11.93x21.85 inch | 30.12x11.93x21.85 inch | 30.12x11.93x21.85 inch | 30.12x11.93x21.85 inch | 35.04x13.46x26.50 inch | 37.24x16.14x31.89 inch | |
| Packing (W×D×H) | 34.92x13.27x24.02 inch | 36.02x14.57x24.21 inch | 36.02x14.57x24.21 inch | 39.17x15.67x29.13 inch | 42.91x19.69x34.84 inch | 34.92x13.27x24.02 inch | 34.92x13.27x24.02 inch | 34.92x13.27x24.02 inch | 34.92x13.27x24.02 inch | 39.17x15.67x29.13 inch | 42.91x19.69x34.84 inch | |
| Net/Gross Weight | 63.71/69.00 lbs. | 74.07/80.25 lbs. | 73.63/79.37 lbs. | 100.97/108.03 lbs. | 134.48/144.40 lbs. | 66.80/72.31 lbs. | 66.80/72.31 lbs. | 63.71/69.00 lbs. | 63.71/69.00 lbs. | 94.36/100.97 lbs. | 124.78/134.92 lbs. | |
| Refrigerant Type / Charge | R410A/38.1 oz. | R410A/41.62 oz. | R410A/41.62 oz. | R410A/65.2 oz. | R410A/91.7 oz. | R410A/39.51 oz. | R410A/39.51 oz. | R410A/38.1 oz. | R410A/38.1 oz. | R410A/56.44 oz. | R410A/82.89 oz. | |
| Refrigerant Precharge Length | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | |
| Additional Charge for Each ft. | 0.16 oz/ft | 0.16 oz/ft | 0.16 oz/ft | 0.16 oz/ft | 0.32 oz/ft | 0.16 oz/ft | 0.16 oz/ft | 0.16 oz/ft | 0.16 oz/ft | 0.16 oz/ft | 0.32 oz/ft | |
| Design Pressure | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | |
| Refrigerant Piping Liquid Side/Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 3/8" / 5/8" | 1/4" / 1/2" | 1/4” / 1/2” | 1/4” / 3/8” | 1/4” / 1/2” | 1/4” / 1/2” | 3/8” / 5/8” | |
| Max. Pipe Length | 82 ft. | 82 ft. | 82 ft. | 98 ft. | 164 ft. | 82 ft. | 82 ft. | 82 ft. | 82 ft. | 98 ft. | 164 ft. | |
| Max. Difference in Level | 32.8 ft. | 32.8 ft. | 32.8 ft. | 66 ft. | 82 ft. | 32.8 ft. | 32.8 ft. | 32.8 ft. | 32.8 ft. | 66 ft. | 82 ft. | |

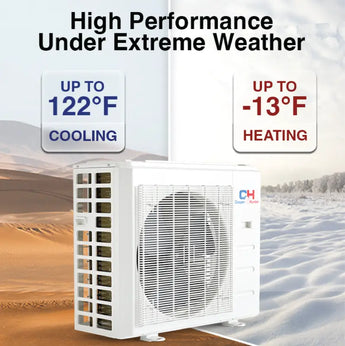

| Ambient Temperature Cooling | -22~122 ℉ | -22~122 ℉ | -22~122 ℉ | -22~122 ℉ | -22~122 ℉ | -13~122 ℉ | -13~122 ℉ | -13~122 ℉ | -13~122 ℉ | -13~122 ℉ | -13~122 ℉ | |
| Ambient Temperature Heating | -22~75 ℉ | -22~75 ℉ | -22~75 ℉ | -22~75 ℉ | -22~75 ℉ | -13~75 ℉ | -13~75 ℉ | -13~75 ℉ | -13~75 ℉ | -13~75 ℉ | -13~75 ℉ | |
| Certifications | UL, AHRI, Energy Star | UL, AHRI, Energy Star | UL, AHRI, Energy Star | UL, AHRI, Energy Star | UL, AHRI, Energy Star | AHRI, Energy Star | AHRI, Energy Star | UL, AHRI, Energy Star | UL, AHRI, Energy Star | UL, AHRI, Energy Star | UL, AHRI, Energy Star | |
Multiple Control Methods

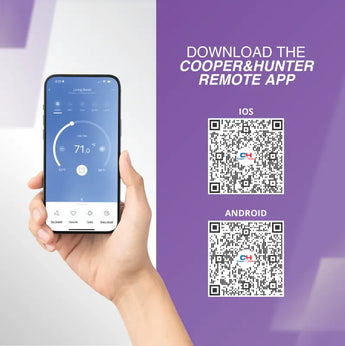

Cooper&Hunter’s Olivia Midnight Unit can be managed with a user-friendly remote control or the Cooper&Hunter optional phone application. Both options offer precise temperature adjustments and optimal climate control for ultimate convenience.
