Cooper & Hunter 48,000 BTU 3-Zone 18k+18k+18k Universal Floor/Ceiling, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump | No Kit No Kit No Kit

Name: Cooper & Hunter 48,000 BTU 3-Zone 18k+18k+18k Universal Floor/Ceiling,
Brand: Cooper & Hunter
SKU: CH-R48MES-230VO/M18FC+M18FC+M18FC-NO/NO/NO
Price: 7178.4 USD
Availability: InStock

Cooper & Hunter 48,000 BTU Ductless Mini Split Universal Floor/Ceiling Air Conditioner with R454B refrigerant 230V SEER 24 Inverter

White Cooper & Hunter 48,000 BTU Ductless Indoor Unit Mini Split Universal Floor/Ceiling Air Conditioner with R454B refrigerant 230V SEER 24 Inverter

White Cooper & Hunter 48,000 BTU Ductless Outdoor Unit Mini Split Universal Floor/Ceiling Air Conditioner with R454B refrigerant 230V SEER 24 Inverter

White Cooper & Hunter 48,000 BTU Ductless Mini Split Universal Floor/Ceiling with Remote Control with R454B refrigerant 230V SEER 24 Inverter

Cooper & Hunter 48,000 BTU Ductless Mini Split Universal Floor/Ceiling Installation Kit with R454B refrigerant 230V SEER 24 Inverter

Drainage System Cooper & Hunter 48,000 BTU Ductless Mini Split Universal Floor/Ceiling Smart WiFi Control with R454B refrigerant 230V SEER 24 Inverter

Smart Control Cooper & Hunter 48,000 BTU Ductless Mini Split Universal Floor/Ceiling System Components with R454B refrigerant 230V SEER 24 Inverter

Cooper & Hunter7-Yr Warranty

CH-R48MES-230VO/M18FC+M18FC+M18FC-NO/NO/NO

Product specifications

Brand	Cooper & Hunter
Voltage	230V
SEER	24
WiFi	Included
Zone	Three Zone
Type	Universal Floor/Ceiling
Freon	R454B
Compressor	Inverter

$7,178.40

Shipping Policy calculated at checkout.

Product variants

Quantity

Pickup available at 3550 Northwest 113th Court

Usually ready in 2-4 days

Questions about this system?

Answers in seconds — tap a question below

Covers about 1800–2400 sq ft total, split across its indoor units — each head handles its own room, so you put the right capacity where you need it. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this system is 48,000 BTU (4-ton)). Want help splitting the zones? Our team can map it out.
12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 48,000 BTU (4-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
It uses R454B — the newest low-GWP eco refrigerant, so it's future-proof and efficient. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
Rated SEER2 24.0 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
Yes — a big upgrade. It's far more efficient (inverter, SEER2 24.0) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
Yes. Each indoor unit has its own remote/thermostat — set different temperatures or turn one off, so you only condition the rooms you use and save energy on the ones you're not. One outdoor unit powers them all, keeping install and running costs lower than separate systems per room.
Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.

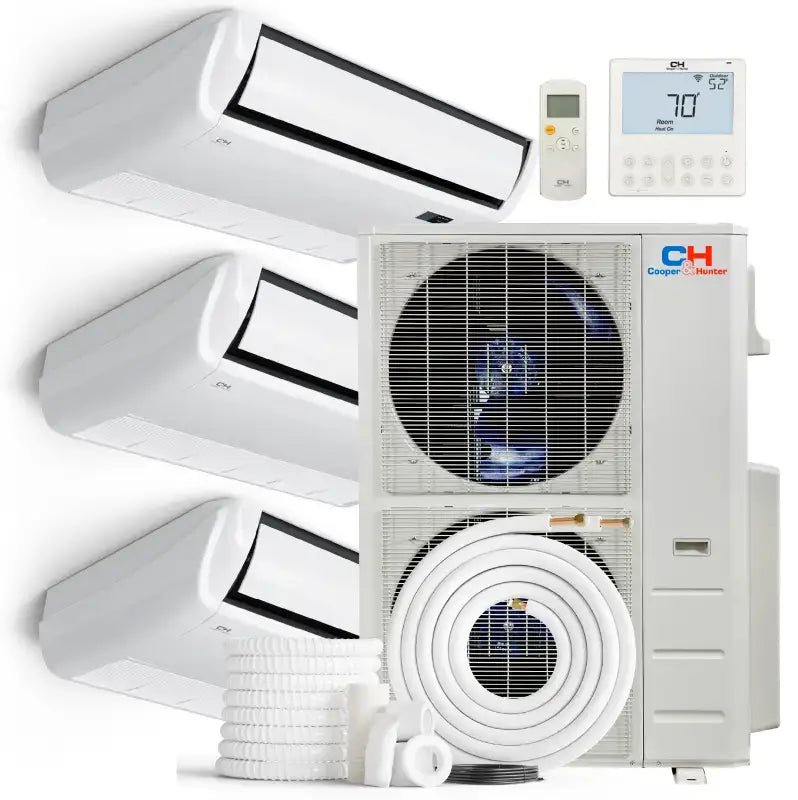

Ships as a complete set: CH-R48MES-230VO, CH-RSH18MFC, CH-RSH18MFC, CH-RSH18MFC. Everything arrives together — check the photos and specs for the full kit.
It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on U.S. orders over $300, and our team can help with sizing and support.

The Cooper & Hunter 3-Zone Mini Split System features 3 Universal Floor/Ceiling console zones rated at 18,000 Btu/h, 18,000 Btu/h, and 18,000 Btu/h, paired with an outdoor unit rated for 48,000 BTU nominal cooling and capable of operation down to -13°F ambient temperature. It includes built-in Wi-Fi control, uses R454B refrigerant, and achieves a SEER2 efficiency rating of 24.

Key Features

3-zone system — the CH-R48MES-230VO outdoor unit supports up to 6 indoor units, each individually controlled; port adapters included, no branch boxes required
47,000 Btu/h rated cooling / 48,000 Btu/h rated heating — inverter range 12,000–55,000 cooling, 13,000–53,000 heating (Btu/h)
24 SEER2 / 12.5 EER2 / 10.3 HSPF4 — current R454B-generation efficiency
Heats down to -13°F outdoor ambient — 36,000 Btu/h rated heating at 5°F; cooling operation -13–122°F
Wi-Fi Smart Kit built in — Cooper & Hunter app control; remote control included with each indoor unit; compatible with C&H 12V wall thermostat (sold separately)
ETL listed, AHRI certified, Energy Star Cold Climate & NEEP listed

Your System Includes

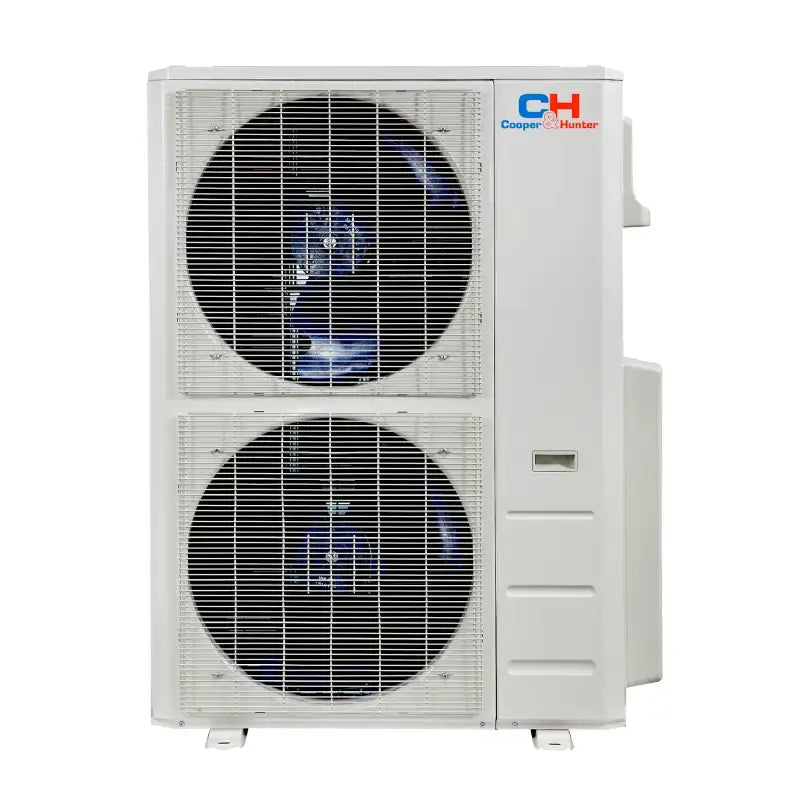

Outdoor unit (condenser): CH-R48MES-230VO — 48,000 BTU multi-zone R454B outdoor unit, pre-charged for up to 150 ft of line

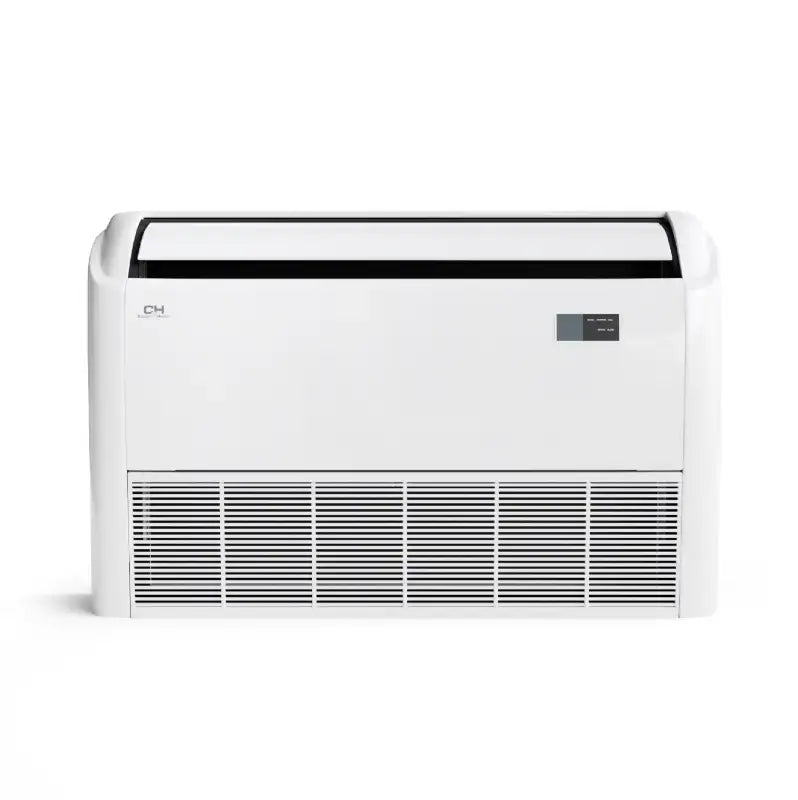

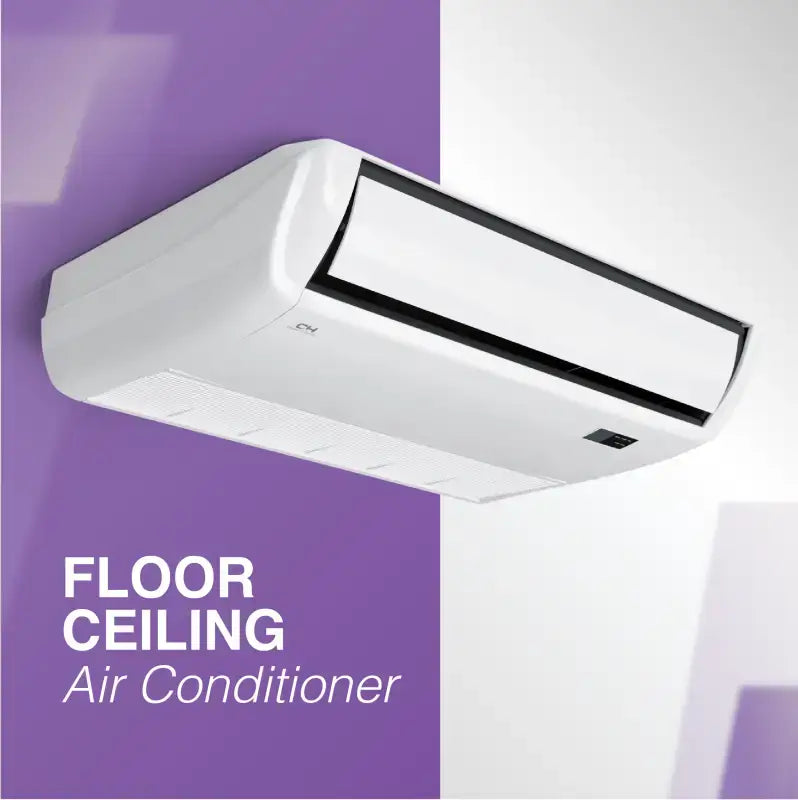

Zone 1 — Universal Floor/Ceiling: CH-RSH18MFC (18,000 Btu/h) with remote control
Zone 2 — Universal Floor/Ceiling: CH-RSH18MFC (18,000 Btu/h) with remote control
Zone 3 — Universal Floor/Ceiling: CH-RSH18MFC (18,000 Btu/h) with remote control
Wi-Fi Smart Kit (built in) for app control

Specifications — CH-R48MES-230VO Outdoor Unit (48,000 BTU, 208/230V)

Power Supply	208/230V, 1 Ph, 60 Hz (voltage range 187-253V)
Cooling — Rated Capacity (Range)	47,000 Btu/h (12,000–55,000)
Heating at 47°F — Rated Capacity (Range)	48,000 Btu/h (13,000–53,000)
Rated Heating at 5°F	36,000 Btu/h
SEER2 / EER2	24 / 12.5
HSPF4 / HSPF5 / COP (47°F)	10.3 / 8 / 3.8
Outdoor Unit MCA / Max. Fuse	34 A / 40 A
Max. Connectable Indoor Units	6
Outdoor Noise Level	63 dB(A)
Outdoor Unit Dimensions (W×D×H)	37.48 × 16.34 × 52.48 in
Outdoor Unit Net / Gross Weight	222.00 / 254.19 lbs
Refrigerant Type / Charge	R454B / 148.15 oz
Pre-charged Line Length	150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe)
Max. Total Pipe Length / Max. to One Indoor	262.4 ft / 114.8 ft
Max. Height Difference (Indoor–Outdoor / Between Indoors)	49.2 ft / 33 ft
Operating Range — Cooling / Heating	-13–122°F / -13–75°F outdoor ambient

Outdoor-unit ratings as printed in the 2026 Cooper & Hunter catalog; combined-system values vary with the indoor unit mix. Minimum line length per zone is 10 ft.

Warranty & Support

Backed by Cooper & Hunter’s 7-year compressor / 5-year parts warranty. Installation by a licensed HVAC professional and product registration within 60 days are required to keep the warranty valid — registration takes minutes online. Cooper & Hunter maintains wide U.S. parts availability and English-speaking technical support.

Frequently Asked Questions

How many rooms can this system heat and cool?

This is a 3-zone system: one CH-R48MES-230VO outdoor unit powers three 18,000 Btu/h Universal Floor/Ceiling zones, each with its own remote so every room sets its own temperature. The outdoor unit connects up to 6 indoor units total.

Will it keep my home warm in winter?

Yes — it's an inverter heat pump that keeps heating in outdoor temperatures as low as -13°F, still producing 36,000 Btu/h of heat at 5°F.

What's included in the box?

The CH-R48MES-230VO outdoor condenser (48,000 BTU), three× 18,000 Btu/h indoor unit (CH-RSH18MFC), and the built-in Wi-Fi Smart Kit. At checkout you add a line-set installation kit (copper line set, communication cable, drain line) for each zone.

What electrical service does it need?

208/230V single-phase power on a dedicated circuit for the outdoor unit — minimum circuit ampacity 34 A, maximum breaker/fuse 40 A. Have a licensed electrician confirm your panel.

How far can the indoor units be from the outdoor unit?

Up to 262.4 ft of line total across all zones, and up to 114.8 ft to any single indoor unit. It ships pre-charged for 150 ft.

What's the warranty?

A 7-year compressor / 5-year parts limited warranty from Cooper & Hunter. Register within 60 days of installation by a licensed HVAC professional to keep it valid.
