Questions about this system?
Answers in seconds — tap a question below
Covers about 1800–2400 sq ft total, split across its indoor units — each head handles its own room, so you put the right capacity where you need it. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this system is 48,000 BTU (4-ton)). Want help splitting the zones? Our team can map it out.
12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 48,000 BTU (4-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
It uses R454B — the newest low-GWP eco refrigerant, so it's future-proof and efficient. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
Rated SEER2 24.0 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
Yes — a big upgrade. It's far more efficient (inverter, SEER2 24.0) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
Yes. Each indoor unit has its own remote/thermostat — set different temperatures or turn one off, so you only condition the rooms you use and save energy on the ones you're not. One outdoor unit powers them all, keeping install and running costs lower than separate systems per room.
Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.

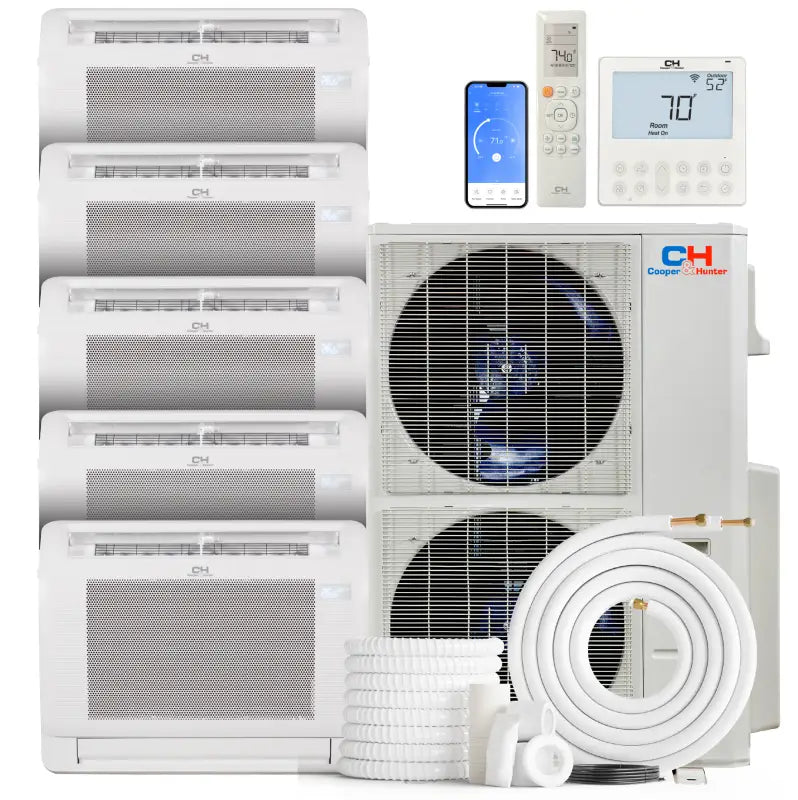

Ships as a complete set: CH-R48MES-230VO, CH-RSH09MMC, CH-RSH09MMC, CH-RSH09MMC, CH-RSH12MMC, CH-RSH16MMC. Everything arrives together — check the photos and specs for the full kit.
It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on items over $300 within the U.S., and our team can help with sizing and support.
Cooper & Hunter 48,000 BTU 5-Zone 9k+9k+9k+12k+16k Mini Floor Console, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Order total
Why buy this mini split from MiniSplitsForLess
Free Shipping on items over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out
Complete 5-Zone System
Heat or cool 5 rooms independently from one 48000 BTU outdoor unit (9K+9K+9K+12K+16K) — every zone sets its own temperature, delivered by mini floor consoles indoor units.
Inverter Efficiency — SEER2 24
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 24 on 230V — steady comfort with noticeably lower energy bills.
Right-Sized Coverage
Engineered to heat & cool up to 1800–2400 sq ft across 5 zones — matched capacity so you never over- or under-size the space.

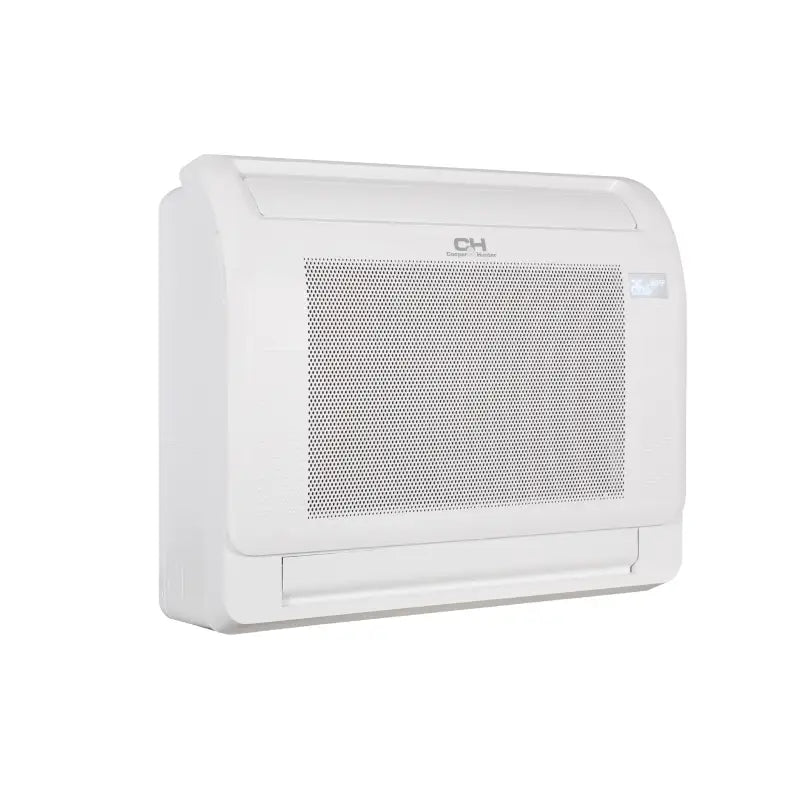

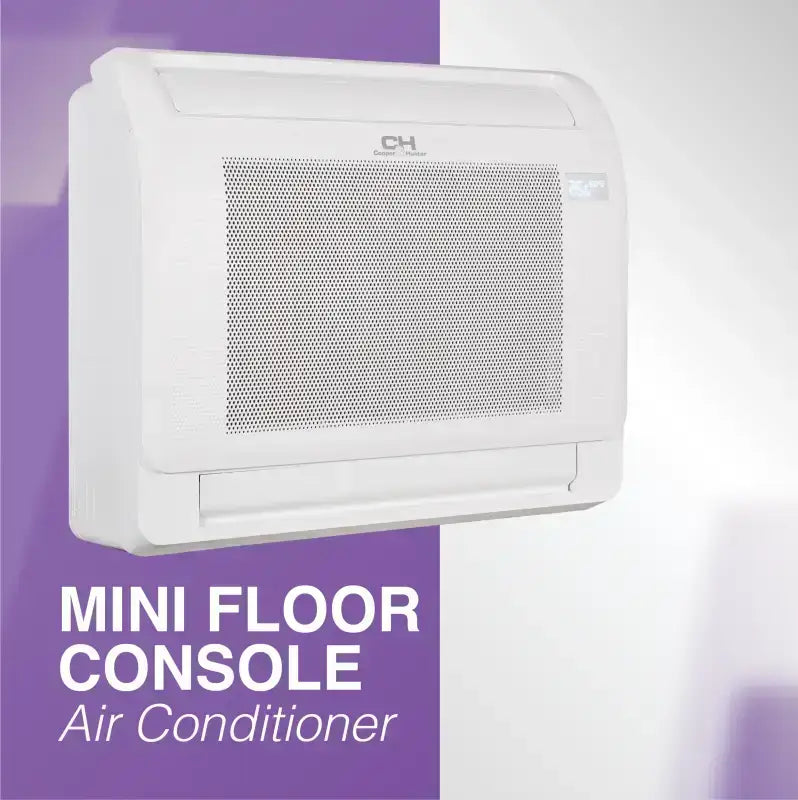

Mini Floor Console
Cooper&Hunter's Mini Floor Console is the perfect blend of style, efficiency, and advanced technology, designed to elevate your comfort while seamlessly integrating into any space. Compact yet powerful, this unit is an exceptional solution for both heating and cooling needs in residential or commercial settings.
It features advanced airflow control, allowing for optimal temperature distribution, and operates with whisper-quiet performance, ensuring a peaceful environment.
Engineered with energy-saving technology, the Mini Floor Console provides cost-effective and eco-friendly climate control. Its durable construction, paired with a sleek, modern design, makes it a versatile addition to any interior.
Ideal for spaces where wall-mounted units aren't an option, this console offers flexibility without compromising on efficiency or aesthetics. Trust Cooper&Hunter's Mini Floor Console to deliver reliable performance, consistent comfort, and effortless elegance.
Warranty and Tech Support Info
By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.
Main Features
Cooper&Hunter's Mini Floor Console features advanced airflow control for optimal temperature distribution, energy-saving technology for eco-friendly operation, and whisper-quiet performance for a peaceful environment. Compact and versatile, it integrates seamlessly into any space, offering durable construction, modern design, and reliable heating and cooling for both residential and commercial needs.
All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
Indoor Unit Specs CH-RSH09MMC
Indoor Unit Specs — CH-RSH09MMC
Model
CH-RSH09MMC
Unit Dimensions (WxDxH)
31.26 x 7.87 x 24.45 in
Net/Gross Weight
32.85/41.89 lb
Packing Dimensions (WxDxH)
34.06 x 11.02 x 28.31 in
Power Supply
208-230V, 1Ph, 60Hz
Maximum Fuse Size
15 A
Min. Circuit Ampacity
3 A
Copper Line Size (Liquid/Gas)
1/4"/3/8"
Noise Level (Hi/Med/Lo)
41/37.5/25.5 dB
Dehumidification
1.71 pt/h
Drain Pipe Diameter
5/8"
Controller
remote controller
Indoor Unit Specs CH-RSH12MMC
Indoor Unit Specs — CH-RSH12MMC
Model
CH-RSH12MMC
Unit Dimensions (WxDxH)
31.26 x 7.87 x 24.45 in
Net/Gross Weight
32.85/41.89 lb
Packing Dimensions (WxDxH)
34.06 x 11.02 x 28.31 in
Power Supply
208-230V, 1Ph, 60Hz
Maximum Fuse Size
15 A
Min. Circuit Ampacity
3 A
Copper Line Size (Liquid/Gas)
1/4"/1/2"
Noise Level (Hi/Med/Lo)
40.5/37/26.5 dB
Dehumidification
3.13 pt/h
Drain Pipe Diameter
5/8"
Controller
remote controller
Indoor Unit Specs CH-RSH16MMC
Indoor Unit Specs — CH-RSH16MMC
Model
CH-RSH16MMC
Unit Dimensions (WxDxH)
31.26 x 7.87 x 24.45 in
Net/Gross Weight
32.85/41.89 lb
Packing Dimensions (WxDxH)
34.06 x 11.02 x 28.31 in
Power Supply
208-230V, 1Ph, 60Hz
Maximum Fuse Size
15 A
Min. Circuit Ampacity
3 A
Copper Line Size (Liquid/Gas)
1/4"/1/2"
Noise Level (Hi/Med/Lo)
43.5/40.5/30.5 dB
Dehumidification
4.61 pt/h
Drain Pipe Diameter
5/8"
Controller
remote controller
Outdoor Unit Specs CH-R48MES-230VO
Outdoor Unit Specs — CH-R48MES-230VO
Model
CH-R48MES-230VO
Unit Dimensions (WxDxH)
37.48 x 16.34 x 52.48 in
Net/Gross Weight
222.00/254.19 lb
Packing Dimensions (WxDxH)
43.11 x 19.49 x 58.27 in
Power Supply
208-230V, 1Ph, 60Hz
Maximum Fuse Size
40 A
Min. Circuit Ampacity
34 A
Copper Line Size (Liquid/Gas)
6x1/4" - 4x3/8"+2x1/2"
Noise Level
63 dB
Airflow
4,502.8 CFM
Dehumidification
6.98 pt/h
System Specs
System Specs
Cooling Capacity
48,000 BTU
SEER2
24
Zones
5
Voltage
230V
Refrigerant Type
R454B
Compressor
Inverter
WiFi
Included
Heating Capacity
48,000(13,000~53,000) BTU/h
Cooling Capacity Range
47,000(12,000~55,000) BTU/h
Operating Range (Cooling)
-13~122 °F
Operating Range (Heating)
-13~75 °F
Refrigerant Precharge
150 ft
Max Height Difference
49.2 ft
COP
3.8
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor model
CH-RSH09MMC
CH-RSH12MMC
CH-RSH16MMC
Power Supply - Rated (V, Ph, Hz)
208/230,1,60
208/230,1,60
208/230,1,60
Rated Capacity - Cooling (Btu/h)
9,000
12,000
16,000
Rated Capacity - Heating (Btu/h)
9,000
12,000
17,000
Minimum Circuit Ampacity (MCA) (A)
3
3
3
Max. Fuse (A)
15
15
15
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) (CFM)
441.4/376.7/323.7/188.4/129.5
441.4/376.7/323.7/188.4/129.5
500.3/441.4/382.6/323.7/206.0
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) (dB(A))
45/41.0/37.5/25.5/22
44/40.5/37.0/26.5/24
47/43.5/40.5/30.5/25.5
Dimension (W×D×H) (inch)
31.26×7.87×24.45
31.26×7.87×24.45
31.26×7.87×24.45
Packing (W×D×H) (inch)
34.06×11.02×28.31
34.06×11.02×28.31
34.06×11.02×28.31
Net/Gross Weight (lbs.)
32.85/41.89
32.85/41.89
32.85/41.89
Room Temperature - Cooling (°F)
60~90
60~90
60~90
Room Temperature - Heating (°F)
32~86
32~86
32~86
Refrigerant Piping (Liquid Side/Gas Side) (inch)
1/4”/3/8”
1/4”/3/8”
1/4”/1/2”
Outdoor Regular
Specification
CH-R18MES-230VO
CH-R28MES-230VO
CH-R36MES-230VO
CH-R48MES-230VO
CH-R60MES-230VO
Power Supply (V, Ph, Hz)
208/230, 1, 60
208/230, 1, 60
208/230, 1, 60
208/230, 1, 60
208/230, 1, 60
Voltage Range (V)
187-253
187-253
187-253
187-253
187-253
Cooling Rated Capacity (range) (Btu/h)
5,400~21,600
7,200~32,000
9,000~42,000
12,000~55,000
19,000~62,000
Cooling Rated Current (A)
6
9.2
13.5
16.6
26.2
EER2
14
13
12
12.5
10
SEER2
25.1
25
24
24
22
Heating Rated Capacity (range) (Btu/h)
5,700~21,600
8,400~29,000
10,000~42,500
13,000~53,000
20,000~60,000
Heating Rated Current (A)
6.8
9.2
14
16.3
21
Heating at 47°F COP (W/W)
3.8
3.8
3.5
3.8
3.7
HSPF4
9.8
9.5
9.5
10.3
9.5
HSPF5
7.8
7
7
8
7.4
Heating at 5°F Rated Capacity (Btu/h)
13,500
19,000
26,000
36,000
39,000
Minimum Circuit Ampacity (Outdoor unit) (A)
16
23
30.5
40
40
Max. Fuse (Outdoor unit) (A)
20
25
35
45
45
Outdoor Air Flow (Max) (CFM)
1,765.8
2,130.7
2,148.4
4,502.8
4,502.8
Outdoor Noise Level (Sound Pressure) (dB(A))
59.5
61
64.5
63
65
Dimension (W×D×H) (inch)
35.04x13.46x26.50
37.24x16.14x31.89
37.24x16.14x31.89
37.48x16.34x52.48
37.48x16.34x52.48
Packing (W×D×H) (inch)
40.55x17.24x29.53
42.91x19.68x34.84
42.91x19.68x34.84
43.11x19.49x58.27
43.11x19.49x58.27
Net/Gross Weight (lbs)
100.53/109.35
138.89/149.69
168.87/180.12
222.00/254.19
237.88/270.28
Refrigerant Type/Charged (oz)
R454B/61.73
R454B/84.66
R454B/120.63
R454B/148.15
R454B/151.68
Refrigerant Precharge (ft)
75
100
125
150
150
Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft)
0.16 / 0.32
0.16 / 0.32
0.16 / 0.32
0.16 / 0.32
0.16 / 0.32
Design Pressure (PSIG)
550/340
550/340
550/340
550/340
550/340
Refrigerant Piping Liquid Side (inch)
3 x 1/4"
4 x 1/4"
5 x 1/4"
6 x 1/4"
6 x 1/4"
Refrigerant Piping Gas Side (inch)
3 x 3/8"
3 x 3/8" + 1 x 1/2"
4 x 3/8" + 1 x 1/2"
4 x 3/8" + 2 x 1/2"
4 x 3/8" + 2 x 1/2"
Max. Pipe Length (ft)
196.8
262.4
262.4
262.4
262.4
Max. Length for One Indoor Unit (ft)
98.4
114.8
114.8
114.8
114.8
Max. Height Difference in Level (ft)
49.2
49.2
49.2
49.2
49.2
Max. Height Difference Between Indoor Units (ft)
33
33
33
33
33
Ambient Temperature Cooling (°F)
-13~122
-13~122
-13~122
-13~122
-13~122
Ambient Temperature Heating (°F)
-13~75
-13~75
-13~75
-13~75
-13~75
Certification: AHRI
✔
✔
✔
✔
✔
Certification: Energy Star
✔
✔
✔
✔
✔
Certification: NEEP
✔
✔
✔
✔
✔
Certification: ETL
✔
✔
✔
✔
✔
Outdoor Hyper
Specification
CH-RVHP19M-230VO
CH-RVHP28M-230VO
CH-RVHP36M-230VO
CH-RVHP48M-230VO
CH-RVHP55M-230VO
Power Supply (V/Ph/Hz)
208/230, 1, 60
208/230, 1, 60
208/230, 1, 60
208/230, 1, 60
208/230, 1, 60
Operating Range (V)
187-253
187-253
187-253
187-253
187-253
Cooling Capacity (BTU/h)
5,400~28,000
7,200~37,000
9,000~43,000
12,000~57,000
19,000~59,000
SEER2
5.6
9.5
12
17.3
18.5
EER
15
12.5
13
12
12
IEER
25
23
23
23
22.2
Heating Capacity (BTU/h)
5,700~27,000
8,400~36,000
10,000~44,000
13,000~57,000
20,000~59,000
HSPF2
6.5
9.1
11.5
17.3
20.1
COP
4
3.8
4
3.7
3.5
SCOP
10.4
10.5
10.7
11
10.5
Power Input (W)
8.5
8.5
8.5
9
8.5
Air Flow (CFM)
19,000
27,000
36,000
47,000
47,000
Sound Level Indoor (dBA)
17.5
30
37
37
39.5
Sound Level Outdoor (dBA)
20
35
40
40
40
Weight Indoor (lbs)
2,130.7
2,148.4
3,037.2
4,502.8
4,502.8
Weight Outdoor (lbs)
61.5
61
65
65
65
Dimensions Indoor (in)
37.24x16.14x31.89
37.24x16.14x31.89
38.58x16.34x38.39
37.48x16.34x52.48
37.48x16.34x52.48
Dimensions Outdoor (in)
42.91x19.68x34.84
42.91x19.68x34.84
45.08x19.68x42.52
43.11x19.49x58.27
43.11x19.49x58.27
Shipping Weight Indoor/Outdoor (lbs)
137.35/148.15
168.43/179.67
211.86/244.71
246.47/276.68
246.47/276.68
Refrigerant Type/Amount (lbs)
R454B/78.31
R454B/120.63
R454B/134.04
R454B/151.68
R454B/151.68
Fuse Size (A)
75
100
125
150
150
Wire Size (AWG)
0.16 / 0.32
0.16 / 0.32
0.16 / 0.32
0.16 / 0.32
0.16 / 0.32
Control Voltage (V)
550/340
550/340
550/340
550/340
550/340
Liquid Line
3 x 1/4"
4 x 1/4"
5 x 1/4"
6 x 1/4"
6 x 1/4"
Suction Line
3 x 3/8"
3 x 3/8" + 1 x 1/2"
3 x 3/8" + 2 x 1/2"
4 x 3/8" + 2 x 1/2"
4 x 3/8" + 2 x 1/2"
Max Line Length (ft)
196.8
262.4
262.4
262.4
262.4
Max Elevation Diff (ft)
98.4
114.8
114.8
114.8
114.8
Max Head Pressure (ft)
49.2
49.2
49.2
49.2
49.2
Max Suction Pressure (ft)
33
33
33
33
33
Operating Range Cooling (°F)
-22~122
-22~122
-22~122
-22~122
-22~122
Operating Range Heating (°F)
-22~75
-22~75
-22~75
-22~75
-22~75
Feature 1
✓
✓
✓
✓
✓
Feature 2
✓
✓
✓
✓
✓
Feature 3
✓
✓
✓
✓
✓
Feature 4
✓
✓
✓
✓
✓
What’s Included
What’s Included
Outdoor condenser
CH-R48MES-230VO
Remote controller
remote controller
Installation kit is not included in the selected option — pick 16ft, 25ft or 50ft above to add one.
Shipping & Returns
Free shipping on every item over $300.
Delivery estimate for your ZIP is shown in the buy box above.
Returns accepted per our policy — unopened units in original packaging.
Cooper&Hunter’s Mini Floor Console Units can be managed with a user-friendly remote control or the Cooper&Hunter optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Latest News
If you're thinking about turning your home into a smart home, you're not alone.
Cooper & Hunter 60 Pint Dehumidifier w/ Drain Pump Hose, 6L Water Tank Intelligent Humidity Control
SEER221.5 Heatsdown to5°F Coolsup to122°FCooper & Hunter MIA 6,000 BTU Single Zone Wall Mount, 115V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
SEER225.3 Heatsdown to−22°F Coolsup to122°FCooper & Hunter Olivia Hyper Heat 6,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
