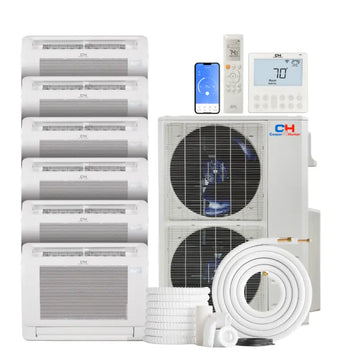

Cooper & Hunter 6 Zone 60,000 BTU Floor Console Mini Split AC R454B 9K+9K+9K+12K+12K+18K | No Kit

Cooper & Hunter 60000 BTU Ductless Mini Split Multi-Zone Air Conditioner with R454B refrigerant 230V SEER 22.0 Inverter

White Cooper & Hunter 60000 BTU Ductless Indoor Unit Mini Split Multi-Zone Air Conditioner with R454B refrigerant 230V SEE...

White Outdoor Unit Cooper & Hunter 60000 BTU Ductless Mini Split Multi-Zone Air Conditioner with R454B refrigerant 230V SE...

Cooper & Hunter7-Yr Warranty

CH-R60MES-230VORH09MFTRH09MFTRH09MFTRH12MFTRH12MFTRH18MFT-NO

Product specifications

Brand	Cooper & Hunter
Voltage	230V
SEER	22
WiFi	Included
Zone	Six Zone
Type	Multi-Zone
Freon	R454B
Compressor	Inverter

$8,246.88

Shipping Policy calculated at checkout.

Title: No Installation

No Installation 16ft 25ft 50ft

Product variants

Quantity

Pickup available at 3550 Northwest 113th Court

Usually ready in 2-4 days

Mini Floor Console

Cooper&Hunter's Mini Floor Console is the perfect blend of style, efficiency, and advanced technology, designed to elevate your comfort while seamlessly integrating into any space. Compact yet powerful, this unit is an exceptional solution for both heating and cooling needs in residential or commercial settings.

It features advanced airflow control, allowing for optimal temperature distribution, and operates with whisper-quiet performance, ensuring a peaceful environment.

Engineered with energy-saving technology, the Mini Floor Console provides cost-effective and eco-friendly climate control. Its durable construction, paired with a sleek, modern design, makes it a versatile addition to any interior.

Ideal for spaces where wall-mounted units aren't an option, this console offers flexibility without compromising on efficiency or aesthetics. Trust Cooper&Hunter's Mini Floor Console to deliver reliable performance, consistent comfort, and effortless elegance.

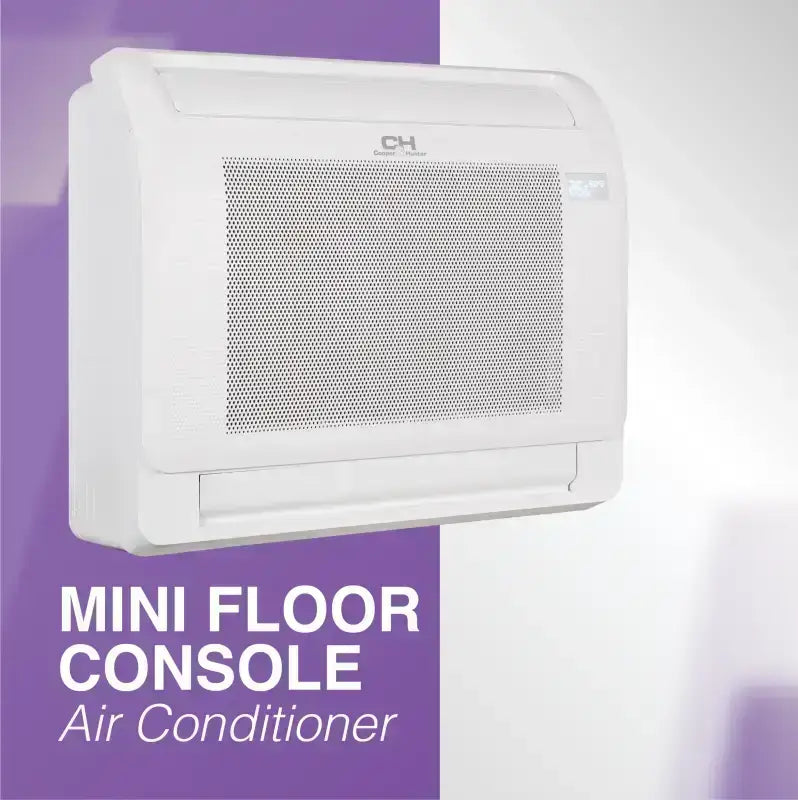

White mini-floor console air conditioner with a shield design and purple text.

Warranty and Tech Support Info

By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.

Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.

Warranty terms

White air conditioning unit with black fan and copper tubing design.

Energy Efficiency

Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.

Modern gray upholstered bed with wooden frame and headboard, large bookshelf behind it.

Main Features

Cooper&Hunter's Mini Floor Console features advanced airflow control for optimal temperature distribution, energy-saving technology for eco-friendly operation, and whisper-quiet performance for a peaceful environment. Compact and versatile, it integrates seamlessly into any space, offering durable construction, modern design, and reliable heating and cooling for both residential and commercial needs.

An outdoor air conditioning unit designed for high performance in extreme hot and cold weather.

All Accessories Included

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.

Technical Specifications

Indoor model	CH-RSH09MMC	CH-RSH12MMC	CH-RSH16MMC
Power Supply - Rated (V, Ph, Hz)	208/230,1,60	208/230,1,60	208/230,1,60
Rated Capacity - Cooling (Btu/h)	9,000	12,000	16,000
Rated Capacity - Heating (Btu/h)	9,000	12,000	17,000
Minimum Circuit Ampacity (MCA) (A)	3	3	3
Max. Fuse (A)	15	15	15
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) (CFM)	441.4/376.7/323.7/188.4/129.5	441.4/376.7/323.7/188.4/129.5	500.3/441.4/382.6/323.7/206.0
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) (dB(A))	45/41.0/37.5/25.5/22	44/40.5/37.0/26.5/24	47/43.5/40.5/30.5/25.5
Dimension (W×D×H) (inch)	31.26×7.87×24.45	31.26×7.87×24.45	31.26×7.87×24.45
Packing (W×D×H) (inch)	34.06×11.02×28.31	34.06×11.02×28.31	34.06×11.02×28.31
Net/Gross Weight (lbs.)	32.85/41.89	32.85/41.89	32.85/41.89
Room Temperature - Cooling (°F)	60~90	60~90	60~90
Room Temperature - Heating (°F)	32~86	32~86	32~86
Refrigerant Piping (Liquid Side/Gas Side) (inch)	1/4”/3/8”	1/4”/3/8”	1/4”/1/2”

Outdoor Regular

Specification	CH-R18MES-230VO	CH-R28MES-230VO	CH-R36MES-230VO	CH-R48MES-230VO	CH-R60MES-230VO
Power Supply (V, Ph, Hz)	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Voltage Range (V)	187-253	187-253	187-253	187-253	187-253
Cooling Rated Capacity (range) (Btu/h)	5,400~21,600	7,200~32,000	9,000~42,000	12,000~55,000	19,000~62,000
Cooling Rated Current (A)	6	9.2	13.5	16.6	26.2
EER2	14	13	12	12.5	10
SEER2	25.1	25	24	24	22
Heating Rated Capacity (range) (Btu/h)	5,700~21,600	8,400~29,000	10,000~42,500	13,000~53,000	20,000~60,000
Heating Rated Current (A)	6.8	9.2	14	16.3	21
Heating at 47°F COP (W/W)	3.8	3.8	3.5	3.8	3.7
HSPF4	9.8	9.5	9.5	10.3	9.5
HSPF5	7.8	7	7	8	7.4
Heating at 5°F Rated Capacity (Btu/h)	13,500	19,000	26,000	36,000	39,000
Minimum Circuit Ampacity (Outdoor unit) (A)	16	23	30.5	40	40
Max. Fuse (Outdoor unit) (A)	20	25	35	45	45
Outdoor Air Flow (Max) (CFM)	1,765.8	2,130.7	2,148.4	4,502.8	4,502.8
Outdoor Noise Level (Sound Pressure) (dB(A))	59.5	61	64.5	63	65
Dimension (W×D×H) (inch)	35.04x13.46x26.50	37.24x16.14x31.89	37.24x16.14x31.89	37.48x16.34x52.48	37.48x16.34x52.48
Packing (W×D×H) (inch)	40.55x17.24x29.53	42.91x19.68x34.84	42.91x19.68x34.84	43.11x19.49x58.27	43.11x19.49x58.27
Net/Gross Weight (lbs)	100.53/109.35	138.89/149.69	168.87/180.12	222.00/254.19	237.88/270.28
Refrigerant Type/Charged (oz)	R454B/61.73	R454B/84.66	R454B/120.63	R454B/148.15	R454B/151.68
Refrigerant Precharge (ft)	75	100	125	150	150
Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft)	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32
Design Pressure (PSIG)	550/340	550/340	550/340	550/340	550/340
Refrigerant Piping Liquid Side (inch)	3 x 1/4"	4 x 1/4"	5 x 1/4"	6 x 1/4"	6 x 1/4"
Refrigerant Piping Gas Side (inch)	3 x 3/8"	3 x 3/8" + 1 x 1/2"	4 x 3/8" + 1 x 1/2"	4 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"
Max. Pipe Length (ft)	196.8	262.4	262.4	262.4	262.4
Max. Length for One Indoor Unit (ft)	98.4	114.8	114.8	114.8	114.8
Max. Height Difference in Level (ft)	49.2	49.2	49.2	49.2	49.2
Max. Height Difference Between Indoor Units (ft)	33	33	33	33	33
Ambient Temperature Cooling (°F)	-13~122	-13~122	-13~122	-13~122	-13~122
Ambient Temperature Heating (°F)	-13~75	-13~75	-13~75	-13~75	-13~75
Certification: AHRI	✔	✔	✔	✔	✔
Certification: Energy Star	✔	✔	✔	✔	✔
Certification: NEEP	✔	✔	✔	✔	✔
Certification: ETL	✔	✔	✔	✔	✔

Outdoor Hyper

Specification	CH-RVHP19M-230VO	CH-RVHP28M-230VO	CH-RVHP36M-230VO	CH-RVHP48M-230VO	CH-RVHP55M-230VO
Power Supply (V/Ph/Hz)	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Operating Range (V)	187-253	187-253	187-253	187-253	187-253
Cooling Capacity (BTU/h)	5,400~28,000	7,200~37,000	9,000~43,000	12,000~57,000	19,000~59,000
SEER2	5.6	9.5	12	17.3	18.5
EER	15	12.5	13	12	12
IEER	25	23	23	23	22.2
Heating Capacity (BTU/h)	5,700~27,000	8,400~36,000	10,000~44,000	13,000~57,000	20,000~59,000
HSPF2	6.5	9.1	11.5	17.3	20.1
COP	4	3.8	4	3.7	3.5
SCOP	10.4	10.5	10.7	11	10.5
Power Input (W)	8.5	8.5	8.5	9	8.5
Air Flow (CFM)	19,000	27,000	36,000	47,000	47,000
Sound Level Indoor (dBA)	17.5	30	37	37	39.5
Sound Level Outdoor (dBA)	20	35	40	40	40
Weight Indoor (lbs)	2,130.7	2,148.4	3,037.2	4,502.8	4,502.8
Weight Outdoor (lbs)	61.5	61	65	65	65
Dimensions Indoor (in)	37.24x16.14x31.89	37.24x16.14x31.89	38.58x16.34x38.39	37.48x16.34x52.48	37.48x16.34x52.48
Dimensions Outdoor (in)	42.91x19.68x34.84	42.91x19.68x34.84	45.08x19.68x42.52	43.11x19.49x58.27	43.11x19.49x58.27
Shipping Weight Indoor/Outdoor (lbs)	137.35/148.15	168.43/179.67	211.86/244.71	246.47/276.68	246.47/276.68
Refrigerant Type/Amount (lbs)	R454B/78.31	R454B/120.63	R454B/134.04	R454B/151.68	R454B/151.68
Fuse Size (A)	75	100	125	150	150
Wire Size (AWG)	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32
Control Voltage (V)	550/340	550/340	550/340	550/340	550/340
Liquid Line	3 x 1/4"	4 x 1/4"	5 x 1/4"	6 x 1/4"	6 x 1/4"
Suction Line	3 x 3/8"	3 x 3/8" + 1 x 1/2"	3 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"
Max Line Length (ft)	196.8	262.4	262.4	262.4	262.4
Max Elevation Diff (ft)	98.4	114.8	114.8	114.8	114.8
Max Head Pressure (ft)	49.2	49.2	49.2	49.2	49.2
Max Suction Pressure (ft)	33	33	33	33	33
Operating Range Cooling (°F)	-22~122	-22~122	-22~122	-22~122	-22~122
Operating Range Heating (°F)	-22~75	-22~75	-22~75	-22~75	-22~75
Feature 1	✓	✓	✓	✓	✓
Feature 2	✓	✓	✓	✓	✓
Feature 3	✓	✓	✓	✓	✓
Feature 4	✓	✓	✓	✓	✓

Multiple Control Methods

Cooper&Hunter’s Mini Floor Console Units can be managed with a user-friendly remote control or the Cooper&Hunter optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.

Frequently Asked Questions

How many rooms can the Cooper & Hunter 6 Zone 60,000 BTU mini split cool?

The Cooper & Hunter 6 Zone mini split can effectively cool up to six rooms simultaneously, thanks to its robust 60,000 BTU capacity. This makes it ideal for larger homes or spaces needing efficient temperature control.

Can I mix BTU sizes with the Cooper & Hunter mini split system?

Yes, you can mix BTU sizes with the Cooper & Hunter system, such as the 9K, 12K, and 18K units included in this 60,000 BTU setup. However, ensure the combined BTU ratings do not exceed the system's total capacity for optimal performance.

Do all zones in the Cooper & Hunter mini split run simultaneously?

In the Cooper & Hunter 6 Zone system, all zones can operate simultaneously, or you can choose to run them individually based on your heating or cooling needs. This flexibility allows for tailored comfort in different areas of your home.

Is the Cooper & Hunter 60,000 BTU mini split system efficient compared to multiple single-zone units?

With a SEER rating of 22.0, the Cooper & Hunter mini split offers superior efficiency compared to multiple single-zone units, particularly in larger installations. This high efficiency translates to lower energy bills and a reduced carbon footprint for your home.

What warranty is offered with the Cooper & Hunter mini split system?

The Cooper & Hunter mini split comes with a 5-year parts and a 7-year compressor warranty, provided you register the system within 30 days of purchase. This warranty ensures you have reliable support and protection for your investment.

Does the Cooper & Hunter mini split come pre-charged with refrigerant?

Yes, the Cooper & Hunter 6 Zone mini split is pre-charged with R454B refrigerant for up to 25 ft of line set, making installation easier. This feature allows for quicker setup and ensures efficient operation right from the start.
