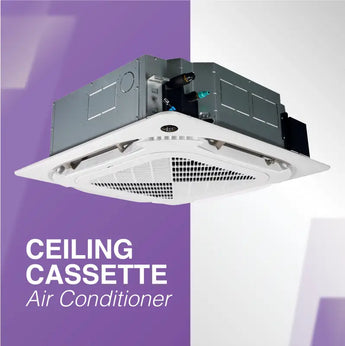

Cooper&Hunter's Ceiling Cassette Units are designed to deliver superior comfort and efficiency while seamlessly integrating into ceiling spaces. Ideal for both residential and commercial settings, these units offer advanced airflow distribution and quiet operation for maximum convenience.
Engineered with energy-saving technology, durable anti-corrosion coatings, and a sleek, compact design, they ensure reliable performance and blend effortlessly with modern interiors.
Experience enhanced climate control with Cooper&Hunter's Ceiling Cassette Units—a perfect blend of innovation, durability, and elegance.

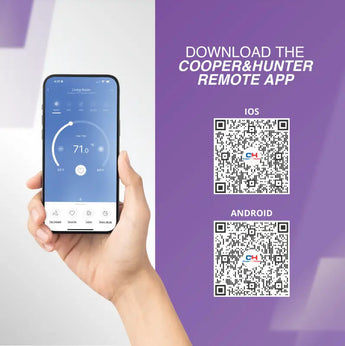

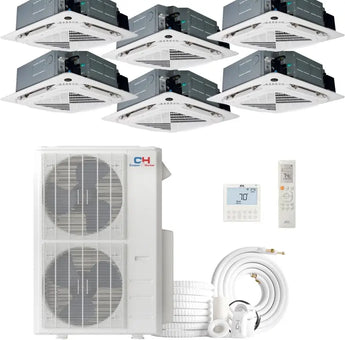

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Specification | CH-RSH09-12MCT (Dip Switch for 9K) |
CH-RSH09-12MCT (Dip Switch for 12K) |
CH-RSH18MCT | CH-RSH24MCT |
---|---|---|---|---|
Ceiling Cassette (Model Numbers) | CH-RH09MCT | CH-RH12MCT | CH-RH18MCT | CH-RH24MCT |
Panel Model Number | CH-NPNL09-18CT | CH-NPNL09-18CT | CH-NPNL09-18CT | CH-NPNL24-48CT |
Power Supply - Rated V, Ph, Hz | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 |
Power Supply - Cooling Btu/h | 9,000 | 12,000 | 16,800 | 24,000 |
Rated Capacity - Heating Btu/h | 10,000 | 12,000 | 18,000 | 25,000 |
Minimum Circuit Ampacity (MCA) A | 3 | 3 | 3 | 3 |
Max. Fuse A | 15 | 15 | 15 | 15 |
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM | 417.9/364.9/306.1/ 194.2/147.2 |
417.9/364.9/306.1/ 194.2/147.2 |
447.3/388.5/317.8/ 194.2/147.2 |
765.2/706.3/635.71 547.4/N/A |
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A) | 42.5/40/37.0/26.0/24.0 | 46/42.0/38.5/26.5/24.0 | 48/44.0/41.0/28.5/24.5 | N/A/45.5/43.0/33.5/30.5 |
Indoor - Dimension (WxDxH) inch | 22.44x22.44x9.65 | 22.44x22.44x9.65 | 22.44x22.44x9.65 | 32.68x32.68x8.07 |
Indoor - Packing (WxDxH) inch | 28.15x25.20x11.61 | 28.15x25.20x11.61 | 28.15x25.20x11.61 | 35.83x35.83x9.84 |
Indoor - Net/Gross Weight lbs. | 35.27/41.89 | 35.27/41.89 | 35.27/41.89 | 47.18/59.08 |
Room Temperature - Cooling °F | 62~90 | 62~90 | 62~90 | 60-90 |
Room Temperature - Heating °F | 32~86 | 32-86 | 32~86 | 32~86 |
Liquid Side/Gas Side inch | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 3/8"/5/8" |

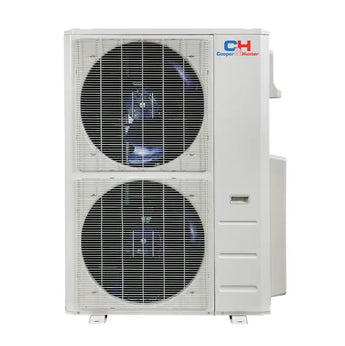

Specification | Outdoor Model | ||||
---|---|---|---|---|---|
CH-R18MES-230VO | CH-R28MES-230VO | CH-R36MES-230VO | CH-R48MES-230VO | CH-R60MES-230VO | |
Power Supply (Rated) V, Ph, Hz |
208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
Voltage Range V |
187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
Rated Capacity (Cooling) Btu/h |
5,400~21,600 | 7,200~32,000 | 9,000~42,000 | 12,000~55,000 | 19,000~62,000 |
Rated Current (Cooling) A |
6 | 9.2 | 13.5 | 16.6 | 26.2 |
EER2 | 14 | 13 | 12.5 | 10 | 10 |
SEER2 | 25.1 | 25 | 24 | 24 | 22 |
Rated Capacity (Heating at 47℉) Btu/h |
5,700~21,600 | 8,400~29,000 | 10,000~42,500 | 13,000~53,000 | 20,000~60,000 |
Rated Current (Heating at 47℉) A |
6.8 | 9.2 | 14 | 16.3 | 21 |
COP | 3.8 | 3.5 | 3.8 | 3.7 | 3.7 |
HSPF4 | 9.8 | 9.5 | 10.3 | 9.5 | 10.3 |
HSPF5 | 7.8 | 7 | 8 | 7.4 | 7.4 |
Heating at 5℉ Rated Capacity Btu/h |
13,500 | 19,000 | 26,000 | 36,000 | 39,000 |
Minimum Circuit Ampacity (Outdoor unit) A |
16 | 23 | 30.5 | 40 | 40 |
Max. Fuse (Outdoor unit) A |
20 | 25 | 35 | 45 | 45 |
Outdoor Air Flow (Max) CFM |
1,765.8 | 2,130.7 | 2,148.4 | 4,502.8 | 4,502.8 |
Outdoor Noise Level (Sound Pressure) dB(A) |
59.5 | 61 | 64.5 | 63 | 65 |
Dimension (W×D×H) inch |
35.04x13.46x26.50 | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
Packing (W×D×H) inch |
40.55x17.24x29.53 | 42.91x19.68x34.84 | 42.91x19.68x34.84 | 43.11x19.49x58.27 | 43.11x19.49x58.27 |
Net/Gross Weight lbs. |
100.53/109.35 | 138.89/149.69 | 168.87/180.12 | 222.00/254.19 | 237.88/270.28 |
Refrigerant Type/Charged oz |
R454B/61.73 | R454B/84.66 | R454B/120.63 | R454B/148.15 | R454B/151.68 |
Refrigerant Precharge ft |
75 | 100 | 125 | 150 | 150 |
Additional Charge for Each oz/ft |
0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 |
Design Pressure PSIG |
550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
Refrigerant Piping Liquid Side inch |
3 x 1/4” | 4 x 1/4” | 5 x 1/4” | 6 x 1/4” | 6 x 1/4” |
Refrigerant Piping Gas Side inch |
3 x 3/8” | 3 x 3/8” + 1 x 1/2” | 4 x 3/8” + 1 x 1/2” | 4 x 3/8” + 2 x 1/2” | 4 x 3/8” + 2 x 1/2” |
Max. Pipe Length ft |
196.8 | 262.4 | 262.4 | 262.4 | 262.4 |
Max. Length for One Indoor Unit ft |
98.4 | 114.8 | 114.8 | 114.8 | 114.8 |
Max. Height Difference in Level ft |
49.2 | 49.2 | 49.2 | 49.2 | 49.2 |
Max. Height Difference Between Indoor Units ft |
33 | 33 | 33 | 33 | 33 |

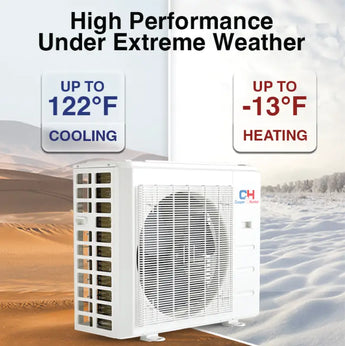

Ambient Temperature Cooling °F |
-13~122 | -13~122 | -13~122 | -13~122 | -13~122 |
Ambient Temperature Heating °F |
-13~75 | -13~75 | -13~75 | -13~75 | -13~75 |
Certification AHRI | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Certification Energy Star | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Certification NEEP | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Certification ETL | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
