Cooper & Hunter Astoria 18,000 BTU 2-Zone 12k+12k Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump | No Kit No Kit
Cooper & Hunter7-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated
Pickup available at Medley Warehouse
Usually ready in 24 hours
Mon–Fri, 9:00 AM – 4:30 PM
Questions about this system?
Answers in seconds — tap a question below
-
Covers about the combined area of its rooms, split across its indoor units — each head handles its own room, so you put the right capacity where you need it. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this system is 18,000 BTU (1.5-ton)). Want help splitting the zones? Our team can map it out.
-
12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 18,000 BTU (1.5-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
-
It uses R410A — a proven, widely serviced refrigerant. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
-
Rated SEER2 19.0 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
-
Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
-
Yes — a big upgrade. It's far more efficient (inverter, SEER2 19.0) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
-
Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
-
Yes. Each indoor unit has its own remote/thermostat — set different temperatures or turn one off, so you only condition the rooms you use and save energy on the ones you're not. One outdoor unit powers them all, keeping install and running costs lower than separate systems per room.
-
Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
-
Ships as a complete set: CH-18MES-230VO, CH-12MASTWM-230VI, CH-12MASTWM-230VI. Everything arrives together — check the photos and specs for the full kit.
-
It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
-
Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on U.S. orders over $300, and our team can help with sizing and support.
Important info
- R-410A is being phased down in favor of newer refrigerants; inventory is limited.
- Existing R-410A systems remain serviceable; parts and qualified service are widely available.
- Check local codes and rebates. Some incentives prioritize high-efficiency heat pumps (R-32/R-454B).
- We stock both R-410A and next-gen options—choose what fits your timeline and budget.
Browse: R-410A systems · R-32 · R-454B
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out
Complete 2-Zone System
Heat or cool 2 rooms independently from one 18000 BTU Astoria outdoor unit (12K+12K) — every zone sets its own temperature, delivered by wall mount indoor units.
Inverter Efficiency — SEER2 19
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 19 on 230V — steady comfort with noticeably lower energy bills.
Smart Wi-Fi Control
Wi-Fi is included — set schedules and adjust the temperature from your phone anywhere, or pair with Alexa & Google Home.

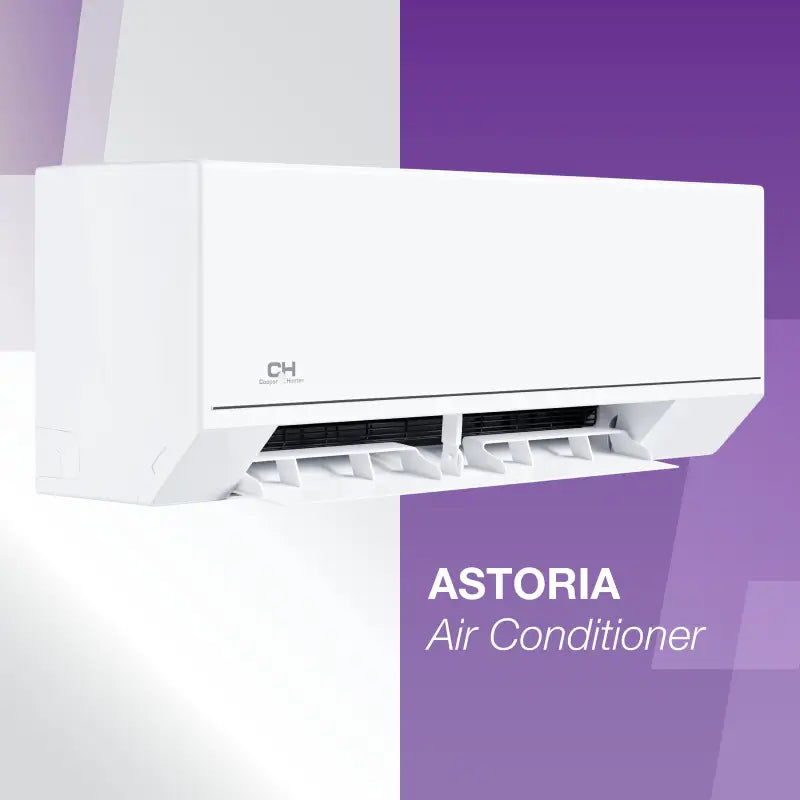

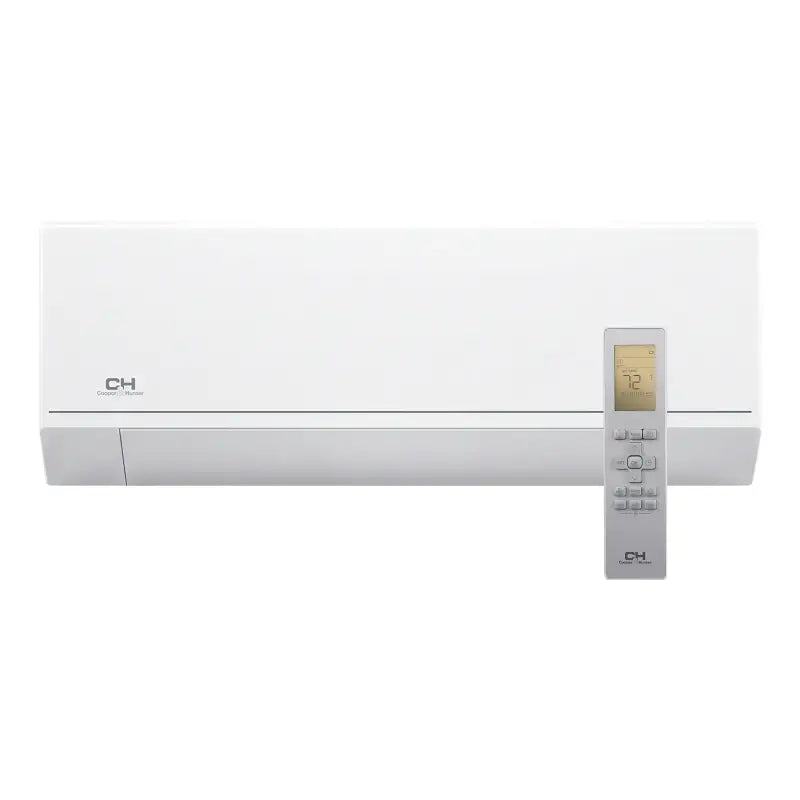

Astoria Wall Mount
The Cooper&Hunter Astoria Unit blends contemporary design with high-performance heating and cooling. Its sleek, modern appearance complements any space while providing efficient climate control for year-round comfort.
Featuring quiet operation, energy-saving technology, and advanced air filtration, it enhances indoor air quality. The unit is ideal for residential and light commercial applications, offering easy installation, minimal maintenance, and reliable performance.
Whether you're looking to cool or heat your space, the Astoria delivers optimal comfort with style and efficiency, making it a perfect choice for those seeking both function and elegance in their climate control solutions.
Warranty and Tech Support Info
By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.

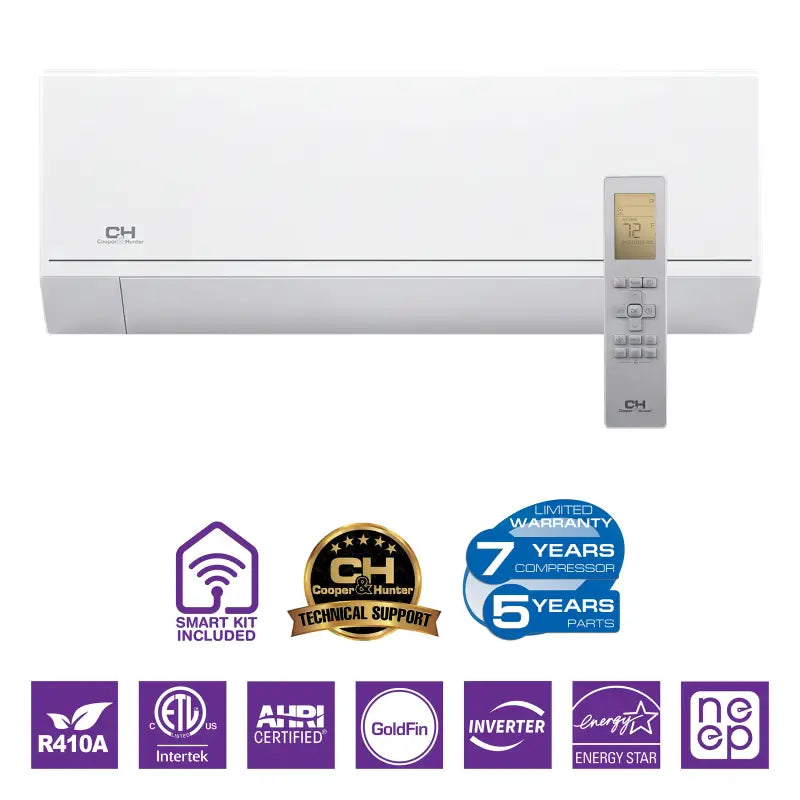

Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Energy Efficiency

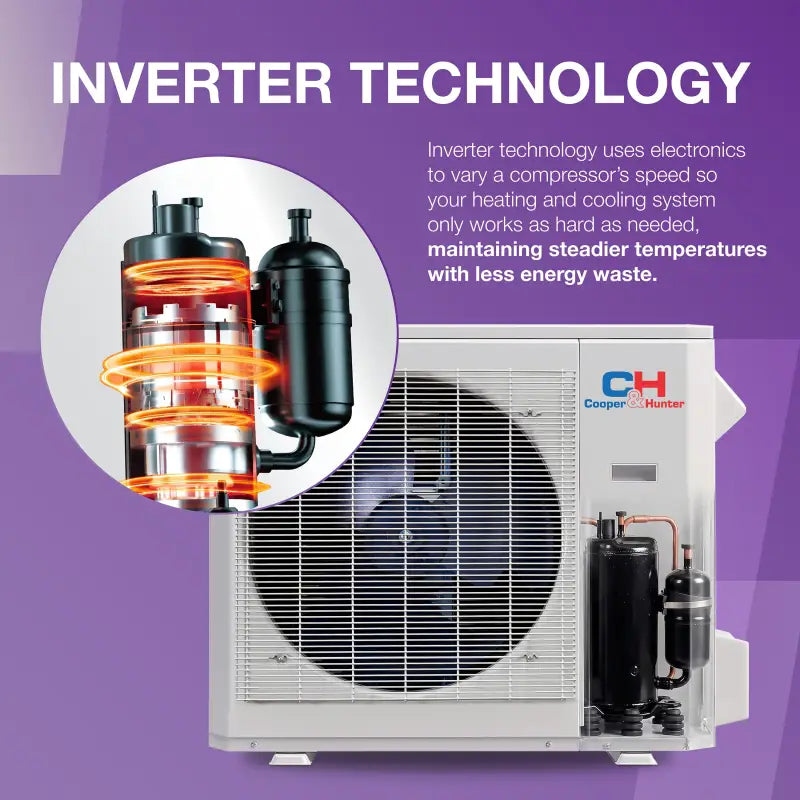

Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.
Main Features
Cooper&Hunter's Astoria Units feature sleek, modern design with efficient heating and cooling capabilities. They offer quiet operation, energy-saving technology, and advanced air filtration for improved indoor air quality. Ideal for residential and light commercial use, these units provide easy installation, minimal maintenance, and reliable year-round comfort.

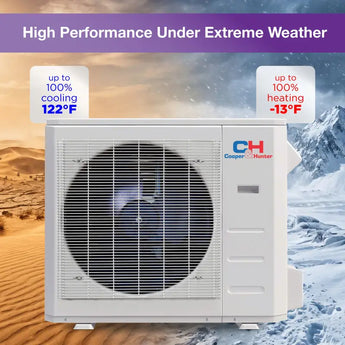

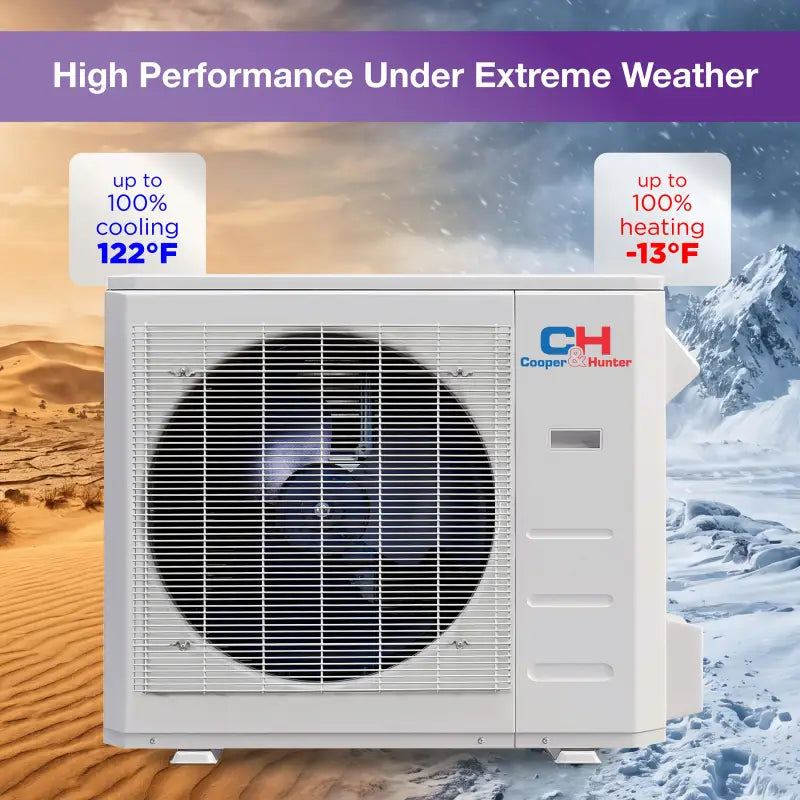

High Performance Under Extreme Weather
The Astoria keeps working when the weather doesn’t cooperate: 100% cooling capacity at up to 122°F and 100% heating at down to -13°F. The inverter compressor adjusts output smoothly instead of cycling on and off — steadier temperatures, less energy, less noise.
Rated operating range: cooling -13°F to 122°F · heating -13°F to 75°F

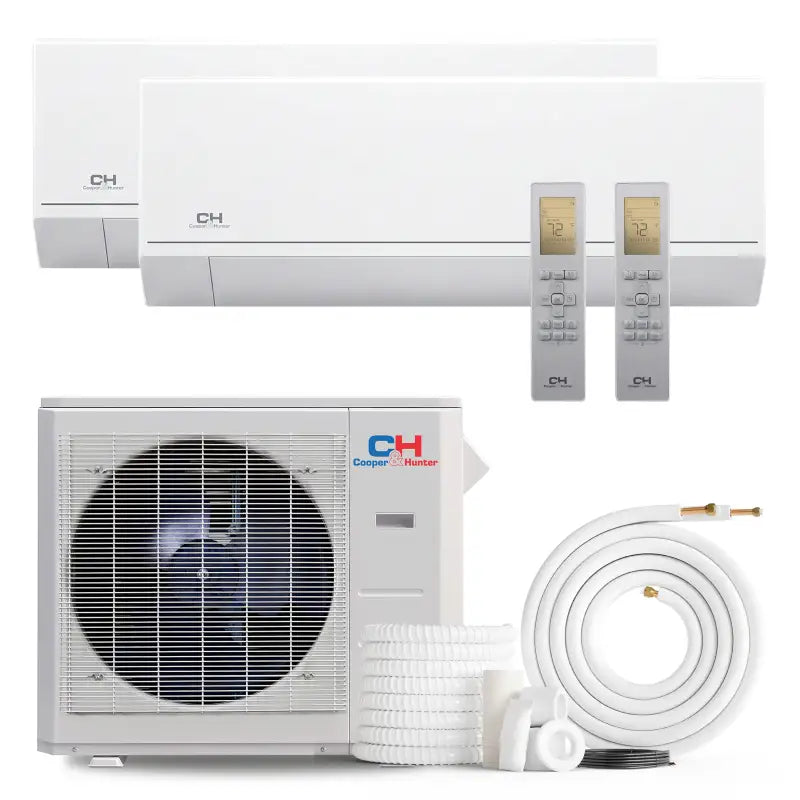

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.

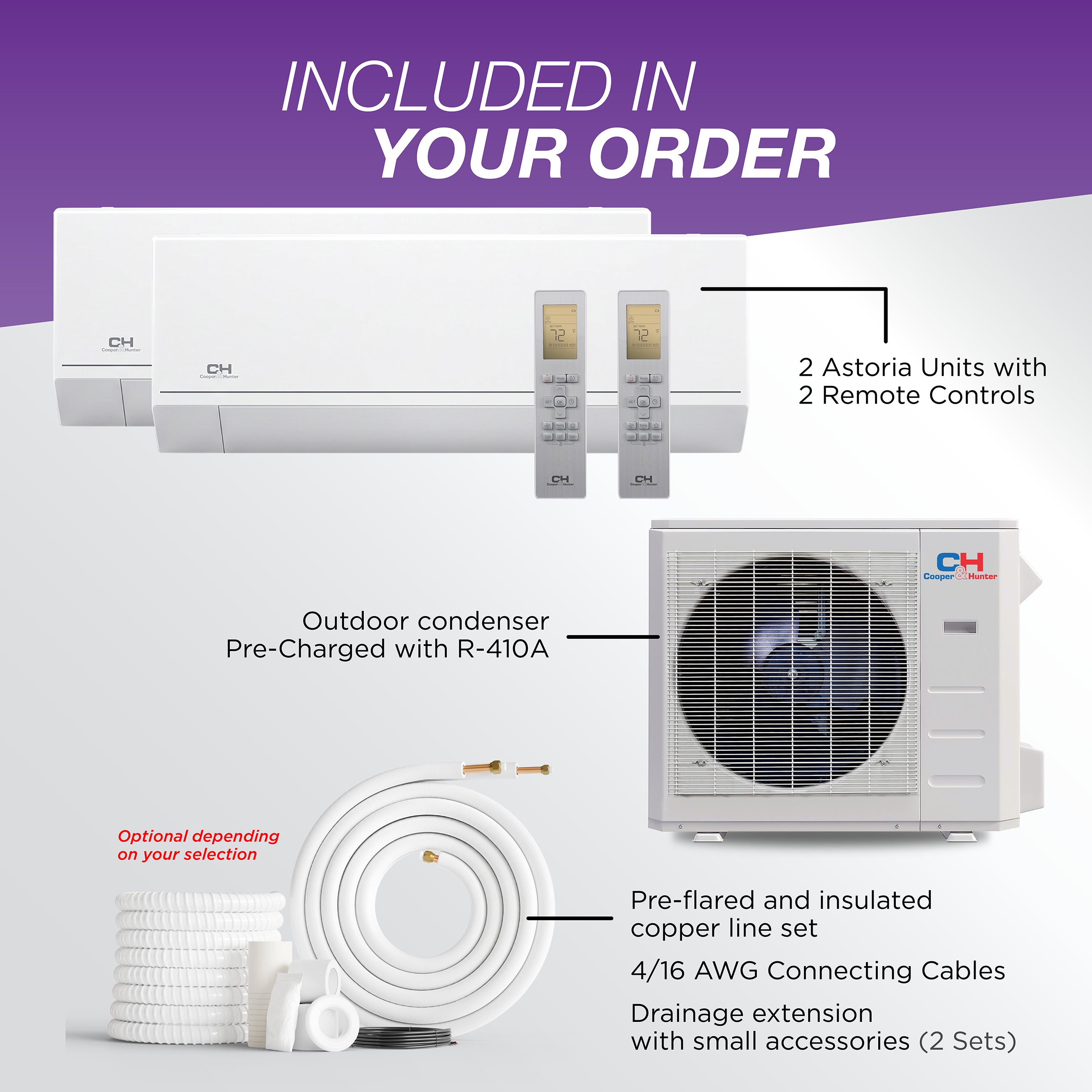

All Accessories Included
Everything needed for a standard installation ships in the box:
- Astoria unit with remote control
- Outdoor condenser pre-charged with R-410A
- Pre-flared and insulated copper line set (optional, per your selection)
- 4/16 AWG connecting cables

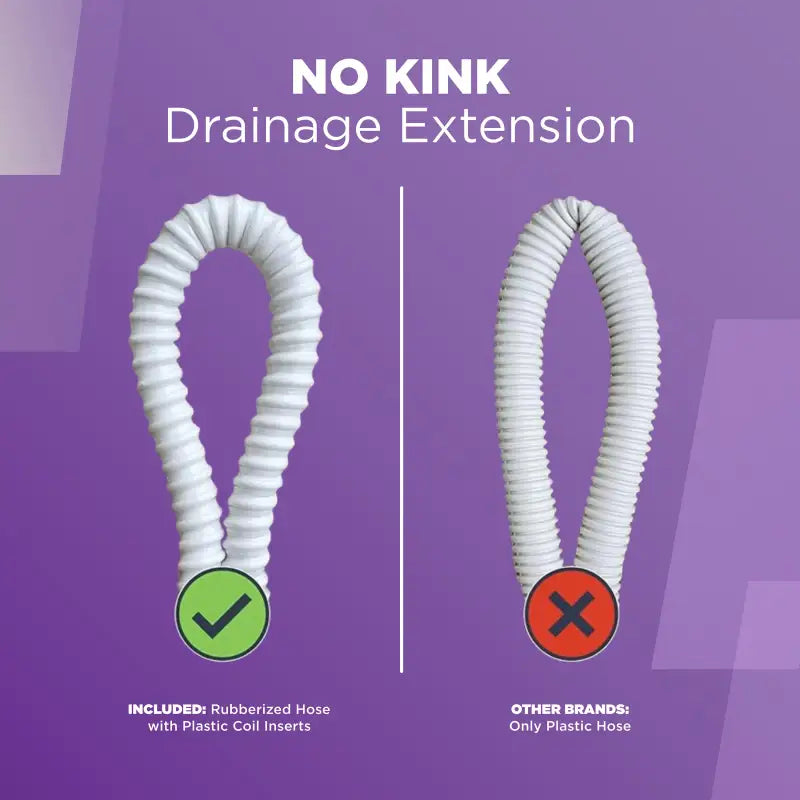

- No-kink drainage extension with small accessories
Line set length is chosen at checkout — 16, 25 or 50 ft.
Technical Specifications
Indoor Unit Specs
| Model | CH-12MASTWM-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 33.66x9.09x11.69 in |
| Net/Gross Weight | 22.93/28.88 lb |
| Packing Dimensions (WxDxH) | 36.22x12.20x14.57 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 3 A |
| Copper Line Size (Liquid/Gas) | 1/4" - 1/2'' |
| Noise Level (Hi/Med/Lo) | 38/33.5/23.5 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 382.35/335.29/229.41/176.47 CFM |
| Dehumidification | 2.73 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | RG10K-exclusive remote |

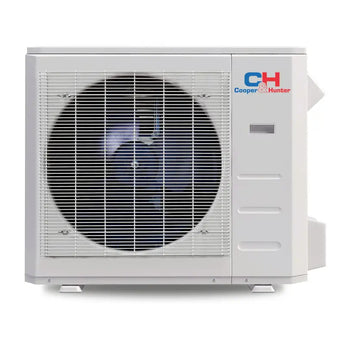

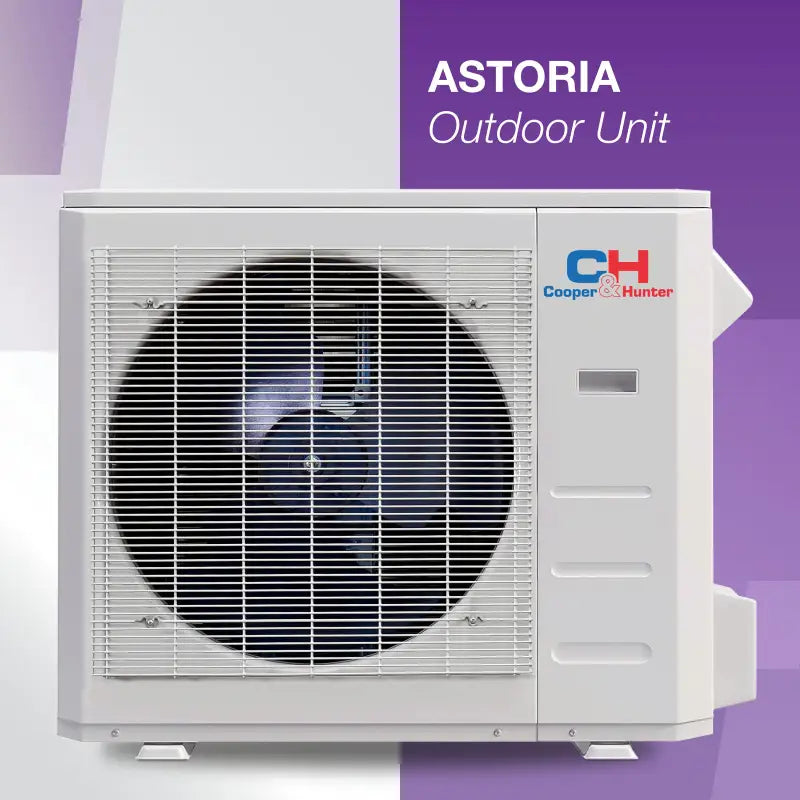

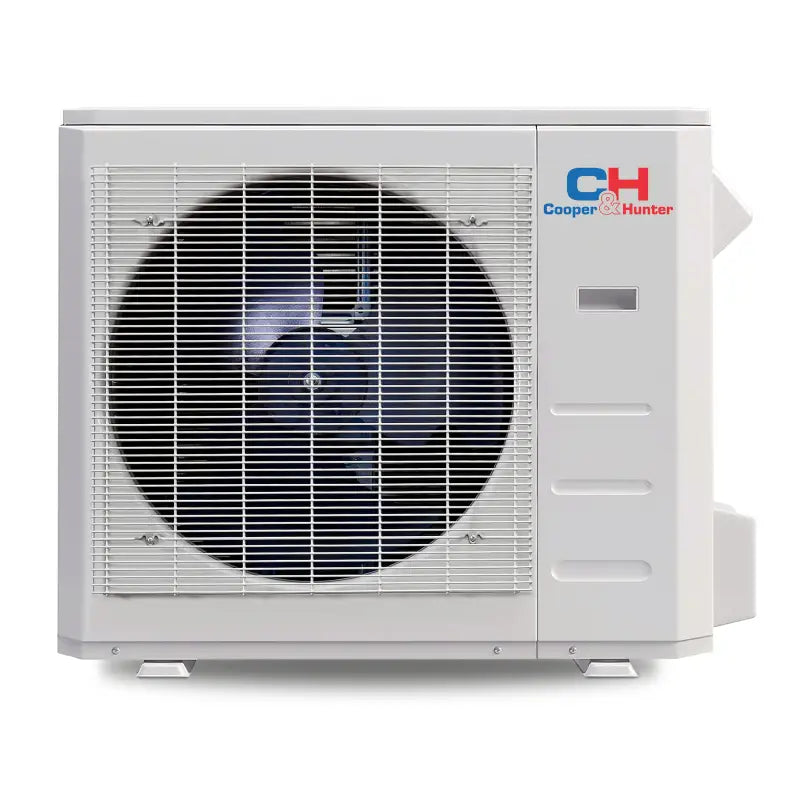

Outdoor Unit Specs

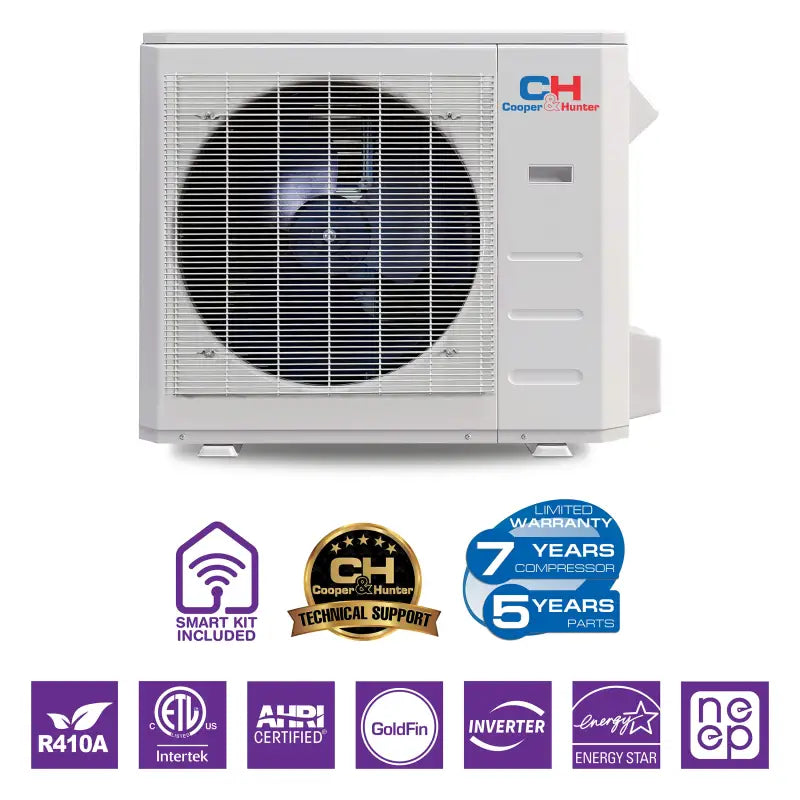

| Model | CH-18MES-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 35.04x13.46x26.50 in |
| Net/Gross Weight | 100.31/108.69 lb |
| Packing Dimensions (WxDxH) | 40.55x17.24x29.53 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 25 A |
| Min. Circuit Ampacity | 18 A |
| Copper Line Size (Liquid/Gas) | 2x1/4" - 2x3/8" |
| Noise Level | 58.5 dB |
| Airflow | 1,764.71 CFM |
| Dehumidification | 2.20 pt/h |
System Specs
| Cooling Capacity | 18,000 BTU |
|---|---|
| SEER2 | 19 |
| Zones | 2 |
| Voltage | 230V |
| Refrigerant Type | R410A |
| Compressor | Inverter |
| WiFi | Included |
| Heating Capacity | 19,000(4,350~25,800) BTU/h |
| Cooling Capacity Range | 18,000(3,850~22,400) BTU/h |
| Operating Range (Cooling) | 5~122 °F |
| Operating Range (Heating) | -13~75 °F |
| Max. Pipe Length | 131 ft |
| Max Height Difference | 49.21 ft |
| COP | 3.62 |
Series Comparison Table
Technical specifications for every model in the Astoria series — this product is one of them.
INDOOR MODELS HYPER
INDOOR MODELS
| Indoor Model | CH-12MASTWM-230VI | CH-30ASTWM-230VI |
|---|---|---|
| Rated Capacity (Btu/h) | 12,000 | 30,000 |
| SEER2 (up to) | 25.5 | 20 |
| Power Supply (V-Hz-Ph) | 208-230/60/1 | 208-230/60/1 |
| Noise Level (Hi/Mi/Lo) dB(A) | 38/33.5/23.5 | 46/40.5/33 |
| Unit Dimension (WxDxH) in | 33.66x9.09x11.69 | 44.88x10.83x14.57 |
| Net/Gross Weight (lb) | 22.93/28.88 | 43.65/54.89 |
| Piping (Liquid/Gas) | 1/4" / 1/2" | 3/8" / 5/8" |
OUTDOOR MODELS
| Outdoor Model | CH-18MES-230VO (Dual Zone) |
|---|---|
| Cooling Capacity (Btu/h) | 18,000 (5,400~21,600) |
| Heating Capacity (Btu/h) | 19,000 (5,700~21,600) |
| SEER2 (up to) | 19 |
| Dimensions (WxDxH) in | 35.04x13.46x26.50 |
| Net/Gross Weight (lb) | 100.53/109.35 |
| Refrigerant | R410A |

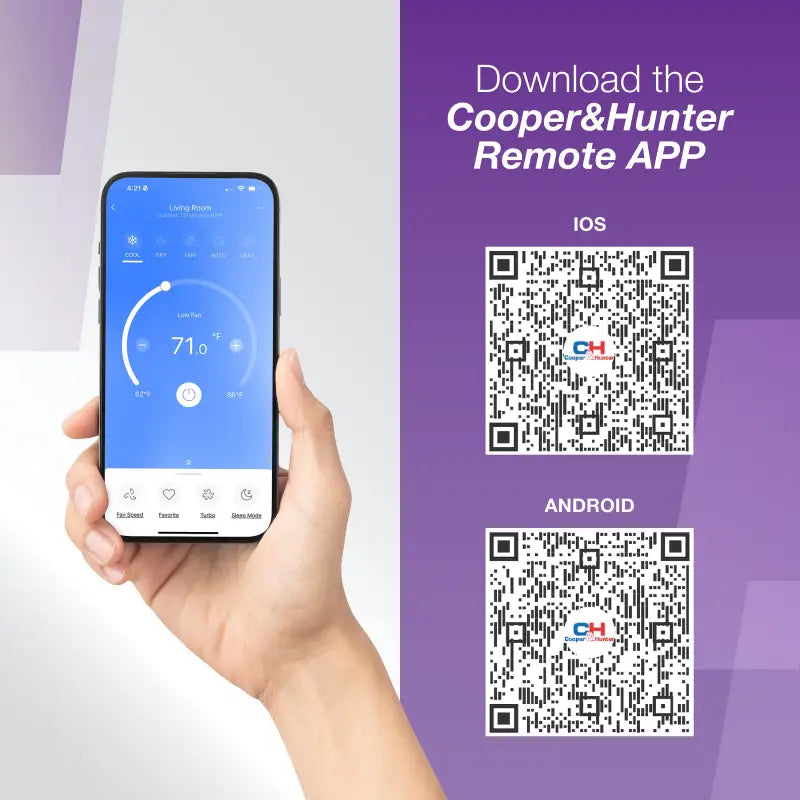

Multiple Control Methods
Cooper&Hunter’s Astoria Unit can be managed with a user-friendly remote control or the Cooper&Hunter optional phone application. Both options offer precise temperature adjustments and optimal climate control for ultimate convenience.
