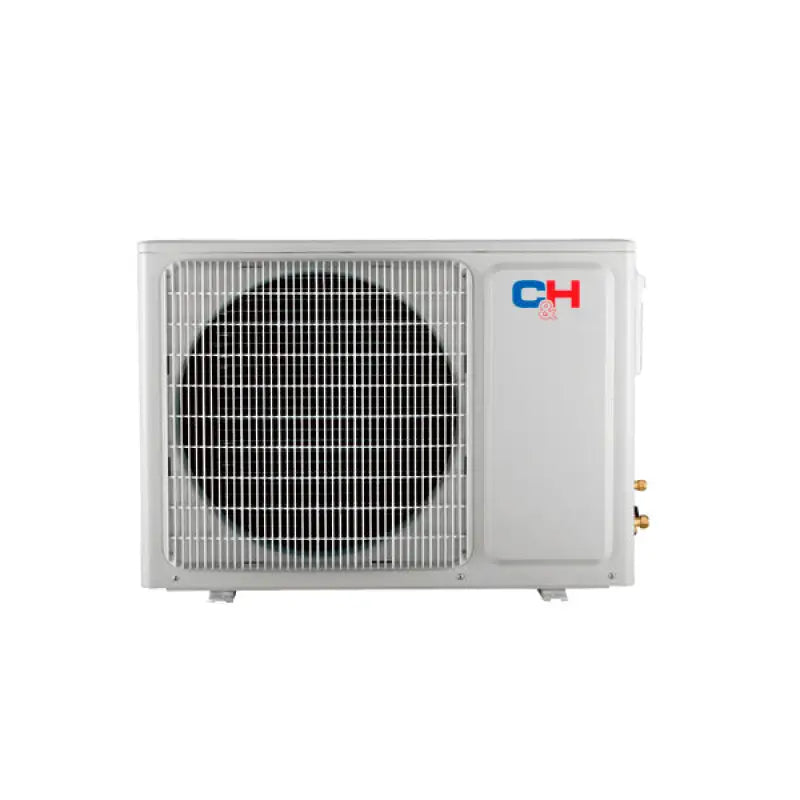

Cooper & Hunter MIA 12,000 BTU Outdoor Condenser, 230V, R454B - Single Zone Mini Split Air Conditioner Heat Pump

Cooper & Hunter7-Yr Warranty

CH-RLS12MIA-230VO
Product specifications
Brand Cooper & Hunter
Voltage 230V
WiFi Included
Type Outdoor Unit
Freon R454B
Compressor Inverter
$626.40
Shipping Policy calculated at checkout.

Wait! This is an Individual Component To build a working system, this unit must match your other equipment in two ways:

  • Same Brand Only: Only pair with other same Brand and Series.
  • Same Refrigerant: Both units must use the exact same gas type (R454B, R32, or R410A).

Mixing different brands or refrigerant types will cause the system to fail and void your warranty.

FREE Delivery

Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated

Pickup available at Medley Warehouse

Usually ready in 24 hours

Mon–Fri, 9:00 AM – 4:30 PM

Add more to unlock bulk savings

Questions about this system?

Answers in seconds — tap a question below

  • Sized for about the room's square footage at ~20 BTU per sq ft. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this unit is 12,000 BTU). Ceiling height, insulation, sun and climate shift that — if you're between sizes, size up for hot/humid rooms. Not sure? We'll confirm the right BTU for your space.
  • 12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 12,000 BTU. BTU tells you the capacity; SEER2 tells you the efficiency.
  • It uses R454B — the newest low-GWP eco refrigerant, so it's future-proof and efficient. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
  • Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
  • Yes — a big upgrade. It's far more efficient (inverter compressor) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
  • Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
  • Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
  • Ships as a complete set: CH-RLS12MIA-230VO. Everything arrives together — check the photos and specs for the full kit.
  • It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
  • Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on U.S. orders over $300, and our team can help with sizing and support.
Best brands with the best deals

Why buy this mini split from MiniSplitsForLess

  • Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
  • USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
  • Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
  • Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.

What Stands Out

Sleek Wall-Mount Design

A slim, quiet indoor head mounts high on the wall of MIA-series heating & cooling — modern looks with whisper-quiet operation.

Smart Wi-Fi Control

Wi-Fi is included — set schedules and adjust the temperature from your phone anywhere, or pair with Alexa & Google Home.

Year-Round Heat Pump

One system that cools in summer and heats in winter — reliable Cooper & Hunter performance in every season.

Cooper&Hunter Outdoor Condenser

The outdoor condenser is the core of a ductless system: it houses the inverter compressor, the heat exchanger and the fan that reject heat in cooling and absorb it in heating. This listing is the condenser as a single component — for replacing a failed outdoor unit or building a system to your own specification.

It runs on R454B, the low-GWP refrigerant that replaces R410A in new equipment, and pairs with Cooper&Hunter indoor units of matching capacity and voltage. A corrosion-protected cabinet, inverter operation and a wide ambient range suit residential and light commercial installations.

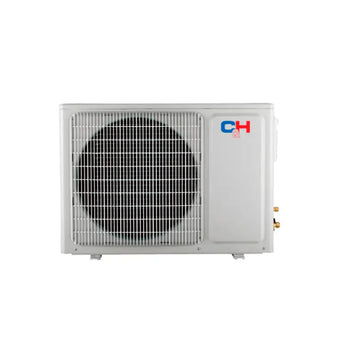

Cooper & Hunter MIA 12,000 BTU Outdoor Condenser, 230V, R454B - Single Zone Mini Split Air Conditioner Heat Pump

Warranty and Tech Support Info

Model CH-RLS12MIA-230VO

By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides and warranty information.

Warranty terms: the manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.

Warranty terms
Energy Efficiency

Energy Efficiency

Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.

Main Features

An inverter-driven compressor modulates capacity instead of cycling on and off, which holds temperature steadier and cuts running cost. The cabinet is finished for outdoor exposure, and the heat exchanger is sized for year-round heat-pump duty, not cooling alone.

Because the condenser is sold on its own, you match it to the exact indoor configuration you need — replacement, retrofit or a custom build — without paying for parts you already have.

Technical Specifications

Outdoor Unit Specs

Outdoor Unit Specs — CH-RLS12MIA-230VO
ModelCH-RLS12MIA-230VO
Unit Dimensions (WxDxH)30.12 x 11.93 x 21.85 in
Net/Gross Weight59.08/64.37 lb
Packing Dimensions (WxDxH)34.84 x 14.76 x 23.82 in
Power Supply208-230V, 1Ph, 60Hz
Maximum Fuse Size15 A
Min. Circuit Ampacity13 A
Copper Line Size (Liquid/Gas)1/4"/3/8"
Noise Level54 dB
Airflow1,235.3 CFM
Dehumidification3.17 pt/h

System Specs

System Specs
Cooling Capacity 12,000 BTU
Voltage 230V
Refrigerant Type R454B
Compressor Inverter
WiFi Included
Heating Capacity12,000 (3,500~13,400) BTU/h
Cooling Capacity Range12,000 (1,700~13,300) BTU/h
Operating Range (Cooling)5 ~ 122 °F
Operating Range (Heating)5 ~ 75 °F
Max. Pipe Length82 ft
Refrigerant Precharge25 ft
Max Height Difference49.2 ft
COP3.18

Series Comparison Table

Technical specifications for every model in the series — this product is one of them.

Indoor and Outdoor Hyper

Indoor Model CH-R06MOLVWM-115VI CH-R09MOLVWM-230VI CH-R12MOLVWM-230VI CH-R18MOLVWM-230VI CH-R24MOLVWM-230VI CH-R33HEMLVWM-230VI
Power Supply Rated 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60
Rated Capacity Btu/h 6,000 9,000 12,000 18,000 23,000 33,000
Minimum Circuit Ampacity (MCA) A 3 3 3 3 3 3
Max. Fuse A 3 3 3 3 3 3
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM 294.3/225.4/176.8/141.3/NA 382.6/293.1/194.2/153.0/NA 382.6/293.1/194.2/153.0/NA 759.3/530.4/419.1/382.6/NA 759.3/586.5/419.1/382.6/NA 829.6/716.6/592.7/447.3/NA
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A) 42.0/37.0/32.0/24.0/NA 42.0/37.0/32.0/24.0/NA 43.0/37.0/32.0/24.0/NA 52.5/44.0/40.5/35.2/25.0 54.5/49.0/45.3/41.3/27.0 56.0/49.5/45.3/41.3/27.0
Dimension (WxDxH) inch 28.7x7.87x11.81 31.5x7.87x11.61 31.5x7.87x11.61 45.47x12.01x16.14 45.47x12.01x16.14 52.76x15.16x17.72
Packing (WxDxH) inch 31.10x10.63x14.76 34.45x11.22x14.96 34.45x11.22x14.96 45.47x12.01x16.14 45.47x12.01x16.14 52.76x15.16x17.72
Net/Gross Weight lbs. 17.64/21.35 18.64/22.05 18.64/22.05 45.47/21.06 45.47/21.06 67.16/17.72
Room temperature Cooling °F 60~90 60~90 60~90 60~90 60~90 60~90
Room temperature Heating °F 32~86 32~86 32~86 32~86 32~86 32~86
Liquid Side/Gas Side inch 1/4" / 3/8" 1/4" / 3/8" 1/4" / 3/8" 1/4" / 1/2" 3/8" / 5/8" 3/8" / 3/4"
Specification CH-RVHP19M-230VO CH-RVHP28M-230VO CH-RVHP36M-230VO CH-RVHP48M-230VO CH-RVHP55M-230VO
Power Supply (V/Ph/Hz) 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60
Operating Range (V) 187-253 187-253 187-253 187-253 187-253
Cooling Capacity (BTU/h) 5,400~28,000 7,200~37,000 9,000~43,000 12,000~57,000 19,000~59,000
SEER2 5.6 9.5 12 17.3 18.5
EER 15 12.5 13 12 12
IEER 25 23 23 23 22.2
Heating Capacity (BTU/h) 5,700~27,000 8,400~36,000 10,000~44,000 13,000~57,000 20,000~59,000
HSPF2 6.5 9.1 11.5 17.3 20.1
COP 4 3.8 4 3.7 3.5
SCOP 10.4 10.5 10.7 11 10.5
Power Input (W) 8.5 8.5 8.5 9 8.5
Air Flow (CFM) 19,000 27,000 36,000 47,000 47,000
Sound Level Indoor (dBA) 17.5 30 37 37 39.5
Sound Level Outdoor (dBA) 20 35 40 40 40
Weight Indoor (lbs) 2,130.7 2,148.4 3,037.2 4,502.8 4,502.8
Weight Outdoor (lbs) 61.5 61 65 65 65
Dimensions Indoor (in) 37.24x16.14x31.89 37.24x16.14x31.89 38.58x16.34x38.39 37.48x16.34x52.48 37.48x16.34x52.48
Dimensions Outdoor (in) 42.91x19.68x34.84 42.91x19.68x34.84 45.08x19.68x42.52 43.11x19.49x58.27 43.11x19.49x58.27
Shipping Weight Indoor/Outdoor (lbs) 137.35/148.15 168.43/179.67 211.86/244.71 246.47/276.68 246.47/276.68
Refrigerant Type/Amount (lbs) R454B/78.31 R454B/120.63 R454B/134.04 R454B/151.68 R454B/151.68
Fuse Size (A) 75 100 125 150 150
Wire Size (AWG) 0.16 / 0.32 0.16 / 0.32 0.16 / 0.32 0.16 / 0.32 0.16 / 0.32
Control Voltage (V) 550/340 550/340 550/340 550/340 550/340
Liquid Line 3 x 1/4" 4 x 1/4" 5 x 1/4" 6 x 1/4" 6 x 1/4"
Suction Line 3 x 3/8" 3 x 3/8" + 1 x 1/2" 3 x 3/8" + 2 x 1/2" 4 x 3/8" + 2 x 1/2" 4 x 3/8" + 2 x 1/2"
Max Line Length (ft) 196.8 262.4 262.4 262.4 262.4
Max Elevation Diff (ft) 98.4 114.8 114.8 114.8 114.8
Max Head Pressure (ft) 49.2 49.2 49.2 49.2 49.2
Max Suction Pressure (ft) 33 33 33 33 33
Operating Range Cooling (°F) -22~122 -22~122 -22~122 -22~122 -22~122
Operating Range Heating (°F) -22~75 -22~75 -22~75 -22~75 -22~75
Feature 1
Feature 2
Feature 3
Feature 4

Indoor and Outdoor Regular

Indoor Model CH-R060LVWM-115VI CH-R09OLVWM-115VI CH-R120LVWM-115VI CH-RO9MOLVWM-230VI CH-R12MOLVWM-230VI CH-R18MOLVWM-230VI CH-R24MOLVWM-230VI CH-R30MELVWM-230VI CH-R36MELVWM-230VI
Power Supply Rated 115V, 1, 60 115V, 1, 60 115V, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60
Rated Capacity Btu/h 7,000 9,000 12,000 9,000 12,000 18,000 24,000 30,000 36,000
Minimum Circuit Ampacity (MCA) A 3 3 3 3 3 3 3 3 3
Max. Fuse A 3 3 3 3 3 3 3 3 3
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM 370/340/265/174/- 378/340/265/174/- 378/340/265/174/- 382/294/194/153/- 382/294/194/153/- 759/530/419/382/- 759/586/419/382/- 871/716/547/447/- 871/716/547/447/-
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A) 44/40/35/26/- 44/40/35/26/- 44/40/35/26/- 45/41/32/24/- 45/41/32/24/- 54/49/45/41/27 54/49/45/41/27 56/52/45/38/22 56/52/45/38/22
Dimension (WxDxH) inch 31.57x7.87x11.95 31.57x7.87x11.95 31.57x7.87x11.95 31.57x7.87x11.95 31.57x7.87x11.95 45.47x12.01x16.34 45.47x12.01x16.34 49.57x11.14x14.25 49.57x11.14x14.25
Packing (WxDxH) inch 34.92x13.27x24.02 34.92x13.27x24.02 34.92x13.27x24.02 34.92x13.27x24.02 34.92x13.27x24.02 42.91x19.09x34.84 42.91x19.09x34.84 42.91x19.09x34.84 42.91x19.09x34.84
Net/Gross Weight lbs. 18.64/22.05 18.64/22.05 18.64/22.05 18.64/22.05 18.64/22.05 45.47/21.06 45.47/21.06 67.16/17.72 67.16/17.72
Room temperature Cooling °F 60~90 60~90 60~90 60~90 60~90 60~90 60~90 60~90 60~90
Room temperature Heating °F 32~86 32~86 32~86 32~86 32~86 32~86 32~86 32~86 32~86
Liquid Side/Gas Side inch 1/4" / 3/8" 1/4" / 3/8" 1/4" / 3/8" 1/4" / 3/8" 1/4" / 3/8" 1/4" / 1/2" 3/8" / 5/8" 3/8" / 5/8" 3/8" / 5/8"
Specification CH-R18MES-230VO CH-R28MES-230VO CH-R36MES-230VO CH-R48MES-230VO CH-R60MES-230VO
Power Supply (V, Ph, Hz) 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60
Voltage Range (V) 187-253 187-253 187-253 187-253 187-253
Cooling Rated Capacity (range) (Btu/h) 5,400~21,600 7,200~32,000 9,000~42,000 12,000~55,000 19,000~62,000
Cooling Rated Current (A) 6 9.2 13.5 16.6 26.2
EER2 14 13 12 12.5 10
SEER2 25.1 25 24 24 22
Heating Rated Capacity (range) (Btu/h) 5,700~21,600 8,400~29,000 10,000~42,500 13,000~53,000 20,000~60,000
Heating Rated Current (A) 6.8 9.2 14 16.3 21
Heating at 47°F COP (W/W) 3.8 3.8 3.5 3.8 3.7
HSPF4 9.8 9.5 9.5 10.3 9.5
HSPF5 7.8 7 7 8 7.4
Heating at 5°F Rated Capacity (Btu/h) 13,500 19,000 26,000 36,000 39,000
Minimum Circuit Ampacity (Outdoor unit) (A) 16 23 30.5 40 40
Max. Fuse (Outdoor unit) (A) 20 25 35 45 45
Outdoor Air Flow (Max) (CFM) 1,765.8 2,130.7 2,148.4 4,502.8 4,502.8
Outdoor Noise Level (Sound Pressure) (dB(A)) 59.5 61 64.5 63 65
Dimension (W×D×H) (inch) 35.04x13.46x26.50 37.24x16.14x31.89 37.24x16.14x31.89 37.48x16.34x52.48 37.48x16.34x52.48
Packing (W×D×H) (inch) 40.55x17.24x29.53 42.91x19.68x34.84 42.91x19.68x34.84 43.11x19.49x58.27 43.11x19.49x58.27
Net/Gross Weight (lbs) 100.53/109.35 138.89/149.69 168.87/180.12 222.00/254.19 237.88/270.28
Refrigerant Type/Charged (oz) R454B/61.73 R454B/84.66 R454B/120.63 R454B/148.15 R454B/151.68
Refrigerant Precharge (ft) 75 100 125 150 150
Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft) 0.16 / 0.32 0.16 / 0.32 0.16 / 0.32 0.16 / 0.32 0.16 / 0.32
Design Pressure (PSIG) 550/340 550/340 550/340 550/340 550/340
Refrigerant Piping Liquid Side (inch) 3 x 1/4" 4 x 1/4" 5 x 1/4" 6 x 1/4" 6 x 1/4"
Refrigerant Piping Gas Side (inch) 3 x 3/8" 3 x 3/8" + 1 x 1/2" 4 x 3/8" + 1 x 1/2" 4 x 3/8" + 2 x 1/2" 4 x 3/8" + 2 x 1/2"
Max. Pipe Length (ft) 196.8 262.4 262.4 262.4 262.4
Max. Length for One Indoor Unit (ft) 98.4 114.8 114.8 114.8 114.8
Max. Height Difference in Level (ft) 49.2 49.2 49.2 49.2 49.2
Max. Height Difference Between Indoor Units (ft) 33 33 33 33 33
Ambient Temperature Cooling (°F) -13~122 -13~122 -13~122 -13~122 -13~122
Ambient Temperature Heating (°F) -13~75 -13~75 -13~75 -13~75 -13~75
Certification: AHRI
Certification: Energy Star
Certification: NEEP
Certification: ETL

What’s Included

What’s Included
Outdoor condenserCH-RLS12MIA-230VO

Installation kit is not included in the selected option — pick 16ft, 25ft or 50ft above to add one.

Shipping & Returns

  • Free shipping on every order over $300.
  • Delivery estimate for your ZIP is shown in the buy box above.
  • Returns accepted per our policy — unopened units in original packaging.

Warranty

7-year compressor / 5-year parts

  • Limited manufacturer warranty on the compressor and sealed system components.
  • Your order number is the proof of purchase — keep it for any claim.

Frequently Asked Questions

Is this a complete system or just the outdoor condenser?

This listing is the outdoor condenser only. The Cooper & Hunter MIA 12,000 BTU outdoor condenser is sold as a single component for replacements and custom builds, so it does not include the indoor unit, line set or installation kit. Order the matching components separately if you are building a full system.

Which units is the Cooper & Hunter MIA 12,000 BTU compatible with?

It pairs with Cooper & Hunter R454B equipment of the same refrigerant and voltage — R454B, 230V. Match the total indoor capacity to this condenser's rating, and keep the refrigerant identical: R454B components cannot be mixed with R410A.

What line set size does it use?

Copper line size is 1/4"/3/8" (liquid/gas). Use the same diameters on the matching component, and keep the run within the manufacturer's maximum length.

Does it come pre-charged with refrigerant?

Yes — it ships pre-charged with R454B for line sets up to 25 ft. Longer runs need additional refrigerant added by a licensed technician.

Do I need a licensed technician to install the Cooper & Hunter MIA 12,000 BTU?

Yes. Connecting refrigerant lines requires EPA 608 certification in the United States, and correct evacuation and charging are what keep the rated efficiency and the factory warranty intact.
