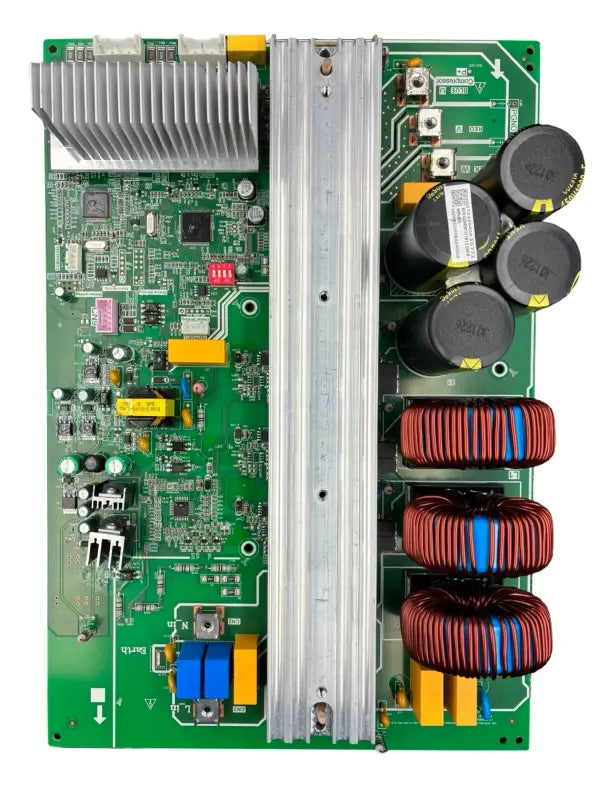

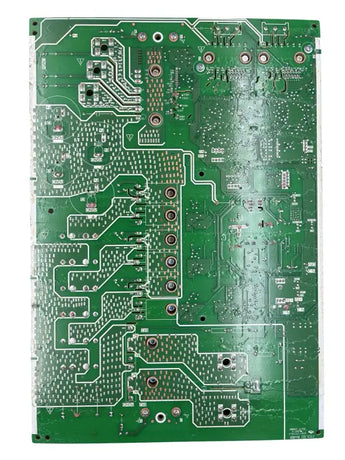

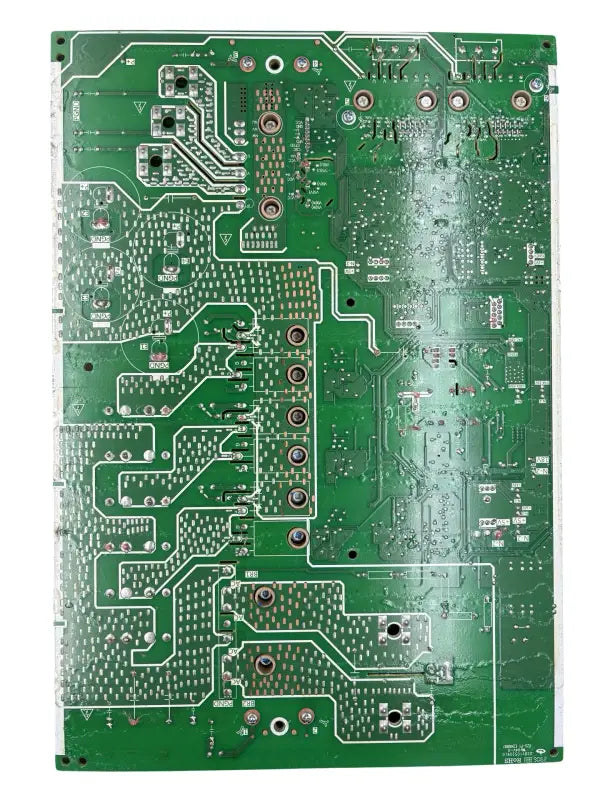

HVAC Control Board - Inverter module subassembly
This professional-grade inverter module subassembly is engineered to meet the exact specifications of your HVAC system, ensuring optimal performance and long-lasting reliability. Our control boards are manufactured using high-quality components and undergo rigorous testing to guarantee compatibility and durability.
Designed as a direct OEM replacement, this control board offers seamless integration with your existing system while maintaining the same high standards of performance you expect. The precision-engineered circuitry provides accurate control and monitoring of your HVAC unit's critical functions.
Each board comes with comprehensive technical specifications and is backed by our commitment to quality, making it the ideal choice for both professional technicians and facility maintece teams.
Product Specifications
| Part Number |
17122000055772 |
| Compatible Model |
KFR140W/BP3T1N1-E30 |
| Unit Type |
Outdoor |
| Application |
Outdoor Unit |
| Voltage |
230V |
| Zone Configuration |
Multizone |
| Dimensions |
13 3/4*9 1/2*2 3/4 |
| PCB Reference |
17122000042012 |
| Shipping Package Dimensions |
16x12x8, weight 8lb. |
Features & Benefits
- OEM quality replacement part
- Direct fit installation
- Manufactured to original specifications
- Comprehensive quality testing
- Professional grade reliability
Installation & Compatibility
Professional installation recommended. This control board is designed as a direct replacement for the original component and should be installed by a qualified HVAC technician. Please ensure all power is disconnected before beginning installation.
Important: Always verify the part number and model compatibility with your specific unit before ordering. Using the wrong control board can result in system malfunction or damage not covered by warranty.
Quality Assurance
Every control board undergoes comprehensive testing including electrical functionality, environmental stress testing, and quality control inspection to ensure it meets or exceeds original manufacturer specifications.
Technical Specifications
| sku |
17122000055772 |
| weight (in lbs) |
20.000000 |
| brand/manufacturer |
Midea |
Frequently Asked Questions
Will this fit my system?
This is a replacement/accessory part. Match it to your unit’s model number and specifications before ordering; if you are unsure, contact us with your system model and we will confirm compatibility.
Is this part included with a mini split system, or sold separately?
This listing is for the part on its own. Complete mini split systems list their included components separately on each system’s page.
Do you offer support choosing the right part?
Yes — contact us with your system model number and what you need, and we will help you pick the correct part.
What warranty does it come with?
It is backed by the manufacturer’s limited warranty; professional installation and registration are required to keep coverage valid.
