12,000 BTU PTAC OLMO Air Conditioner, Heat Strip, Heating And Cooling w/Electric Cord and Remote
OLMO
Product specifications
| Brand | |
|---|---|
| Voltage | |
| EER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
PTAC
Experience year-round comfort with OLMO's PTAC Units—designed for efficiency, reliability, and modern convenience. Perfect for residential, hospitality, or commercial spaces, these compact units offer powerful heating and cooling solutions.
Upgrade your space today with OLMO, where innovative technology meets dependable performance!
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
The manufacturer provides a Limited Warranty of 1 year for the compressor and 1 year for parts.
Warranty terms
Main Features
OLMO's PTAC (Packaged Terminal Air Conditioner) units deliver efficient heating and cooling for residential, commercial, and hospitality spaces. Equipped with smart features like remote control, dual fan speeds, and auto-restart, they ensure year-round comfort. Compact and energy-efficient, these units are ideal for spaces where central HVAC systems aren't practical.
All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Model | OS-MBW-09HS | OS-MBW-12HS | OS-MBW-15HS | |
|---|---|---|---|---|
| Power Supply | 208-230V-1Ph-60 | 208-230V-1Ph-60 | 208-230V-1Ph-60 | |
| Cooling | Capacity | 9200/9000 Btu/h | 12000/11800 Btu/h | 14700/14500 Btu/h |
| Input | 790/780 W | 1080/1060 W | 1390/1370 W | |
| Current | 4.3/4.9 A | 5.5/6.1 A | 7.5/8.9 A | |
| EER2 | 11.3 W/W | 10.7 W/W | 10.6 W/W | |
| Heating (Heat Strip) | Rated Capacity | 10900/8900 Btu/h | 10900/8900 Btu/h | 15000/12200 Btu/h |
| Rated Input (Heater) | 3.5 W | 3.5 W | 5 W | |
| Rated Current | 15.3/13.7 A | 14.96/13.7 A | 22.3/20.1 A | |
| Refrigerant Type | R32 | R32 | R32 | |
| Indoor Air Flow (Hi/Mi/Lo) | 430.0/342.3 ft3/min | 431.1/348.2 ft3/min | 430.0/349.4 ft3/min | |
| Indoor Noise Level (Hi/Mi/Lo) | 50/49.5 dB(A) | 52/51.5 dB(A) | 51/50.5 dB(A) | |
| Outdoor Air Flow (Hi/Med/Lo) | 467.7/394.1/333.5 ft3/min | 424.7/360.6/296.5 ft3/min | 544.1/485.3/424.1 ft3/min | |
| Outdoor Side Noise Level (Hi/Med/Lo) | 63 dB(A) | 67 dB(A) | 65 dB(A) | |
| Design Pressure (Lo/Hi) | 300/580 PSI | 300/580 PSI | 300/580 PSI | |
| Indoor Operation Temp | 63°F-90°F/32°F-80°F | 63°F-90°F/32°F-80°F | 63°F-90°F/32°F-80°F | |
| Outdoor Operation Temp | 64°F-109°F/41°F-75°F | 64°F-109°F/41°F-75°F | 64°F-109°F/41°F-75°F | |
| Dimension (WxDxH) | 42x21x16 in | 42x21x16 in | 42x21x16 in | |
| Packing (WxDxH) | 44.5x25x19.3 in | 44.5x25x19.3 in | 44.5x25x19.3 in | |
| Net/Gross Weight | 97.0/105.8 lbs | 103.6/112.4 lbs | 105.8/114.6 lbs | |
Multiple Control Methods
Olmo’s PTAC Unit can be managed with a user-friendly remote control or the optional phone application. Both options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For spaces up to 550 sq ft, the 12,000 BTU Olmo PTAC air conditioner is an excellent choice. Its capacity ensures efficient heating and cooling for medium-sized rooms.
Can I install a mini split myself?
Yes, the Olmo 12,000 BTU PTAC unit is designed for easier installation, especially with the option of installation kits available in lengths up to 50 ft. However, it's recommended to follow local codes and consider hiring a professional for optimal performance.
Does the mini split come pre-charged with refrigerant?
Yes, the Olmo PTAC air conditioner comes pre-charged with R32 refrigerant for up to 25 ft of line set, making the installation process more straightforward. This feature helps you save time and ensures immediate operation upon installation.
What voltage does the Olmo mini split require?

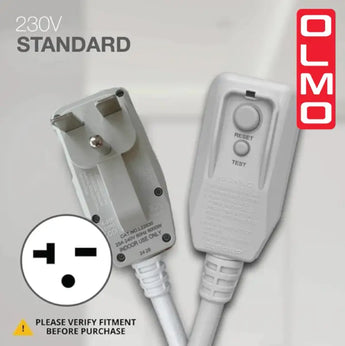

The Olmo 12,000 BTU PTAC air conditioner operates on 230V, which is standard for many residential mini-split systems. Make sure your electrical system can accommodate this voltage before installation.
What warranty does the Olmo PTAC air conditioner offer?
The Olmo 12,000 BTU PTAC air conditioner comes with a 5-year parts and compressor warranty. This coverage provides peace of mind regarding the unit's reliability and performance over time.
What SEER rating do I need for efficiency?
The Olmo PTAC air conditioner boasts a SEER rating of 21+, which exceeds the minimum efficiency standards set for HVAC systems. A higher SEER rating means greater energy efficiency, helping to lower your utility bills.
