3 Zone 36,000 BTU OLMO Sierra Ductless Mini Split AC Wall Mounted 12k+12k+18k | No Kit No Kit No Kit
OLMO
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Important info
- R-410A is being phased down in favor of newer refrigerants; inventory is limited.
- Existing R-410A systems remain serviceable; parts and qualified service are widely available.
- Check local codes and rebates. Some incentives prioritize high-efficiency heat pumps (R-32/R-454B).
- We stock both R-410A and next-gen options—choose what fits your timeline and budget.
Browse: R-410A systems · R-32 · R-454B

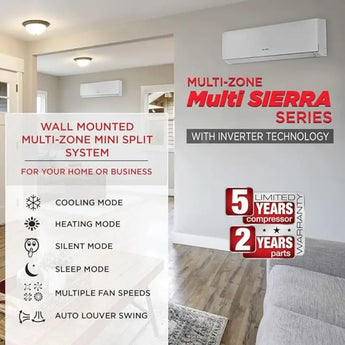

Sierra Wall Mount
OLMO's Multi-Zone Sierra Series is a versatile HVAC solution designed to provide efficient heating and cooling for multiple rooms, equipped with advanced inverter technology for precise temperature control and significant energy savings. Using eco-friendly R410A refrigerant, the system ensures reliable performance with minimal environmental impact. Perfect for residential or commercial applications, the Sierra Series offers quiet operation, flexible installation, and user-friendly controls, making it an ideal choice for maintaining year-round comfort across multiple zones with one efficient system.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
The manufacturer provides a Limited Warranty of 5 years for the compressor and 2 years for parts.
Warranty terms
Main Features
OLMO's Multi-Zone Sierra Series delivers efficient multi-room comfort with advanced inverter technology for precise temperature control. Its eco-friendly R410A refrigerant reduces environmental impact, while quiet operation ensures minimal disruption. With flexible installation options, sleek design, and reliable heating and cooling, it’s the perfect solution for modern multi-zone climate control needs.

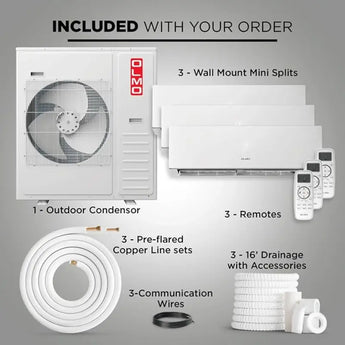

All Accessories Included

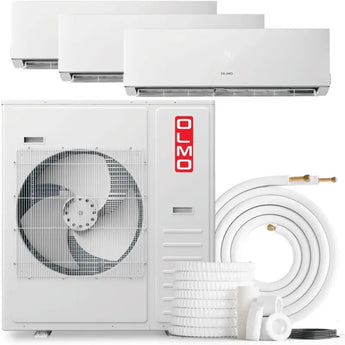

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor Models | OS-M09SRW-230VI | OS-M12SRW-230VI | OS-M18SRW-230VI | OS-M24SRW-230VI |
|---|---|---|---|---|
| Power Supply V-Ph-Hz | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 |
| Cooling | ||||
| Capacity Btu/h | 9000 | 12000 | 18000 | 23400 |
| Heating | ||||
| Rated Capacity Btu/h | 9500 | 13000 | 19000 | 26000 |
| Output Power W | 25 | 25 | 35 | 35 |
| Rated Current A | 0.11 | 0.11 | 0.17 | 0.17 |
| Indoor Air Flow CFM | 341 | 365 | 647 | 706 |
| Indoor Noise Level (Hi/Mi/Lo) dB(A) | 39/35/30 | 39/35/30 | 45/41/37 | 47/45/42 |
| Net Dimensions (WxHxD) in | 32.02x10.75x8.13 | 37.38x10.75x8.13 | 48x12.63x9.25 | 48x12.63x9.25 |
| Packing (WxHxD) in | 39.38x13.19x6.38 | 39.38x13.19x6.38 | 51.75x15.44x12.50 | 51.75x15.44x12.50 |
| Net/Gross Weight lbs | 19.84 / 24.25 | 19.84 / 24.25 | 31.97 / 37.48 | 31.97 / 37.48 |
| Refrigerant Piping | ||||
| Liquid Side / Gas Side in | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 3/8" / 5/8" |
| Outdoor Models | OS-MSR18-230VO | OS-MSR24-230VO | OS-MSR36-230VO | OS-MSR42-230VO |
|---|---|---|---|---|
| Power Supply V-Ph-Hz | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 |
| Capacity Btu/h | 18000 | 24000 | 32000 | 42000 |
| Cooling | ||||
| EER2 Btu/h | 12.5 | 12.5 | 12.5 | 10.5 |
| SEER2 Btu/h | 21.0 | 22.0 | 21.0 | 20.0 |
| Heating | ||||
| Rated Capacity Btu/h | 18000 | 24000 | 36000 | 42000 |
| HSPF2 Btu/h | 9.50 | 9.05 | 9.00 | 8.95 |
| COP2 W/W | 3.45 | 3.66 | 3.37 | 3.17 |
| Minimum Circuit Ampacity A | 23 | 25 | 32.2 | 35 |
| Max Fuse A | 30 | 30 | 50 | 50 |
| Outdoor Air Flow (Hi) CFM | 1850 | 2350 | 3411 | 3411 |
| Outdoor Side Noise Level dB(A) | 55 | 55 | 59 | 63 |
| Dimensions (WxHxD) in | 33.88×26.38×12.25 | 37.38×33×13.38 | 37.38×41.38×13.38 | 37.38×41.38×13.38 |
| Outdoor Unit Packing (WxHxD) in | 39×17.75×28.75 | 43.75×18.13×36.25 | 43.75×18.13×47.25 | 43.75×18.13×47.25 |
| Net/Gross Weight lbs | 116.8/125.6 | 158.7/169.5 | 188.5/220.5 | 198.4/224.5 |
| Refrigerant | ||||
| Refrigerant Type/Quantity oz | R410A/63.49 | R410A/81.13 | R410A/105.82 | R410A/120 |
| Refrigerant Precharge ft | 50 | 75 | 98 | 98 |
| Refrigerant Piping | ||||
| Liquid Side / Gas Side in | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" |
| Max Refrigerant Pipe Length Each/Total ft | 82/164 | 66/197 | 66/246 | 66/262 |
| Ambient Temperature | ||||
| Outdoor (Cooling) °F | 14~114.8 | 14~114.8 | 14~114.8 | 14~114.8 |
| Outdoor (Heating) °F | -13~75.2 | -13~75.2 | -13~75.2 | -4~75.2 |

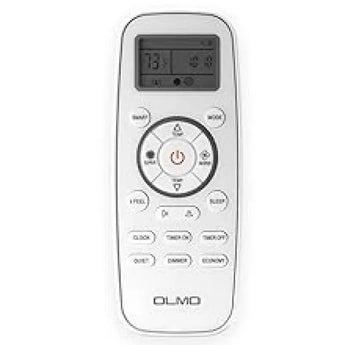

Multiple Control Methods
Olmo’s can be managed with a user-friendly remote control. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the Olmo 3 Zone 36,000 BTU mini split cool?
The Olmo 3 Zone 36,000 BTU mini split can effectively cool up to three rooms, with a total coverage area of up to 1,500 square feet. This makes it ideal for multi-zone applications where individual comfort control is desired.
Can I mix BTU sizes in my Olmo mini split system?
Yes, you can mix BTU sizes in your Olmo mini split system, such as pairing a 12k BTU unit with a larger 18k BTU unit. However, ensure that the total BTU does not exceed the system's capacity of 36,000 BTU for optimal performance.
Do all zones in the Olmo mini split run simultaneously?
No, in the Olmo 3 Zone mini split system, each zone can be controlled independently, allowing you to heat or cool specific areas as needed. This flexibility can enhance energy efficiency compared to running multiple single-zone units.
What is the warranty on the Olmo mini split system?
The Olmo mini split system comes with a 5-year parts and compressor warranty, providing peace of mind for your investment. This warranty ensures that you are covered for any manufacturing defects or issues during the specified period.
Does the Olmo mini split come pre-charged with refrigerant?
Yes, the Olmo mini split system is pre-charged with R410A refrigerant for up to 25 ft of line set, facilitating easier installation. This means you won't need to add refrigerant if your installation falls within this range.
What SEER rating does the Olmo mini split have and is it efficient enough?
The Olmo 3 Zone mini split boasts an impressive SEER rating of 21.0, making it highly efficient for both cooling and heating. This efficiency rating helps reduce energy costs and meets or exceeds current energy standards.
