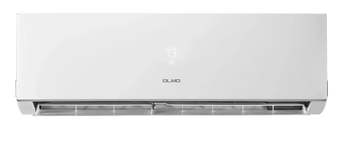

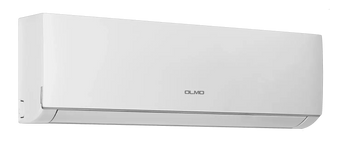

OLMO's Multi-Zone Sierra Series is a versatile HVAC solution designed to provide efficient heating and cooling for multiple rooms, equipped with advanced inverter technology for precise temperature control and significant energy savings. Using eco-friendly R410A refrigerant, the system ensures reliable performance with minimal environmental impact. Perfect for residential or commercial applications, the Sierra Series offers quiet operation, flexible installation, and user-friendly controls, making it an ideal choice for maintaining year-round comfort across multiple zones with one efficient system.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
The manufacturer provides a Limited Warranty of 5 years for the compressor and 2 years for parts.
OLMO's Multi-Zone Sierra Series delivers efficient multi-room comfort with advanced inverter technology for precise temperature control. Its eco-friendly R410A refrigerant reduces environmental impact, while quiet operation ensures minimal disruption. With flexible installation options, sleek design, and reliable heating and cooling, it’s the perfect solution for modern multi-zone climate control needs.
Technical Specifications
Indoor Models
OS-M09SRW-230VI
OS-M12SRW-230VI
OS-M18SRW-230VI
OS-M24SRW-230VI
Power Supply V-Ph-Hz
208/230V-1Ph-60
208/230V-1Ph-60
208/230V-1Ph-60
208/230V-1Ph-60
Cooling
Capacity Btu/h
9000
12000
18000
23400
Heating
Rated Capacity Btu/h
9500
13000
19000
26000
Output Power W
25
25
35
35
Rated Current A
0.11
0.11
0.17
0.17
Indoor Air Flow CFM
341
365
647
706
Indoor Noise Level (Hi/Mi/Lo) dB(A)
39/35/30
39/35/30
45/41/37
47/45/42
Net Dimensions (WxHxD) in
32.02x10.75x8.13
37.38x10.75x8.13
48x12.63x9.25
48x12.63x9.25
Packing (WxHxD) in
39.38x13.19x6.38
39.38x13.19x6.38
51.75x15.44x12.50
51.75x15.44x12.50
Net/Gross Weight lbs
19.84 / 24.25
19.84 / 24.25
31.97 / 37.48
31.97 / 37.48
Refrigerant Piping
Liquid Side / Gas Side in
1/4" / 3/8"
1/4" / 3/8"
1/4" / 1/2"
3/8" / 5/8"
Outdoor Models
OS-MSR18-230VO
OS-MSR24-230VO
OS-MSR36-230VO
OS-MSR42-230VO
Power Supply V-Ph-Hz
208/230V-1Ph-60
208/230V-1Ph-60
208/230V-1Ph-60
208/230V-1Ph-60
Capacity Btu/h
18000
24000
32000
42000
Cooling
EER2 Btu/h
12.5
12.5
12.5
10.5
SEER2 Btu/h
21.0
22.0
21.0
20.0
Heating
Rated Capacity Btu/h
18000
24000
36000
42000
HSPF2 Btu/h
9.50
9.05
9.00
8.95
COP2 W/W
3.45
3.66
3.37
3.17
Minimum Circuit Ampacity A
23
25
32.2
35
Max Fuse A
30
30
50
50
Outdoor Air Flow (Hi) CFM
1850
2350
3411
3411
Outdoor Side Noise Level dB(A)
55
55
59
63
Dimensions (WxHxD) in
33.88×26.38×12.25
37.38×33×13.38
37.38×41.38×13.38
37.38×41.38×13.38
Outdoor Unit Packing (WxHxD) in
39×17.75×28.75
43.75×18.13×36.25
43.75×18.13×47.25
43.75×18.13×47.25
Net/Gross Weight lbs
116.8/125.6
158.7/169.5
188.5/220.5
198.4/224.5
Refrigerant
Refrigerant Type/Quantity oz
R410A/63.49
R410A/81.13
R410A/105.82
R410A/120
Refrigerant Precharge ft
50
75
98
98
Refrigerant Piping
Liquid Side / Gas Side in
1/4" / 3/8"
1/4" / 3/8"
1/4" / 3/8"
1/4" / 3/8"
Max Refrigerant Pipe Length Each/Total ft
82/164
66/197
66/246
66/262
Ambient Temperature
Outdoor (Cooling) °F
14~114.8
14~114.8
14~114.8
14~114.8
Outdoor (Heating) °F
-13~75.2
-13~75.2
-13~75.2
-4~75.2
Multiple Control
Methods

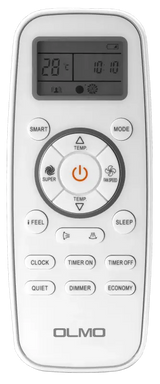

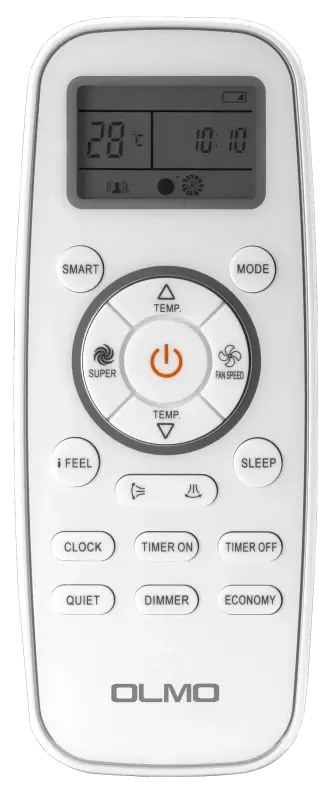

Olmo’s can be managed with a user-friendly remote control. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For spaces up to 550 sq ft, the Olmo Sierra 12,000 BTU mini split is ideal. This capacity provides efficient cooling and heating for medium-sized rooms.
Can I install the Olmo mini split myself?
While some homeowners opt for DIY installation of the Olmo Sierra, which operates at 230V, it is recommended to hire a professional. Proper installation ensures optimal performance and efficiency.
Does the Olmo Sierra mini split come pre-charged with refrigerant?
Yes, the Olmo Sierra is pre-charged with R410A refrigerant for installations up to 25 ft of line set. This allows for a quicker and more efficient setup.
What voltage does the Olmo Sierra mini split require?
The Olmo Sierra operates on a standard 230V electrical system. Ensure your electrical setup is compatible before installation.
What warranty does the Olmo Sierra offer?
The Olmo Sierra comes with a 5-year parts and compressor warranty, providing peace of mind regarding durability and performance.
What SEER rating does the Olmo Sierra have?
The Olmo Sierra boasts an impressive 22.0 SEER rating, making it highly efficient for both cooling and heating needs in your home.
