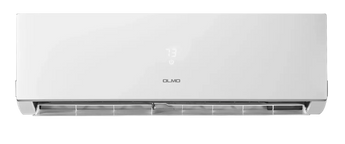

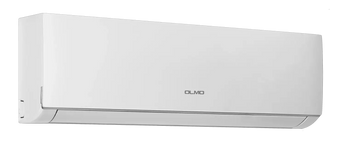

OLMO Sierra 12,000 BTU Indoor Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump | No Kit
OLMO5-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Type | |
| Freon | |
| Compressor |
⛔ Wait! This is an Individual Component To build a working system, this unit must match your other equipment in two ways:
- Same Brand Only: Only pair with other same Brand and Series.
- Same Refrigerant: Both units must use the exact same gas type (R454B, R32, or R410A).
Mixing different brands or refrigerant types will cause the system to fail and void your warranty.
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Sierra Wall Mount
OLMO's Multi-Zone Sierra Series is a versatile HVAC solution that provides efficient heating and cooling for multiple rooms, featuring advanced inverter technology for precise temperature control and significant energy savings. Using eco-friendly R410A refrigerant, the system delivers reliable performance with minimal environmental impact. Ideal for both residential and commercial applications, the Sierra Series combines quiet operation, flexible installation, and user-friendly controls, making it a perfect choice for maintaining year-round comfort across multiple zones with one efficient system.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
The manufacturer provides a Limited Warranty of 5 years for the compressor and 2 years for parts.
Warranty terms
Main Features
OLMO's Multi-Zone Sierra Series delivers efficient multi-room comfort with advanced inverter technology for precise temperature control. Its eco-friendly R454B refrigerant reduces environmental impact, while quiet operation ensures minimal disruption. With flexible installation options, sleek design, and reliable heating and cooling, it’s the perfect solution for modern multi-zone climate control needs.
Technical Specifications
| Indoor Models | OS-RM09SW-230VI | OS-RM12SW-230VI | OS-RM18SW-230VI | OS-RM24SW-230VI |
|---|---|---|---|---|
| Power Supply (V-Ph-Hz) | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 |
| Cooling Capacity (Btu/h) | 9000 | 12000 | 18000 | 23400 |
| Heating Rated Capacity (Btu/h) | 9500 | 13000 | 19000 | 26000 |
| Output Power (W) | 25 | 25 | 35 | 35 |
| Rated Current (A) | 0.11 | 0.11 | 0.17 | 0.17 |
| Indoor Air Flow (CFM) | 341 | 365 | 647 | 706 |
| Indoor Noise Level (Hi/Mi/Lo) (dB(A)) | 39/35/30 | 39/35/30 | 45/41/37 | 47/45/42 |
| Net Dimensions (WxHxD) (in) | 32.02x10.75x8.13 | 37.38x10.75x8.13 | 48x12.63x9.25 | 48x12.63x9.25 |
| Packing (WxHxD) (in) | 39.38x13.19x6.38 | 39.38x13.19x6.38 | 51.75x15.44x12.50 | 51.75x15.44x12.50 |
| Net/Gross Weight (lbs) | 19.84 / 24.25 | 19.84 / 24.25 | 31.97 / 37.48 | 31.97 / 37.48 |
| Refrigerant Piping (Liquid Side / Gas Side) (in) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 3/8" / 5/8" |
| Outdoor Models | OS-RMS18-230VO | OS-RMS24-230VO | OS-RMS36-230VO | OS-RMS42-230VO |
|---|---|---|---|---|
| Power Supply (V-Ph-Hz) | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 |
| Cooling Capacity (Btu/h) | 18000 | 27000 | 36000 | 42000 |
| EER2 | 13.33 | 12.85 | 12.85 | 12.0 |
| SEER2 | 22.0 | 23.0 | 22.0 | 22.0 |
| Heating Rated Capacity (Btu/h) | 18000 | 27000 | 36000 | 36000 |
| HSPF2 | 10.0 | 10.0 | 10.0 | 9.5 |
| COP2 (W/W) | 3.82 | 3.60 | 3.91 | 3.60 |
| Max Fuse (A) | 30 | 40 | 50 | 60 |
| Outdoor Air Flow (Hi) (CFM) | 1850 | 3357 | 3357 | 3357 |
| Outdoor Side Noise Level (dB(A)) | 55 | 62 | 64 | 64 |
| Dimensions (WxHxD) (in) | 33.88x26.38x12.25 | 38.38x32.88x14.12 | 38.38x32.88x14.12 | 38.38x32.88x14.12 |
| Outdoor Unit Packing (WxHxD) (in) | 39x28.75x17.75 | 43.75x37.75x18.12 | 43.75x37.75x18.12 | 43.75x37.75x18.12 |
| Net/Gross Weight (lbs) | 101.4/112.4 | 160.6/183.2 | 169.8/191.8 | 172/194 |
| Refrigerant Type/Quantity (oz) | R454B/51.15 | R454B/76.2 | R454B/105.8 | R454B/105.8 |
| Refrigerant Piping (Liquid Side / Gas Side) (in) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" |
| Max Refrigerant Pipe Length Each/Total (ft) | 82/164 | 82/230 | 82/230 | 82/262 |
| Ambient Outdoor (Cooling) (°F) | 5~125 | 5~125 | 5~125 | 5~125 |
| Ambient Outdoor (Heating) (°F) | -13~75 | -13~75 | -13~75 | 4~75 |
Multiple Control Methods
Olmo’s Multi-Zone Sierra Series can be managed with a user-friendly remote control and the. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For coverage of up to 550 sq ft, the Olmo Sierra 12,000 BTU mini split is an ideal choice for medium-sized rooms. Its 12k BTU rating ensures efficient heating and cooling, making it suitable for spaces like living rooms or bedrooms.
How much does a mini split system like the Olmo Sierra cost?
The price for the Olmo Sierra 12,000 BTU mini split system varies based on installation kits, with options available for 16ft, 25ft, and 50ft. For precise pricing, check with authorized retailers or installers.
Can I install the Olmo mini split myself?
While some homeowners may attempt DIY installation, it's advisable to hire a licensed technician for the Olmo Sierra 12,000 BTU system. Proper installation ensures optimal performance and compliance with electrical requirements, given its 230V voltage.
Does the Olmo Sierra mini split come pre-charged with refrigerant?
Yes, the Olmo Sierra 12,000 BTU mini split is pre-charged with R454B refrigerant for up to 25 ft of line set. This feature simplifies installation, but ensure the line set length does not exceed the specified limit.
What warranty does the Olmo Sierra offer?
The Olmo Sierra 12,000 BTU mini split comes with a robust 5-year parts and compressor warranty. This guarantee reflects Olmo's commitment to quality and reliability in their HVAC products.
What SEER rating do I need for energy efficiency?
The Olmo Sierra mini split boasts an impressive 22.0 SEER rating, which exceeds the minimum efficiency requirements for most regions. A higher SEER rating like this not only reduces energy costs but also provides better environmental sustainability.
