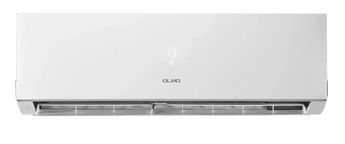

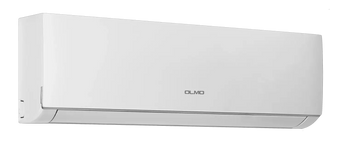

OLMO's Multi-Zone Sierra Series is a versatile HVAC solution designed to provide efficient heating and cooling for multiple rooms, equipped with advanced inverter technology for precise temperature control and significant energy savings. Using eco-friendly R410A refrigerant, the system ensures reliable performance with minimal environmental impact. Perfect for residential or commercial applications, the Sierra Series offers quiet operation, flexible installation, and user-friendly controls, making it an ideal choice for maintaining year-round comfort across multiple zones with one efficient system.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
The manufacturer provides a Limited Warranty of 5 years for the compressor and 2 years for parts.
OLMO's Multi-Zone Sierra Series delivers efficient multi-room comfort with advanced inverter technology for precise temperature control. Its eco-friendly R410A refrigerant reduces environmental impact, while quiet operation ensures minimal disruption. With flexible installation options, sleek design, and reliable heating and cooling, it’s the perfect solution for modern multi-zone climate control needs.
Technical Specifications
Indoor Models
OS-M09SRW-230VI
OS-M12SRW-230VI
OS-M18SRW-230VI
OS-M24SRW-230VI
Power Supply V-Ph-Hz
208/230V-1Ph-60
208/230V-1Ph-60
208/230V-1Ph-60
208/230V-1Ph-60
Cooling
Capacity Btu/h
9000
12000
18000
23400
Heating
Rated Capacity Btu/h
9500
13000
19000
26000
Output Power W
25
25
35
35
Rated Current A
0.11
0.11
0.17
0.17
Indoor Air Flow CFM
341
365
647
706
Indoor Noise Level (Hi/Mi/Lo) dB(A)
39/35/30
39/35/30
45/41/37
47/45/42
Net Dimensions (WxHxD) in
32.02x10.75x8.13
37.38x10.75x8.13
48x12.63x9.25
48x12.63x9.25
Packing (WxHxD) in
39.38x13.19x6.38
39.38x13.19x6.38
51.75x15.44x12.50
51.75x15.44x12.50
Net/Gross Weight lbs
19.84 / 24.25
19.84 / 24.25
31.97 / 37.48
31.97 / 37.48
Refrigerant Piping
Liquid Side / Gas Side in
1/4" / 3/8"
1/4" / 3/8"
1/4" / 1/2"
3/8" / 5/8"
Outdoor Models
OS-MSR18-230VO
OS-MSR24-230VO
OS-MSR36-230VO
OS-MSR42-230VO
Power Supply V-Ph-Hz
208/230V-1Ph-60
208/230V-1Ph-60
208/230V-1Ph-60
208/230V-1Ph-60
Capacity Btu/h
18000
24000
32000
42000
Cooling
EER2 Btu/h
12.5
12.5
12.5
10.5
SEER2 Btu/h
21.0
22.0
21.0
20.0
Heating
Rated Capacity Btu/h
18000
24000
36000
42000
HSPF2 Btu/h
9.50
9.05
9.00
8.95
COP2 W/W
3.45
3.66
3.37
3.17
Minimum Circuit Ampacity A
23
25
32.2
35
Max Fuse A
30
30
50
50
Outdoor Air Flow (Hi) CFM
1850
2350
3411
3411
Outdoor Side Noise Level dB(A)
55
55
59
63
Dimensions (WxHxD) in
33.88×26.38×12.25
37.38×33×13.38
37.38×41.38×13.38
37.38×41.38×13.38
Outdoor Unit Packing (WxHxD) in
39×17.75×28.75
43.75×18.13×36.25
43.75×18.13×47.25
43.75×18.13×47.25
Net/Gross Weight lbs
116.8/125.6
158.7/169.5
188.5/220.5
198.4/224.5
Refrigerant
Refrigerant Type/Quantity oz
R410A/63.49
R410A/81.13
R410A/105.82
R410A/120
Refrigerant Precharge ft
50
75
98
98
Refrigerant Piping
Liquid Side / Gas Side in
1/4" / 3/8"
1/4" / 3/8"
1/4" / 3/8"
1/4" / 3/8"
Max Refrigerant Pipe Length Each/Total ft
82/164
66/197
66/246
66/262
Ambient Temperature
Outdoor (Cooling) °F
14~114.8
14~114.8
14~114.8
14~114.8
Outdoor (Heating) °F
-13~75.2
-13~75.2
-13~75.2
-4~75.2
Multiple Control
Methods
Olmo’s can be managed with a user-friendly remote control. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For a room size of up to 850 sq ft, the Olmo Sierra 18,000 BTU mini split is an ideal choice. Its capacity makes it suitable for medium to large spaces, ensuring efficient cooling and heating.
Can I install the Olmo mini split myself?
While some homeowners may attempt a DIY installation, it's recommended to hire a professional for the Olmo Sierra 18,000 BTU system. This ensures optimal performance and compliance with local codes, especially since it requires a 230V electrical connection.
Does the Olmo mini split come pre-charged with refrigerant?
Yes, the Olmo Sierra mini split is pre-charged with R410A refrigerant for up to 25 ft of line set. This feature simplifies installation, but make sure to follow the manufacturer's guidelines for longer runs.
What voltage does the Olmo mini split require?
The Olmo Sierra 18,000 BTU mini split requires a voltage of 230V for proper operation. Ensure that your electrical system is compatible before installation.
What warranty does the Olmo Sierra mini split offer?
The Olmo Sierra comes with a 5-year parts and compressor warranty, providing peace of mind for your investment. This warranty covers key components, ensuring long-term reliability.
What is the SEER rating of the Olmo mini split, and is it efficient?
The Olmo Sierra boasts an impressive SEER rating of 22.0, making it a highly efficient choice for both cooling and heating. This efficiency can lead to significant energy savings over time.
