OLMO Sierra 24,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump | No Kit

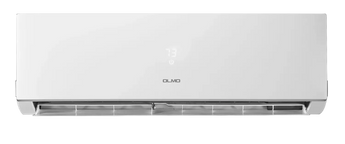

OLMO Sierra 24000 BTU R410A wall mount mini split AC with digital display

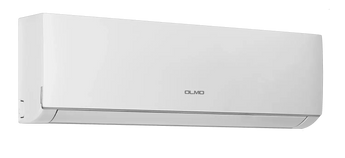

White OLMO Sierra 24,000 BTU R410A wall mount mini split air conditioner

OLMO5-Yr Warranty

OS-M24SRW-230VI

Product specifications

Brand	Olmo
Voltage	230V
SEER	22
WiFi	Not Included
Type	Wall Mount
Freon	R410A
Compressor	Inverter

$315.00

Shipping Policy calculated at checkout.

Installation Kit: No Installation Kit

No Installation Kit 16FT Installation Kit 25FT Installation Kit 50FT Installation kit

Product variants

⛔ Wait! This is an Individual Component To build a working system, this unit must match your other equipment in two ways:

Same Brand Only: Only pair with other same Brand and Series.
Same Refrigerant: Both units must use the exact same gas type (R454B, R32, or R410A).

Mixing different brands or refrigerant types will cause the system to fail and void your warranty.

Quantity

Pickup available at 3550 Northwest 113th Court

Usually ready in 2-4 days

Hurry to buy! Get your mini-split system with R-410A refrigerant (offer valid until November 27)

Important info

R-410A is being phased down in favor of newer refrigerants; inventory is limited.
Existing R-410A systems remain serviceable; parts and qualified service are widely available.
Check local codes and rebates. Some incentives prioritize high-efficiency heat pumps (R-32/R-454B).
We stock both R-410A and next-gen options—choose what fits your timeline and budget.

Browse: R-410A systems · R-32 · R-454B

Sierra Wall Mount

OLMO's Multi-Zone Sierra Series is a versatile HVAC solution designed to provide efficient heating and cooling for multiple rooms, equipped with advanced inverter technology for precise temperature control and significant energy savings. Using eco-friendly R410A refrigerant, the system ensures reliable performance with minimal environmental impact. Perfect for residential or commercial applications, the Sierra Series offers quiet operation, flexible installation, and user-friendly controls, making it an ideal choice for maintaining year-round comfort across multiple zones with one efficient system.

Warranty and Tech Support Info

By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.

The manufacturer provides a Limited Warranty of 5 years for the compressor and 2 years for parts.

Warranty terms

White wall-mounted air conditioner with sleek design and modern aesthetic.

Main Features

OLMO's Multi-Zone Sierra Series delivers efficient multi-room comfort with advanced inverter technology for precise temperature control. Its eco-friendly R410A refrigerant reduces environmental impact, while quiet operation ensures minimal disruption. With flexible installation options, sleek design, and reliable heating and cooling, it’s the perfect solution for modern multi-zone climate control needs.

Technical Specifications

Indoor Models	OS-M09SRW-230VI	OS-M12SRW-230VI	OS-M18SRW-230VI	OS-M24SRW-230VI
Power Supply V-Ph-Hz	208/230V-1Ph-60	208/230V-1Ph-60	208/230V-1Ph-60	208/230V-1Ph-60
Cooling
Capacity Btu/h	9000	12000	18000	23400
Heating
Rated Capacity Btu/h	9500	13000	19000	26000
Output Power W	25	25	35	35
Rated Current A	0.11	0.11	0.17	0.17
Indoor Air Flow CFM	341	365	647	706
Indoor Noise Level (Hi/Mi/Lo) dB(A)	39/35/30	39/35/30	45/41/37	47/45/42
Net Dimensions (WxHxD) in	32.02x10.75x8.13	37.38x10.75x8.13	48x12.63x9.25	48x12.63x9.25
Packing (WxHxD) in	39.38x13.19x6.38	39.38x13.19x6.38	51.75x15.44x12.50	51.75x15.44x12.50
Net/Gross Weight lbs	19.84 / 24.25	19.84 / 24.25	31.97 / 37.48	31.97 / 37.48
Refrigerant Piping
Liquid Side / Gas Side in	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	3/8" / 5/8"

Outdoor Models	OS-MSR18-230VO	OS-MSR24-230VO	OS-MSR36-230VO	OS-MSR42-230VO
Power Supply V-Ph-Hz	208/230V-1Ph-60	208/230V-1Ph-60	208/230V-1Ph-60	208/230V-1Ph-60
Capacity Btu/h	18000	24000	32000	42000
Cooling
EER2 Btu/h	12.5	12.5	12.5	10.5
SEER2 Btu/h	21.0	22.0	21.0	20.0
Heating
Rated Capacity Btu/h	18000	24000	36000	42000
HSPF2 Btu/h	9.50	9.05	9.00	8.95
COP2 W/W	3.45	3.66	3.37	3.17
Minimum Circuit Ampacity A	23	25	32.2	35
Max Fuse A	30	30	50	50
Outdoor Air Flow (Hi) CFM	1850	2350	3411	3411
Outdoor Side Noise Level dB(A)	55	55	59	63
Dimensions (WxHxD) in	33.88×26.38×12.25	37.38×33×13.38	37.38×41.38×13.38	37.38×41.38×13.38
Outdoor Unit Packing (WxHxD) in	39×17.75×28.75	43.75×18.13×36.25	43.75×18.13×47.25	43.75×18.13×47.25
Net/Gross Weight lbs	116.8/125.6	158.7/169.5	188.5/220.5	198.4/224.5
Refrigerant
Refrigerant Type/Quantity oz	R410A/63.49	R410A/81.13	R410A/105.82	R410A/120
Refrigerant Precharge ft	50	75	98	98
Refrigerant Piping
Liquid Side / Gas Side in	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"
Max Refrigerant Pipe Length Each/Total ft	82/164	66/197	66/246	66/262
Ambient Temperature
Outdoor (Cooling) °F	14~114.8	14~114.8	14~114.8	14~114.8
Outdoor (Heating) °F	-13~75.2	-13~75.2	-13~75.2	-4~75.2

Multiple Control Methods

Olmo’s can be managed with a user-friendly remote control. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.

Frequently Asked Questions

What size mini split do I need for my room?

For optimal performance, the OLMO Sierra 24,000 BTU model is suitable for spaces up to 1200 sq ft. This makes it ideal for larger rooms or open floor plans.

Can I install a mini split system myself?

While DIY installation is possible, it is recommended to have a professional install the OLMO Sierra for best results. This unit operates at 230V and involves connecting up to 25 ft of line set, which can be complex for inexperienced users.

Does the mini split come pre-charged with refrigerant?

Yes, the OLMO Sierra comes pre-charged with R410A refrigerant for up to 25 ft of line set. This allows for easier installation, though additional refrigerant may be necessary for longer runs.

What voltage does the mini split require?

The OLMO Sierra operates on a 230V electrical system, which is standard for residential mini split installations. Ensure your electrical setup matches this voltage for proper operation.

What warranty does the OLMO Sierra offer?

The OLMO Sierra comes with a 5-year parts and compressor warranty, providing peace of mind for your investment. This warranty covers essential components, ensuring long-term reliability.

What SEER rating do I need for energy efficiency?

The OLMO Sierra boasts an impressive SEER rating of 22.0, which exceeds the minimum efficiency standards. A higher SEER rating means lower energy costs and better overall performance, making it a great choice for energy-conscious consumers.
