OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R454B - Mini Split Air Conditioner Heat Pump

Name: OLMO Sierra 36,000 BTU Outdoor Condenser, 230V, R454B - Mini Split Air
Brand: OLMO
SKU: OS-RMS36-230VO
Price: 2202.0 USD
Availability: InStock

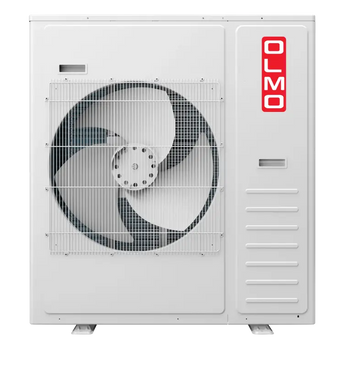

White OLMO Sierra 36k BTU outdoor condenser with r454b grille

OLMO5-Yr Warranty

OS-RMS36-230VO

Product specifications

Brand	Olmo
Voltage	230V
SEER	22
WiFi	Not Included
Type	Outdoor Unit
Freon	R454B
Compressor	Inverter

$2,202.00

Shipping Policy calculated at checkout.

Product variants

⛔ Wait! This is an Individual Component To build a working system, this unit must match your other equipment in two ways:

Same Brand Only: Only pair with other same Brand and Series.
Same Refrigerant: Both units must use the exact same gas type (R454B, R32, or R410A).

Mixing different brands or refrigerant types will cause the system to fail and void your warranty.

Quantity

Pickup available at 3550 Northwest 113th Court

Usually ready in 2-4 days

Sierra Wall Mount

OLMO's Multi-Zone Sierra Series is a versatile HVAC solution that provides efficient heating and cooling for multiple rooms, featuring advanced inverter technology for precise temperature control and significant energy savings. Using eco-friendly R410A refrigerant, the system delivers reliable performance with minimal environmental impact. Ideal for both residential and commercial applications, the Sierra Series combines quiet operation, flexible installation, and user-friendly controls, making it a perfect choice for maintaining year-round comfort across multiple zones with one efficient system.

Warranty and Tech Support Info

By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.

The manufacturer provides a Limited Warranty of 5 years for the compressor and 2 years for parts.

Warranty terms

White wall-mounted air conditioner with sleek design and modern aesthetic.

Main Features

OLMO's Multi-Zone Sierra Series delivers efficient multi-room comfort with advanced inverter technology for precise temperature control. Its eco-friendly R454B refrigerant reduces environmental impact, while quiet operation ensures minimal disruption. With flexible installation options, sleek design, and reliable heating and cooling, it’s the perfect solution for modern multi-zone climate control needs.

Technical Specifications

Indoor Models	OS-RM09SW-230VI	OS-RM12SW-230VI	OS-RM18SW-230VI	OS-RM24SW-230VI
Power Supply (V-Ph-Hz)	208/230V-1Ph-60	208/230V-1Ph-60	208/230V-1Ph-60	208/230V-1Ph-60
Cooling Capacity (Btu/h)	9000	12000	18000	23400
Heating Rated Capacity (Btu/h)	9500	13000	19000	26000
Output Power (W)	25	25	35	35
Rated Current (A)	0.11	0.11	0.17	0.17
Indoor Air Flow (CFM)	341	365	647	706
Indoor Noise Level (Hi/Mi/Lo) (dB(A))	39/35/30	39/35/30	45/41/37	47/45/42
Net Dimensions (WxHxD) (in)	32.02x10.75x8.13	37.38x10.75x8.13	48x12.63x9.25	48x12.63x9.25
Packing (WxHxD) (in)	39.38x13.19x6.38	39.38x13.19x6.38	51.75x15.44x12.50	51.75x15.44x12.50
Net/Gross Weight (lbs)	19.84 / 24.25	19.84 / 24.25	31.97 / 37.48	31.97 / 37.48
Refrigerant Piping (Liquid Side / Gas Side) (in)	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	3/8" / 5/8"

Outdoor Models	OS-RMS18-230VO	OS-RMS24-230VO	OS-RMS36-230VO	OS-RMS42-230VO
Power Supply (V-Ph-Hz)	208/230V-1Ph-60	208/230V-1Ph-60	208/230V-1Ph-60	208/230V-1Ph-60
Cooling Capacity (Btu/h)	18000	27000	36000	42000
EER2	13.33	12.85	12.85	12.0
SEER2	22.0	23.0	22.0	22.0
Heating Rated Capacity (Btu/h)	18000	27000	36000	36000
HSPF2	10.0	10.0	10.0	9.5
COP2 (W/W)	3.82	3.60	3.91	3.60
Max Fuse (A)	30	40	50	60
Outdoor Air Flow (Hi) (CFM)	1850	3357	3357	3357
Outdoor Side Noise Level (dB(A))	55	62	64	64
Dimensions (WxHxD) (in)	33.88x26.38x12.25	38.38x32.88x14.12	38.38x32.88x14.12	38.38x32.88x14.12
Outdoor Unit Packing (WxHxD) (in)	39x28.75x17.75	43.75x37.75x18.12	43.75x37.75x18.12	43.75x37.75x18.12
Net/Gross Weight (lbs)	101.4/112.4	160.6/183.2	169.8/191.8	172/194
Refrigerant Type/Quantity (oz)	R454B/51.15	R454B/76.2	R454B/105.8	R454B/105.8
Refrigerant Piping (Liquid Side / Gas Side) (in)	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"
Max Refrigerant Pipe Length Each/Total (ft)	82/164	82/230	82/230	82/262
Ambient Outdoor (Cooling) (°F)	5~125	5~125	5~125	5~125
Ambient Outdoor (Heating) (°F)	-13~75	-13~75	-13~75	4~75

Multiple Control Methods

Olmo’s Multi-Zone Sierra Series can be managed with a user-friendly remote control and the. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.

Frequently Asked Questions

What size mini split do I need for my home?

The Olmo Sierra 36,000 BTU outdoor condenser is ideal for spaces up to 1500 sq ft, making it suitable for larger rooms or open-concept areas. To determine the right size for your specific needs, consider factors like insulation, ceiling height, and local climate.

How much does a mini split system like Olmo cost?

The price of an Olmo mini split system can vary based on installation options, but generally, the Olmo Sierra 36,000 BTU unit offers an efficient solution with a SEER rating of 22.0, which can lead to lower energy bills over time.

Can I install an Olmo mini split myself, or do I need a professional?

While the Olmo Sierra can be installed without professional help, it’s advisable to hire an HVAC technician for optimal performance. DIY installation may void the warranty, which includes a 5-year parts and compressor warranty, so weigh your options carefully.

Does the Olmo mini split come pre-charged with refrigerant?

Yes, the Olmo Sierra mini split system is pre-charged with R454B refrigerant for up to 25 ft of line set, making installation more straightforward. Just ensure that the line set used does not exceed this length for optimal performance.

What voltage does the Olmo mini split require?

The Olmo Sierra operates on a 230V electrical system, which is standard for residential mini splits in many areas. Ensure your home’s electrical supply matches this requirement to avoid compatibility issues.

What warranty does the Olmo Sierra mini split offer?

The Olmo Sierra comes with a 5-year parts and compressor warranty, providing peace of mind for your investment. This warranty is a testament to the reliability and quality of the Olmo brand.
