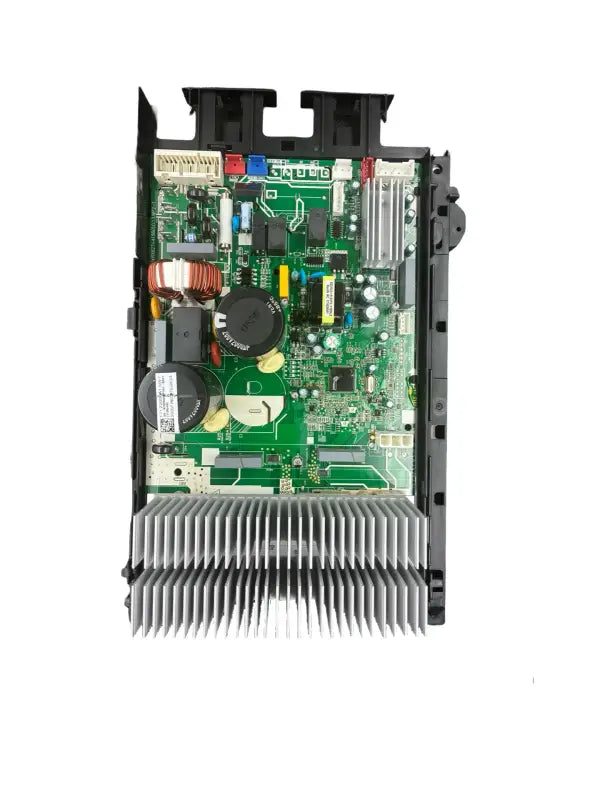

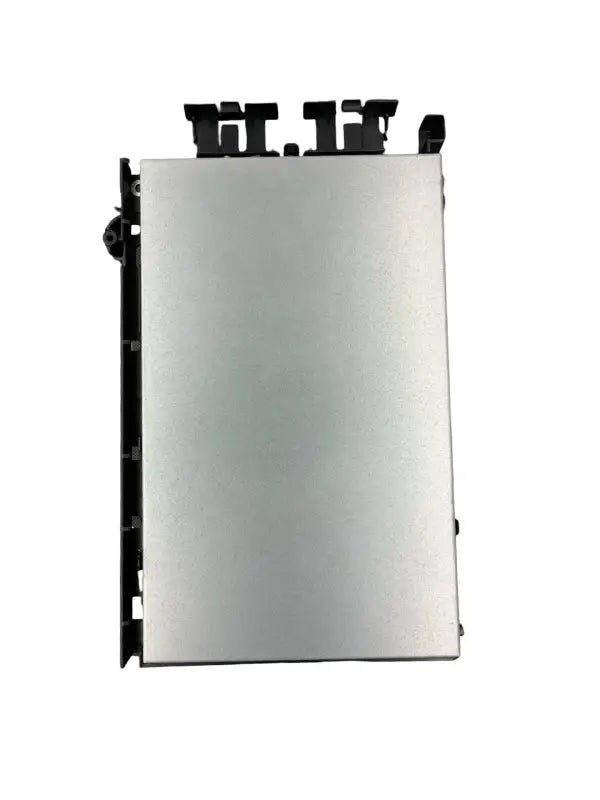

US-KFR26W/BP3N1-BA01 17122000019195 / 17122000A13697 Outdoor main control board subassembly

Name: US-KFR26W/BP3N1-BA01 17122000019195 / 17122000A13697 Outdoor main cont
Brand: HVAC Express Parts
SKU: 17122000A13697
Price: 269.99 USD
Availability: InStock

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts

17122000A13697

Product specifications

Model Number	US-KFR26W/BP3N1-BA01
Application	Outdoor Unit
Dimensions	9 3/46 3/82 3/8

$269.99

Shipping Policy calculated at checkout.

Model: US-KFR26W/BP3N1-BA01

US-KFR26W/BP3N1-BA01

Product variants

Quantity

All brand names and model numbers are used for compatibility reference only. MiniSplitsForLess (minisplitsforless.com) is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

Need help with parts? Call (786) 223-7655.

All part sales are final.

Pickup available at HVAC Express Parts (Hialeah)

Usually ready in 24 hours

Free ShippingFast delivery across the USA

Nationwide Shipping — Fast & ReliableCoast-to-coast coverage across the USA

Shipping & DeliveryPolicy & FAQs

HVAC Control Board - Outdoor main control board subassembly

This professional-grade outdoor main control board subassembly is engineered to meet the exact specifications of your HVAC system, ensuring optimal performance and long-lasting reliability. Our control boards are manufactured using high-quality components and undergo rigorous testing to guarantee compatibility and durability.

Designed as a direct OEM replacement, this control board offers seamless integration with your existing system while maintaining the same high standards of performance you expect. The precision-engineered circuitry provides accurate control and monitoring of your HVAC unit's critical functions.

Each board comes with comprehensive technical specifications and is backed by our commitment to quality, making it the ideal choice for both professional technicians and facility maintece teams.

Product Specifications

Part Number	17122000A13697
Compatible Model	US-KFR26W/BP3N1-BA01
Unit Type	Outdoor
Application	Outdoor Unit
Voltage	115V
Zone Configuration	Singlezone
Dimensions	9 3/46 3/82 3/8
PCB Reference	17122000019195
Shipping Package Dimensions	12x10x8, weight 4lb.

Features & Benefits

OEM quality replacement part
Direct fit installation
Manufactured to original specifications
Comprehensive quality testing
Professional grade reliability

Compatibility Chart

BOSCH	BMS500-AAS009-0CSXXA
COMFORTSTAR	CPP009CA(O)
Cooper&Hunter	CH-09SPH-115VO
EMI	SZ1H09AAA
KLIMAIRE	KSIE009-H121-O
MIDEA	MCHS-09PSH1
THERMOCORE SYSTEMS	T323S-H109-C

Quality Assurance

Every control board undergoes comprehensive testing including electrical functionality, environmental stress testing, and quality control inspection to ensure it meets or exceeds original manufacturer specifications.

Technical Specifications

part number	17122000A13697
compatible model	US-KFR26W/BP3N1-BA01
unit type	Outdoor
application	Outdoor Unit
voltage	115V
zone configuration	Singlezone
dimensions	9 3/46 3/82 3/8
pcb reference	17122000019195
shipping package dimensions	12x10x8, weight 4lb.
sku	17122000A13697
width: (packaged size)	12.00 (in)
height: (packaged size)	10.00 (in)
depth: (packaged size)	8.00 (in)
