US1-KFR105W/BP3T4N1-D30 17122000048172 / 17122300001154 Main Control Board Subassembly

Name: US1-KFR105W/BP3T4N1-D30 17122000048172 / 17122300001154 Main Control B
Brand: HVAC Express Parts
SKU: 17122300001154
Price: 159.99 USD
Availability: OutOfStock

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts

17122300001154

Product specifications

Model Number	US1-KFR105W/BP3T4N1-D30
Application	Outdoor Unit
Dimensions	7 1/49 15/162 1/4

$159.99 Sold out

Shipping Policy calculated at checkout.

Model: US1-KFR105W/BP3T4N1-D30

US1-KFR105W/BP3T4N1-D30

Product variants

All brand names and model numbers are used for compatibility reference only. MiniSplitsForLess (minisplitsforless.com) is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

Need help with parts? Call (786) 223-7655.

All part sales are final.

Pickup currently unavailable at HVAC Express Parts (Hialeah)

Free ShippingFast delivery across the USA

Nationwide Shipping — Fast & ReliableCoast-to-coast coverage across the USA

Shipping & DeliveryPolicy & FAQs

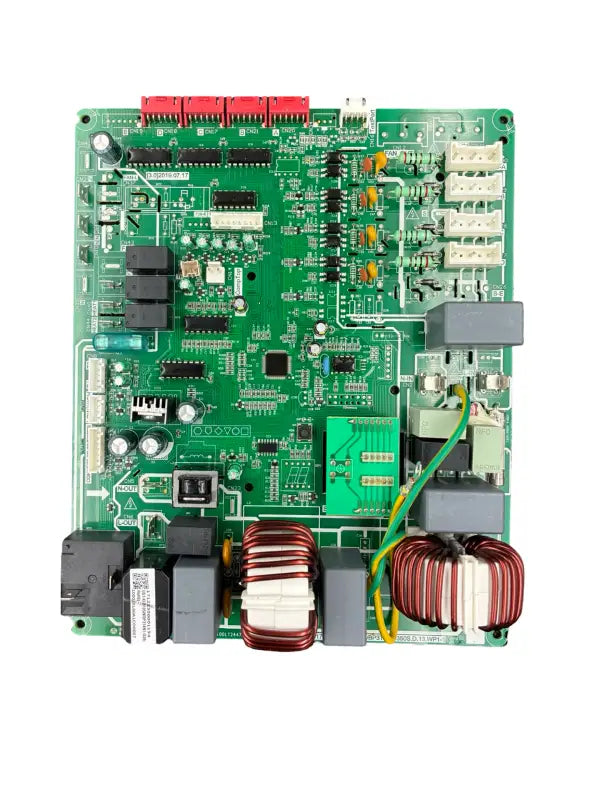

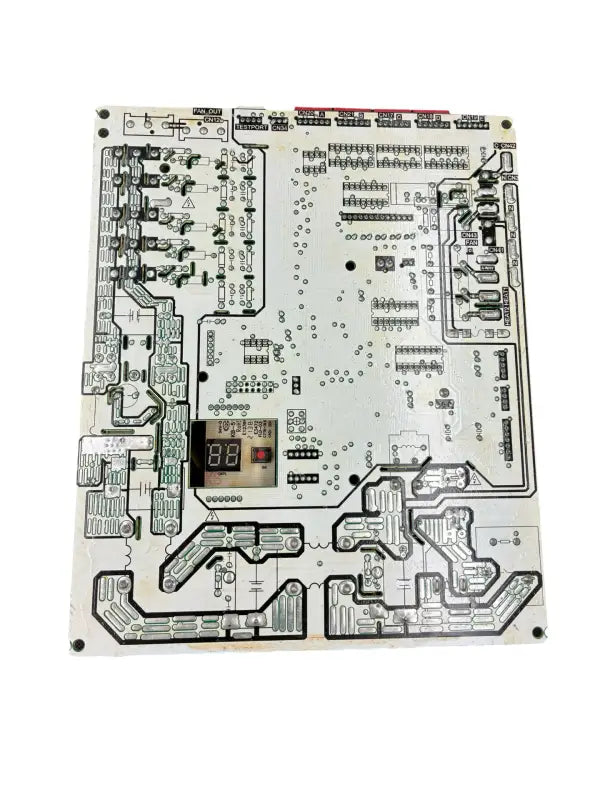

HVAC Control Board - Main Control Board Subassembly

This professional-grade main control board subassembly is engineered to meet the exact specifications of your HVAC system, ensuring optimal performance and long-lasting reliability. Our control boards are manufactured using high-quality components and undergo rigorous testing to guarantee compatibility and durability.

Designed as a direct OEM replacement, this control board offers seamless integration with your existing system while maintaining the same high standards of performance you expect. The precision-engineered circuitry provides accurate control and monitoring of your HVAC unit's critical functions.

Each board comes with comprehensive technical specifications and is backed by our commitment to quality, making it the ideal choice for both professional technicians and facility maintece teams.

Product Specifications

Part Number	17122300001154
Compatible Model	US1-KFR105W/BP3T4N1-D30
Unit Type	Outdoor
Application	Outdoor Unit
Voltage	230V
Zone Configuration	Multizone
Dimensions	7 1/49 15/162 1/4
PCB Reference	17122000048172
Shipping Package Dimensions	10x10x6, weight 2lb.
Reference Code	100LT244725A0

Features & Benefits

OEM quality replacement part
Direct fit installation
Manufactured to original specifications
Comprehensive quality testing
Professional grade reliability

Compatibility Chart

AC PRO	2PAMSH36-MZO4 A4OF-36HFN1-M
AIR-PRO	AP4OF-36OMUL
Airlux	AM4M36O
BLUERIDGE	BM36M23C
BOSCH	BMS500-AAM036-1 CSXXA
BREEZE 33	BZ33-HP364Z2 BZ33-HYP36HP4Z2
CanAir	C23MC436H21
CARRIER	38MGRQ30D--3
CLASSIC	MMCUC36AS4
COMFEE	M4OF-36HFN1-M
COMFORTSTAR	CM4-48-4Z
Continental	CMZH-36-O
Cooper&Hunter	CH36MSPH230VO
Dancool	DANMZ36-OD4
DIAMONDAIR	DF36MZ4
DIRECT AIR	M40F-36HFN1-M M4OF-36HFN1-M
ECO AIR	M4OF-36HFN1-M
Elios	DE36HOM23230X2
EMI	MZ2H36DAA MZ4H36DAA
FLOUU	36K OUTDOOR
GAIR	G4OF-36HFN1-M G4OF-36HFN1-M-GR
Garrison	3554192
GOODMAN	MST363E21MCAA
KANIONco	KWSMO-36R410AIH
KARDA	2KARDA36MZ4
Klimaire	KMIR436-H217
KOLDFRONT	M4OF-36HFN1-M
KOOLKING	M4OF-36HFN1-M
MDV	M4OF-36HFN1-M
MIDEA	DLCMRAH36DAK M4OF-36HFN1-M MCH4U-36PHH2
MIRAGE	CSC361X OVMH361A
MOOVAIR	DM36HOM23230X2
MR COOL	MULTI4-36HP230V1
NAPOLEON	NMZO-36F-B
Novair	36EVANVMO
Perfect Aire	2PAMSH36-MZO4
PIONEER	YN040GMFI22M4D
PRESTIGE	PMR-36R4-MA
Senville	SENA/36HF/MOZ
SlimAir	SHC4Z36-VB2
STAR AIR KONTROL	SAK-36-22MUZ/220(OUT)
SUPER AIR	SN-36000MIO-4
TGM	MMCUT36AS2 MMCUT36AS4
THERM-AIRE	M4OF-36HFN1-M
Thermocore Systems	T323D-H248-C
YORK	YU4E36YJ6AMHO-Y

Quality Assurance

Every control board undergoes comprehensive testing including electrical functionality, environmental stress testing, and quality control inspection to ensure it meets or exceeds original manufacturer specifications.

Technical Specifications

part number	17122300001154
compatible model	US1-KFR105W/BP3T4N1-D30
unit type	Outdoor
application	Outdoor Unit
voltage	230V
zone configuration	Multizone
dimensions	7 1/49 15/162 1/4
pcb reference	17122000048172
shipping package dimensions	10x10x6, weight 2lb.
reference code	100LT244725A0
sku	17122300001154
width: (packaged size)	10.00 (in)
height: (packaged size)	10.00 (in)
depth: (packaged size)	6.00 (in)
