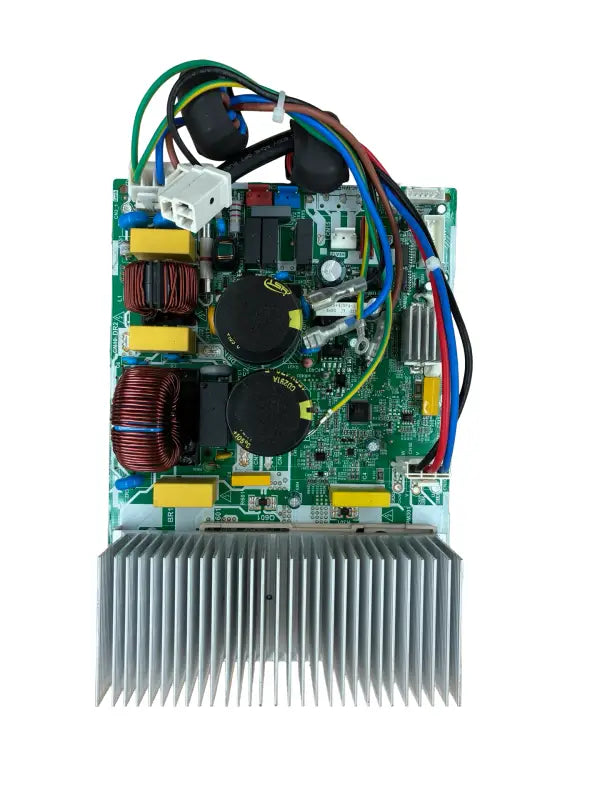

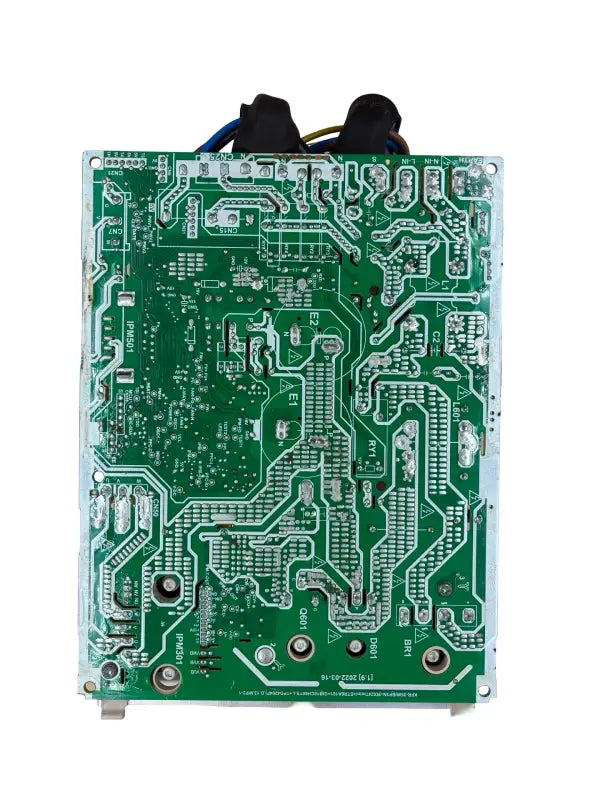

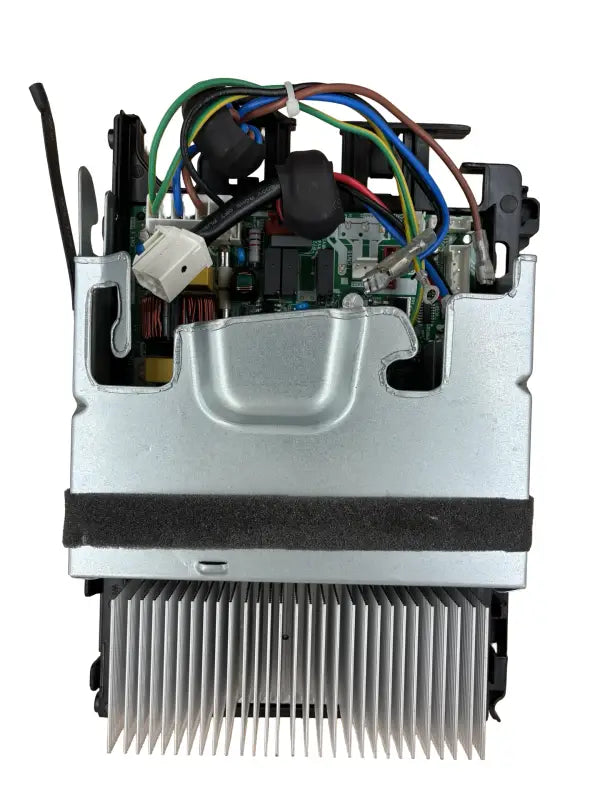

US1-KFR26W/BP3N1-X230 17122000048121 / 17222000037700 Electronic control box subassembly

Name: US1-KFR26W/BP3N1-X230 17122000048121 / 17222000037700 Electronic contr
Brand: HVAC Express Parts
SKU: 17222000037700
Price: 279.99 USD
Availability: InStock

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts

17222000037700

Product specifications

Model Number	US1-KFR26W/BP3N1-X230
Application	Outdoor Unit
Dimensions	10 5/87 1/23

$279.99

Shipping Policy calculated at checkout.

Model: US1-KFR26W/BP3N1-X230

US1-KFR26W/BP3N1-X230

Product variants

Quantity

All brand names and model numbers are used for compatibility reference only. MiniSplitsForLess (minisplitsforless.com) is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

Need help with parts? Call (786) 223-7655.

All part sales are final.

Pickup available at HVAC Express Parts (Hialeah)

Usually ready in 24 hours

Free ShippingFast delivery across the USA

Nationwide Shipping — Fast & ReliableCoast-to-coast coverage across the USA

Shipping & DeliveryPolicy & FAQs

HVAC Control Board - Electronic control box subassembly

This professional-grade electronic control box subassembly is engineered to meet the exact specifications of your HVAC system, ensuring optimal performance and long-lasting reliability. Our control boards are manufactured using high-quality components and undergo rigorous testing to guarantee compatibility and durability.

Designed as a direct OEM replacement, this control board offers seamless integration with your existing system while maintaining the same high standards of performance you expect. The precision-engineered circuitry provides accurate control and monitoring of your HVAC unit's critical functions.

Each board comes with comprehensive technical specifications and is backed by our commitment to quality, making it the ideal choice for both professional technicians and facility maintece teams.

Product Specifications

Part Number	17222000037700
Compatible Model	US1-KFR26W/BP3N1-X230
Unit Type	Outdoor
Application	Outdoor Unit
Voltage	230V
Zone Configuration	Singlezone
Dimensions	10 5/87 1/23
PCB Reference	17122000048121
Shipping Package Dimensions	12x10x8, weight 4lb.
Reference Code	100LP247285D0

Features & Benefits

OEM quality replacement part
Direct fit installation
Manufactured to original specifications
Comprehensive quality testing
Professional grade reliability

Compatibility Chart

AC PRO	AOX230-09HFN1-MW5W
AI Air Conditioning	AO25-06N1-M1H
AI Air Conditioninng	AO25-06N1-M1H
Airdach	ACSH0924VM2-D
BAC	MOX230-09HFN1-MW5W
Bluefin	BFMS09PL-01O
BLUERIDGE	BMY6HH27C
BOSCH	BMS500-AAS009-1CSXRC
BREEZE 33	BZ33-HYP06OUT2-G2-P
CanAir	C25SCH09H21
COMFORT AIRE	A-VMH06SV-1
COMFORTSTAR	CZP09CD(O)
Cooper&Hunter	CH-ES09-230VO CH-HPR06F9-230VO
Custom Comfort	CCOXHASZ06HP
Daizuki	DXLC-0923-1Z
Direct Air	DIRM-06HXPRO28-1Z DIRM-09DA25-1Z
Durastar	DRA1U09S1B
ECO AC	EHH-O09BB
Elios	DEA09HOS25230E8
EMI	MHSZ106DA
ICONIC AIR SOLUTION	ICOO09AK
KADEN	KO-PSX06HP-2AAMA KO-PSX09HP-2AAMA
Kerr	A-KMH06SV-1
MIDEA	DLCSRBH06AAK MOX230-09HFN1-MW5W
MOOVAIR	DMA09HOS25230E8
Novair	LEA09SZ25SK-O MOX230-09HFN1-MW5W
RELIEF SCIENCES	LANG09OD25-1
SEA BREEZE+	SZ9H424ZMO
SlimAir	SHC09VE2AG
STAR AIR KONTROL	SAK-09-CC/220V SAK-09-OC/220V
TEMP SHIFT	TSMOX23009HFN1MW5W
Thermocore Systems	T5HH27S-H206-C
Zero	ZMSB-09HV-USHH

Quality Assurance

Every control board undergoes comprehensive testing including electrical functionality, environmental stress testing, and quality control inspection to ensure it meets or exceeds original manufacturer specifications.

Technical Specifications

part number	17222000037700
compatible model	US1-KFR26W/BP3N1-X230
unit type	Outdoor
application	Outdoor Unit
voltage	230V
zone configuration	Singlezone
dimensions	10 5/87 1/23
pcb reference	17122000048121
shipping package dimensions	12x10x8, weight 4lb.
reference code	100LP247285D0
sku	17222000037700
width: (packaged size)	12.00 (in)
height: (packaged size)	10.00 (in)
depth: (packaged size)	8.00 (in)
