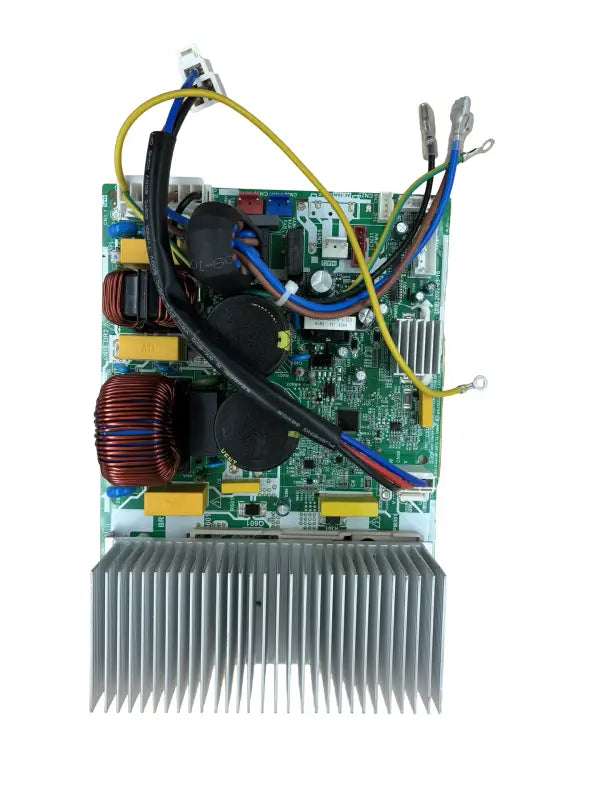

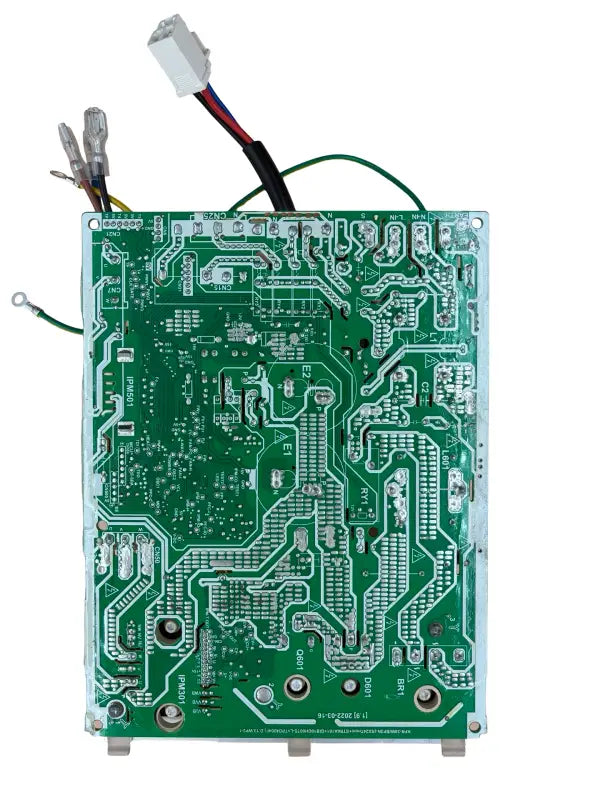

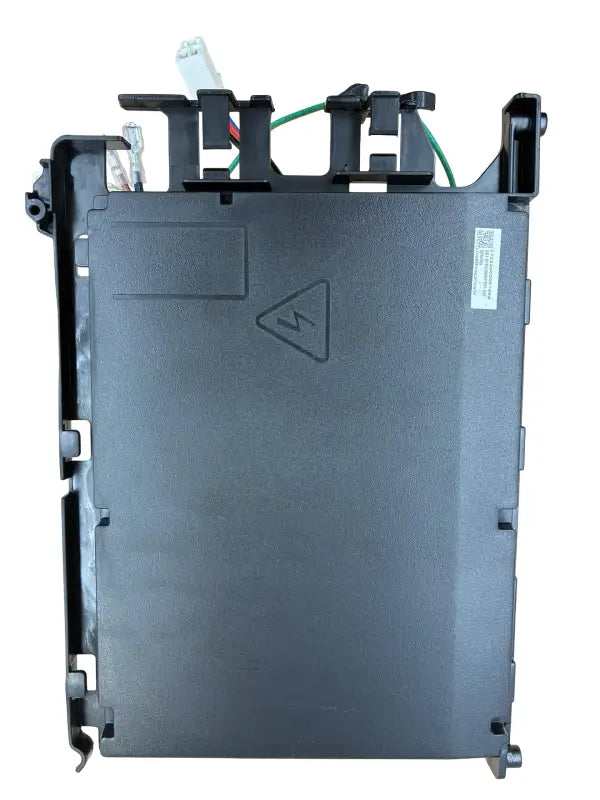

US1-KFR26W/BP3N1-X330 17122000048121 / 17222000037699 Electronic control box subassembly

Name: US1-KFR26W/BP3N1-X330 17122000048121 / 17222000037699 Electronic contr
Brand: HVAC Express Parts
SKU: 17222000037699
Price: 239.99 USD
Availability: InStock

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts

17222000037699

Product specifications

Model Number	US1-KFR26W/BP3N1-X330
Application	Outdoor Unit
Dimensions	10 5/87 1/23

$239.99

Shipping Policy calculated at checkout.

Model: US1-KFR26W/BP3N1-X330

US1-KFR26W/BP3N1-X330

Product variants

Quantity

All brand names and model numbers are used for compatibility reference only. MiniSplitsForLess (minisplitsforless.com) is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

Need help with parts? Call (786) 223-7655.

All part sales are final.

Pickup available at HVAC Express Parts (Hialeah)

Usually ready in 24 hours

Free ShippingFast delivery across the USA

Nationwide Shipping — Fast & ReliableCoast-to-coast coverage across the USA

Shipping & DeliveryPolicy & FAQs

HVAC Control Board - Electronic control box subassembly

This professional-grade electronic control box subassembly is engineered to meet the exact specifications of your HVAC system, ensuring optimal performance and long-lasting reliability. Our control boards are manufactured using high-quality components and undergo rigorous testing to guarantee compatibility and durability.

Designed as a direct OEM replacement, this control board offers seamless integration with your existing system while maintaining the same high standards of performance you expect. The precision-engineered circuitry provides accurate control and monitoring of your HVAC unit's critical functions.

Each board comes with comprehensive technical specifications and is backed by our commitment to quality, making it the ideal choice for both professional technicians and facility maintece teams.

Product Specifications

Part Number	17222000037699
Compatible Model	US1-KFR26W/BP3N1-X330
Unit Type	Outdoor
Application	Outdoor Unit
Voltage	230V
Zone Configuration	Singlezone
Dimensions	10 5/87 1/23
PCB Reference	17122000048121
Shipping Package Dimensions	12x10x8, weight 4lb.
Reference Code	100LP247285D0

Features & Benefits

OEM quality replacement part
Direct fit installation
Manufactured to original specifications
Comprehensive quality testing
Professional grade reliability

Compatibility Chart

AI Air Conditioning	AO25-09N1-M1H
AI Air Conditioninng	AO25-09N1-M1H
Bluefin	BFMS09PR-01O
BREEZE 33	BZ33-HYP09OUT2-G2-P
BRYANT	38MARBQ09AA3
CanAir	C23SCH09H21 C28SCH09H21 MOX330-09HFN1-MY5W
CARRIER	38MARBQ09AA3
COMFORT AIRE	A-VMH09SV-1
COMFORTSTAR	CHF09CD(O)
Convectair	8028-C09-O 8090-O
Cooper&Hunter	CH-HPR09-230VO
CT Morley	MOU-A09H-2
Custom Comfort	CCOXHASZ09HP
DIAMONDAIR	D2009SHO2
Direct Air	DIRM-09HXPRO28-1Z
DUOHOME	DOX330-09HFN1-MY5W
ECO AC	EHP-O09BB
ECO AIR	MOX330-09HFN1-MY5W
EMI	MHSZ109DA
FRANKLIN	MSH093E23MCAA
KANARTIC	KEOS-09UHE-NA
KEPLER	ODUMOX330-09HFN1MY5W
Kerr	A-KMH09SV-1
Klimaire	KSIH009-H225-O-2
MIDEA	DLCSRBH09AAK
Mitsutomo	HO-SZ09-AB-Q
MOOVAIR	DMA09HOS28230E8
MR COOL	O-HH-09-HP-C-230B
MULTI MFG	MSH-09HD-A
NAPOLEON	NDHAS26-09-O NH25-09F-O
Novair	LEA09SZ35SK-O MOX330-09HFN1-MY5W
PREMIUM LEVELLA	PIAW932580B
SEA BREEZE+	HSZ9H424ZMO
Senville	SENA/09HF/OQ
TRUST AIR CONDITIONERS	OAH09H/O4S4P
Zero	ZMSB-09HV-USHHC-O

Quality Assurance

Every control board undergoes comprehensive testing including electrical functionality, environmental stress testing, and quality control inspection to ensure it meets or exceeds original manufacturer specifications.

Technical Specifications

part number	17222000037699
compatible model	US1-KFR26W/BP3N1-X330
unit type	Outdoor
application	Outdoor Unit
voltage	230V
zone configuration	Singlezone
dimensions	10 5/87 1/23
pcb reference	17122000048121
shipping package dimensions	12x10x8, weight 4lb.
reference code	100LP247285D0
sku	17222000037699
width: (packaged size)	12.00 (in)
height: (packaged size)	10.00 (in)
depth: (packaged size)	8.00 (in)
