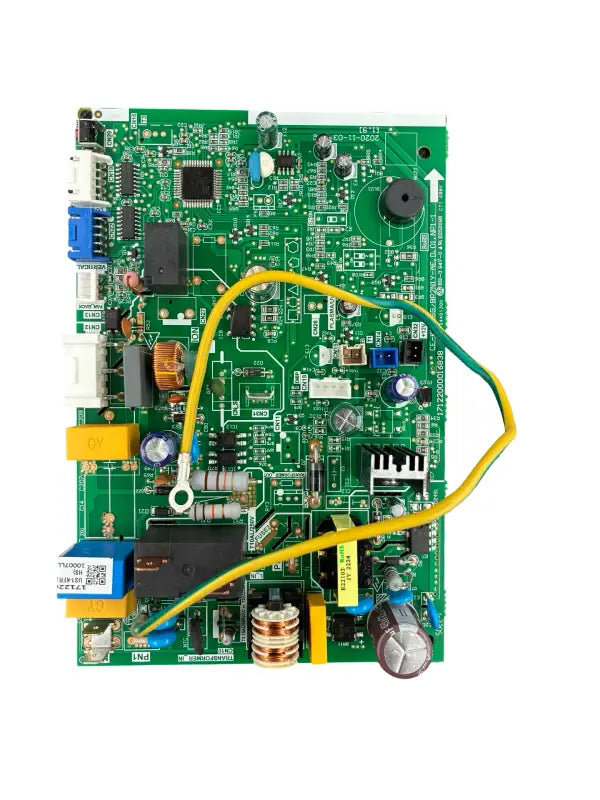

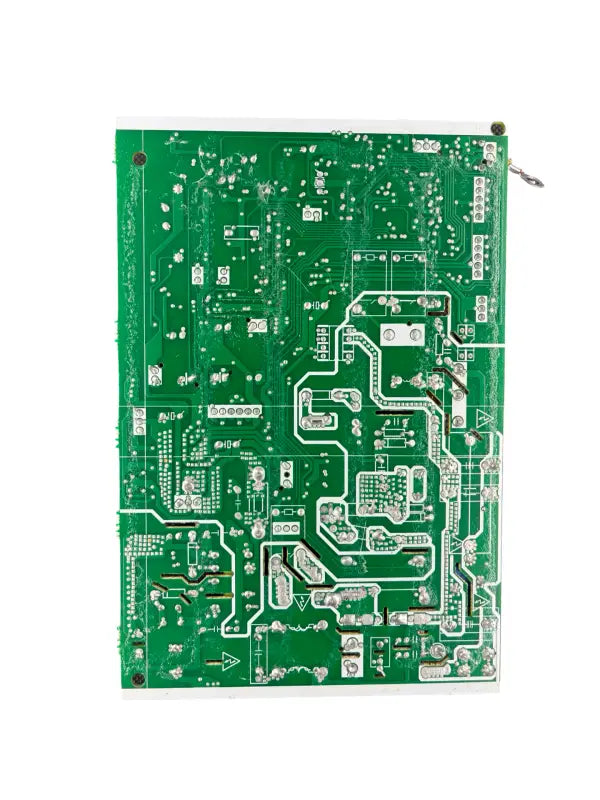

US1-KFR70G/BP2N1Y-AFD(230V) 17122000016838 / 17122000024694 Main Control Board Subassembly

Name: US1-KFR70G/BP2N1Y-AFD(230V) 17122000016838 / 17122000024694 Main Contr
Brand: HVAC Express Parts
SKU: 17122000024694
Price: 69.99 USD
Availability: InStock

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts

17122000024694

Product specifications

Model Number	US1-KFR70G/BP2N1Y-AFD(230V)
Application	Indoor Unit
Dimensions	6 7/84 5/81 3/8

$69.99

Shipping Policy calculated at checkout.

Model: US1-KFR70G/BP2N1Y-AFD(230V)

US1-KFR70G/BP2N1Y-AFD(230V)

Product variants

Quantity

All brand names and model numbers are used for compatibility reference only. MiniSplitsForLess (minisplitsforless.com) is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

Need help with parts? Call (786) 223-7655.

All part sales are final.

Pickup available at HVAC Express Parts (Hialeah)

Usually ready in 24 hours

Free ShippingFast delivery across the USA

Nationwide Shipping — Fast & ReliableCoast-to-coast coverage across the USA

Shipping & DeliveryPolicy & FAQs

HVAC Control Board - Main Control Board Subassembly

This professional-grade main control board subassembly is engineered to meet the exact specifications of your HVAC system, ensuring optimal performance and long-lasting reliability. Our control boards are manufactured using high-quality components and undergo rigorous testing to guarantee compatibility and durability.

Designed as a direct OEM replacement, this control board offers seamless integration with your existing system while maintaining the same high standards of performance you expect. The precision-engineered circuitry provides accurate control and monitoring of your HVAC unit's critical functions.

Each board comes with comprehensive technical specifications and is backed by our commitment to quality, making it the ideal choice for both professional technicians and facility maintece teams.

Product Specifications

Part Number	17122000024694
Compatible Model	US1-KFR70G/BP2N1Y-AFD(230V)
Unit Type	Indoor
Application	Indoor Unit
Voltage	230V
Zone Configuration	Singlezone
Dimensions	6 7/84 5/81 3/8
PCB Reference	17122000016838
Shipping Package Dimensions	10x10x6, weight 2lb.
Reference Code	100LP244013G0

Features & Benefits

OEM quality replacement part
Direct fit installation
Manufactured to original specifications
Comprehensive quality testing
Professional grade reliability

Compatibility Chart

AIR STAR	KTF-24HR/D
CLASSIC AMERICA	KFR70-GW/MA3B
COMFORT AIRE	B-SVH24SA-1
DIAMONDAIR	D1524HMSIF
ECO AIR	MSAFD-23HRDN1-MN10W MSAFD-24HRDN1-MN10W
Elios	D24HIW15230S
GALISI	YSAC24-ID
GOODMAN	MSH243E15AXAA
INNOVA	MSAFD-24HRDN1-MN10W
Keanu	MSAFD-23HRDN1-MN10W
KLIMAIRE	KSIF024-H215-I KSIF024-H215-IW
OLMO	OS-24ALP230VGF/I OS-24HP230V2NG
Senville	SENL24CD/IZ
STAR AIR KONTROL	SAK-24-15MS/220
SUPER AIR	SN-24000MIF

Quality Assurance

Every control board undergoes comprehensive testing including electrical functionality, environmental stress testing, and quality control inspection to ensure it meets or exceeds original manufacturer specifications.

Technical Specifications

part number	17122000024694
compatible model	US1-KFR70G/BP2N1Y-AFD(230V)
unit type	Indoor
application	Indoor Unit
voltage	230V
zone configuration	Singlezone
dimensions	6 7/84 5/81 3/8
pcb reference	17122000016838
shipping package dimensions	10x10x6, weight 2lb.
reference code	100LP244013G0
sku	17122000024694
width: (packaged size)	10.00 (in)
height: (packaged size)	10.00 (in)
depth: (packaged size)	6.00 (in)
