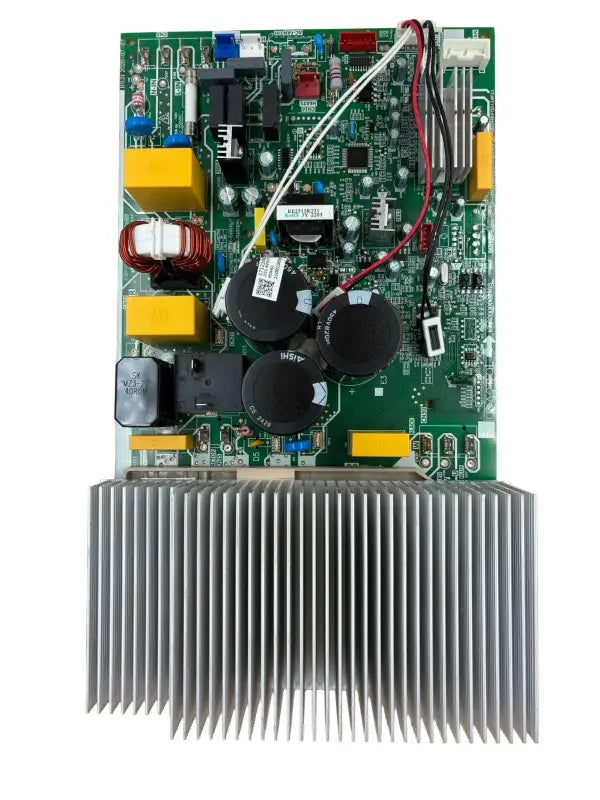

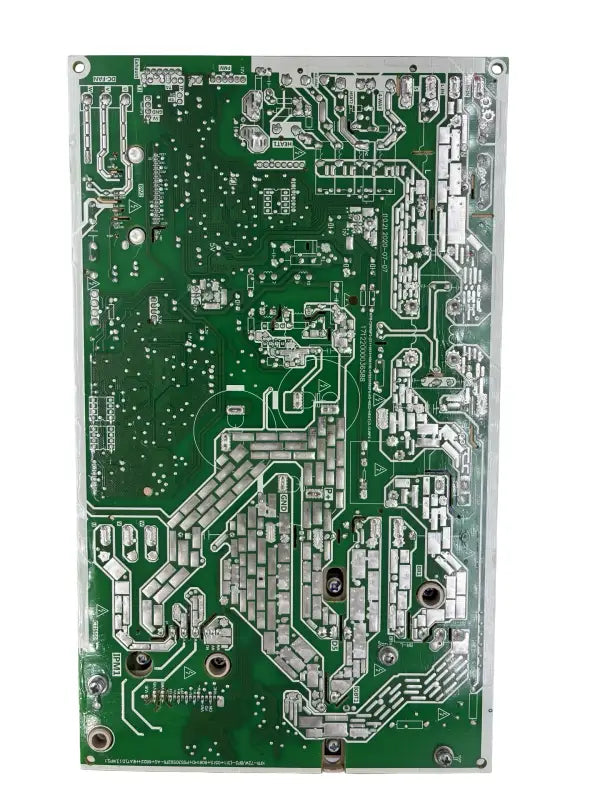

US1-KFR71W/BP3N1-D01 17122000036588 / 17122000A13187 Outdoor main control board subassembly

Name: US1-KFR71W/BP3N1-D01 17122000036588 / 17122000A13187 Outdoor main cont
Brand: HVAC Express Parts
SKU: 17122000A13187
Price: 389.99 USD
Availability: InStock

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts

17122000A13187

Product specifications

Model Number	US1-KFR71W/BP3N1-D01
Application	Outdoor Unit
Dimensions	12 1/47 1/42 7/16

$389.99

Shipping Policy calculated at checkout.

Model: US1-KFR71W/BP3N1-D01

US1-KFR71W/BP3N1-D01

Product variants

Quantity

All brand names and model numbers are used for compatibility reference only. MiniSplitsForLess (minisplitsforless.com) is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

Need help with parts? Call (786) 223-7655.

All part sales are final.

Pickup available at HVAC Express Parts (Hialeah)

Usually ready in 24 hours

Free ShippingFast delivery across the USA

Nationwide Shipping — Fast & ReliableCoast-to-coast coverage across the USA

Shipping & DeliveryPolicy & FAQs

HVAC Control Board - Outdoor main control board subassembly

This professional-grade outdoor main control board subassembly is engineered to meet the exact specifications of your HVAC system, ensuring optimal performance and long-lasting reliability. Our control boards are manufactured using high-quality components and undergo rigorous testing to guarantee compatibility and durability.

Designed as a direct OEM replacement, this control board offers seamless integration with your existing system while maintaining the same high standards of performance you expect. The precision-engineered circuitry provides accurate control and monitoring of your HVAC unit's critical functions.

Each board comes with comprehensive technical specifications and is backed by our commitment to quality, making it the ideal choice for both professional technicians and facility maintece teams.

Product Specifications

Part Number	17122000A13187
Compatible Model	US1-KFR71W/BP3N1-D01
Unit Type	Outdoor
Application	Outdoor Unit
Voltage	230V
Zone Configuration	Singlezone
Dimensions	12 1/47 1/42 7/16
PCB Reference	17122000036588
Shipping Package Dimensions	16x12x8, weight 5lb.

Features & Benefits

OEM quality replacement part
Direct fit installation
Manufactured to original specifications
Comprehensive quality testing
Professional grade reliability

Compatibility Chart

AC PRO	AOD31-24HFN1-MT0W
Airdach	ACSH2420VM1-D
Airlux	ASZ24O
ARCTIC KING	MOD30-24HFN1-MT0W MOD31-24HFN1-MT0W
B AIR	BAM241CMIC BAM241HMIC
BAC	MSABE-24HFN1-MT0W
BEXTAIR	KCA-24HRN1 KD-24R410AH
BLUERIDGE	BM24Y21C
BOSCH	BMS500-AAS024-1 CSXXA BMS500-AAS024-1CSXRA
C&H	CH-24SPH-230VO
CARRIER	38QUA024DS
CIAC	CM43BX024-H3N1H
COMFORTSTAR	AFCD-24CRDN1C CPP024CD(O)
Continental	CH21-24-O
COOLTEK	DX3-23RFMD
DANBY	DAS240BAHWDB-O
Direct Air	MOD31-24HFN1-MT0W
DuctlessAire	DA2421-H2-O
Durastar	DRA1U24S1A
ECO AIR	MOD31-24HFN1-MT0W
Elios	DE24HOS23230E2
EMI	SZ1H24DAA
EÂ·COLD	ECOLD-C23POLAR-G001 ECOLD-C24POLAR-G001
GAIR	GOD30-24HFN1-MT0W
GARRISON	3554189
GOODMAN	MSH243E21MCAA
GREENFLOW	AKTGRE11
Hi-Velocity Systems	HVS-24 MOD31-24HFN1-MT0W
INTENSITY	IDUCOI24KC-3
Klimaire	KSIE024-H220-O
KTC	CEOC-24HFN1 CEOU-24HFN1-US
LENNOX	LISH024000P431-C
LIBERA	LB-MOD31-24HFN1-MT0W
McQuay	MIU134024CCU216A
MDV	MOD30-24HFN1-MT0W
MIDEA	MFM-I242H/HN121 MOD30-24HFN1-MT0W MOD31-24HFN1-MT0W MOD31-24HFN1-MT0W[Midea]
MIRAGE	CLC241M
Mits Air	MOD31-24HFN1-MT0W
MOOVAIR	DM24HOS23230E2
MPN	MPN-24HFN1-MT0W
MR COOL	O-ES-24-HP-C-230
NAPOLEON	NH21-24F-O
Novair	24EVANVO
PEAKE	PCUI-024M-410A
PIONEER	YN024GMFI22RPD
PRESTIGE	PID-24R4-M / O
QUUL	R.Q.AU24NN.OUT R.Q.OS24.OUT
SlimAir	SHC24VB22 SHCD24VB-2
STAR AIR KONTROL	SAK-24-20MS/220 SAK-24-DTMS/220V SAK-AHU-24OD/220VOLT
SUPER AIR	SN-24000MIO2
TGM	MROPT24AS MRSVT24 MRSVT24AS
THERM-AIRE	MCD-24HRFN1-M STA-024SPCF
THERMOCORE SYSTEMS	T321S-H224-C
ULTRA	THODE-24ECONM 220VCASSETTE THODE-24PREMM220V
VICTA	VFU-24A323O
YORK	YEJE24BZJ6AMOW1 outdoor YUJE24BYJ6AMO-X YEJE24BZTMCMOWX outdoor YUJE24BYTMCMO-X YEKE24BZTMCMOWX outdoor YUKE24BYTMCMO-X YFJE24BZJ6AMORX Outdoor: YUJE24BYJ6AMO-X YFJE24BZTMCMORX outdoor YUJE24BYTMCMO-X YFKE24BZTMCMORX outdoor YUKE24BYTMCMO-X YHKE24ZJ6AMBORX Outdoor: YHKE24YJ6AMAO-X YKJE24BZJ6AMORX Outdoor: YUJE24BYJ6AMO-X YKJE24BZTMCMORX outdoor YUJE24BYTMCMO-X YKKE24BZTMCMORX outdoor YUKE24BYTMCMO-X

Quality Assurance

Every control board undergoes comprehensive testing including electrical functionality, environmental stress testing, and quality control inspection to ensure it meets or exceeds original manufacturer specifications.

Technical Specifications

part number	17122000A13187
compatible model	US1-KFR71W/BP3N1-D01
unit type	Outdoor
application	Outdoor Unit
voltage	230V
zone configuration	Singlezone
dimensions	12 1/47 1/42 7/16
pcb reference	17122000036588
shipping package dimensions	16x12x8, weight 5lb.
sku	17122000A13187
width: (packaged size)	16.00 (in)
height: (packaged size)	12.00 (in)
depth: (packaged size)	8.00 (in)
