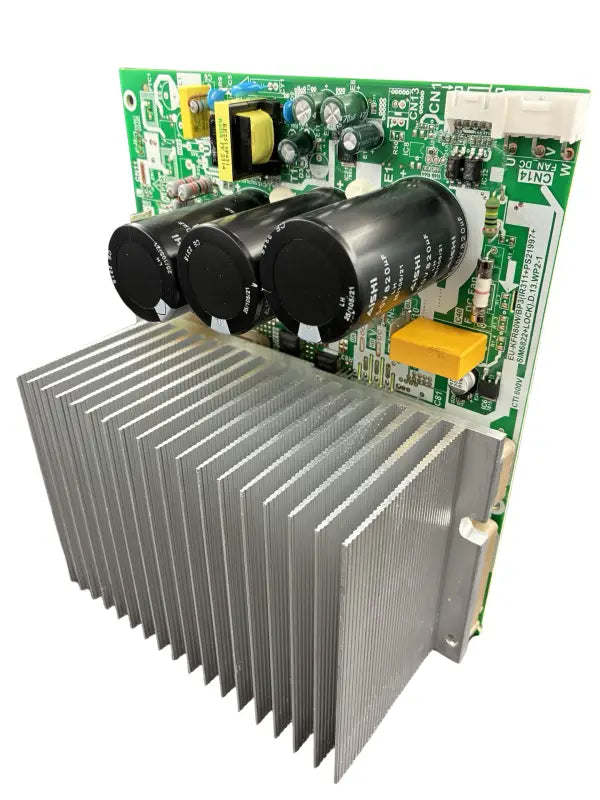

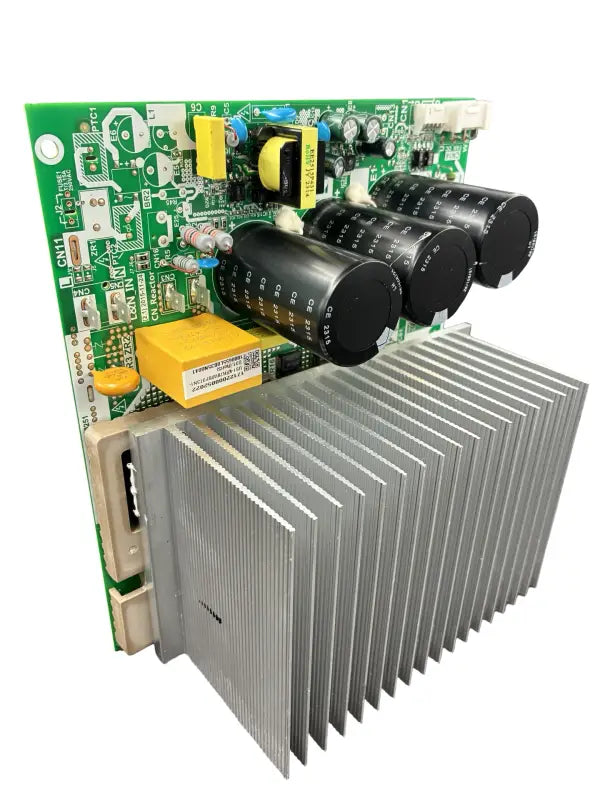

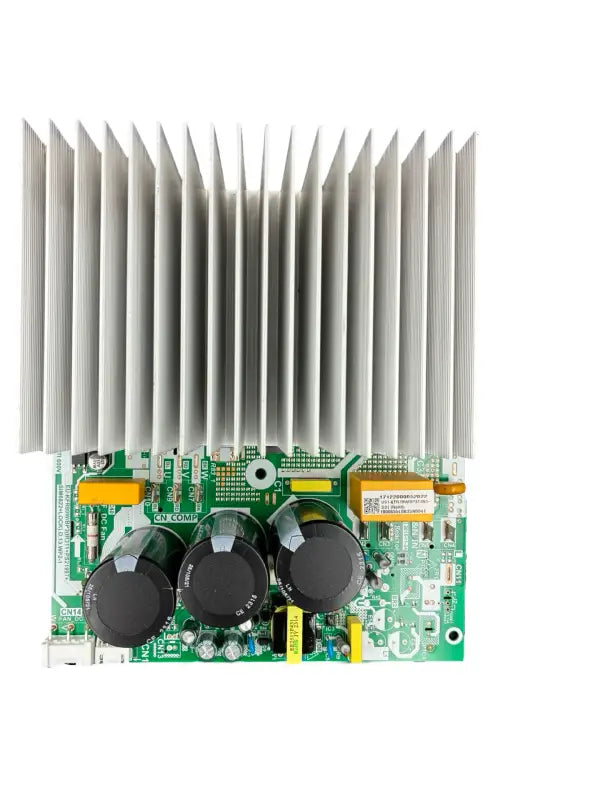

US1-KFR78W/BP3T3N1-D31 17122000018251 / 17122000052022 Inverter module subassembly

Name: US1-KFR78W/BP3T3N1-D31 17122000018251 / 17122000052022 Inverter module
Brand: HVAC Express Parts
SKU: 17122000052022
Price: 389.99 USD
Availability: InStock

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts Ductless Mini Split AC

HVAC Express Parts

17122000052022

Product specifications

Model Number	US1-KFR78W/BP3T3N1-D31
Application	Outdoor Unit
Dimensions	8 1/47 1/23 3/4

$389.99

Shipping Policy calculated at checkout.

Model: US1-KFR78W/BP3T3N1-D31

US1-KFR78W/BP3T3N1-D31

Product variants

Quantity

All brand names and model numbers are used for compatibility reference only. MiniSplitsForLess (minisplitsforless.com) is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

Need help with parts? Call (786) 223-7655.

All part sales are final.

Pickup available at HVAC Express Parts (Hialeah)

Usually ready in 24 hours

Free ShippingFast delivery across the USA

Nationwide Shipping — Fast & ReliableCoast-to-coast coverage across the USA

Shipping & DeliveryPolicy & FAQs

HVAC Control Board - Inverter module subassembly

This professional-grade inverter module subassembly is engineered to meet the exact specifications of your HVAC system, ensuring optimal performance and long-lasting reliability. Our control boards are manufactured using high-quality components and undergo rigorous testing to guarantee compatibility and durability.

Designed as a direct OEM replacement, this control board offers seamless integration with your existing system while maintaining the same high standards of performance you expect. The precision-engineered circuitry provides accurate control and monitoring of your HVAC unit's critical functions.

Each board comes with comprehensive technical specifications and is backed by our commitment to quality, making it the ideal choice for both professional technicians and facility maintece teams.

Product Specifications

Part Number	17122000052022
Compatible Model	US1-KFR78W/BP3T3N1-D31
Unit Type	Outdoor
Application	Outdoor Unit
Voltage	230V
Zone Configuration	Multizone
Dimensions	8 1/47 1/23 3/4
PCB Reference	17122000018251
Shipping Package Dimensions	12x10x8, weight 5.5lb.
Reference Code	100LP236287Q2

Features & Benefits

OEM quality replacement part
Direct fit installation
Manufactured to original specifications
Comprehensive quality testing
Professional grade reliability

Compatibility Chart

AC BEST LA	M3OJ-27HFN1-M
AC PRO	A3OJ-27HFN1-M
ACIQ	ACIQ-18Z-HH-M2B ES-27Z-M3B
AI Air Conditioning	A2MO22-18N1-M1H A3MO21-27N1-M1
AI Air Conditioninng	A2MO22-18N1-M1H A3MO21-27N1-M1
Airdach	AMSH2700VM1-D
Airlux	AM3M27O/2022
APOODR	AM3OJ-27HFN1
AURORA	AU-MU27-2A-U
BLADEX	B20I-18SPHP1
BLUERIDGE	BMM18HHC BMM27C
BOSCH	BMS500-AAM018-1CSXHC BMS500-AAM027-1CSXRC
BREEZE 33	BZ33-HP273Z2-G2-P BZ33-HYP182Z2-G2-P
CanAir	C28MC218H22 C28MC324H21
CLASSIC	MMRSHC27AS3
COMFORT AIRE	A-VMH18DV-1
COMFORTSTAR	CMZ-27-3Z CVH-18-2SH
Convectair	8222-C18-O
Cooper&Hunter	CH-28MES-230VO CH-HPR19M-230VO
CT Morley	MOU-2A18H-2 MOU-3A27G-2
Custom Comfort	CCOXHAMZ218HP
Daizuki	DXFM-2723-3Z
DIAMONDAIR	DF30M2Z3
Direct Air	DIRM-18HXPRO28-2Z DIRM-27DA25-3Z
DuctlessAire	DA27-3Z-0*
DUOHOME	D3OJ-27HFN1-M
Durastar	DRA2H18M1A DRA3U28M1B
DURASTAR SIRIUS HEAT	DRA2H18M1A
ECO AC	EMH-2O18BBH EMH-3O27BB
ECO AIR	M2OI-18HFN1-M M3OJ-27HFN1-M
Elios	DEA18HOM25230X3 DEA27HOM23230X2
EMI	MHMZ218DA
EÂ·COLD	ECOLD-C27-MS-G0001 ECOLD-C27MULTISPLIT-G0001
FRANKLIN	MST183E23MHAA MST183F25MHAA
GAIR	G4OG-27HRDN1
GOODMAN	MST183G22MHAA
ICONIC AIR SOLUTION	ICMO27CK
KADEN	KO-PS327HP-2AAMA
KANIONco	KWSMO-27R410AIHH KWSMO-27R410AIHMV
Karda	3KARDA27MZ3
KEPLER	ODUM2OI-18HFN1-M
Kerr	A-KMH18DV-1
Klimaire	KMIR327-H217-2
KOLIN	KFS-30DAG1M-O
KOPPEL	KVMS30OD3-ARF21C2
MIDEA	DLCMHBH24CAK M3OJ-24HFN1-M M3OJ-27HFN1-M M3OJ-27HFN1-M-CO
Mirage	CSC271Y OVMH271B
Mitsutomo	HO-MD18-AB-Q
MOOVAIR	DMA18HOM25230X3 DMA27HOM23230X2
MR COOL	MULTI3-27HP230B
NG Trade	MOBMH270C
Novair	LEA20MZ-2P-35SK-O LEA27MZ-3P-25SK-O M3OJ-27HFN1-M
Nutech	N3OJ-27HFN1-M
Perfect Aire	3PAMS18-HH-MZO2 3PAMSH27-MZO3
PREMIUM LEVELLA	PIAWMZ278800B
RELIEF SCIENCES	LANG18OD35-2 LANG27OD25-3
SEA BREEZE+	HMZ18H424ZMO MZ27H424ZMO
Senville	SENA-18HF-MOB SENA/30HF/MOQ
SlimAir	SHC2Z18VE2AG SHC3Z27VC2AG
STAR AIR KONTROL	SAK-27-22MUZ/220(OUT)
Swift temp	J3OX-18H-M J3OX-27H-M
TEMP SHIFT	TSM2OI18HFN1M
TGM	MMRSHT27AS3
THERM-AIRE	STA3-027SPWM
Thermocore Systems	T323D-H248-C T424D-H236-C
TKâS	T3C-30HFN1
TRUST AIR CONDITIONERS	M2H18H/O4S4P M3S27H/O4S4P
ULTRA	MOD33-24HFN1-MT0W(M/OUTDOOR)
Viessmann	DLCMHBH24CAK
Wells	WMCA-18HFMO WMMA-27HFMO
YORK	YU3E27YJ6AMXO-X
Zero	Z3SOV-27HDM-US

Quality Assurance

Every control board undergoes comprehensive testing including electrical functionality, environmental stress testing, and quality control inspection to ensure it meets or exceeds original manufacturer specifications.

Technical Specifications

part number	17122000052022
compatible model	US1-KFR78W/BP3T3N1-D31
unit type	Outdoor
application	Outdoor Unit
voltage	230V
zone configuration	Multizone
dimensions	8 1/47 1/23 3/4
pcb reference	17122000018251
shipping package dimensions	12x10x8, weight 5.5lb.
reference code	100LP236287Q2
sku	17122000052022
width: (packaged size)	12.00 (in)
height: (packaged size)	10.00 (in)
depth: (packaged size)	8.00 (in)
