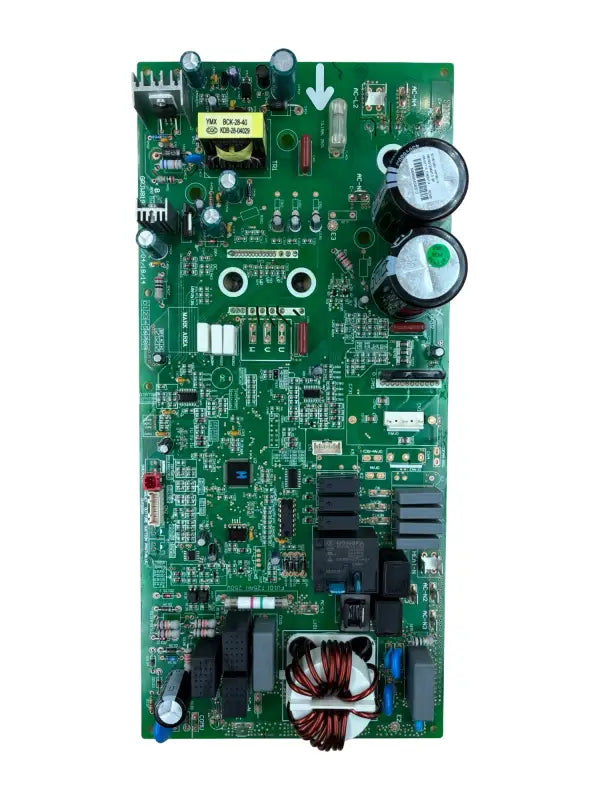

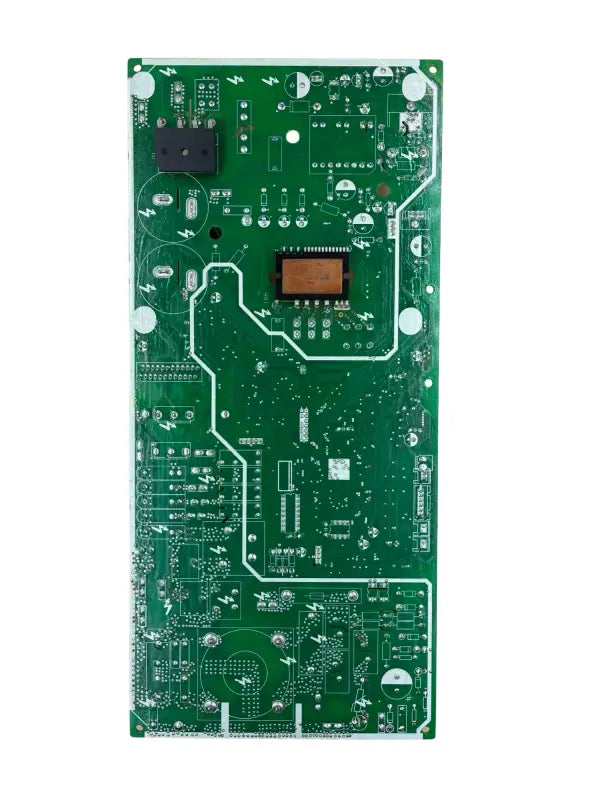

HVAC Control Board - 3013810801
The 3013810801 Main Board is an essential component for ensuring optimal performance in your outdoor HVAC systems. Designed for compatibility with the W8196124AV1.0 model, this control board provides reliable operation and efficient management of heating and cooling functions in single-zone applications.
Product Specifications
| Part Number |
3013810801 |
| Compatible Model |
W8196124AV1.0 |
| Unit Type |
Outdoor |
| Application |
Mini-Split HVAC Systems |
| Voltage |
115.0 |
| Zone Configuration |
Singlezone |
| Dimensions |
N/A |
| PCB Reference |
3013810801 |
| Shipping Package Dimensions |
12 x 8 x 4 inches |
Features & Benefits
- Reliable performance for outdoor HVAC systems.
- Designed for easy installation and compatibility with specific models.
- Ensures efficient operation in single-zone applications.
- Durable construction for long-lasting use in various weather conditions.
Installation & Compatibility
The 3013810801 Main Board is designed for straightforward installation, making it an ideal choice for technicians and DIY enthusiasts alike. It is fully compatible with the W8196124AV1.0 model, ensuring seamless integration into your existing HVAC system.
Quality Assurance
This control board is manufactured to the highest standards, ensuring reliability and performance. It comes with a warranty that guarantees quality and peace of mind for your HVAC needs.
Technical Specifications
| part number |
3013810801 |
| compatible model |
W8196124AV1.0 |
| unit type |
Outdoor |
| application |
Mini-Split HVAC Systems |
| voltage |
115.0 |
| zone configuration |
Singlezone |
| dimensions |
N/A |
| pcb reference |
3013810801 |
| shipping package dimensions |
12 x 8 x 4 inches |
| sku |
3013810801 |
| condition |
New |
| width: (packaged size) |
16.00 (in) |
| height: (packaged size) |
8.00 (in) |
| depth: (packaged size) |
12.00 (in) |
Frequently Asked Questions
Will this fit my system?
This is a replacement/accessory part. Match it to your unit’s model number and specifications before ordering; if you are unsure, contact us with your system model and we will confirm compatibility.
Is this part included with a mini split system, or sold separately?
This listing is for the part on its own. Complete mini split systems list their included components separately on each system’s page.
Do you offer support choosing the right part?
Yes — contact us with your system model number and what you need, and we will help you pick the correct part.
What warranty does it come with?
It is backed by the manufacturer’s limited warranty; professional installation and registration are required to keep coverage valid.
