HVAC Control Board - 10000100328

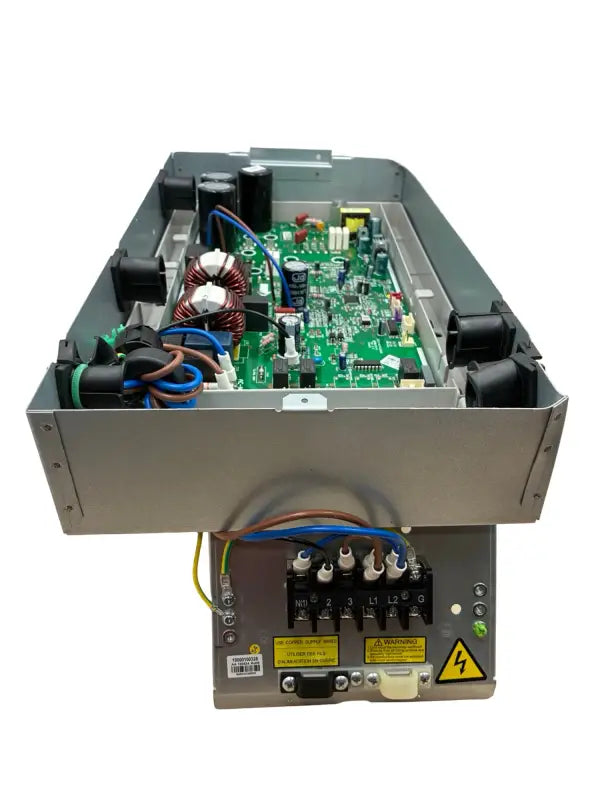

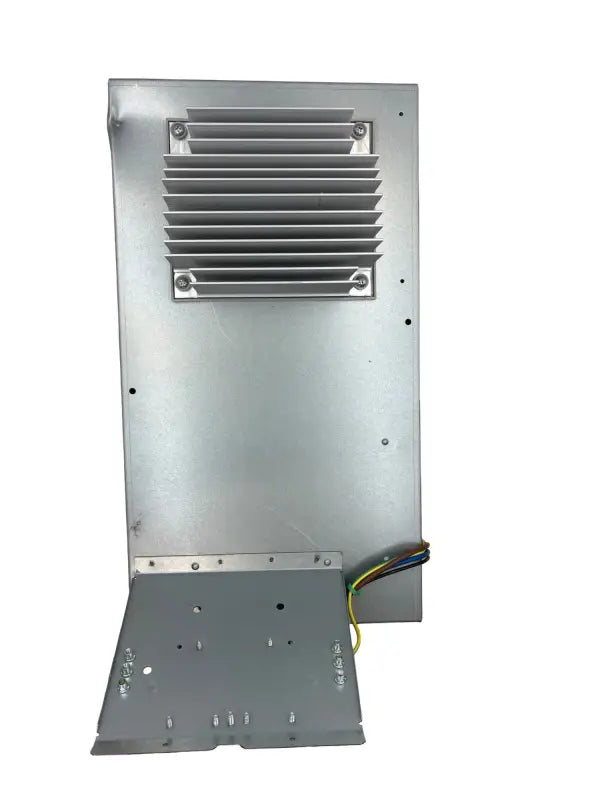

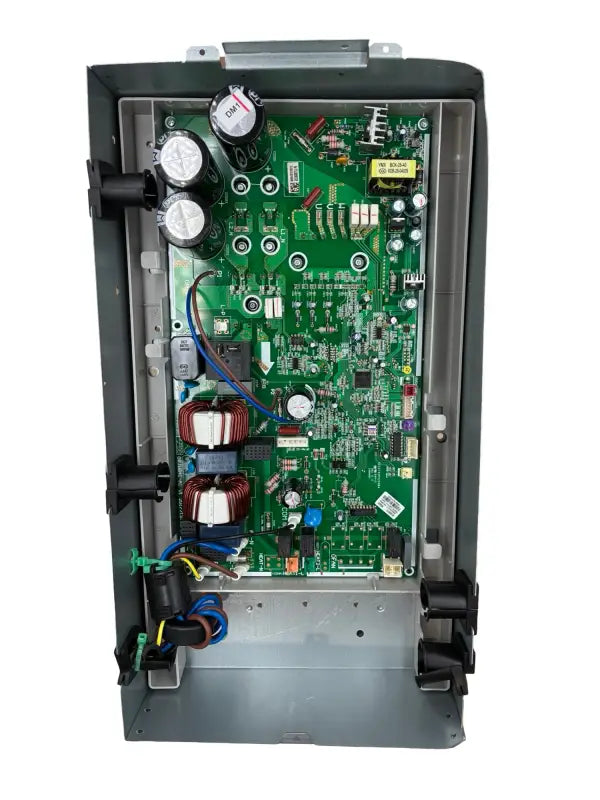

The Electric Box Assembly, part number 10000100328, is a crucial component designed for efficient operation of your HVAC system. Specifically compatible with the W8203KV1.0 model, this control board ensures optimal performance for outdoor unit applications, making it an essential part for maintaining your heating and cooling systems.
Product Specifications
| Part Number |
10000100328 |
| Compatible Model |
W8203KV1.0 |
| Unit Type |
Outdoor |
| Application |
Mini-Split HVAC Systems |
| Voltage |
230.0 |
| Zone Configuration |
Singlezone |
| Dimensions |
N/A |
| PCB Reference |
10000100328 |
| Shipping Package Dimensions |
12 x 8 x 4 inches |
Features & Benefits
- Designed for seamless integration with W8203KV1.0 mini-split systems.
- Operates efficiently at a voltage of 230V, ensuring reliable performance.
- Constructed for outdoor use, providing durability against environmental factors.
- Supports single-zone configurations, ideal for targeted heating and cooling.
Installation & Compatibility
The Electric Box Assembly is engineered for easy installation with the W8203KV1.0 model, allowing for quick replacement and minimal downtime. Its compatibility with outdoor mini-split systems makes it a versatile choice for enhancing HVAC performance.
Quality Assurance
This control board is manufactured to the highest standards, ensuring reliability and longevity. It comes with a warranty that guarantees quality, giving you peace of mind with your purchase.
Technical Specifications
| part number |
10000100328 |
| compatible model |
W8203KV1.0 |
| unit type |
Outdoor |
| application |
Mini-Split HVAC Systems |
| voltage |
230.0 |
| zone configuration |
Singlezone |
| dimensions |
N/A |
| pcb reference |
10000100328 |
| shipping package dimensions |
12 x 8 x 4 inches |
| sku |
10000100328 |
| condition |
New |
| width: (packaged size) |
20.00 (in) |
| height: (packaged size) |
10.00 (in) |
| depth: (packaged size) |
10.00 (in) |
Frequently Asked Questions
Will this fit my system?
This is a replacement/accessory part. Match it to your unit’s model number and specifications before ordering; if you are unsure, contact us with your system model and we will confirm compatibility.
Is this part included with a mini split system, or sold separately?
This listing is for the part on its own. Complete mini split systems list their included components separately on each system’s page.
Do you offer support choosing the right part?
Yes — contact us with your system model number and what you need, and we will help you pick the correct part.
What warranty does it come with?
It is backed by the manufacturer’s limited warranty; professional installation and registration are required to keep coverage valid.
