HVAC Control Board - 10000100013

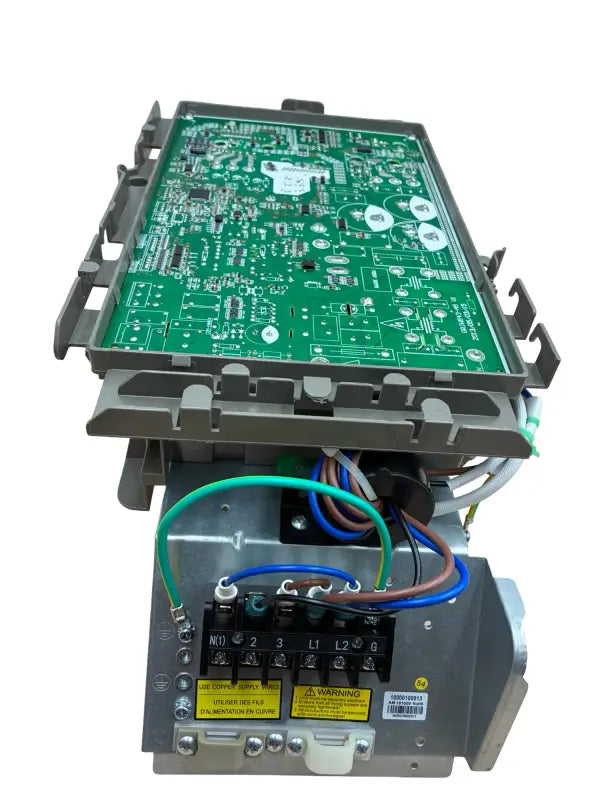

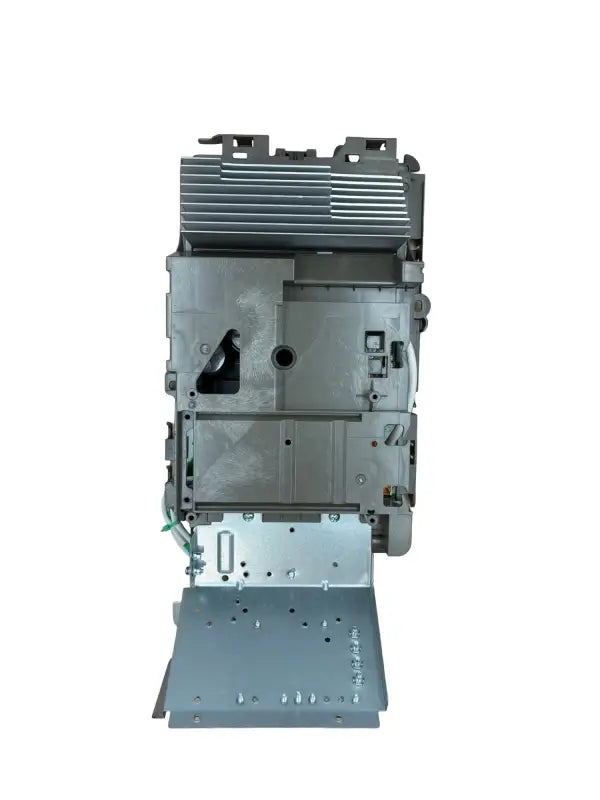

The Electric Box Assembly (Part Number: 10000100013) is a high-quality HVAC control board designed for reliable performance in outdoor environments. This control board is specifically compatible with the W8433CAV1.1 model, making it an essential component for efficient heating and cooling in single-zone applications.
Product Specifications
| Part Number |
10000100013 |
| Compatible Model |
W8433CAV1.1 |
| Unit Type |
Outdoor |
| Application |
Mini-Split HVAC Systems |
| Voltage |
230.0 |
| Zone Configuration |
Singlezone |
| Dimensions |
N/A |
| PCB Reference |
10000100013 |
| Shipping Package Dimensions |
12 x 8 x 4 inches |
Features & Benefits
- Designed for optimal performance in outdoor mini-split HVAC systems.
- High voltage rating of 230.0 ensures compatibility with various setups.
- Singlezone configuration allows for efficient climate control in designated areas.
- Durable construction ensures longevity and reliability in harsh weather conditions.
Installation & Compatibility
The Electric Box Assembly is easy to install and fully compatible with the W8433CAV1.1 model. It is designed to integrate seamlessly into existing HVAC systems, providing a straightforward solution for replacing old or malfunctioning control boards.
Quality Assurance
This product is backed by a quality assurance guarantee, ensuring that it meets high standards of performance and reliability. A limited warranty is included to provide peace of mind with your purchase.
Technical Specifications
| part number |
10000100013 |
| compatible model |
W8433CAV1.1 |
| unit type |
Outdoor |
| application |
Mini-Split HVAC Systems |
| voltage |
230.0 |
| zone configuration |
Singlezone |
| dimensions |
N/A |
| pcb reference |
10000100013 |
| shipping package dimensions |
12 x 8 x 4 inches |
| sku |
10000100013 |
| condition |
New |
| width: (packaged size) |
20.00 (in) |
| height: (packaged size) |
10.00 (in) |
| depth: (packaged size) |
10.00 (in) |
Frequently Asked Questions
Will this fit my system?
This is a replacement/accessory part. Match it to your unit’s model number and specifications before ordering; if you are unsure, contact us with your system model and we will confirm compatibility.
Is this part included with a mini split system, or sold separately?
This listing is for the part on its own. Complete mini split systems list their included components separately on each system’s page.
Do you offer support choosing the right part?
Yes — contact us with your system model number and what you need, and we will help you pick the correct part.
What warranty does it come with?
It is backed by the manufacturer’s limited warranty; professional installation and registration are required to keep coverage valid.
