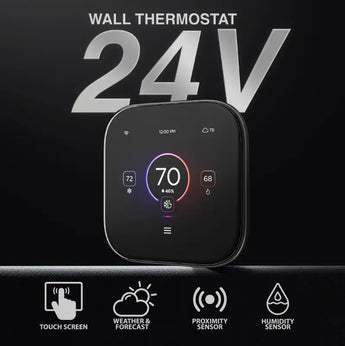

Wired Thermostat with 3.95’’ Touch Display showing temperature and humidity settingsWired Thermostat with 3.95’’ Touch Display showing temperature and humidity settings
Wall-mounted wired thermostat with 3.95-inch touch display and digital temp readoutWall-mounted wired thermostat with 3.95-inch touch display and digital temp readout
Wired Thermostat with 3.95’’ Touch Display showing temperature, compatible with Alexa and Google HomeWired Thermostat with 3.95’’ Touch Display showing temperature, compatible with Alexa and Google Home
Wired Thermostat with 3.95’’ Touch Display and mounting hardware for easy controlWired Thermostat with 3.95’’ Touch Display and mounting hardware for easy control
Electrical connection diagrams for HA&HB communication and 24V wiring on Wired Thermostat with Touch Display ch-wth24vElectrical connection diagrams for HA&HB communication and 24V wiring on Wired Thermostat with Touch Display ch-wth24v
Smartphone showing smart home control app on wired thermostat with touch display and ch-wth24vSmartphone showing smart home control app on wired thermostat with touch display and ch-wth24v
Wired thermostat with 3.95 inch touch display and Cooper & Hunter HVAC unitsWired thermostat with 3.95 inch touch display and Cooper & Hunter HVAC units
Wired Thermostat with 3.95’’ Touch Display showing weather, forecast, and sensors ch-wth24vWired Thermostat with 3.95’’ Touch Display showing weather, forecast, and sensors ch-wth24v
Man adjusting Wired Thermostat with 3.95-inch touch display ch-wth24vMan adjusting Wired Thermostat with 3.95-inch touch display ch-wth24v
Wired Thermostat with 3.95-inch Touch Display showing temperature, humidity, and timeWired Thermostat with 3.95-inch Touch Display showing temperature, humidity, and time
Wired Thermostat with 3.95 inch Touch Display showing temperature, time, and humidity readingsWired Thermostat with 3.95 inch Touch Display showing temperature, time, and humidity readings
Wired Thermostat with 3.95’’ Touch Display showing temperature and humidity settings

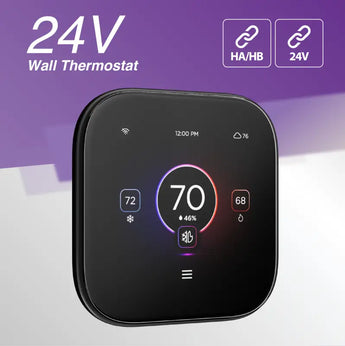

Wall-mounted wired thermostat with 3.95-inch touch display and digital temp readout
Wired Thermostat with 3.95’’ Touch Display showing temperature, compatible with Alexa and Google Home

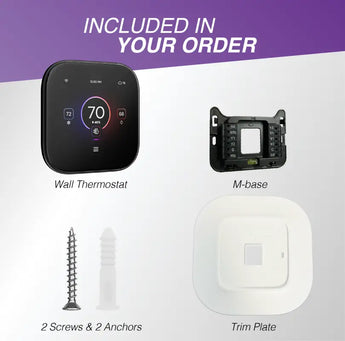

Wired Thermostat with 3.95’’ Touch Display and mounting hardware for easy control
Electrical connection diagrams for HA&HB communication and 24V wiring on Wired Thermostat with Touch Display ch-wth24v
Smartphone showing smart home control app on wired thermostat with touch display and ch-wth24v
Wired thermostat with 3.95 inch touch display and Cooper & Hunter HVAC units
Wired Thermostat with 3.95’’ Touch Display showing weather, forecast, and sensors ch-wth24v
Man adjusting Wired Thermostat with 3.95-inch touch display ch-wth24v

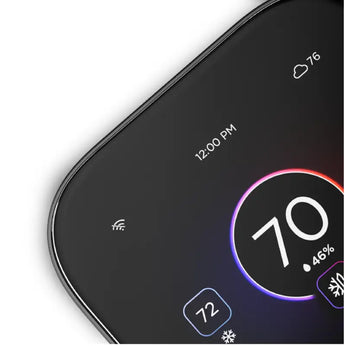

Wired Thermostat with 3.95-inch Touch Display showing temperature, humidity, and time
Wired Thermostat with 3.95 inch Touch Display showing temperature, time, and humidity readings

Cooper & Hunter

CH-WTH24V — 24V
Product specifications
Brand Cooper & Hunter
Type Thermostat
$279.00
Shipping calculated at checkout.

Pickup available at 3550 Northwest 113th Court

Usually ready in 2-4 days

  • Product Overview

    The CH-WTH24V is a sleek, modern thermostat designed for seamless control of compatible Cooper & Hunter systems and many standard 24V HVAC systems. It offers advanced scheduling, intuitive controls, and a clear touch display for efficient, user-friendly climate management.

    Key Features

    • Compatible with all Cooper & Hunter 454B indoor units (excluding wall-mounted models)

    • Supports C&H 410A Multi-Position Air Handlers

    • Works with various third-party 24V systems

    • Energy-saving operation with UL Listing

    • Clean, modern interface with backlit LCD screen

    Display & Controls

    • 3.95" full-color LCD touchscreen (480×480 resolution)

    • Displays indoor temperature and humidity (built-in sensor)

    • Weekly schedule timer with up to 4 programmable periods per day

    • Adjustable fan speed & energy-saving modes

    • Error code and status display for easier servicing

    • Delay function: extend operation by 1–2 hours for overtime needs

    Functions & Modes

    • Operating Modes: Auto / Cool / Dry / Heat / Fan

    • Fan Speeds: Auto / Low / Medium / High

    • Timer ON/OFF (12-hour & 24-hour format)

    • Auto airflow test, rotation & backup functions

    • Dual/group control support; child lock

    • Auto-restart after power failure

    • Select models support louver swing, Turbo mode, and individual louver control

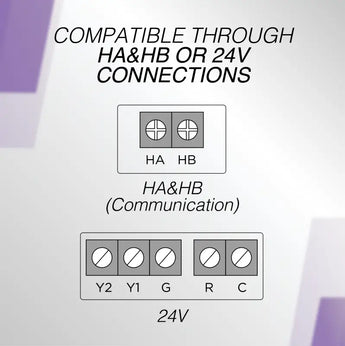

    Wiring & Compatibility

    Connection Terminals:

    Mode Terminals Description
    HA&HB HA, HB For direct C&H interface
    24V Y2, Y1, G, R, C Standard thermostat wiring

    App Connectivity

    Control remotely with the Cooper & Hunter Remote App:

    • iOS & Android compatible

    • Scan QR codes on the product sheet or search for:
      “Cooper&Hunter Remote App”

    Specifications

    Feature Details
    Model CH-WTH24V
    Display 3.95" LCD touchscreen, 480×480
    Power Supply 24V (from indoor unit/control circuit)
    Temperature Range 62–86 °F
    Dimensions (H × W) 3.95" × 3.95"

    Why Professionals Prefer It

    Installers appreciate its clean design and intuitive controls. The readable LCD screen, built-in diagnostics, and scheduling functionality make it ideal for both residential and light commercial settings.

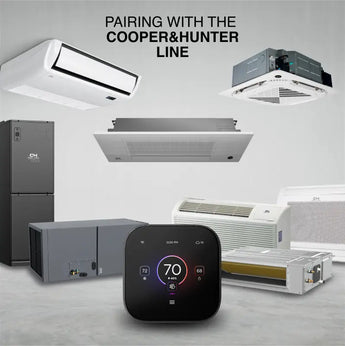

    Ideal Applications

    Perfect for use with:

    • Cooper & Hunter Ceiling Cassettes

    • Slim Duct systems

    • Universal Floor/Ceiling units

    • Floor Console units
